- Designed for conducted emission test setups.
- Couples RF noise from the EUT onto the test line.
- Decouples mains interference from the measurement.
- Improves accuracy and repeatability of emission measurements.
- Rugged, reliable construction for lab and field use.
- Compatible with standard conducted emission measurement systems.

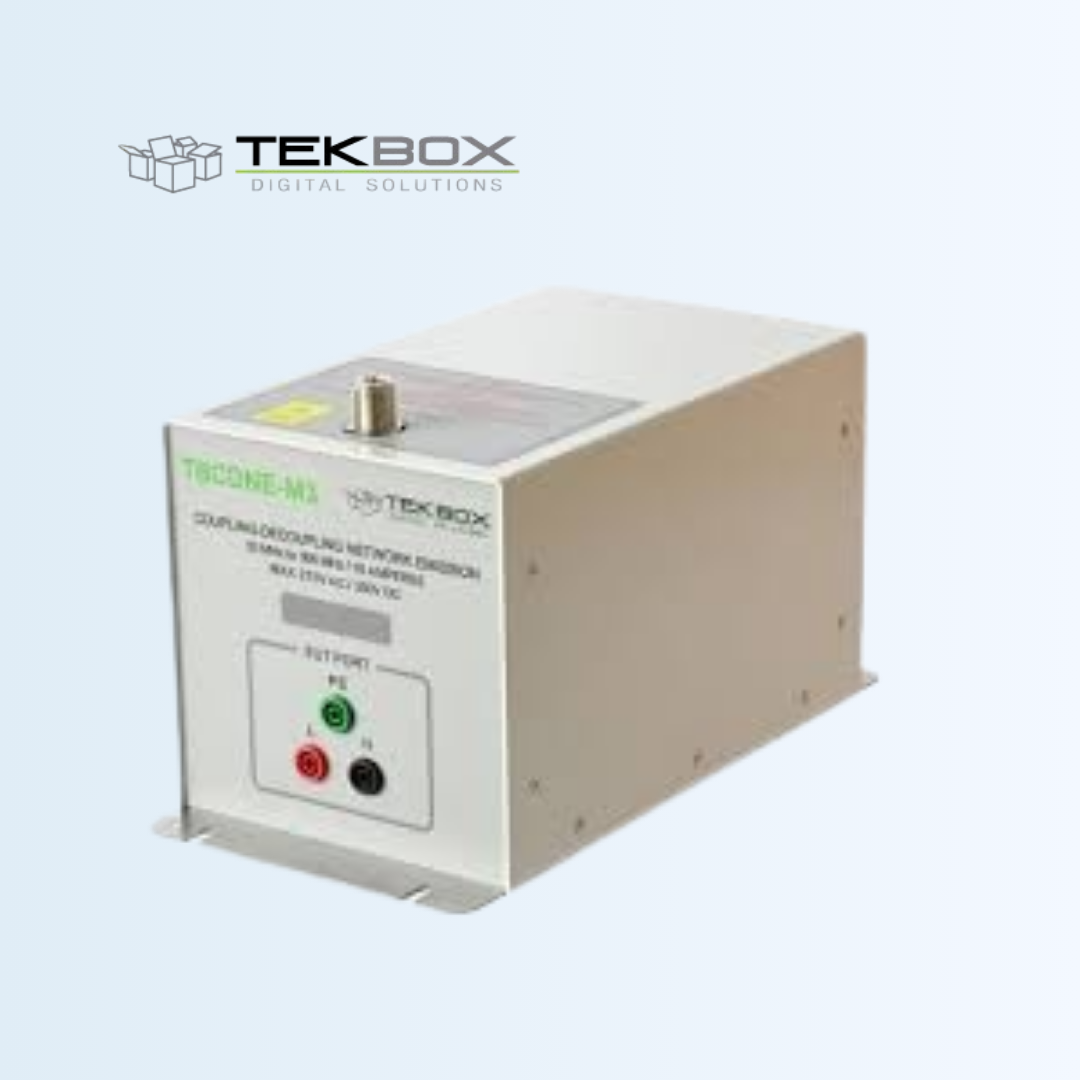

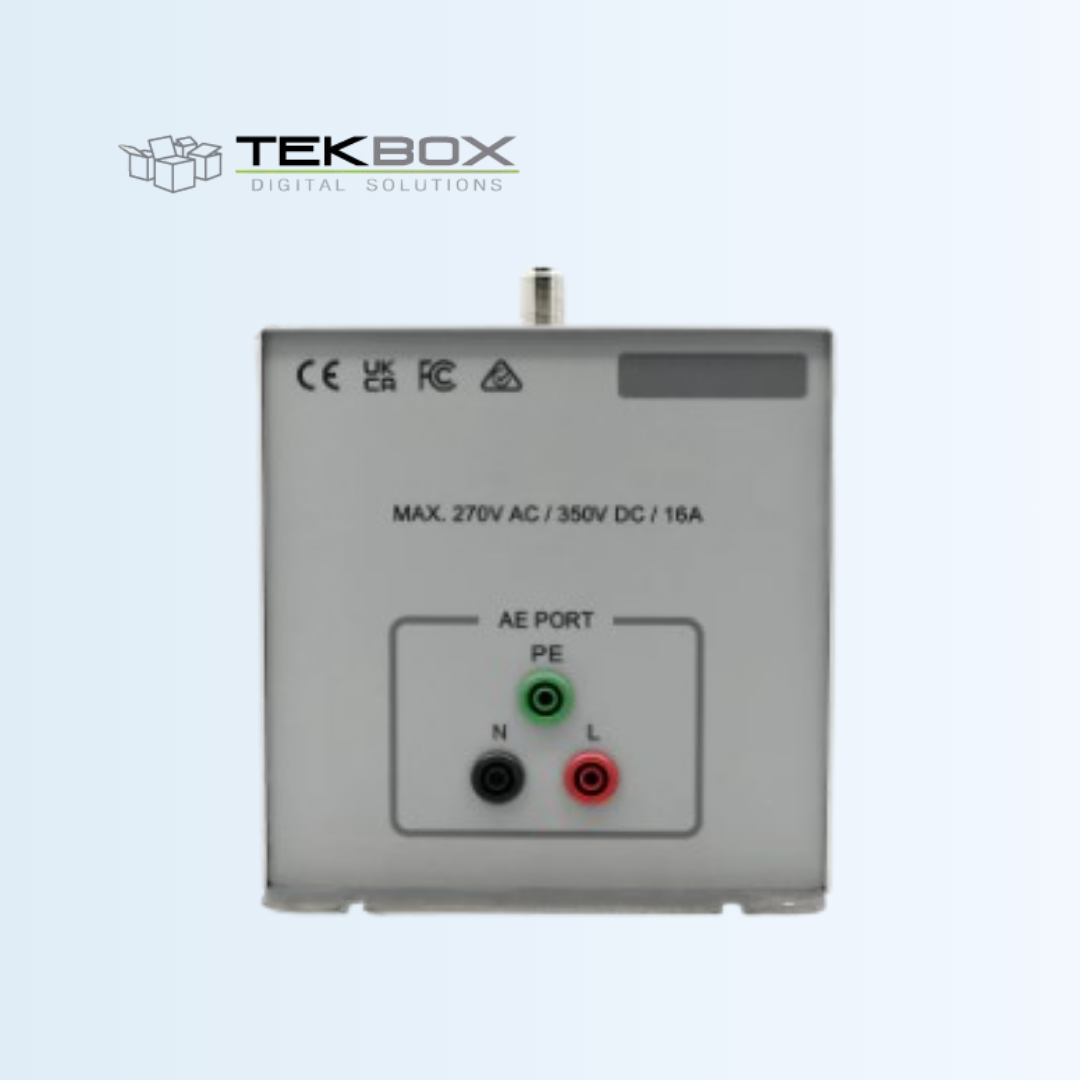

TBCDNE-M3
Coupling Decoupling Networks Emission
The TBCDNE-M3 Coupling / Decoupling Network – Emission is an EMC accessory designed to support conducted emission measurements by providing a controlled path to couple noise from the Equipment Under Test (EUT) onto power or signal lines while isolating interference from external mains sources. This ensures that the measured emissions reflect only the EUT’s characteristics, improving the accuracy and repeatability of conducted emission testing.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Compliance | CISPR 15 (IEC / EN 55015) Edition 9, CISPR 16-1-2, CISPR 16-2-1 |
| Maximum supply voltage | 300V AC, 600V DC |
| Maximum current | 16A |
| Frequency range | 30 MHz – 300 MHz |
| Common mode impedance | 150 Ω +10 / – 20 Ω (EUT port) |
| Phase response | 0° ± 25° (EUT port) |
| Differential mode impedance | 100 Ω ± 20 Ω (EUT port) |
| Voltage Division Factor | 20 dB ± 1.5 dB (EUT to RF output) |
| AE to EUT decoupling | > 30 dB |
| AE to RF output decoupling | > 30 dB |
| RF output connector | N – female |
| EUT / AE connectors | 4 mm banana safety jacks, 4 mm slots in base plate for GND connection |
| Housing material | powder coated aluminium, stainless steel base plate |
| Dimensions | 300 x 150 x 150 mm |
| Weight | ca. 2.5 kg |
| Included | NIST traceable calibration data |
| Optional accessories | Adapter panel with shorting bar and N-connector. 50 Ω to 150 Ω adapter panel for VDF measurement / calibration. OSL adapters for common mode impedance measurement / calibration. Balun and OSL adapters for differential mode impedance measurement / calibration |
