- Designed for conducted immunity test setups.
- Provides RF coupling to EUT power input.
- Offers decoupling to isolate the mains / power supply.
- Rugged and reliable housing for lab and field use.
- Compatible with standard RF immunity test systems.
- Helps ensure repeatable and accurate conducted RF immunity testing.

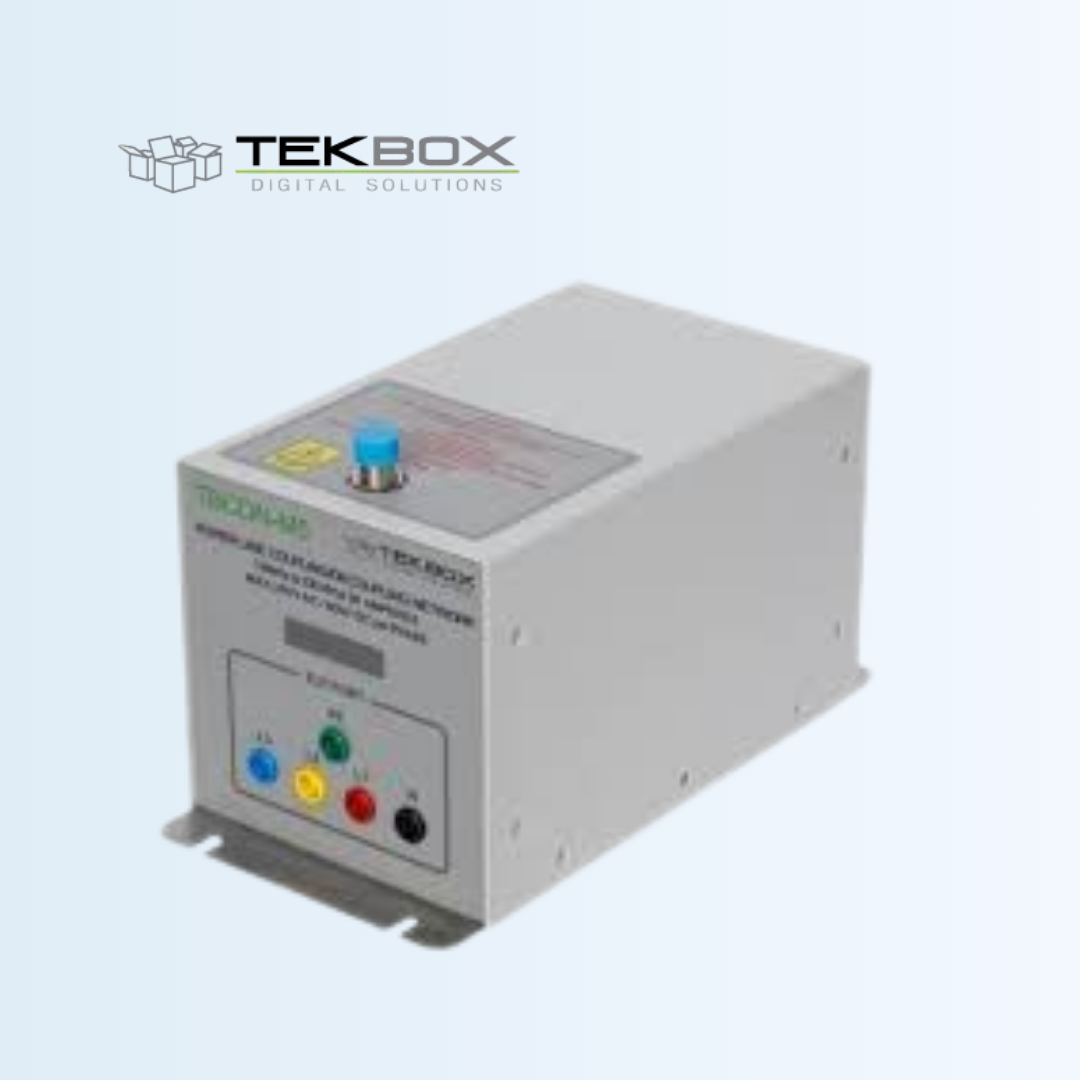

TBCDN-M5
Coupling Decoupling Networks M5
The TBCDN-M5 Coupling / Decoupling Network (M5) is an EMC test accessory engineered for conducted immunity testing. It enables RF disturbance signals to be injected into the Equipment Under Test (EUT) while isolating and protecting the mains power source or supply from the injected RF energy. By ensuring that test disturbances are directed correctly into the EUT and not into the power grid, the M5 network helps achieve accurate and repeatable EMC immunity measurements according to standardized test procedures.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Maximum supply voltage | 300V AC, 600V DC |
| Maximum current | 36A |
| Frequency range | 150 kHz – 230 MHz |
| Maximum RF input power | 6.5W CW |
| Maximum RF input voltage | 32 V |
| RF input connector | N – female |

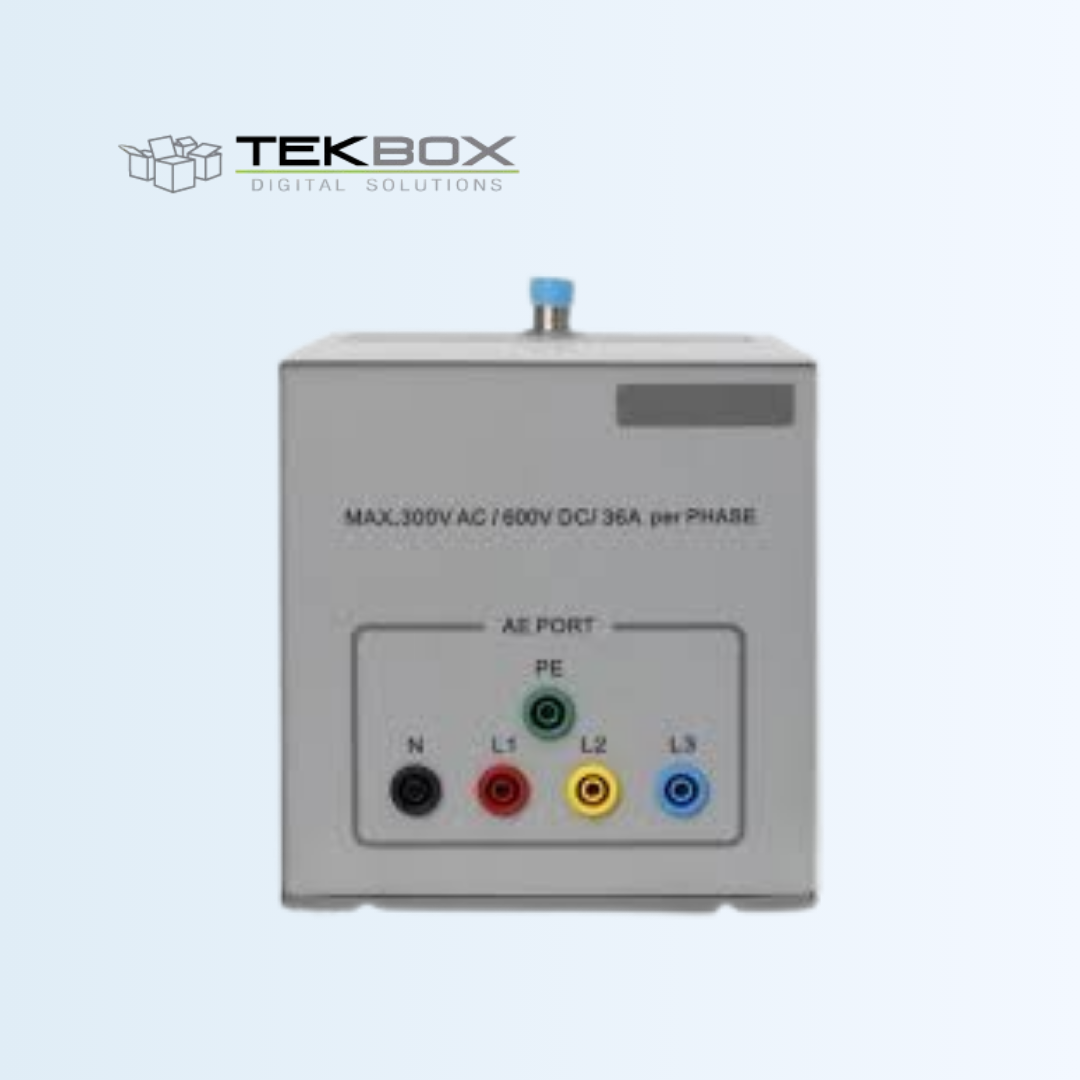

| EUT / AE connectors | 4 mm banana safety jacks, 4mm slots in base plate for GND connection |
| Housing material | powder coated aluminium, stainless steel base plate |
| Dimensions | 300 x 150 x 150 mm |
| Weight | ca. 2.5 kg |
