- Transmit loop antenna optimized for generating low-frequency magnetic fields.
- Stable and repeatable performance for EMC measurements.
- Rugged construction for reliable lab and field use.
- Compatible with EMC test equipment and signal sources.
- Ideal for low-frequency radiated emission and immunity testing.
TBRS101-RX
Field Monitoring Loop Technical specifications

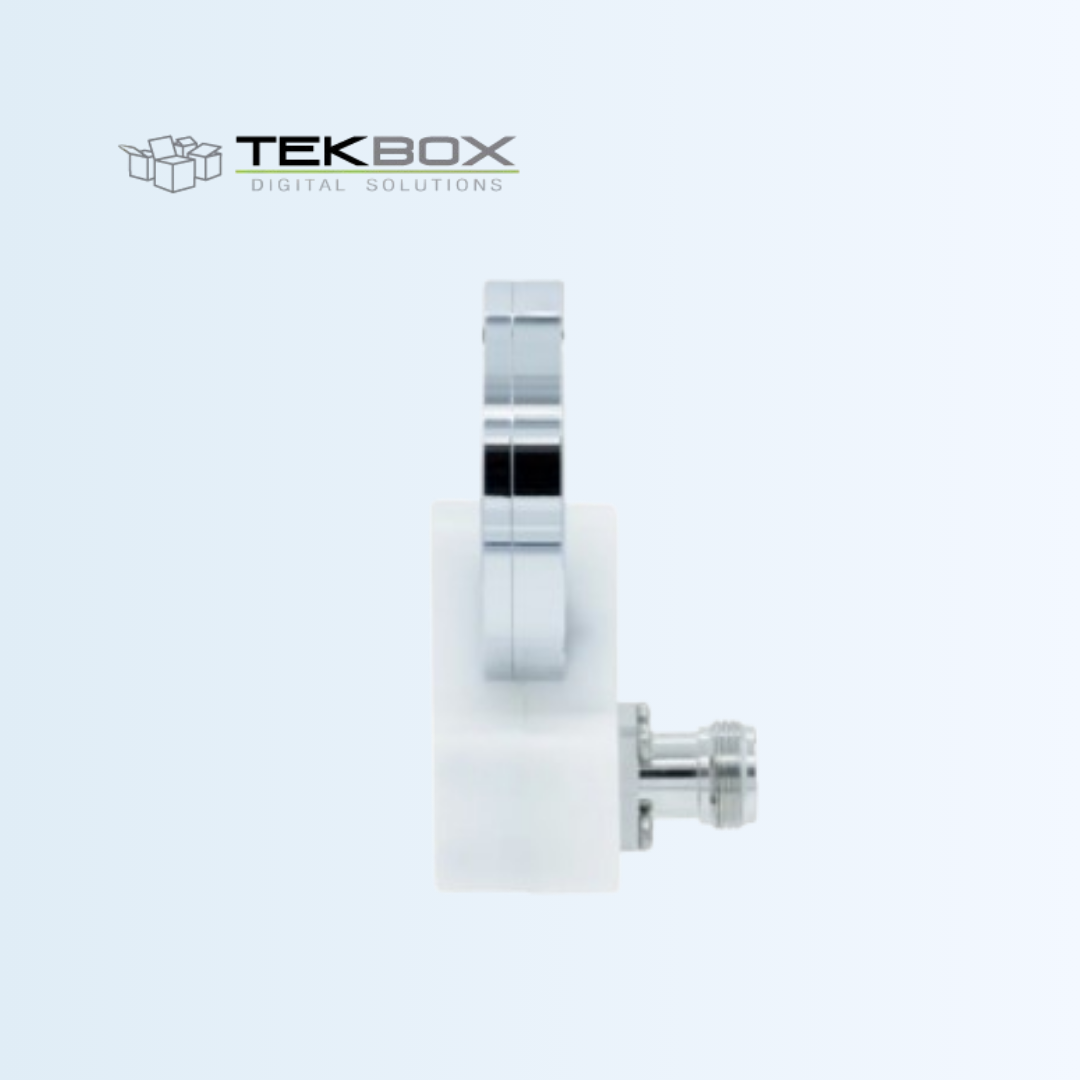

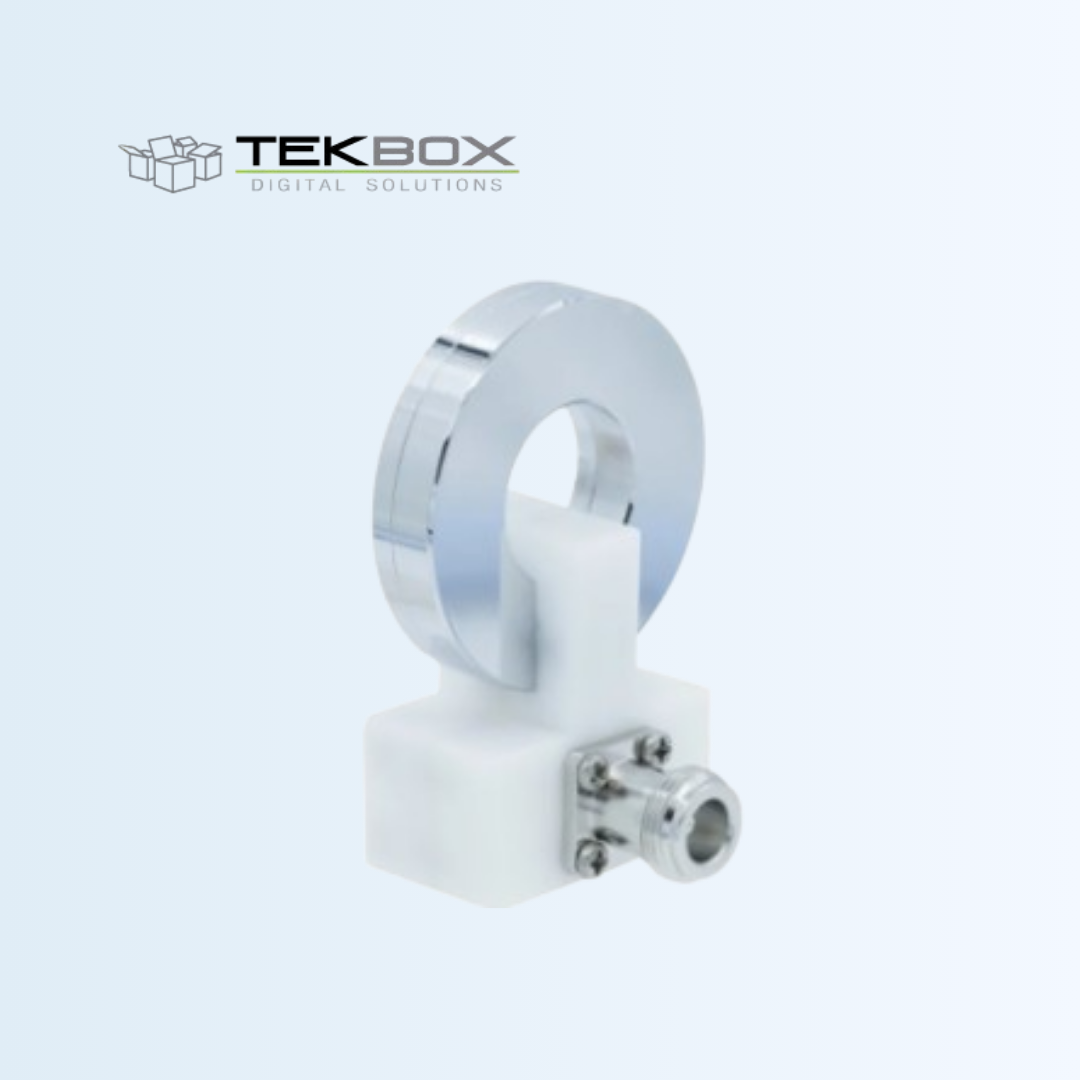

The TBRS101-RX Field Monitoring Loop consists of a 4.1 cm diameter coil with 51 turns of 7 strand 41 AWG Litz wire inside a shielded body. The DC resistance of the loop winding is 4.1 ohms. The loop receives magnetic field radiation normal to the containing plane 5cm from the TBRS101-TX Radiating Loop winding and produces a voltage signal proportional to the intensity of the B-field/H-field radiation at the loop’s output port.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Type | Passive Monitoring Loop Antenna |
| Frequency range | 30 Hz–100 KHz |
| Standards | MIL-STD-461G / RS101 |
| Loop Diameter | 4.1cm |
| Loop construction | 51 turns of 7 strand 41 AWG Litz wire |
| DC resistance of the loop coil | 4.1 Ω (Nominal) |
| Self inductance of the loop coil | 180 µH |
| Output connector | N-female, 50 Ω |
| Antenna conversion factor | Within ±3 dB compared to the theoretical validation factor for |
| Mechanical Dimensions | L x W x H: 4.37 cm x 5.42 cm x 7.92 cm (1.72” x 2.13” x 3.12”) |
| Weight | 0.1 kg (0.22 lbs) |
