- Type: Radiating Loop Antenna
- Frequency range: 30 Hz–100 KHz
- Standards: MIL-STD-461G / RS101
- Loop Diameter: 12cm
- Loop construction: 20 turns of 12 AWG Gauge 2mm copper wire
- DC resistance of the loop coil: 50 mΩ (Nominal)
- Self inductance of the loop coil: 90 µH
- Input connector: Male banana plugs
- Mechanical Dimensions (No mounting pole): L x W x H: 8.2 cm x 15.2 cm x 15.2 cm (3.23” x 5.98” x 5.98”)
- Mechanical Dimensions (mounting pole): L x W x H: 38 cm x 15.2 cm x 15.2 cm (14.96” x 5.98” x 5.98”)
- Weight: 0.5 kg (1.1 lbs)

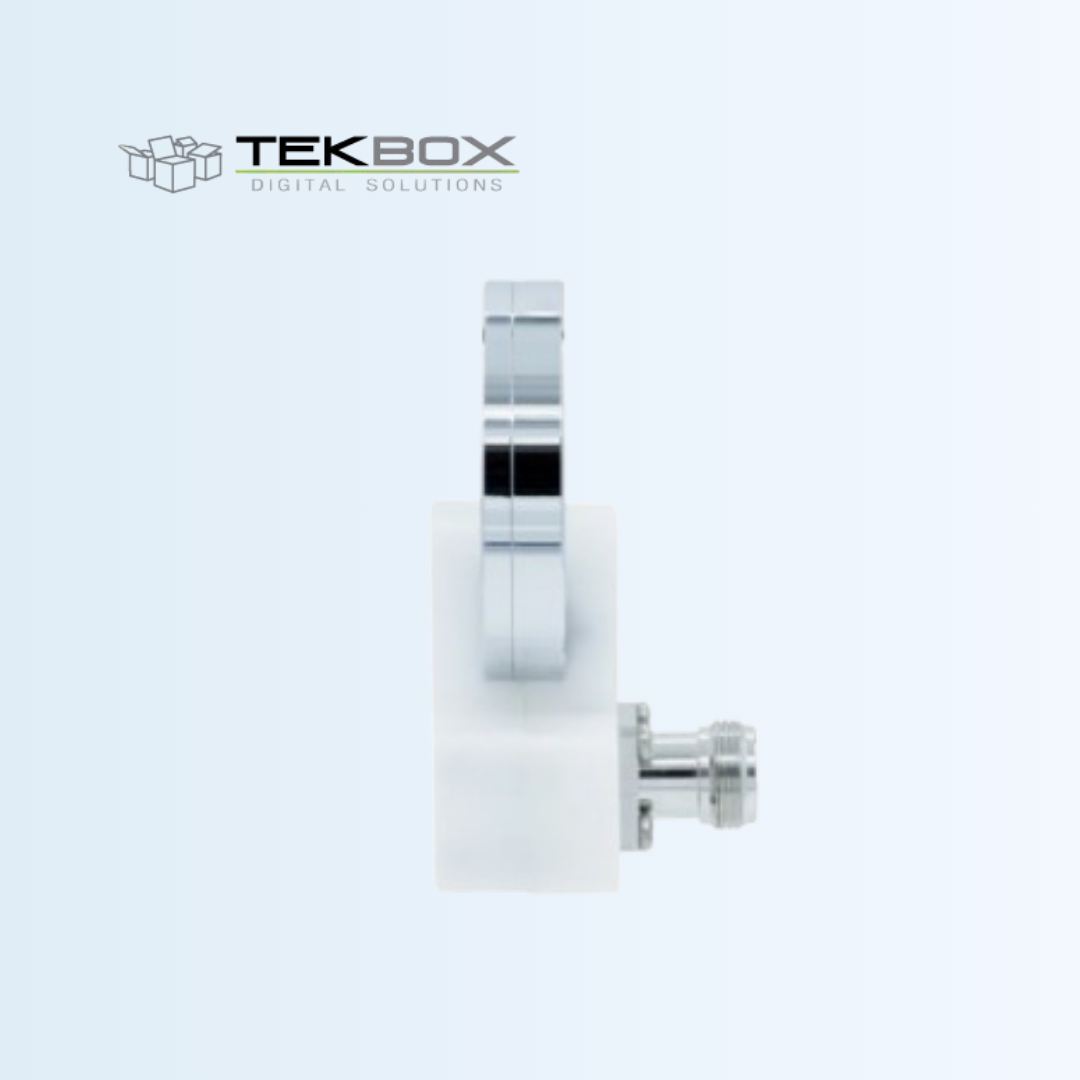

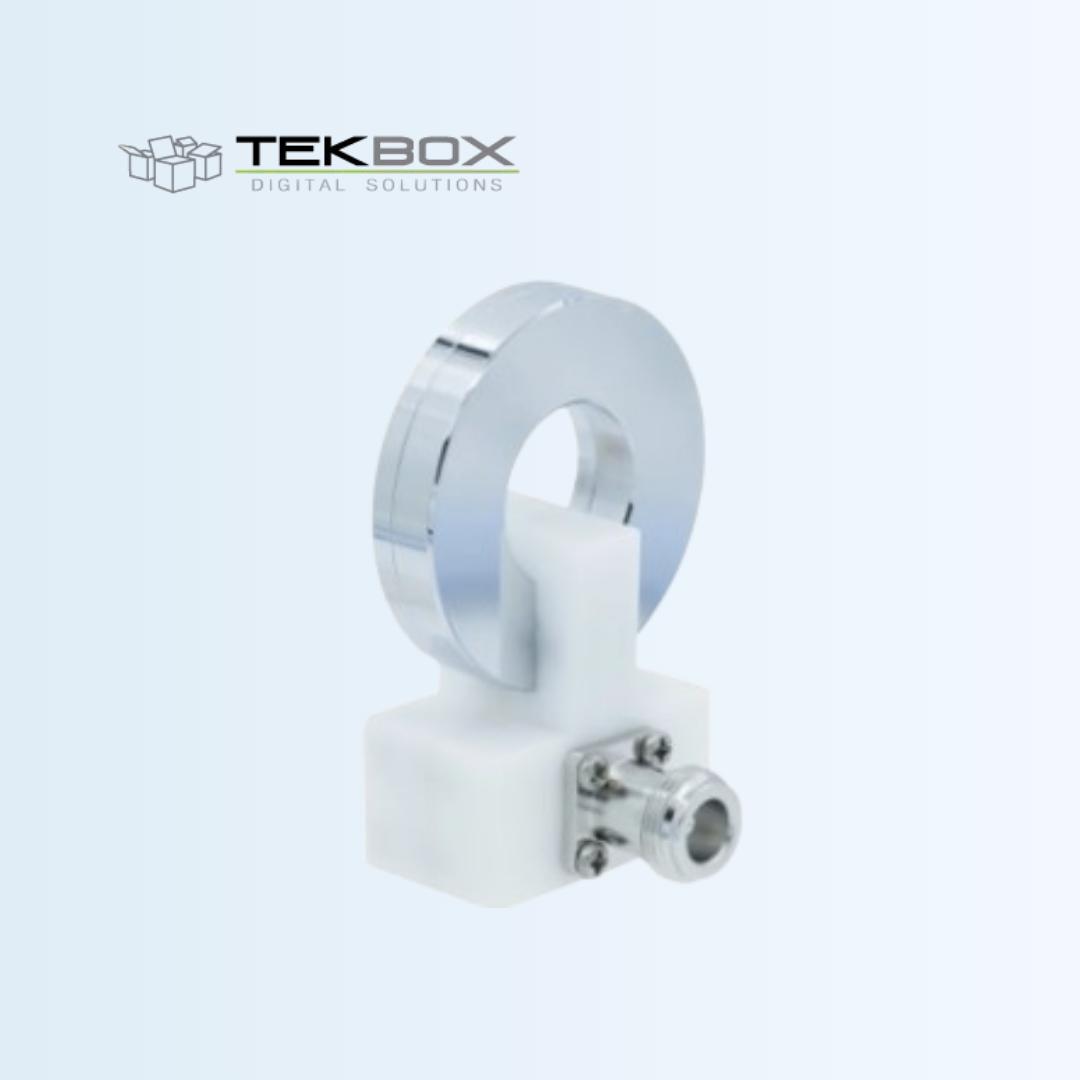

TBRS101-TX
Radiating Loop Technical specifications
The TBRS101-TX Radiating Loop is used to generate the low frequency magnetic field emissions. The distance between the winding and EUT is 5 cm. This is accomplished when the front edge of the the radiating loop comes into contact with the EUT faces during testing. The test is applicable in the frequency range of 30 Hz to 100 KHz. Section 5.20 of MIL-STD-461G specifies the test setup and measuring procedures.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Outer dimensions | 204 cm x 104 cm x 100 cm (104 cm x 101 cm x 204 cm) |
| Opening dimensions | 130 cm x 46 cm (65 cm x 180 cm) |
| Frame | 20 mm x 20mm extruded aluminium profiles |
| Shielding | 2 layers of conductive fabrics |
| Suspension | Velcro straps |
| Filter panel | 1 x 240V/10A AC filter; C19 socket |
| Internal AC Socket | pigtail cable with detachable female Schuko + country specific AC cables with C13 connector |
| Attenuation | ~50 dB in the range 10 MHz to 6 GHz, see chapter 3 |
| Weight | 17kg + 3kg (packaging) |
