- Fixed 32 mm aperture RF current monitoring probe.
- Non-intrusive measurement of conducted RF currents.
- Flat and stable transfer impedance over frequency.
- Suitable for EMC pre-compliance and diagnostics.
- Wide frequency coverage up to 1 GHz (model dependent).
- Robust design for laboratory and field use.
TBCP4-500
Fixed Aperture RF Current Monitoring Probes

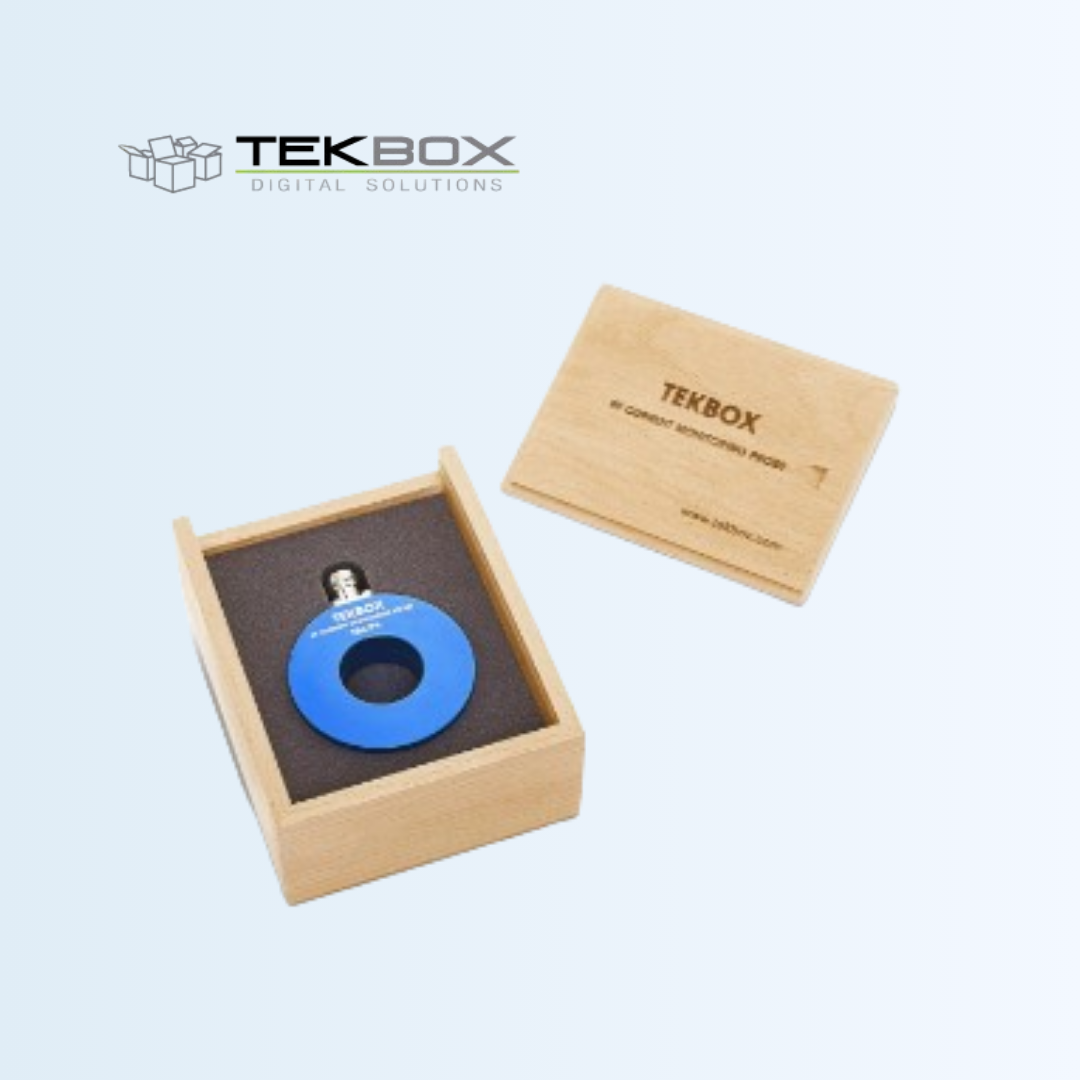

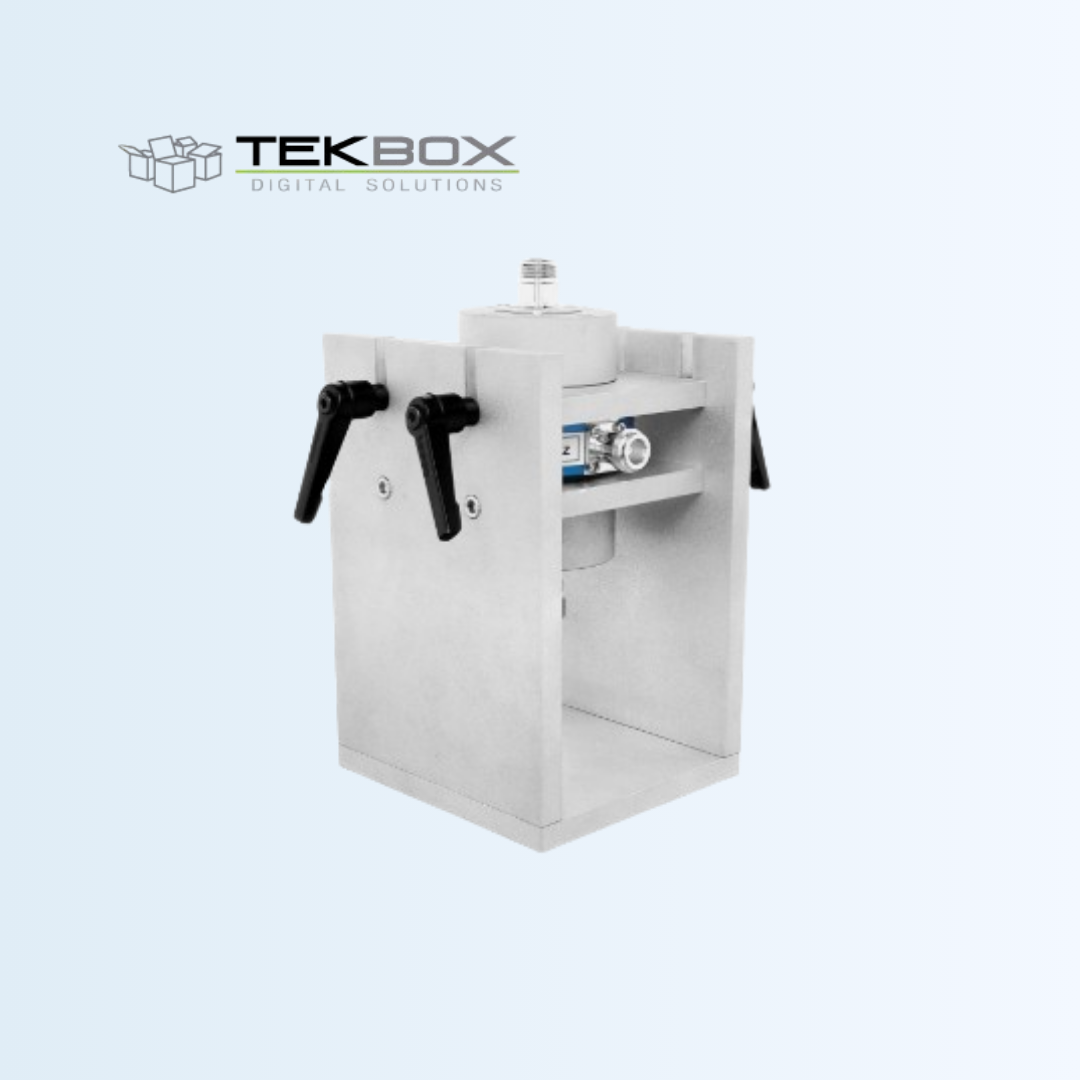

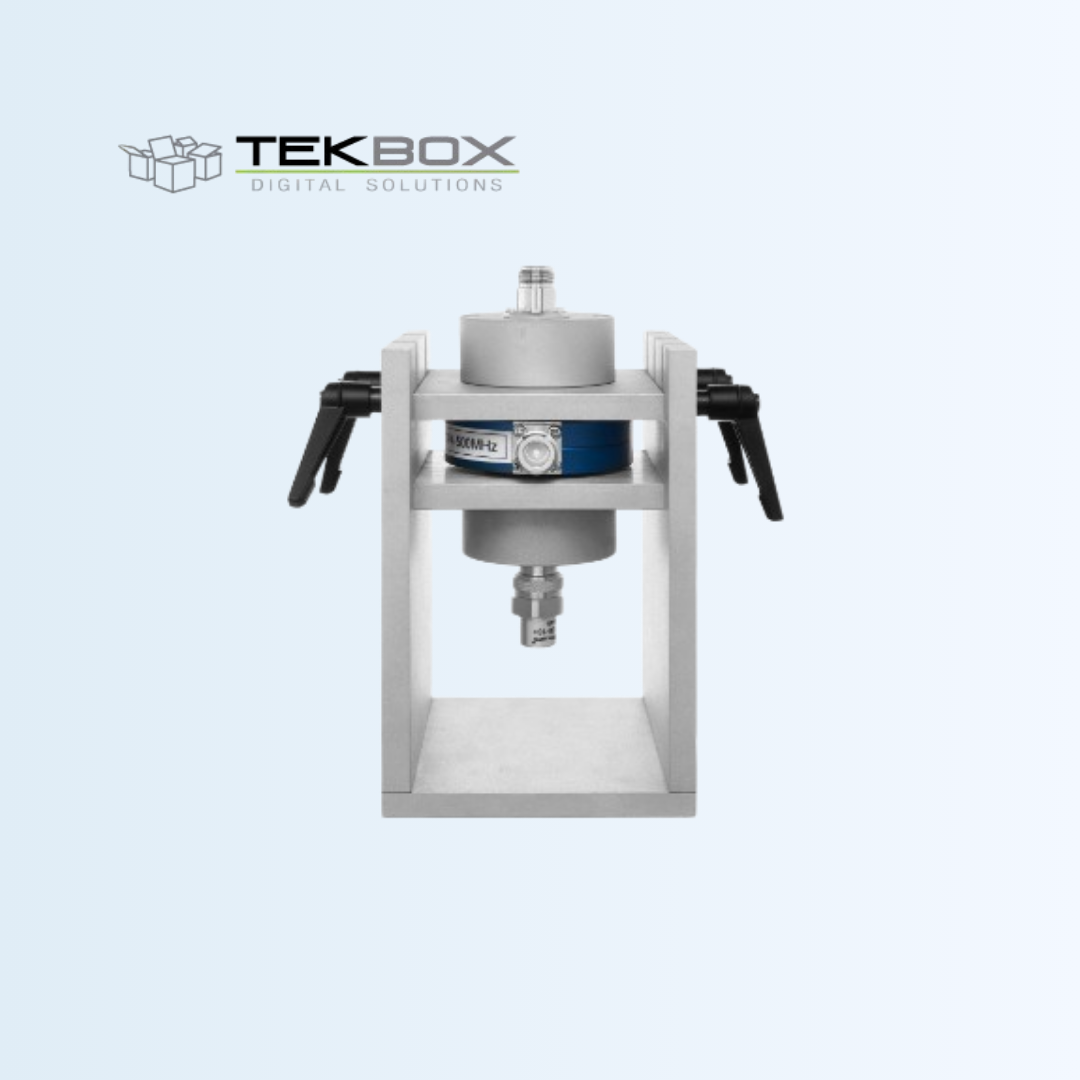

The TBCP4-500 is a fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 1 kHz to 600 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 16 dB Ohm in the flat region, with a 3 dB bandwidth of 400 kHz to 500 MHz.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 1 kHz to 600 MHz |
| Aperture diameter | 32 mm |
| Outside diameter | 73 mm |
| Height | 20 mm |
| Weight | 320 g |
| Connector type | N female |
| Transfer impedance | 16 dBΩ in the flat region, typ. |
| 3 dB bandwidth | 400 kHz – 500 MHz, typ. |
| Max. primary current (DC – 400 Hz) | 80 A |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
