TBCP4-250
Fixed Aperture RF Current Monitoring Probes

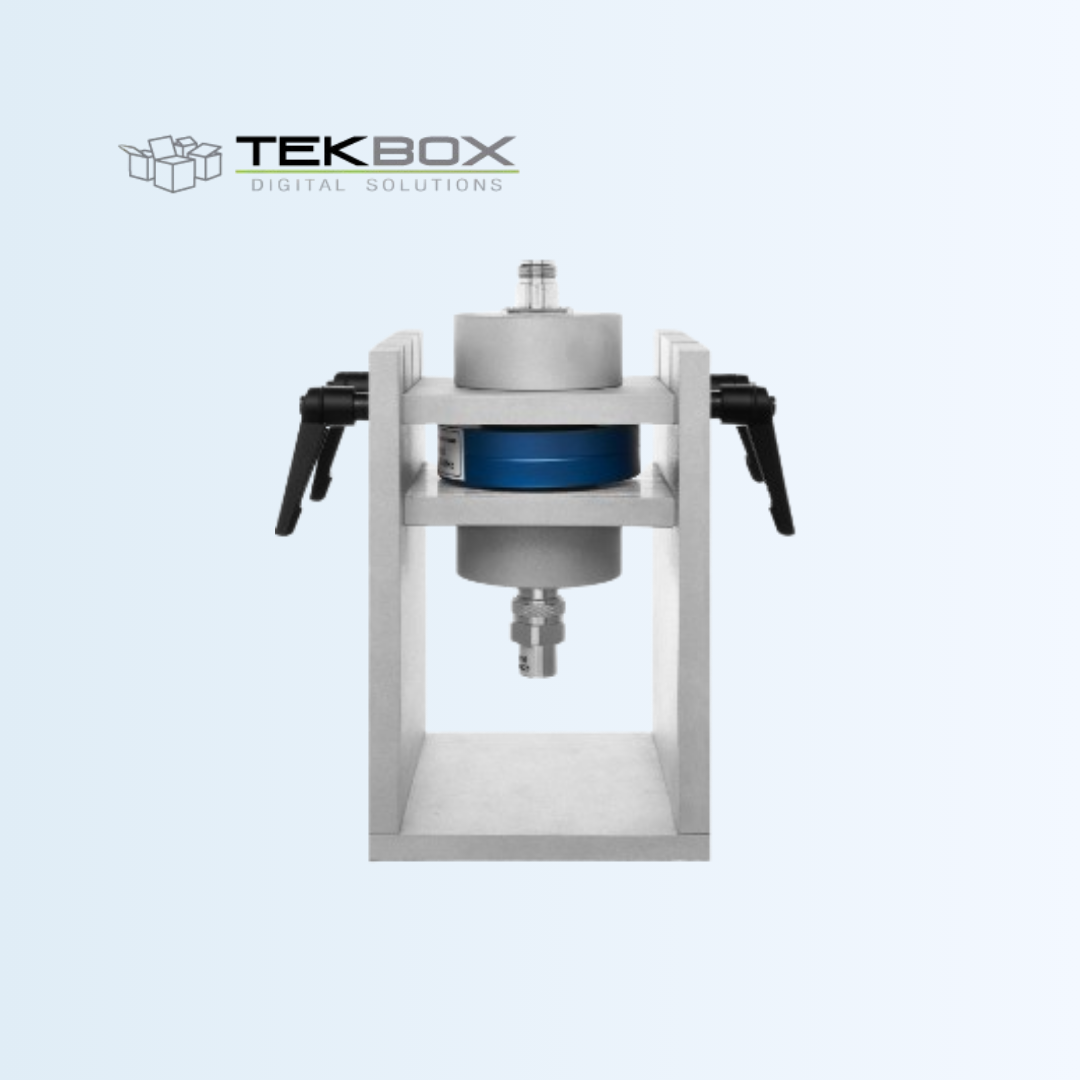

The TBCP4-250 is a fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 300 MHz and is characterized and usable over the frequency range from 1 kHz to 400 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 13 dB Ohm in the flat region, with a typical 3 dB bandwidth of 200 kHz to 300 MHz.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 1 kHz to 400 MHz |
| Aperture diameter | 32 mm |
| Outside diameter | 73 mm |
| Height | 20 mm |
| Weight | 320 g |
| Connector type | N female |
| Transfer impedance | 14 dBΩ in the flat region, typ. |
| 3 dB bandwidth | 200 kHz – 300 MHz, typ. |
| Max. primary current (DC – 400 Hz) | 80 A |
| Max. primary current (RF) | 3 A |
| Max. core temperature | 125 °C |
