- Snap-on design.
- Easy and fast installation.
- Non-intrusive conducted emission current measurement.
- Suitable alternative or complement to LISNs.
- Ideal for EMC diagnostics and troubleshooting.
- Fixed-aperture and snap-on versions available.
- Individually characterized trans-impedance.

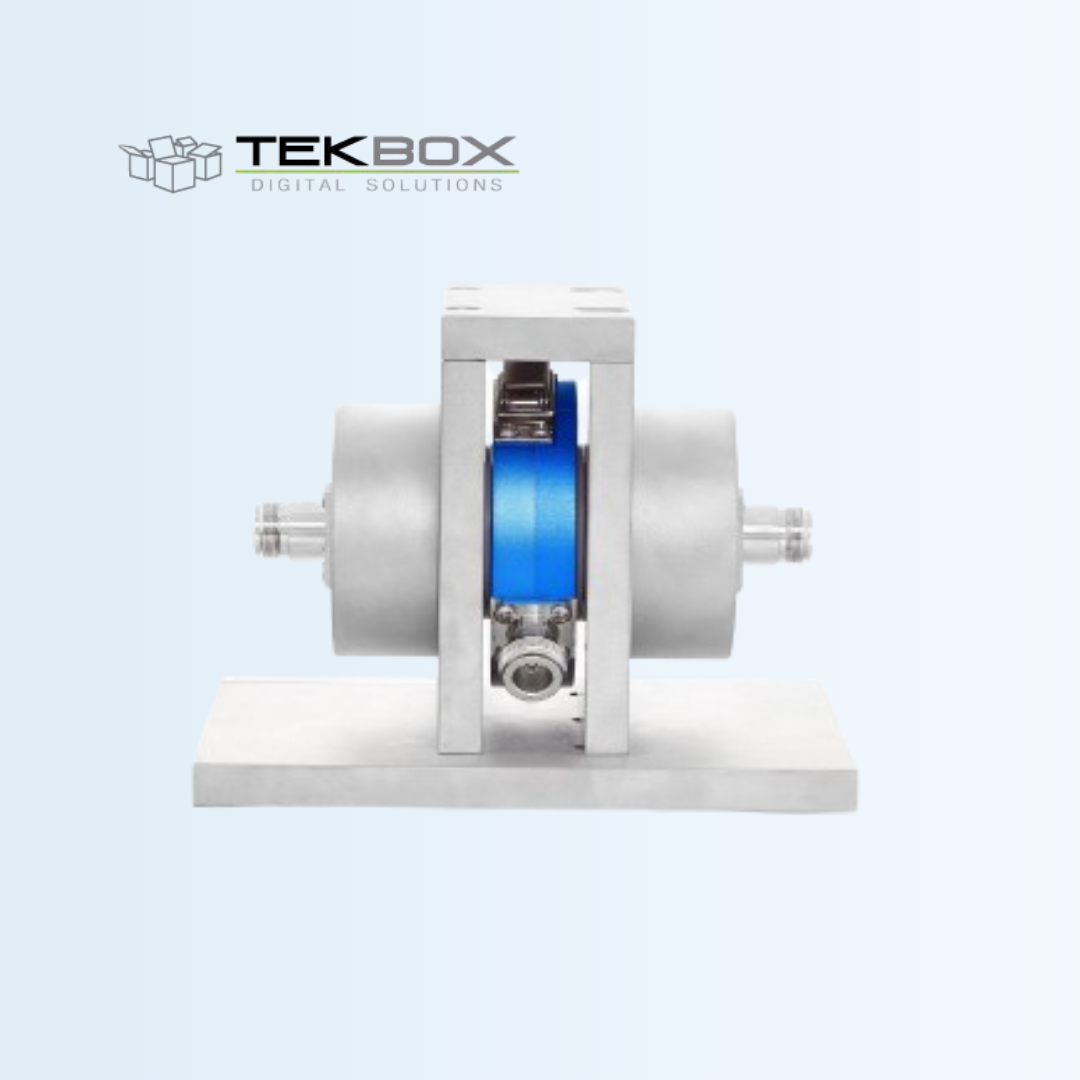

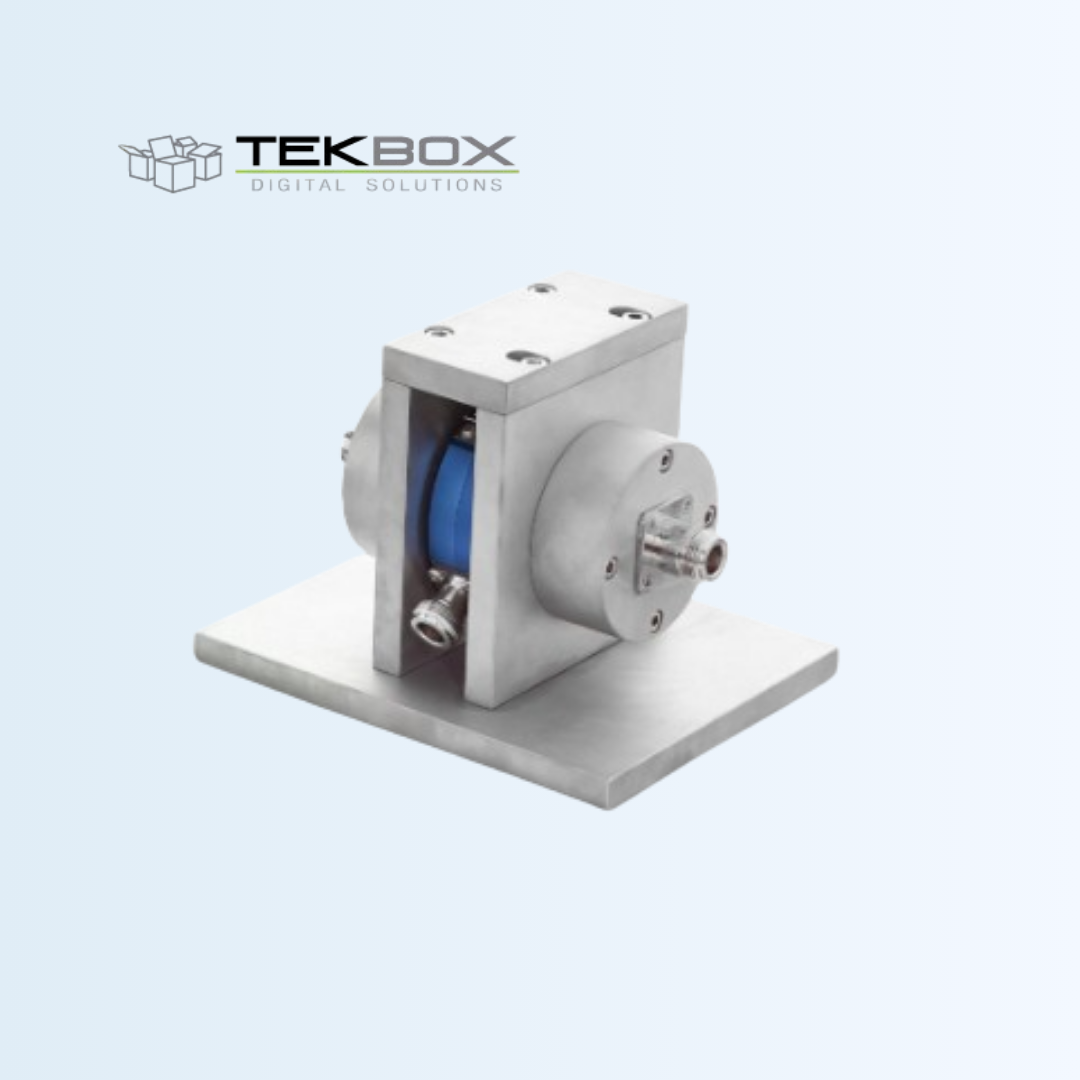

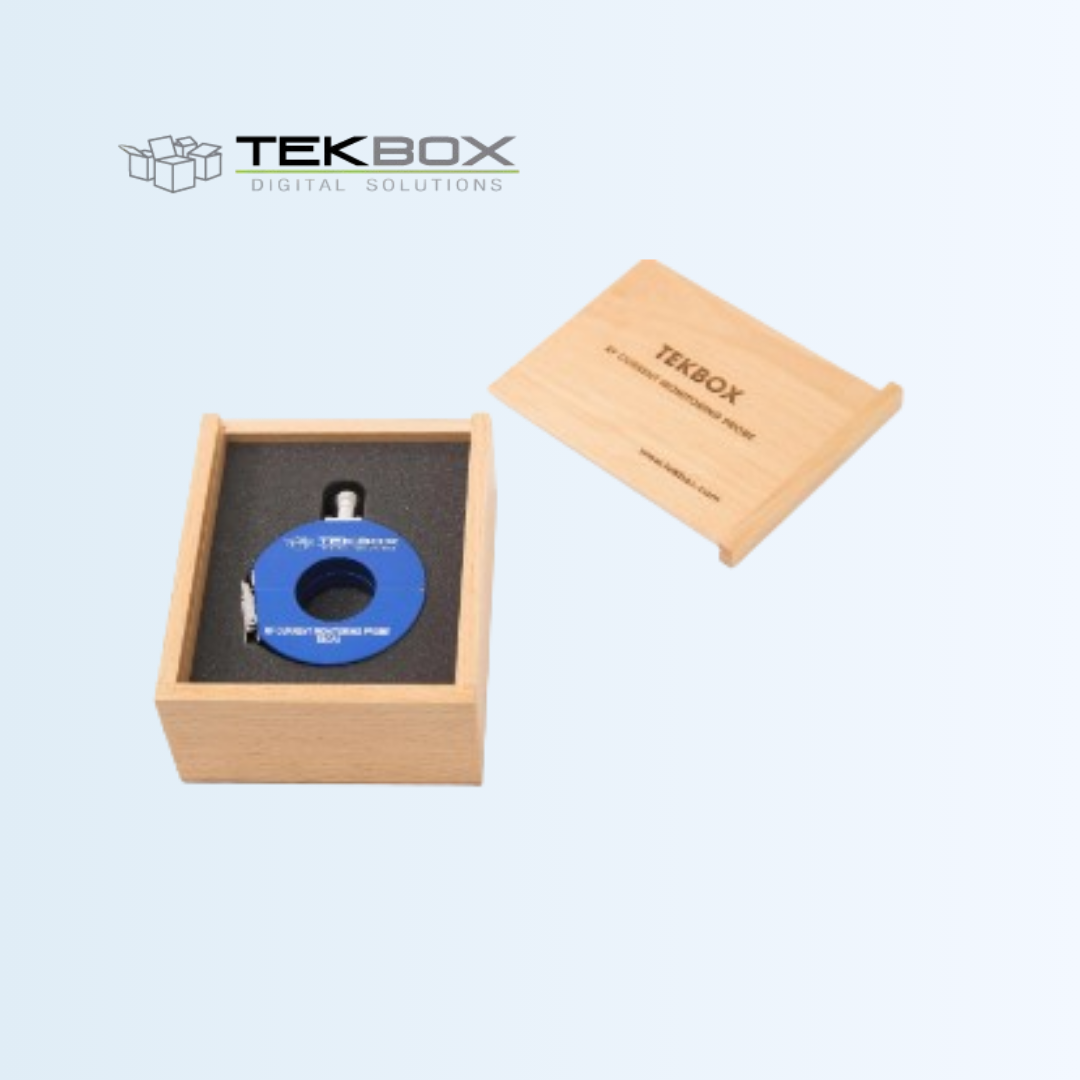

TBCP2-1M800
Snap On RF Current Monitoring Probes
The TBCP2-1M800 is a snap-on RF current monitoring probe, expanding the Tekbox product range of affordable test equipment. The probe is characterized over the frequency range from 10 kHz to 1 GHz. It has a typical transfer impedance of 0 dBΩ and a 3dB bandwidth from 1 MHz – 800 MHz. The TBCP2-1M800 can handle currents up to 400 A from DC to 400 Hz without affecting transfer impedance.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 10 kHz to 1 GHz |
| 3dB bandwidth | 1 MHz – 800 MHz, typ. |
| Transfer impedance | 0 dBΩ, 1 V/A, typ. |
| Max. primary current (DC – 400Hz) | 400A, see graph in chapter 5 |
| Max. primary current (RF) | 10 A |
| Max. pulse current | 400 A |
| Current-time product | 0.001 As |
| Max. core temperature | 125 °C |
| Connector type | N female |
| Aperture diameter | 32 mm |
| Outside diameter | 73 mm |
| Height | 20 mm |
| Weight | 320 g |
