- Easy to handle thanks to the low weight of the handle and antenna.
- Convenient direction finding thanks to unique operating buttons already in the antenna handle.
- Flexibility thanks to plug-in system for quick antenna changes (including third-party providers).
- Time-saving thanks to automatic detection of the antenna in the receiver (SignalShark / IDA 2).
- User-friendly and precise thanks to integrated 3D compass Compass and preamplifier.
- High sensitivity down to -170dBm.
Manual Antennas
Direction Finder

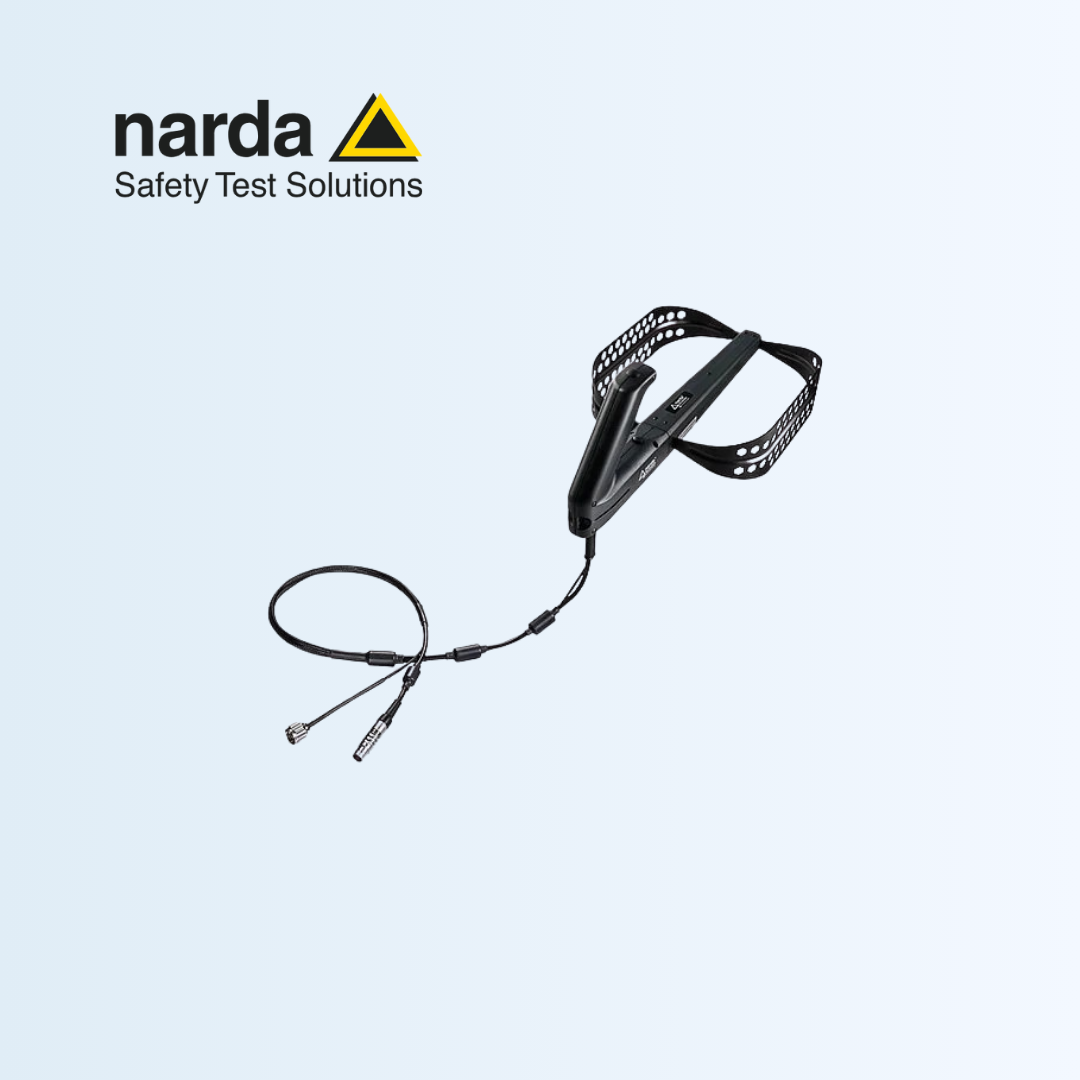

Narda Manual Antennas are lightweight, handheld directional antennas designed for efficient RF signal detection and localization when used with receivers such as SignalShark or IDA2. They feature an ergonomic handle with integrated controls, automatic antenna recognition, and a built-in 3D compass and preamplifier to ensure accurate direction finding even for very weak signals. Powered directly via the connection cable and supporting fast antenna changes, they are ideal for manual direction finding in buildings, complex environments, and close-range interference hunting across a wide frequency range.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Product Type | Manual directional antennas for RF signal detection & direction finding with SignalShark / IDA2 |
| Purpose | Quick detection and localization of RF signals (“last mile”) in building/field environments |
| Plug-In System | Simple and fast antenna swapping (supports third-party antennas) |
| Power | Powered via the receiver cable — no additional batteries needed |
| Loop Antenna | 8 kHz – 30 MHz |
| Directional Antenna 1 | 20 MHz – 250 MHz |
| Directional Antenna 2 | 200 MHz – 500 MHz |
| Directional Antenna 3 | 400 MHz – 8 GHz |
