- Precise direction finding of signals from 10 MHz to 8 GHz.
- Fast direction finding cycle of 1.2 ms, ideal even for very short signals.
- Time-saving and easy to install and align.
- Precise direction finding results thanks to the integration of several antenna elements.
- Exact localization through additional vertical signal detection (elevation).

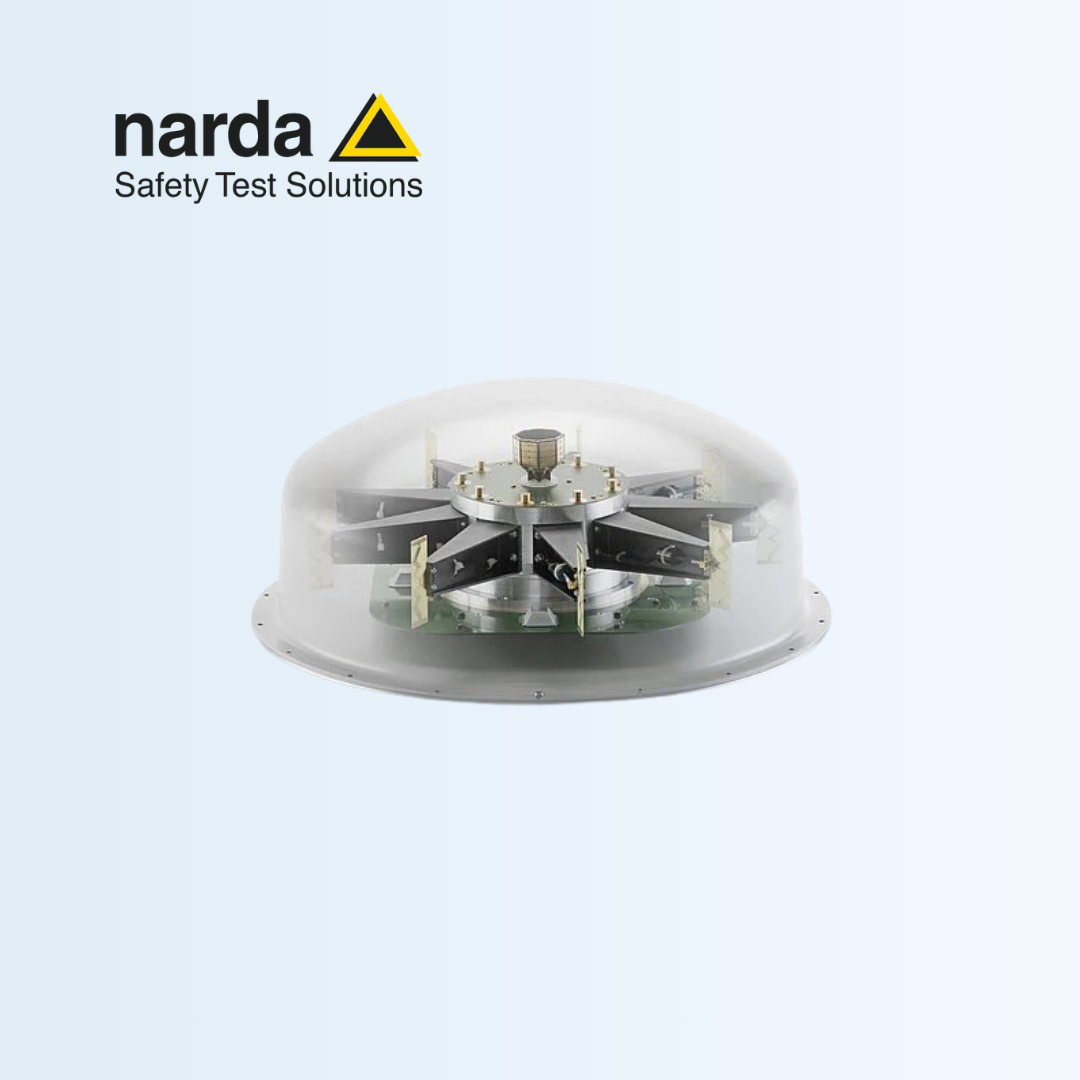

Automatic antenna ADFA
Direction Finder
The high-performance Automatic Direction Finding Antenna (ADFA), in conjunction with the SignalShark, is a uniquely compact and cost-effective solution for many applications: whether for frequency band management, interference detection, border monitoring or much more.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Type | Automatic Direction Finding Antenna (for use with SignalShark) |
| Frequency Range | 10 MHz – 8 GHz |
| Direction Finding Cycle | 1.2 ms (fast detection) |
| Bearing Method | Correlative interferometer + Watson-Watt for low bands |
| Horizontal & Vertical Bearings | Yes (azimuth + elevation) |
| Integrated Modules | Electronic compass + GNSS receiver (with antenna & PPS output) |
| Antenna Elements | Multiple dipole arrays + central reference antenna |
| Diameter | ~480 mm |
| Mounting | Stand / mast / tripod / magnetic base (vehicle roof) |
| Weight (typical) | ~6.5 kg (with array) |
| Used for | Precise signal direction finding and localization with SignalShark |
