- Rated power of 20 kW in 3U
- Maximum operating voltage of 1500 V
- Operating modes: CC, CR, CV, CP
- Up to 25 units (500 kW) can be operated in parallel *Please contact us if you wish to operate more than 10 units in parallel.
- Equipped with a touch panel display
- Pre-charge function
- I-V characteristic function
- Sequence function LAN, USB, RS232C, external analog control (isolated type) as standard *GPIB optional
- Regenerative efficiency of over 90% (on-site regeneration)

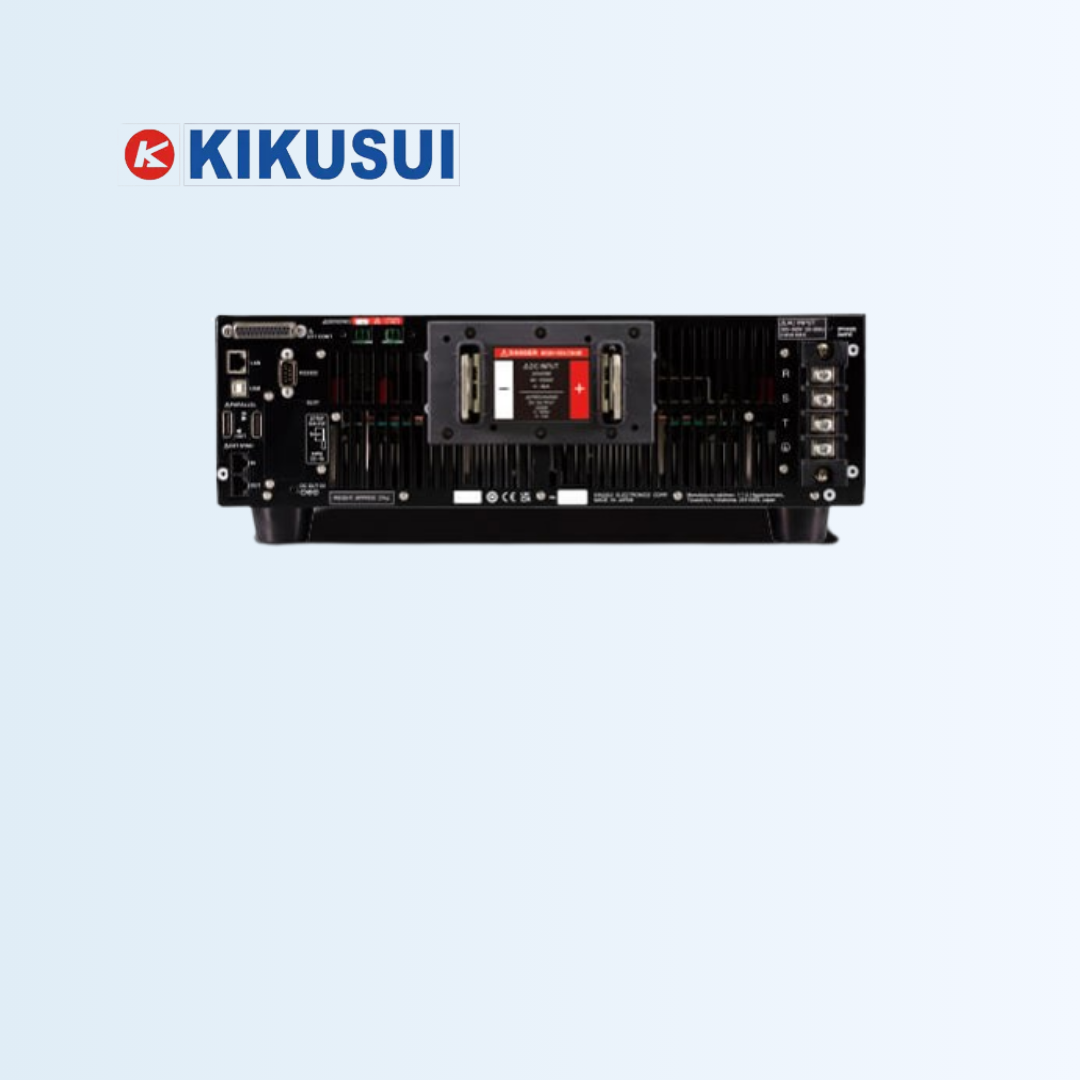

PXZ Series
High-Capacity Regenerative Electronic Loads
The PXZ series of highly efficient, reliable, high-capacity regenerative electronic loads has a rated power of 20 kW in 3U. In addition to the constant-current, constant-resistance, constant-voltage, and constant-power operating modes, this series has an I-V characteristic function that allows the user to set arbitrary I-V characteristics for each CC and CV operating mode. The series is also equipped with various functions, such as sequence, pre-charge, synchronous operation, pulse, sine, and VMCB functions. LAN, USB, and RS232C communication functions are included as standard, allowing easy integration into various evaluation systems. The PXZ series is highly scalable, and its capacity can be increased up to 500 kW when operating in parallel (up to 25 units).
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| PZ220X-500 | Rated Power: 20 kW, DC Operating Voltage 10 V to 500 VDC Rated Current: 120 A |
| Input Current (AC 200 V 3-phase / 400 V 3-phase) | 80 / 40 A |
| Weight | ≈ 396 kg / 873 lbs |
| Rated Power | 20 kW |
| DC Operating Voltage | 20 V to 1000 V |
| DC Rated Current | 60 A |
| Input Current (AC 200 V 3-phase / 400 V 3-phase) | 80 / 40 A |
| Weight | ≈ 378 kg / 857 lbs |
| Rated Power | 20 kW |
| DC Operating Voltage | 30 V to 1500 V |
| DC Rated Current | 30 A |
| Input Current (AC 200 V 3-phase / 400 V 3-phase) | 80 / 40 A |
| Weight | ≈ 378 kg / 857 lbs |
