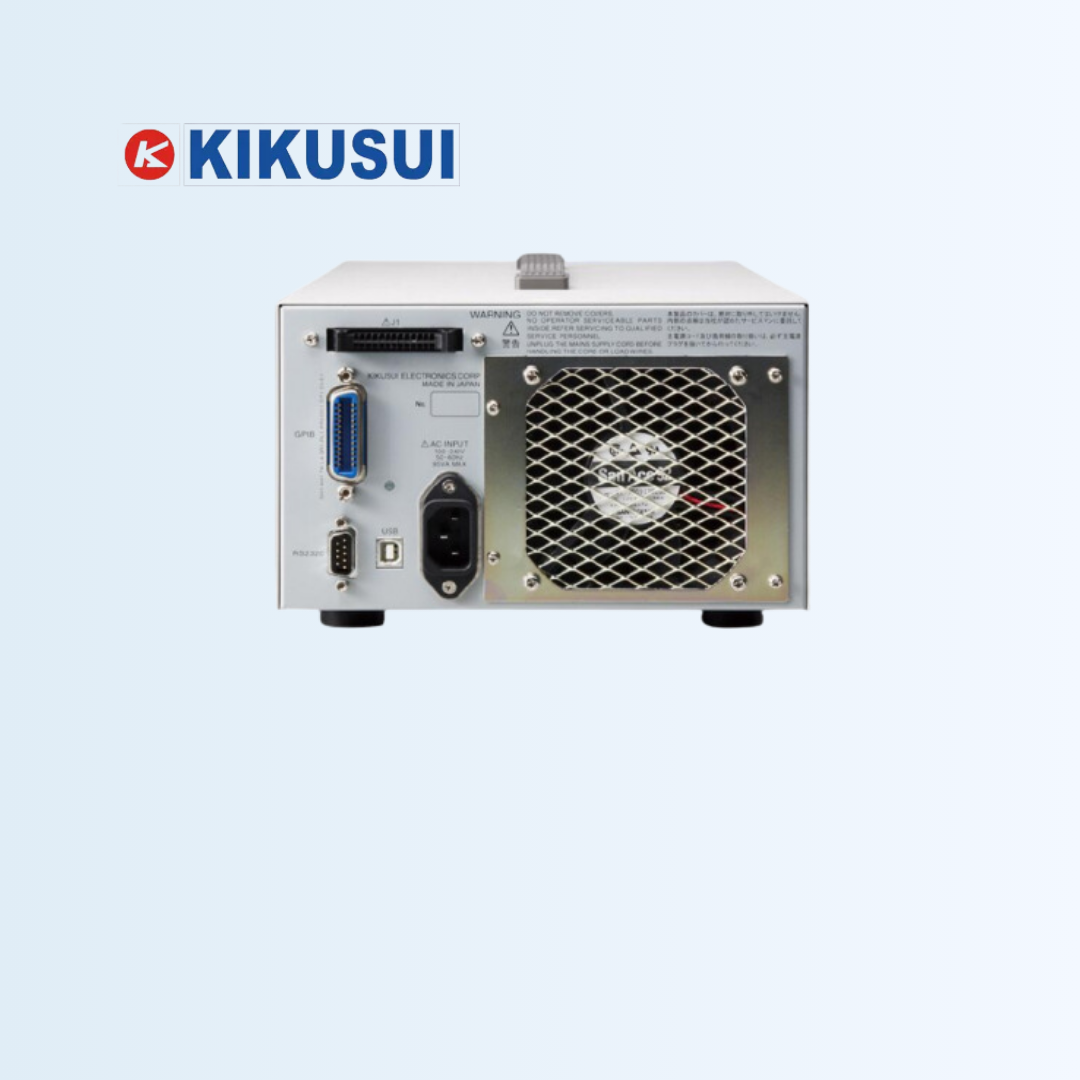

PLZ-4WL Series

High Speed-Large Current DC Electronic Load (CC/CV/CR/CP) 2 Models

While the PLZ-4WL series succeeds to the superior operability of our conventional model of the PLZ-4W series, the PLZ-4WL series realizes the high speed rise and fall time (slew rate of 50A/µs.) in the range of low voltage with large current.

Datasheet

Features

Key capabilities and advantages

▼

Test for the Low Voltage Power Supply of the CPU.
Discharge test for the large current rechargeable battery.
IV characteristic test of the solar battery.
Test for the relays, switches.
Convenient feature for the discharge testing.
Fast Slew rate, and operation mode.
Sequence function, and external analog control.
Absorbing the surge of brushless motor.
Test for the prearcing time-current characteristic.
Realizing the low voltage operation
Accurate low-rate discharge by the Low-range (1/100).
Impedance test for the various type of rechargeable batteries, power supplies.

Specification

Technical specifications and parameters

▼

PLZ164WL	DC Electronic Load (E-Load), 0.3 to 30V, 50A, 160W , Rise time: 2 µ s (which converts to rise and fall times) high-speed response, Possible to perform actual Load simulation by sequence control function, Equipped with USB (Supplied as standard).
PLZ334WL	DC Electronic Load (E-Load), 0.3 to 30V, 100A, 330W , Rise time: 2 µ s (which converts to rise and fall times) high-speed response, Possible to perform actual Load simulation by sequence control function, Equipped with USB (Supplied as standard).
