- Maximum input load power: 1000W.
- Input voltage range: 14V to 280V(rms).
- Input current range: 0 to 10A(rms).
- Input frequency range: 45 to 65Hz.
- Parallel operation expands the load capacity.
- Up to 5 units can be operated in parallel (Max. 5kW, 50Arms).
- Supports single-phase 3-wire method, 3-phase 3-wire method.
- Equipped with tracking operation function.
- Crest Factor Function [1.4 to 4.0].
.png)

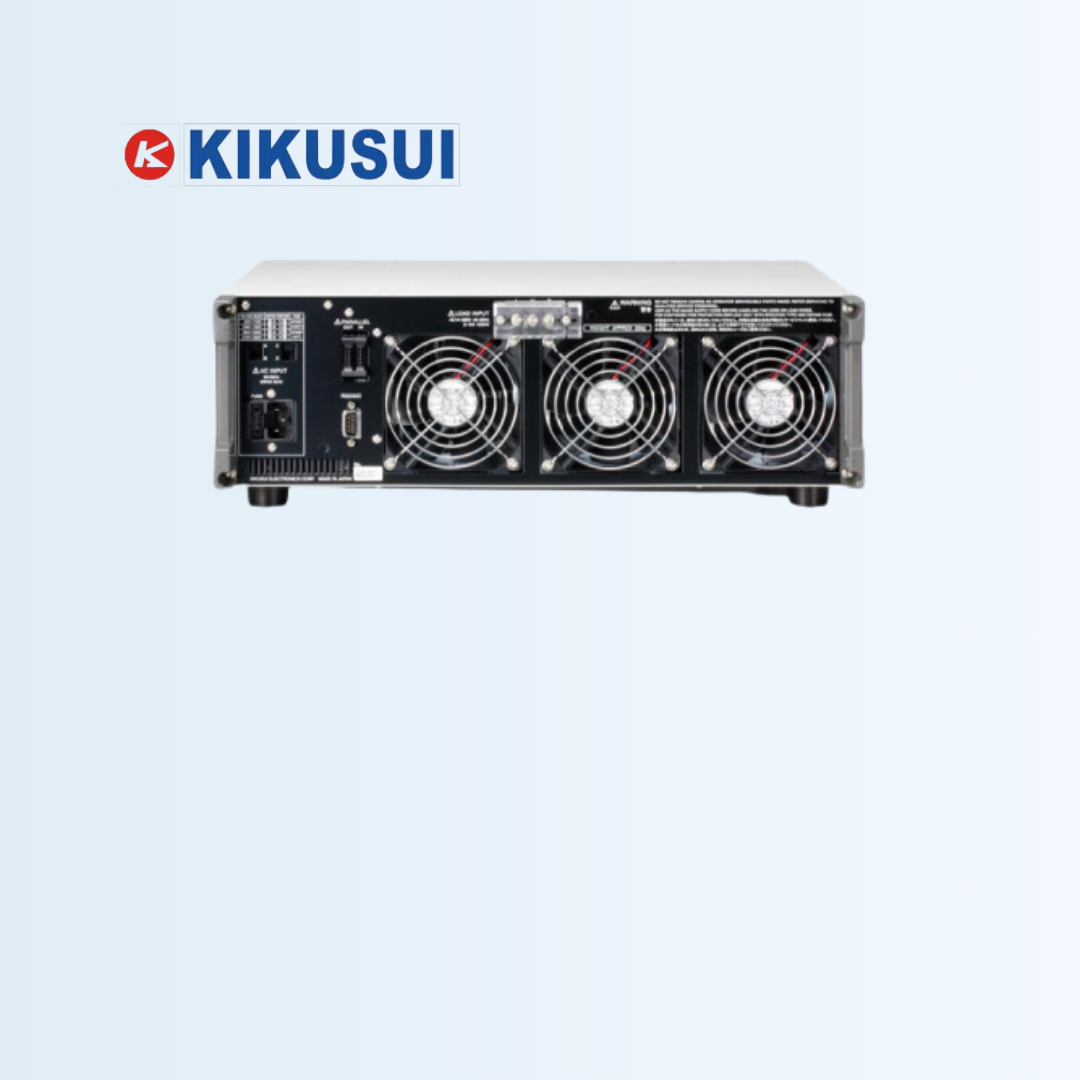

PCZ1000A
AC Electronic Load (CC/CR/CP)
PCZ1000A is an AC electronic load that enables you to perform load simulation for various inverters and transformers. In addition to the resistive loads generally used in tests, it is capable of simulating capacitor-input rectifier loads.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| PCZ1000A | AC Electronic Load (E-Load), Maximum input load power:1000W, Input voltage range: 14V to 280V(rms), Input current range: 0 to 10A(rms), Input frequency range: 45 to 65Hz. |
