- Reference Signal Source for LISNs
- User-Selectable Step Sizes of 10 and 50 kHz
- Usable Frequency Range up to 115 MHz
- Battery Operated
- Three-Year Warranty
CGC-105
Conducted Comb Generator with Step Sizes of 10 and 50 kHz

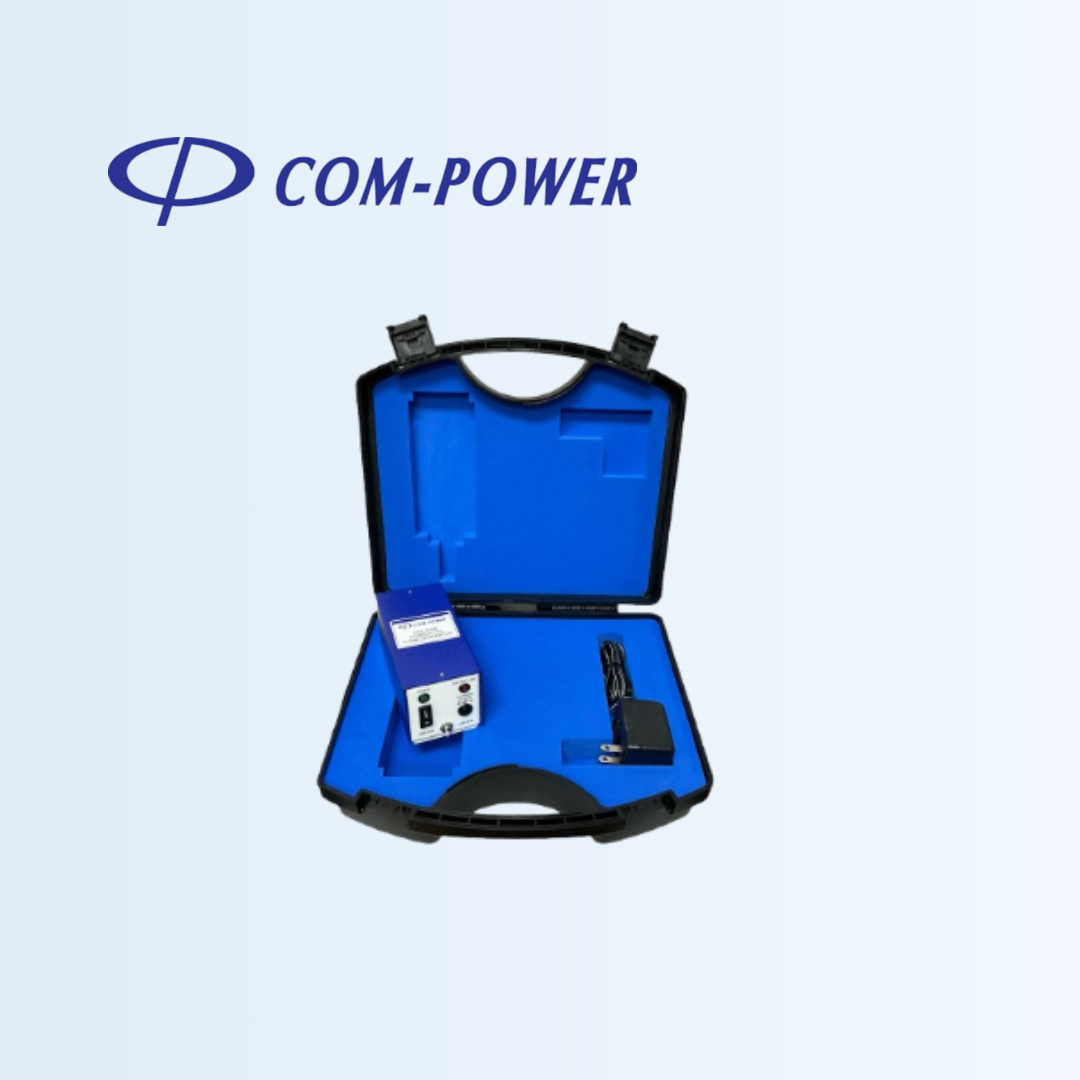

The CGC-105 Conducted Comb Generator is a stable, reference signal source for verifying conducted emissions measurement systems. Its output consists of a fundamental frequency and its harmonics. The generator has a toggle switch for setting the step size, allowing users to select between 10 kHz and 50 kHz frequency steps. The Comb Generator simulates an EUT generating conducted EMI noise. It plugs directly into the LISN’s EUT port. Its high output impedance allows the Comb Generator to be used while the LISN is connected to an external power source. It can also be used with the LISN removed from power.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Product | Conducted Comb Generator |
| Model | CGC-105 |
| Frequency Range | 10 kHz to 115 MHz |
| Frequency Step Size | 10 kHz or 50 kHz (user-selectable) |
| Frequency Stability | 20 ppm |
| Amplitude Stability | ± 0.1 dB |
| Time Stability | <1 dB over 12 months |
| Charger Output | 6 VDC (unregulated), 500 mA |
| Battery Type | 6V NiMH, 1 Ah |
| Typical Operating Time | >23 Hours (with fully charged battery) |
| External Indicators | Battery Low and Power On |
| Dimensions (L x W x H) | 6.5 x 2.3 x 2.4 inches / 165 x 58 x 61 mm |
| Weight | 0.5 lbs / 0.22 kg |
| Accessory Output Adapters | CGC-P25A, CGC-P50A, CGC-P100A, CGC-105P-ADA-CAL, CGC-105P-ADA-USP |
