- Frequency range 150 MHz to 230 MHz
- Meets CISPR 16-1-2 requirements
- USB cables with type A connector
- Individual calibration
- Three Year Warranty
CDN-USB-AE
CDN for USB Type A
The Com-Power CDN-USB-AE is a Coupling/Decoupling Network designed for conducted immunity testing in compliance with IEC/EN 61000-4-6 and CISPR 16-1-2. It is intended for products using USB communication cables, featuring a USB Type A connector on the EUT side and USB Type B on the AE side, with a current handling capability of up to 1 A. The RF disturbance signal is injected through a female BNC port supporting up to 40 V RF input, and the unpainted base ensures effective grounding. Each unit is individually calibrated and can be purchased separately or as part of Com-Power’s CIS series conducted immunity test system.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Product Name | Coupling Decoupling Network (CDN) |
| Compliant Test Standards | IEC / EN 61000-4-6 |
| Application | USB cable with type A connector |
| Frequency Range | 150 kHz to 230 MHz |
| RF Input Voltage | 40 V (Max) |
| RF Input Connector | 50 Ω BNC (Female) |
| Voltage Rating | 30 V AC / 30 V DC (Line to Ground) |
| Current Rating | 1 Amp (Max) |
| AE and EUT Connections | EUT: Type A, AE: Type B |
| 150 kHz - 26 MHz | 150Ω ± 20Ω |
| 26 MHz - 80 MHz | 150Ω + 60Ω / – 45Ω |
| 80 MHz - 230 MHz | 150Ω + 60Ω / – 60Ω |
| Voltage Division Factor | 9.5 dB +2 / -1 |
| Decoupling of Common Mode Disturbance | ≥ 50dB (EUT/AE) |
| Dimensions | 8.5 x 4.5 x 3.5 inches or 21.5 x 11.4 x 8.8 cm |
| Weight | 2 lbs. or 0.9 kg |

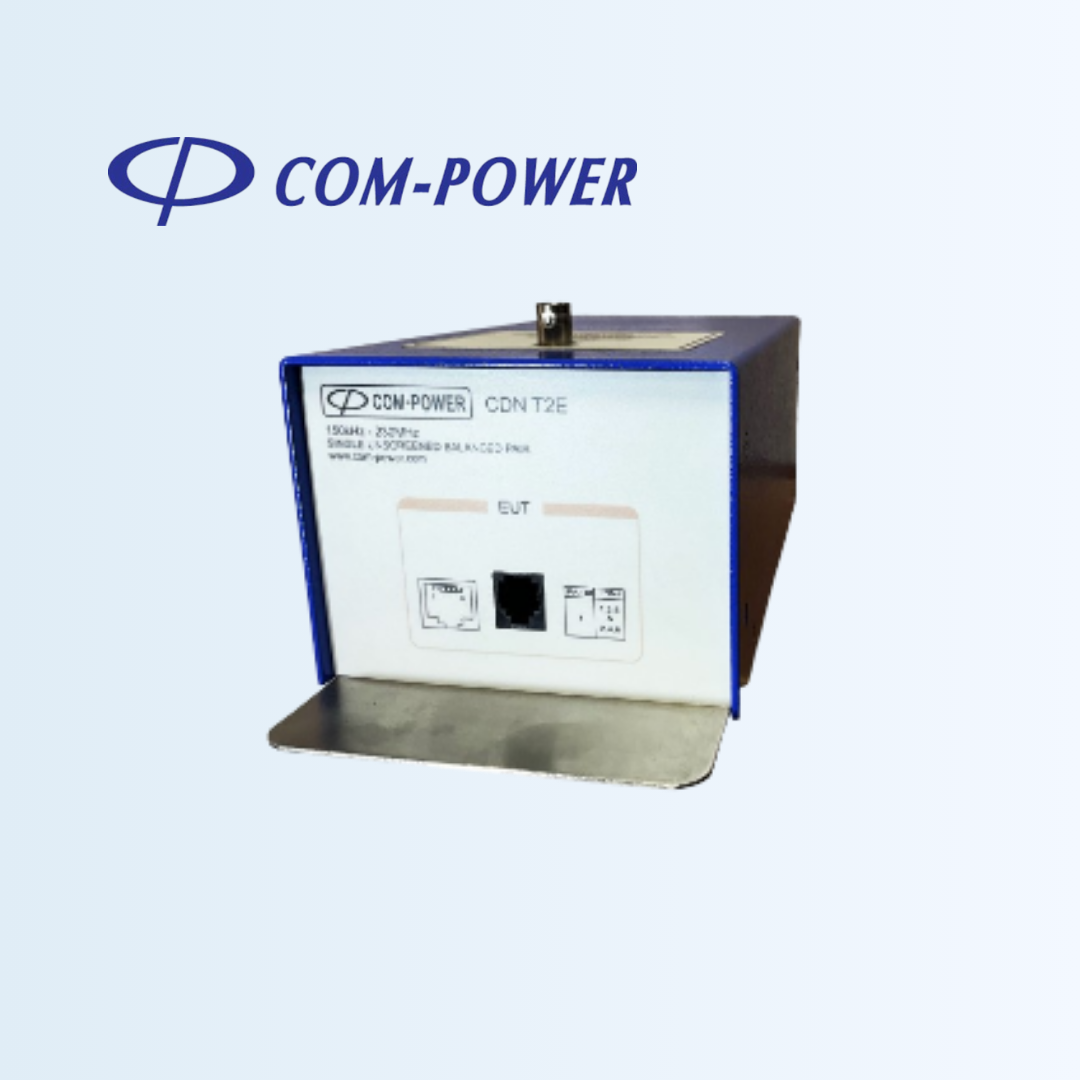

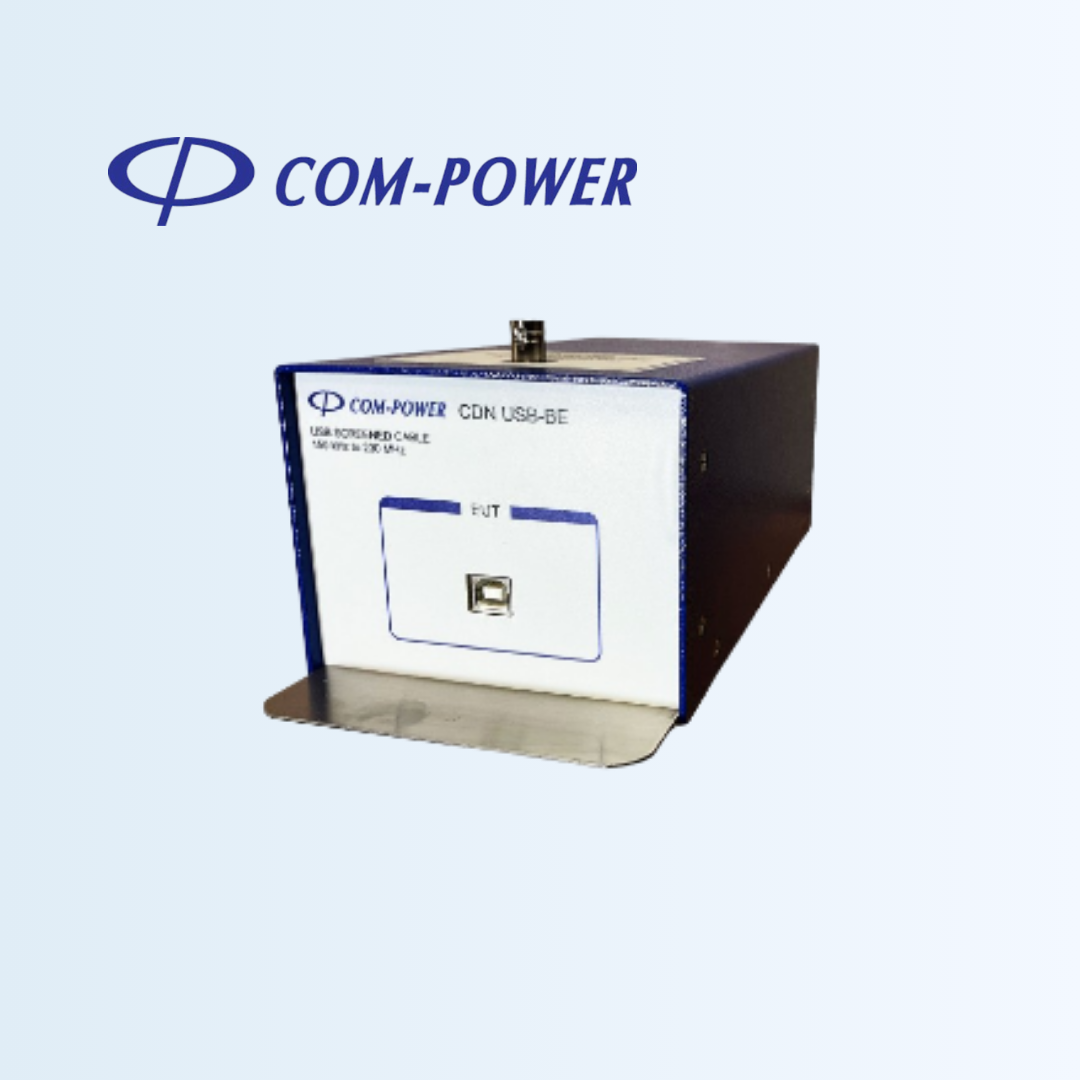

Other Product
