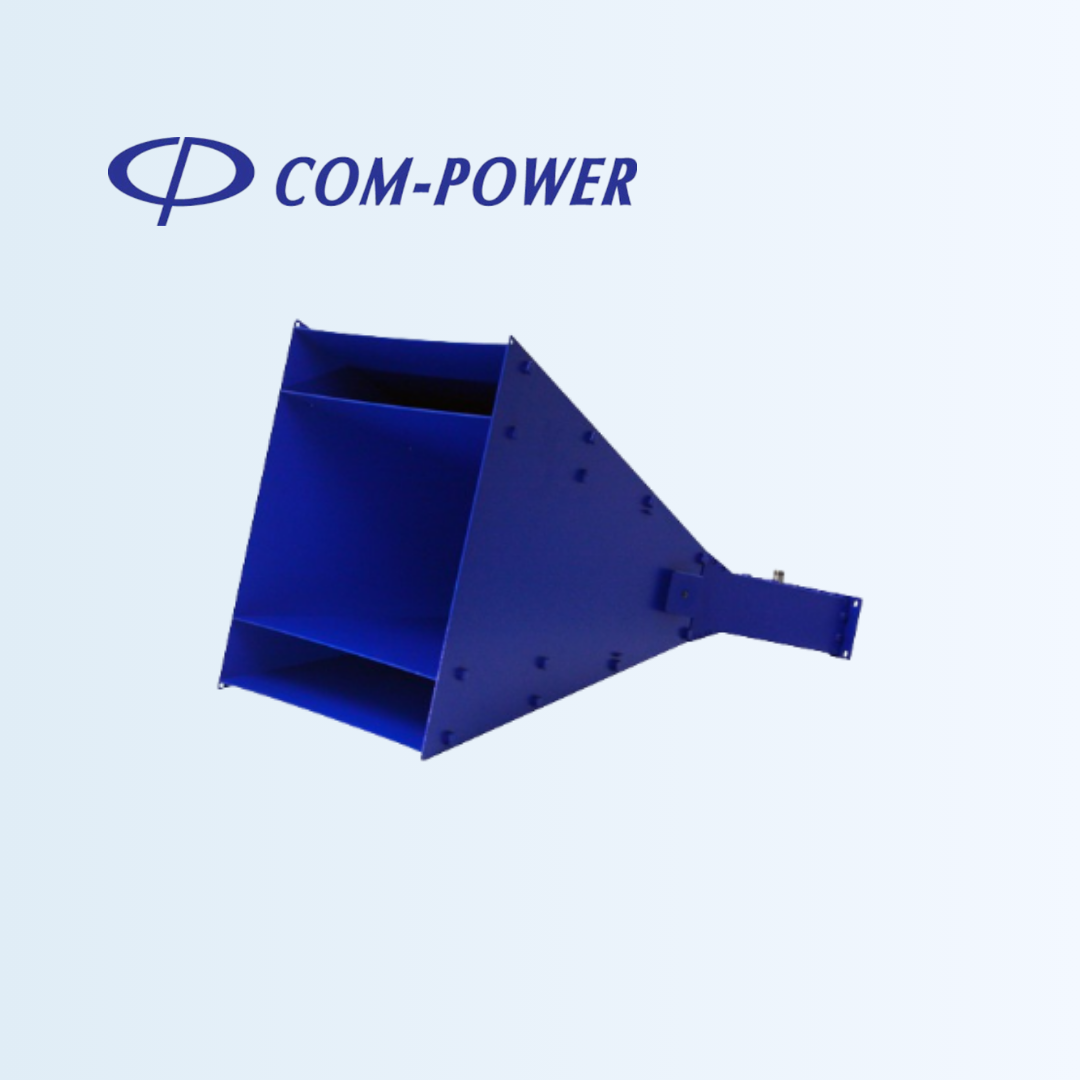

Horn Antenna for MIL-STD

The AH-220 is also suitable for use as a transmitting antenna for establishing radiated RF fields for product immunity tests. A graph with typical field strength values vs frequency, based on the antenna’s isotropic gain and 800 Watts input (max. continuous power) is shown on the following page. Notwithstanding the above applications, the AH220 can also be used for chamber characterizations or comparisons, shielding effectiveness tests of large enclosures or chambers, field monitoring, site surveys, or other general purposes.
