- Broadband: 20 MHz to 2 GHz
- Minimizes antenna switching
- Transmit and receive capabilities
- Individual calibration included
- Combines biconical and log antenna properties
- Reduces testing time by 20-30%
- Optimized for emission measurements
- Handles up to 500 Watt CW for immunity measurements
- Individually calibrated at 10 meters
- Calibration data included in purchase price
- FCC, CISPR, EN, ETSI compliant
- N-type female connector
AC-220
25 MHz to 2 GHz

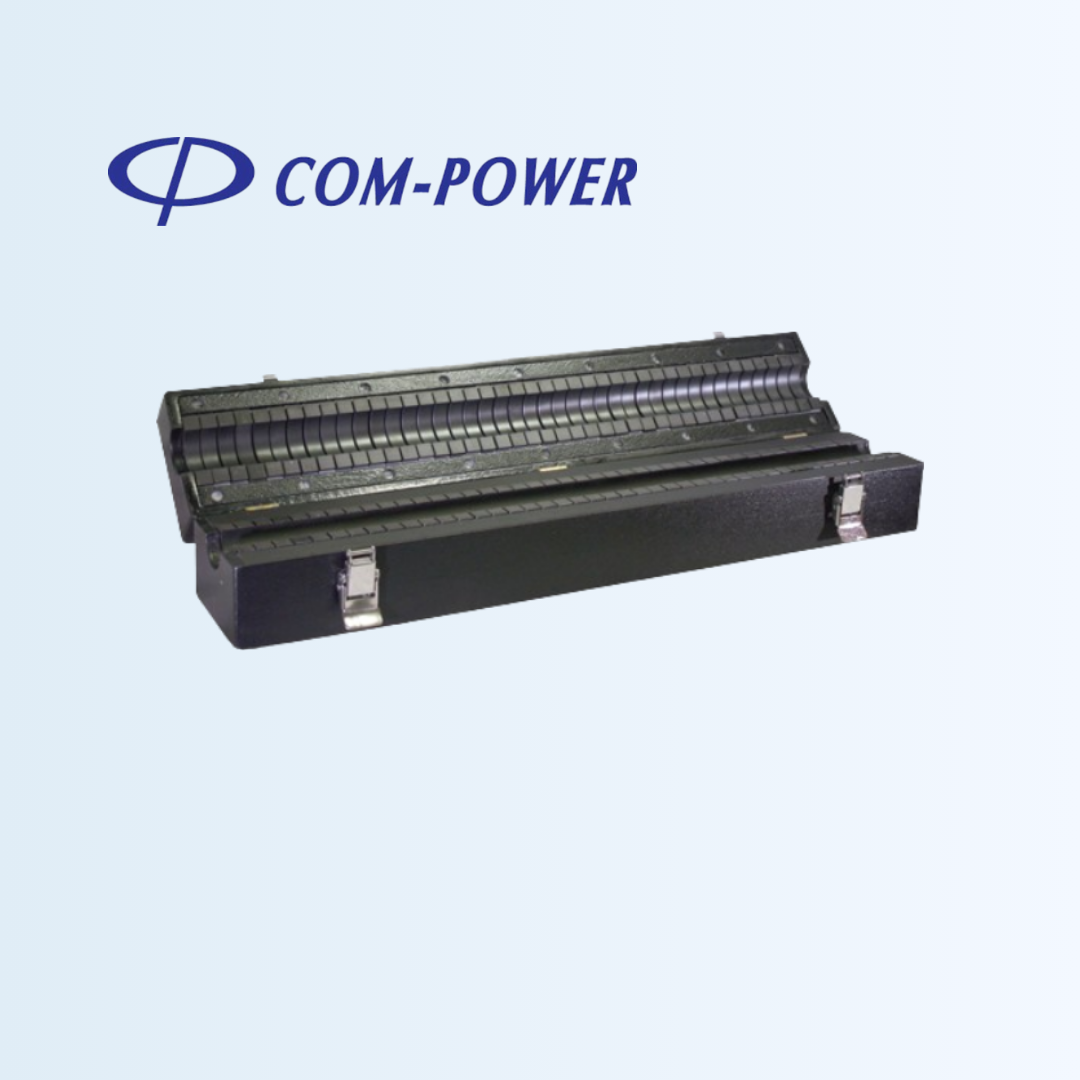

The AC-220 Combilog antenna is for EMC emission and immunity up to 2 GHz. It combines the electrical properties of two antenna (biconical and Log). It reduces overall testing time by 20 - 30% due to antenna switching. It is Optimized for emission measurements, but can handle up to 500 Watt CW, making it suitable for most immunity measurements. Each antenna is individually calibrated at 10 meters and the data included the purchase price.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Product Name | CombiLog Antenna |
| Frequency Range | 20 MHz to 2 GHz (as receive antenna - emissions) / 80 MHz to 2 GHz (as transmit antenna - immunity) |
| Polarization | Linear |
| Nominal Impedance | 50 Ω |
| Power Handling (CW) | 500 Watts (continuous) |
| Connector | N-type (female) |
| Antenna Factor | 6.2 to 27.7 (average: 16.9) [dB(m-1)] |
| Isotropic Gain | -18.5 to 9.2 (average: 3.0) dBi |
| VSWR | 1.06 to 3.93 (average: 1.78) :1 |
| Return Loss | 4.5 to 29.8 (average: 12.5) dB |
| Specifications | FCC, CISPR, EN, ETSI |
| Dimensions (H x W x D) | 50 inches |
