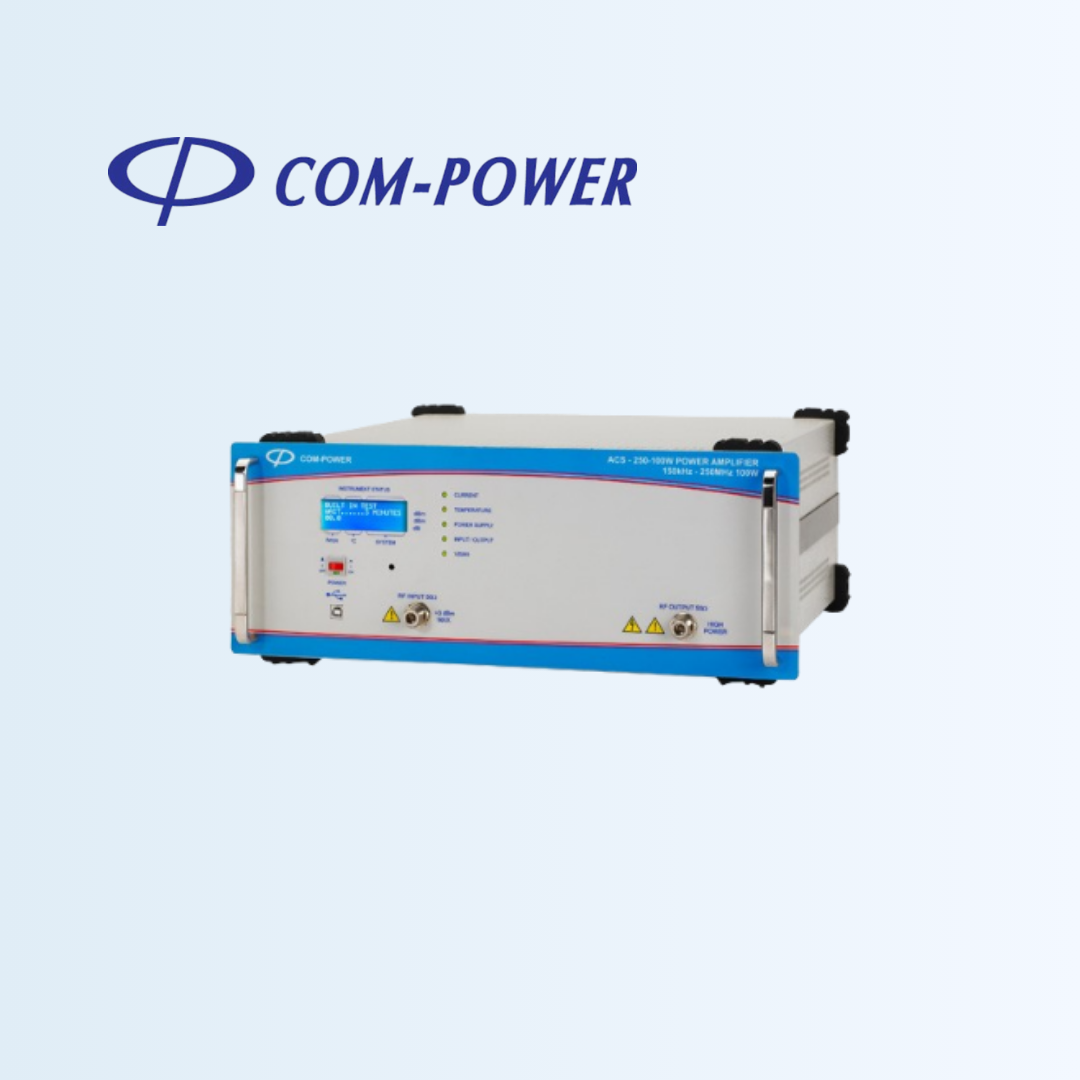

ACS-230-25W

Broadband Power Amplifier: For Conducted Susceptibilty

The Com-Power ACS-230 series of broadband RF amplifiers; diverse in application, yet specifically geared for use in IEC 61000-4-6 immunity testing using coupling decoupling networks (CDN). The ACS-230-series models are engineered to provide high gain, with excellent efficiency and reliability, at an unbeatable price. It complementing ComPower's full line of Coupling/Decoupling Networks (CDN's) and related test and calibration accessories. it easily achieves 3 Vrms or 10 Vrms test levels with any com¬pliant coupling network (CDN, EM Clamp, Injection Probe, etc.) The ACS-230-series amplifi ers complies with all required technical specifications for IEC 61000-4-6 compliance testing, yet its low cost makes it affordable even as part of a pre-compliance testing solution.

Datasheet

Features

Key capabilities and advantages

▼

From 150 kHz - 250 MHz
Suitable for IEC-61000-4-6 testing
Automatic Safety Shutoff
Three year warranty

Specification

Technical specifications and parameters

▼

Frequency Range	150 kHz to 230 MHz
Rated Power Output	25 watts into 2:1 VSWR
Gain	43 dB ±2 dB
Input for rated output	0 dBm (typical)
Automatic Safety Shut-off	30 watts ± 2
Power Output @ 1 dB Compression Point	N/A
Impedance	50 ohms (nominal)
VSWR	1.7 (maximum)
Input Signal Modulation Compatibility	: AM, FM, or Pulse modulation
Connector	Type N on Front Panel
Impedance	50 ohms (nominal)
VSWR	1.7 (maximum)
Harmonic distortion	-20 dBc at 25 watts
Mismatch Tolerance	Automatic Safety Shut-off @ VSWR >7
Connector	Type N on Front Panel
AC, Single Phase	100-240 VAC 50/60 Hz
Front Panel Display (Column 1)	Amplifier Current measurement Data
Front Panel Display (Column 2)	Amplifier Temperature measurement data
Front Panel Display (Column 3)	Load VSWR, RF Power Input/Output, Gain
Remote Interlock (optional)	2-pin DIN
Cooling	Forced air (self-contained fans)
Size	19” Rack 2U
Weight	25 lbs (11.3 kg)
Operating Temperature Range	0° C to +40° C
