- Exceptional RF Performance: Supports up to 65 GHz bandwidth with low VSWR and excellent return loss.
- Stable Flange-Mounted Design: Two-screw mounting ensures precise alignment and mechanical stability.
- Flange parallelism and hole concentricity: (±0.038 mm) are critical.
- Solderless Integration: Enables easy microstrip connection via glass-bead termination, reducing signal contamination and assembly complexity.
- High Reliability: Gold-plated BeCu ensures durable and low-resistance mating performance over many cycles.
- Tooling Support: Compatible with Anritsu V Connector tooling — 01-306 bead fixture, 01-304/01-308 drill & tap kits, and 01-105A torque kit for proper installation.

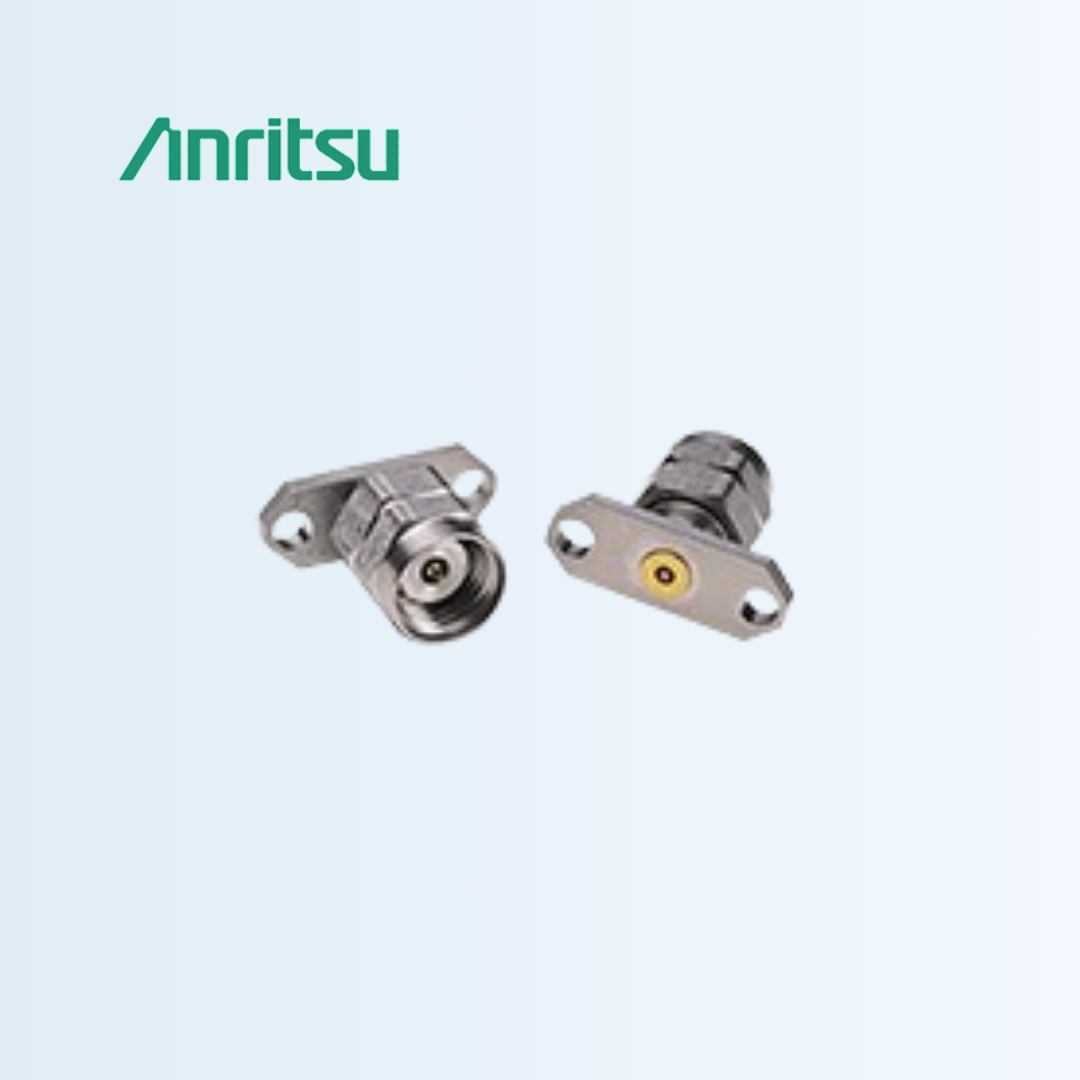

V103M-012
The V103M-012 is identical to V103M, however, this connector can be used with a 0.30 mm glass bead pin.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Model | V103M-012 |
| Connectors | V(m) flange launcher |
| Mounting | Two mounting holes for 0.30 mm glass bead pin |
| Excellent Performance | up to 65 GHz |
| Compatibility | with 2.4 mm |
| Complete Testability | on existing network analyzers |
