- 16 dB (minimum) return loss
- 4.15 dB max insertion loss
- >90 dB shielding effectiveness

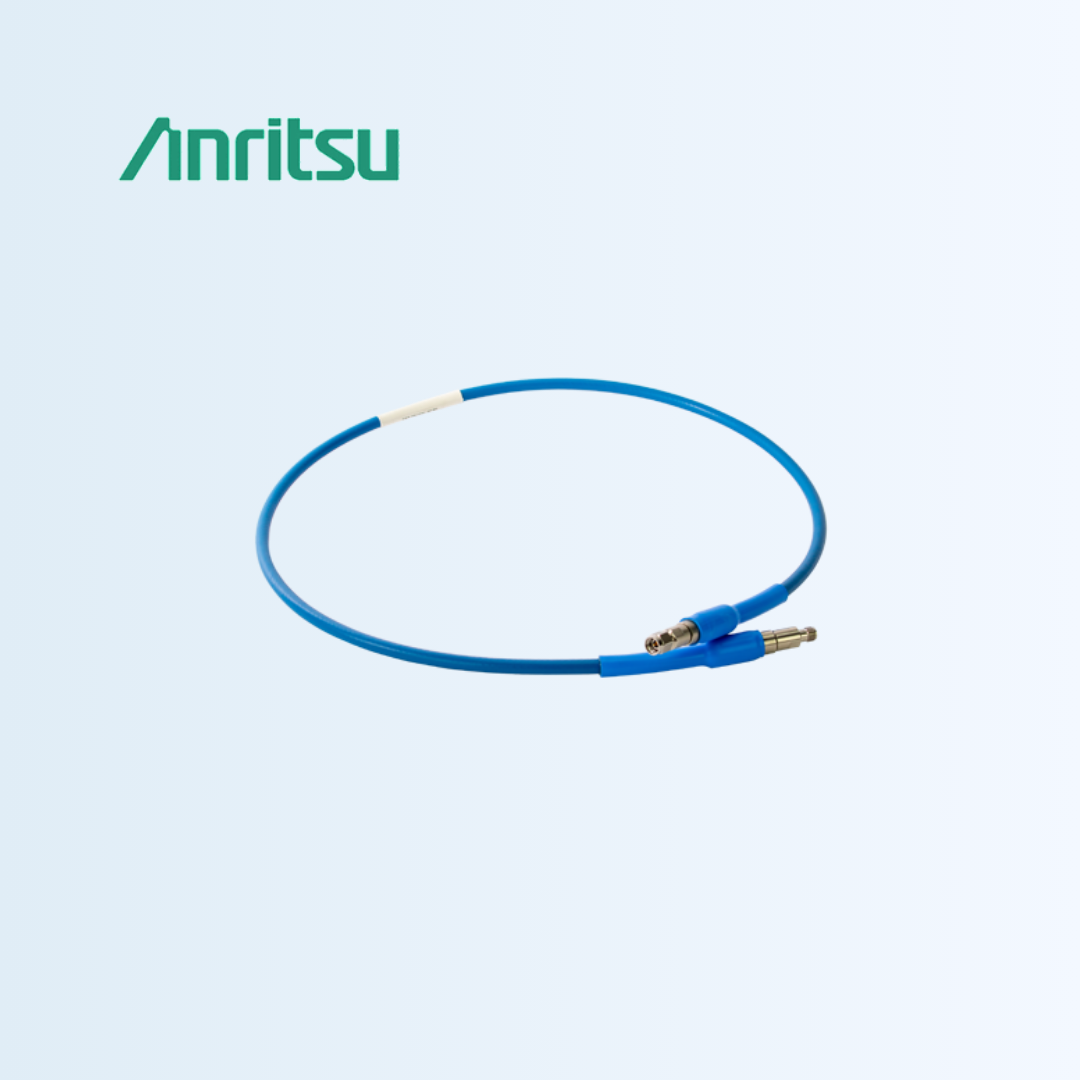

Flexible Phase Stable Cable
The 806-304-R is a flexible, RoHS compliant cable with K(m) to K(f) connector interfaces, frequency bandwidth of DC to 40 GHz, and length of 36 inches. The 806-304-R is an ultra low loss cable assembly designed for rugged and outdoor applications.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Model | 806-304-R |
| Cable Type | Flexible, ultra-low loss, RoHS-compliant coaxial cable |
| Connector Configuration | K(m) to K(f) |
| Length | 36 inches |
| Impedance | 50 Ω |
| Frequency Range | DC to 40 GHz |
