- >17.5 dB (minimum) return loss
- 5.99 dB insertion loss at 70 GHz
- >-100 dB shielding effectiveness

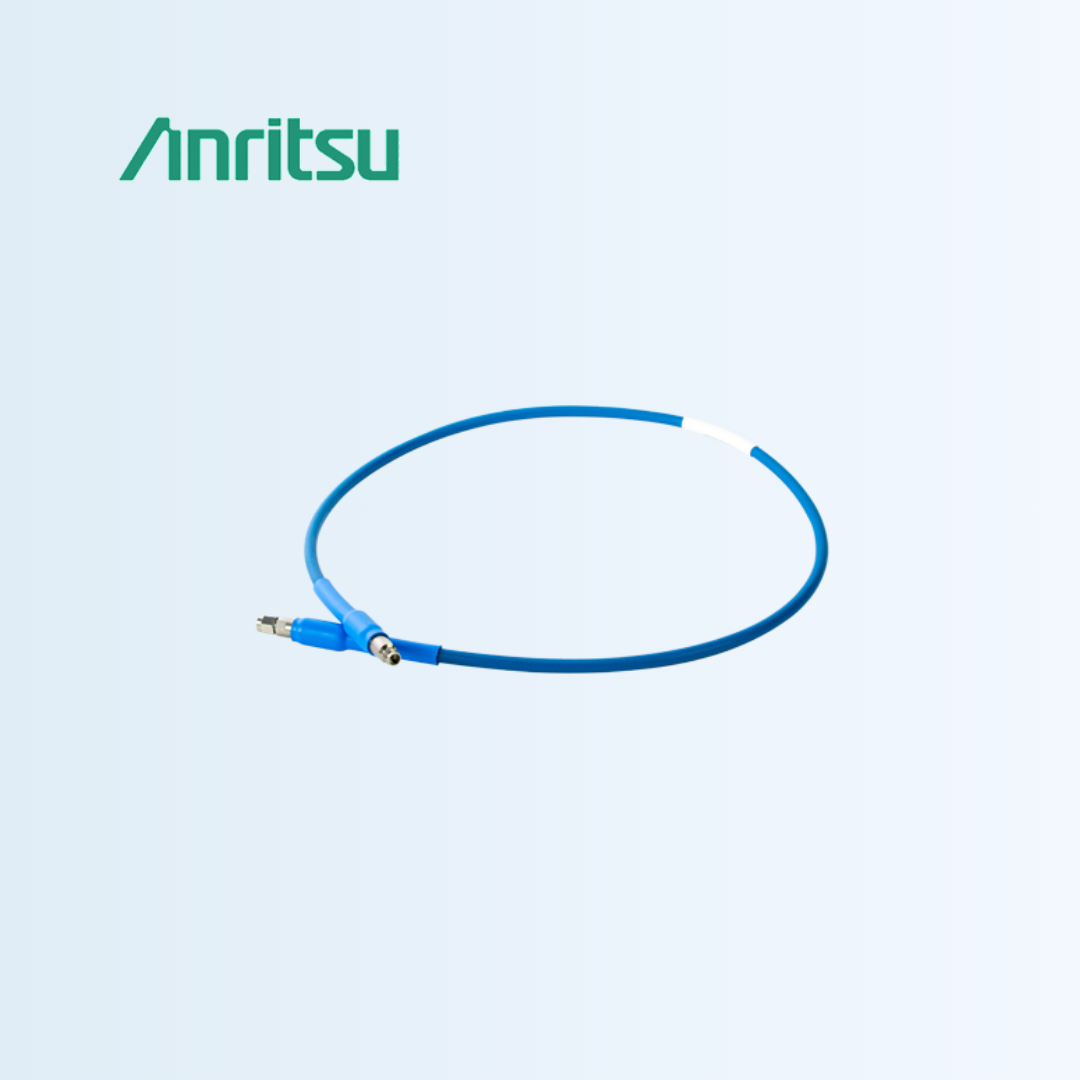

Flexible Phase Stable Cable
The 806-396-R is an ultra low loss flexible cable assembly with V(m) to V(f) connector interfaces, frequency bandwidth of DC to 70 GHz, RoHS compliant, and a length of 36 inches (91.5 cm).
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Model | 806-396-R |
| Cable Type | Ultra-low loss flexible phase-stable cable |
| Connector Interfaces | V(m) to V(f) |
| Length | 36 inches |
| Frequency Range | DC to 70 GHz |
