- 15.57 dB (minimum) return loss
- 2.85 dB (2 ft)
- 4.29 dB (1 m)
- >90 dB shielding effectiveness

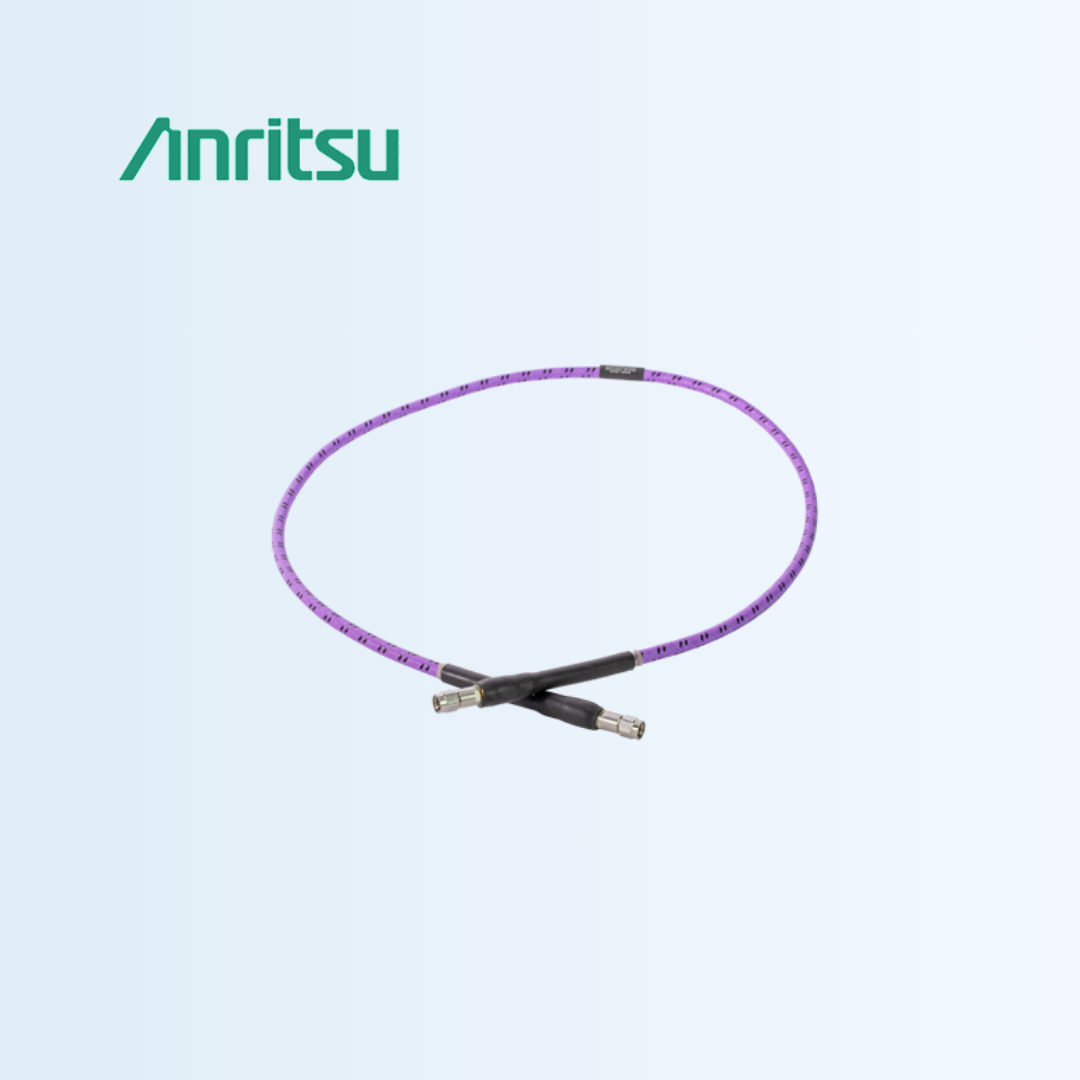

Flexible Phase Stable Cables
The 806-42x-R series of Flexible Phase Stable Cables are flexible, RoHS compliant cables. These cables complement the 43.5 GHz ShockLine VNAs as well as the rest of the Anritsu Extended-K™ components and accessories. The cables come in a 2 foot and 1 meter lengths in both K(f) to K(f) and K(m) to K(f) connector combinations.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Model Series | 806-42x-R |
| Cable Type | Flexible, phase-stable RF cables |
| Connector Types | K(f)-to-K(f) and K(m)-to-K(f) |
| Available Lengths | 24 inches and 1 meter |
| Impedance | 50 Ω |
| Frequency Range | DC to 43.5 GHz |
