Choose the Scope that's right for you
| Product Series | Bandwidth | Sample Rate | Memory Depth | Analog Channel | Pict. |
|---|---|---|---|---|---|
| DS80000 Series | 13GHz | 40GSa/s | 4 Gpts | 4 | |
| DS8000-R Series | 2GHz | 10GSa/s | 500 Mpts | 4 | |
| MSO8000 Series | 600MHz to 2GHz | 10GSa/sec | 500 Mpts | 4 | |

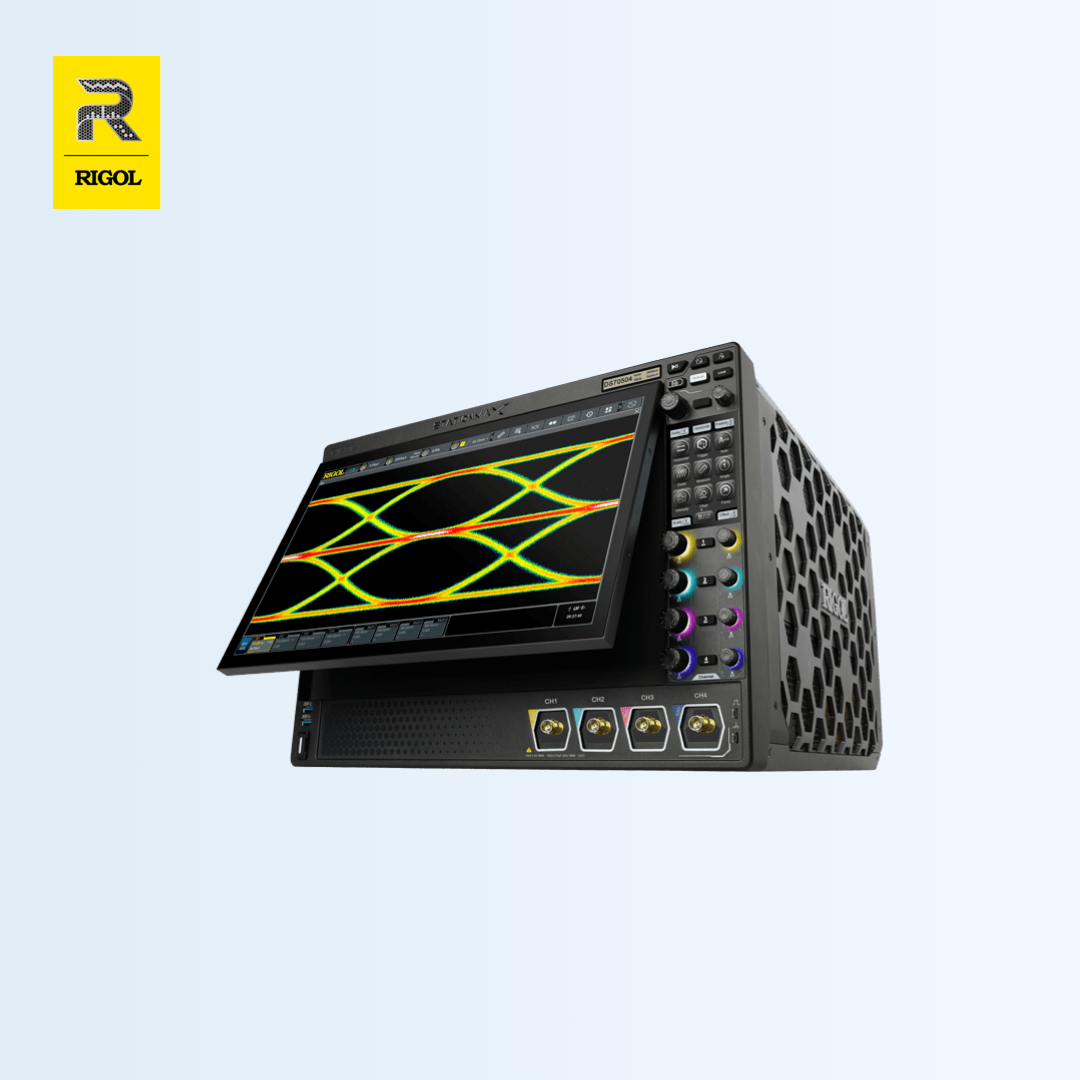

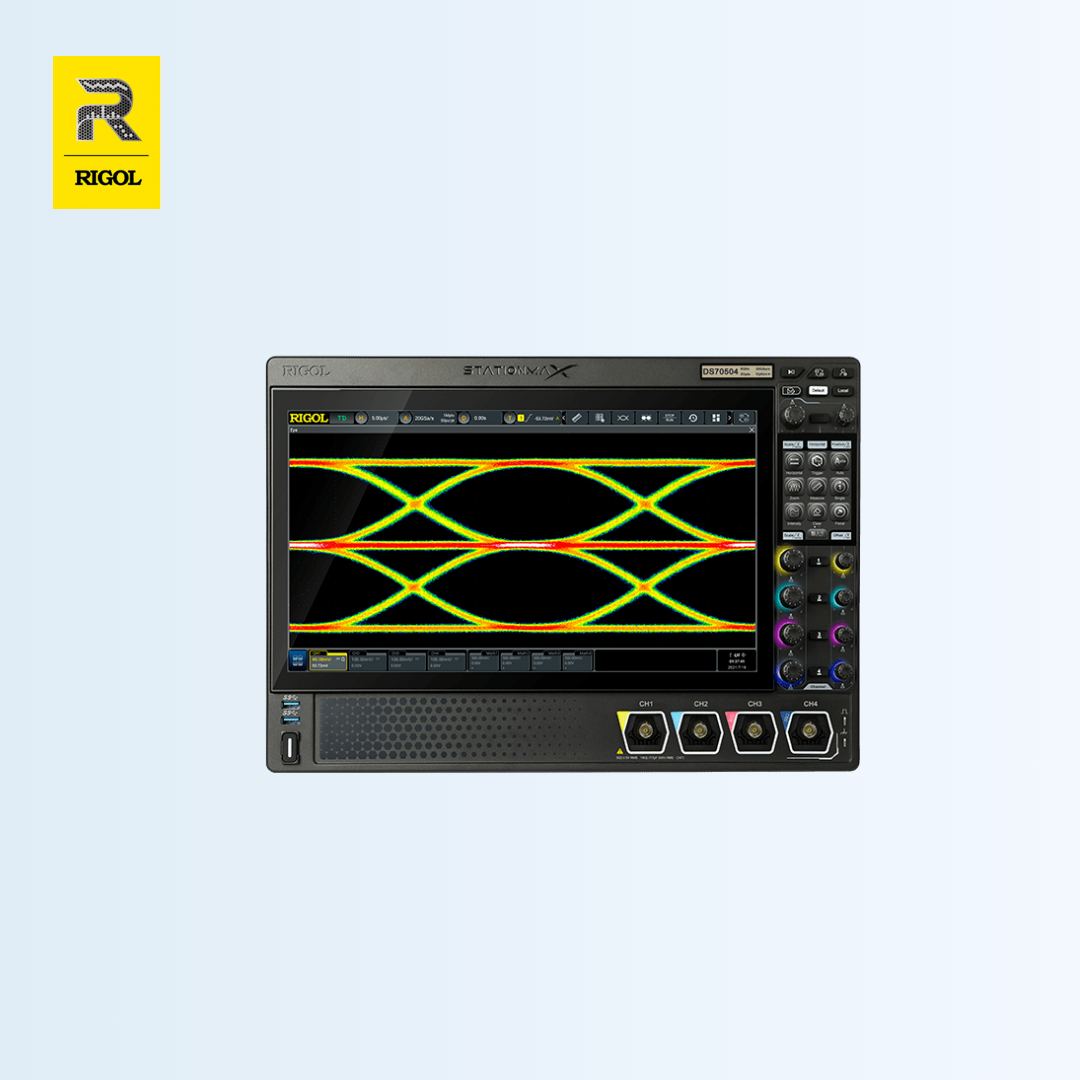

| DS70000 Series | 5GHz | 20GSa/s | 2 Gpts | 4 | |
| DS7000 Series | 100MHz to 500MHz | 10GSa/sec | 500 Mpts | 4 | |
| DS6000 Series | 600MHz to 1GHz | 5GSa/sec | 140 Mpts | 4 | |
| MSO5000E Series | 150MHz | 4GSa/s | 100 Mpts | 16 | |
| MSO5000 Series | 70MHz to 350MHz | 8GSa/sec | 200 Mpts | 4 | |
| DS4000E Series | 100MHz ~ 200MHz | 2GSa/s | 14 Mpts | 4 | |
| DS4000 Series | 100MHz to 500MHz | 4GSa/sec | 140 Mpts | 2/4 | |
| DS/MSO2000A Series | 100MHz to 300MHz | 2GSa/sec | 56 Mpts | 2 | |
| DS1000Z-E Series | 70MHz ~ 200MHz | 2GSa/s | 24 Mpts | 4 | |
| DS1000Z Series | 50MHz to 200MHz | 1GSa/sec | 24 Mpts | 2 | |

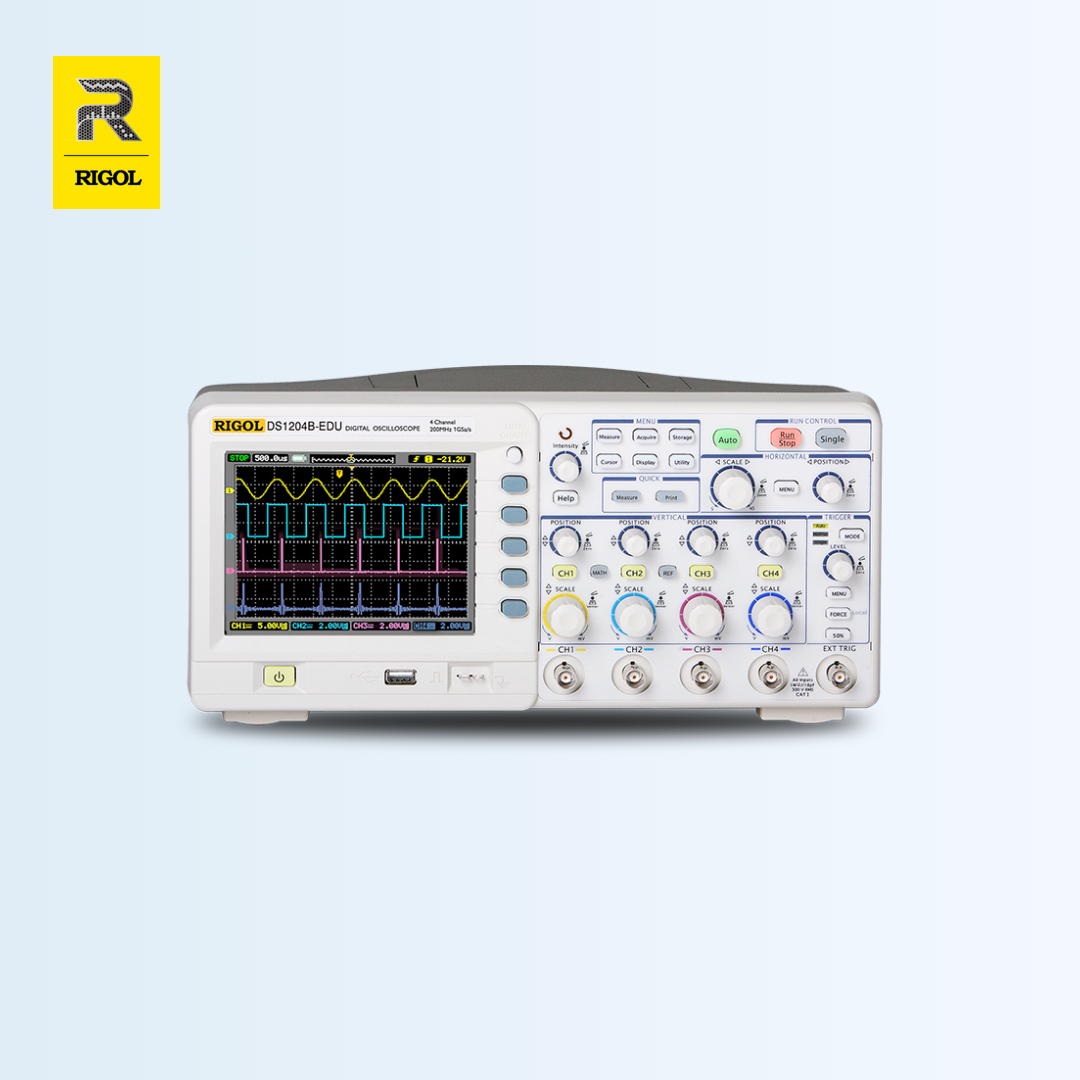

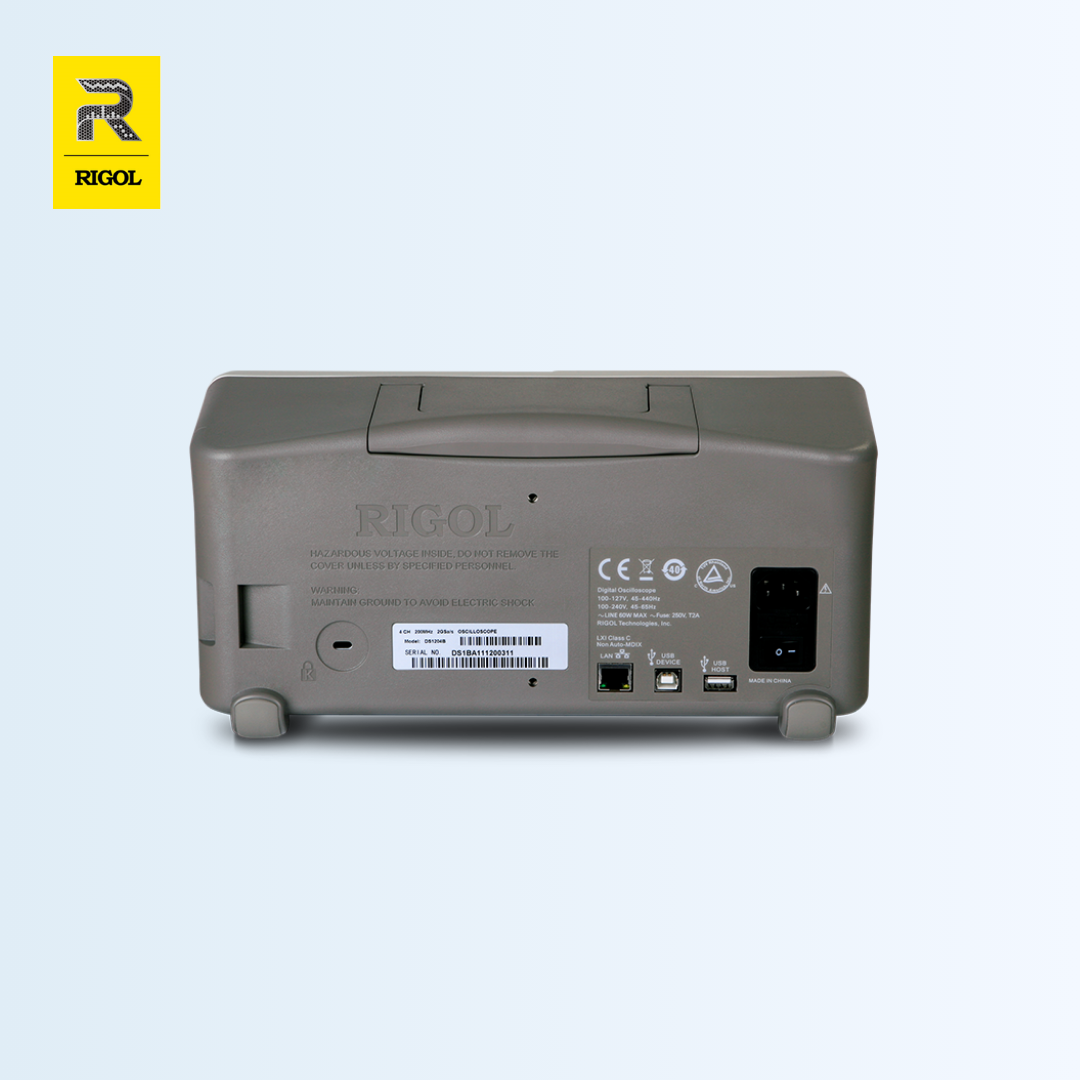

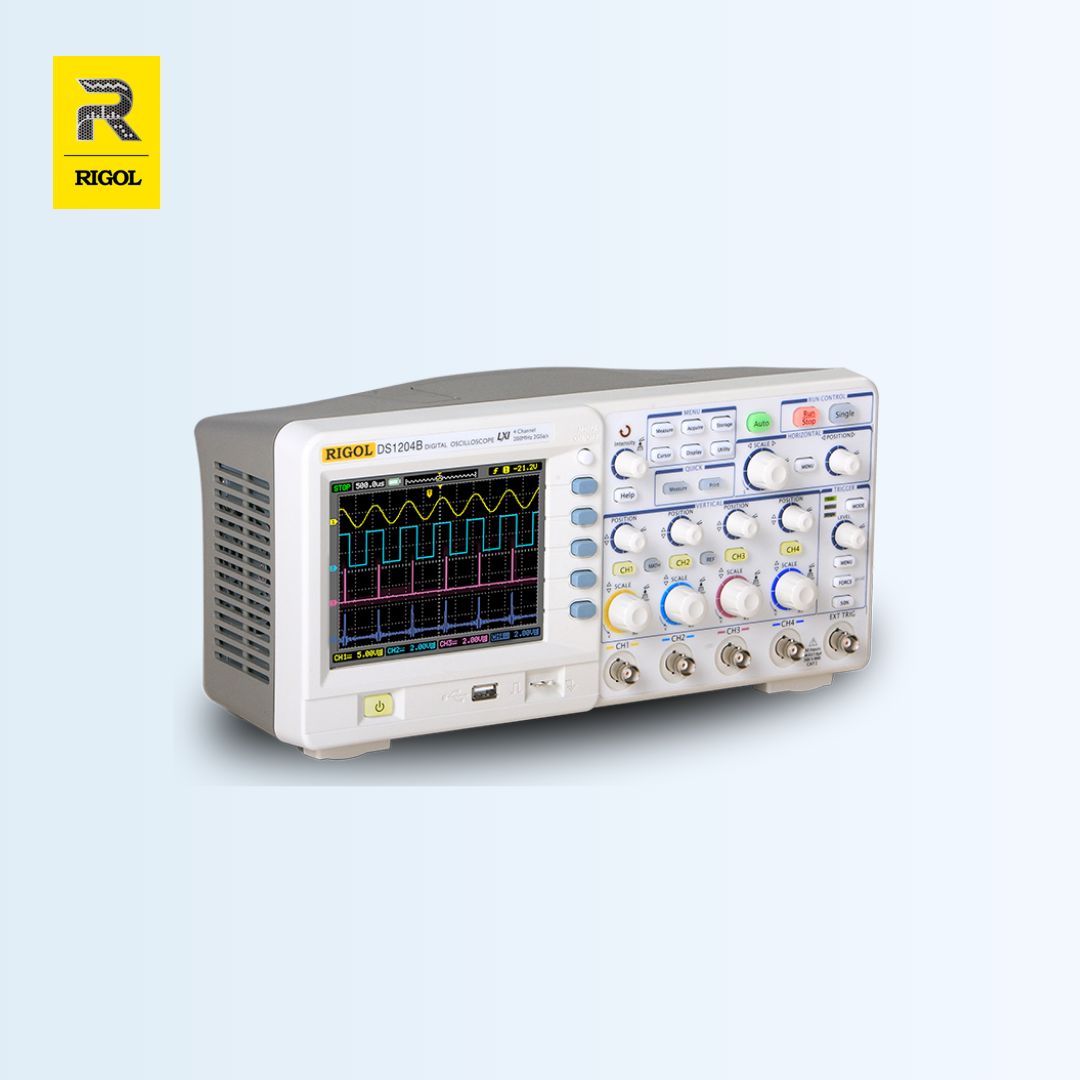

| DS1000B Series | 70MHz ~ 200MHz | 2GSa/s | 16 kpts | 4 | |
| DS1000E Series | 50MHz to 100MHz | 1GSa/sec | 1 Mpts | 2 | |
| DHO5000 Series | 500MHz to 1GHz | 4GSa/s/s | 500 Mpts | 4 to 6 | |
| DHO4000 Series | 800MHz | 4GSa/s | 1 Mpts | 4 | |
| MHO2000 Series | 350MHz | 2GSa/s | 500Mpts | 4 | |
| DHO1000 Series | 200 MHz | 2GSa/s | 100 Mpts | 4 | |
| DHO900 Series | 50MHz | 1.25GSa/sec | 50 Mpts | 4 | |
| DHO800 Series | 100 MHz | 1.25GSa/s | 25 Mpts | 4 |
MIXED SIGNAL OSCILLOSCOPES

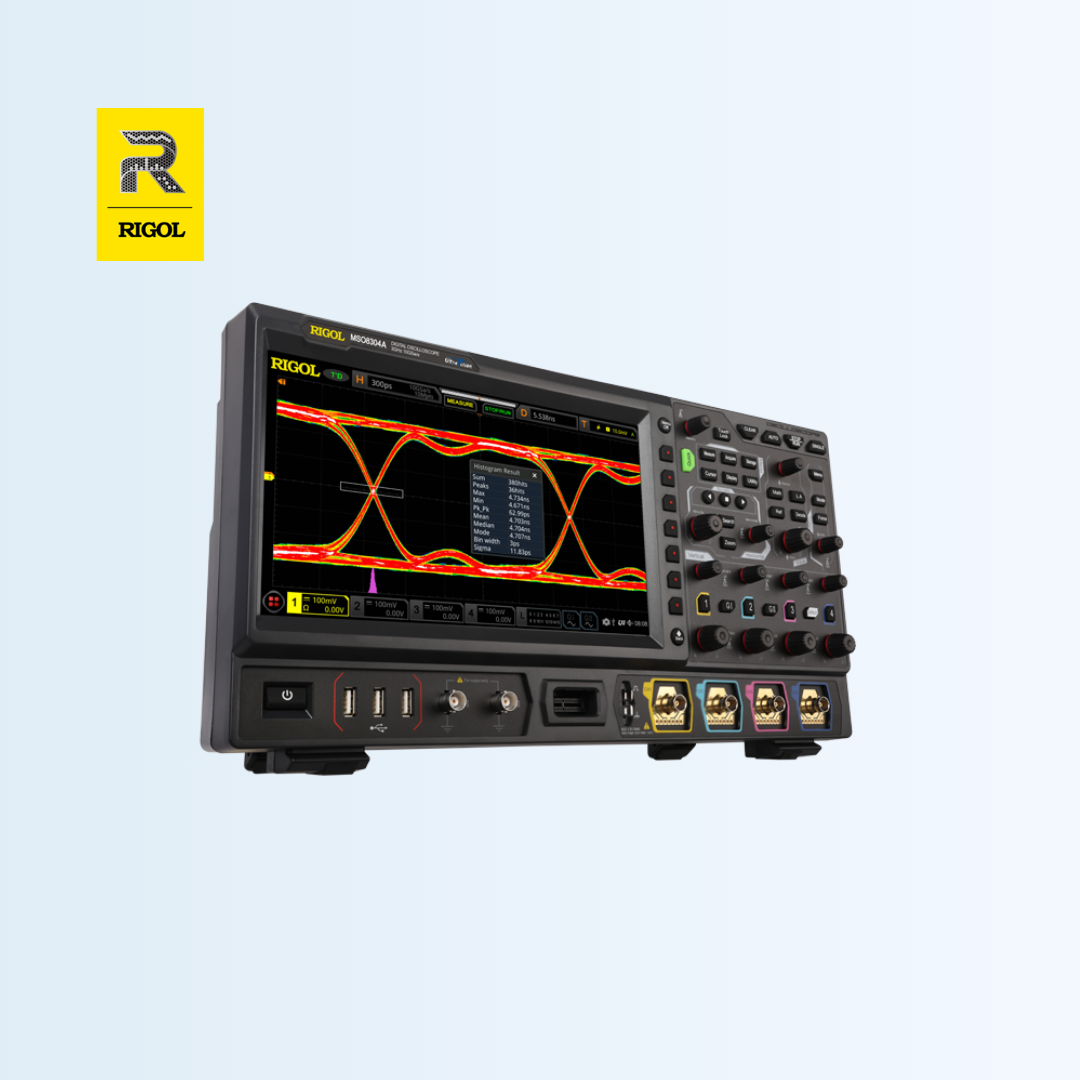

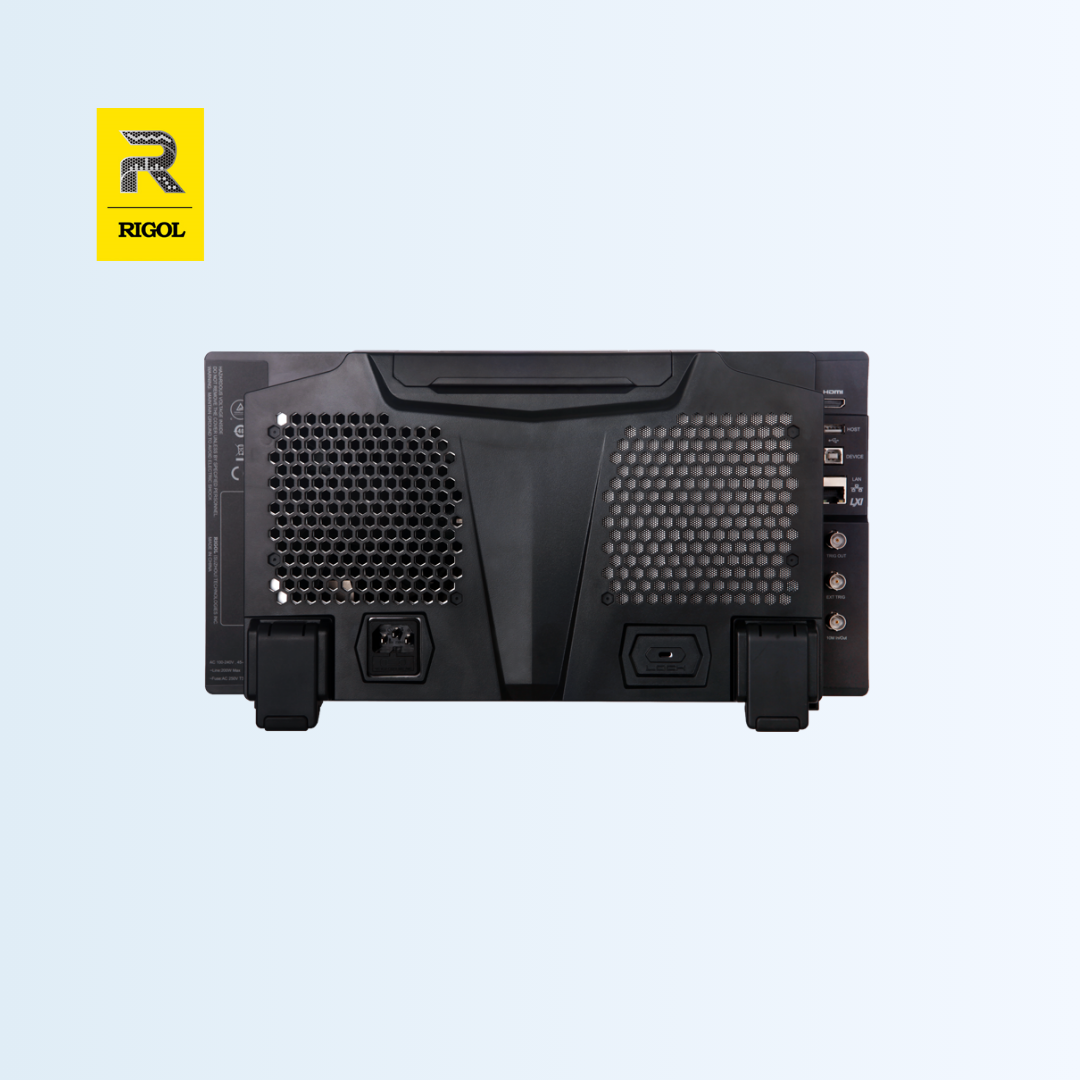

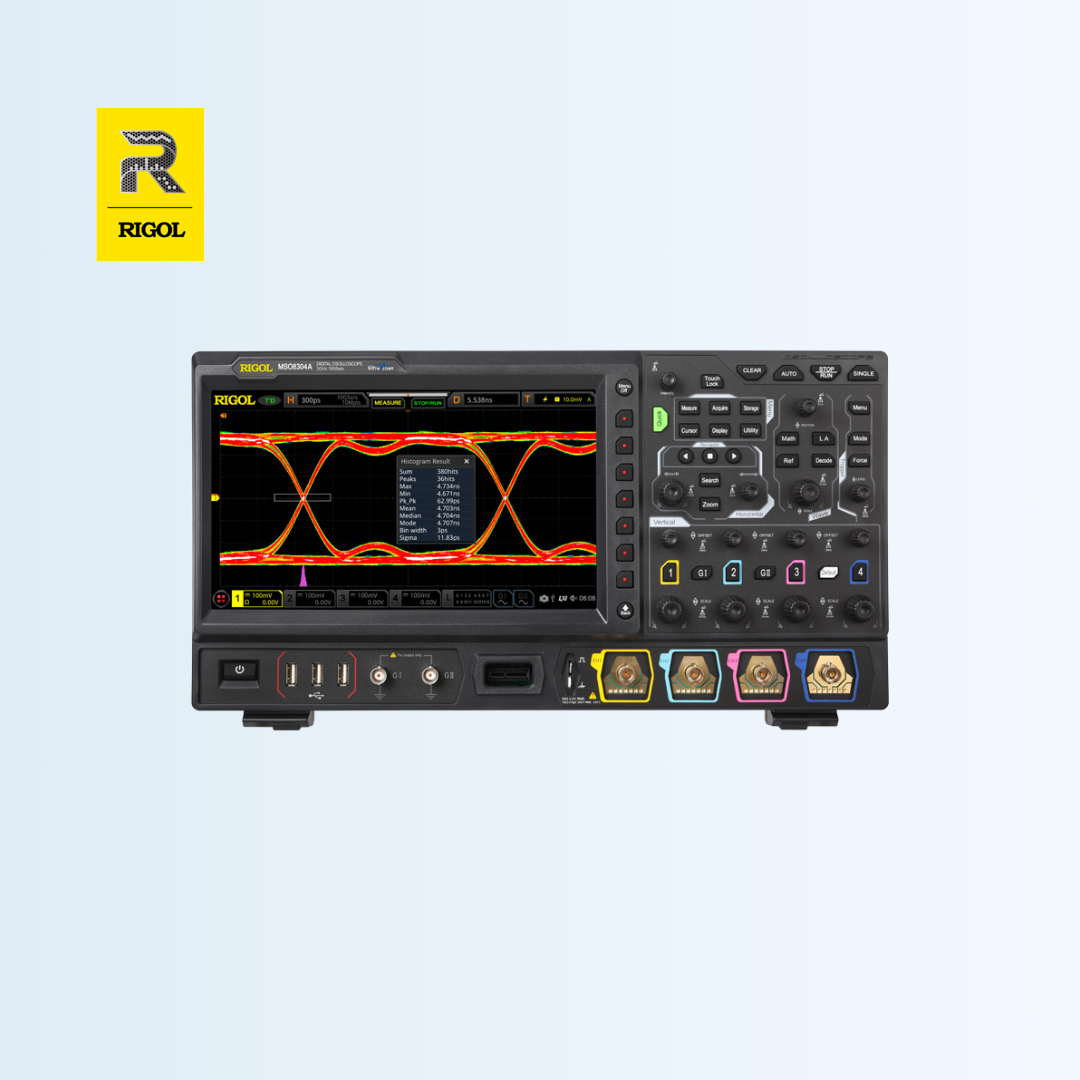

The MSO8000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 600 MHz,1 GHz, and 2 GHz models each with 4 analog channels the MSO8000 Series brings RIGOL’s UltraVision II performance to the high speed engineering bench. The MSO8000 also adds Jitter and Real-time Eye Analysis capabilities in addition to other UltraVision II functions including zone triggering, 7 instruments in one, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
.png)
.png)
MIXED SIGNAL OSCILLOSCOPES

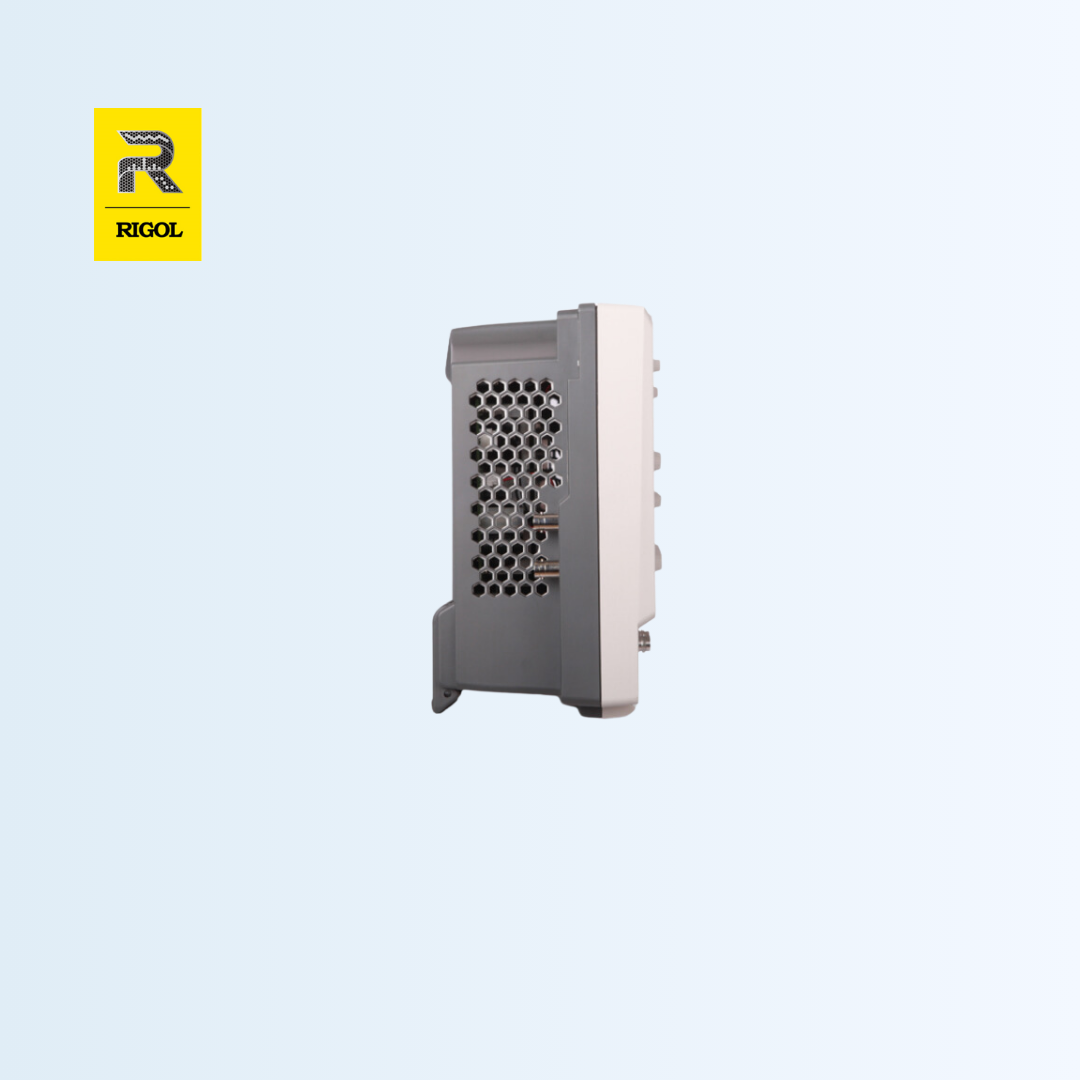

The 7000 Series Oscilloscopes combines best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 100 to 500 MHz models each with 4 analog channels, the 7000 Series brings innovative analysis and visualization capabilities to embedded design, power analysis, serial decode, and RF applications. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
.png)
.png)
MIXED SIGNAL OSCILLOSCOPES
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
.png)
.png)
DIGITAL OSCILLOSCOPES

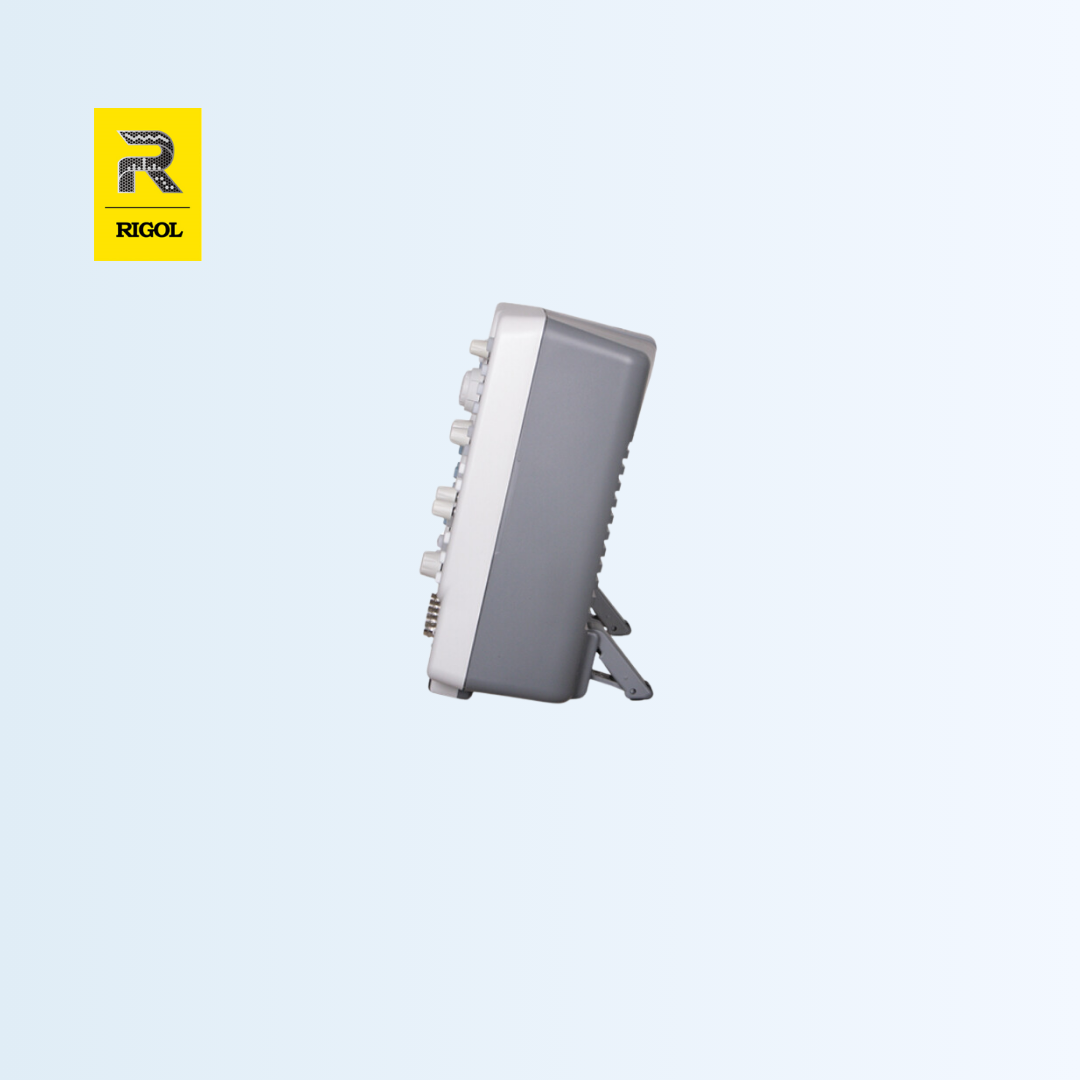

The 6000 Series Digital Oscilloscopes have 600 MHz to 1 GHz of Bandwidth. Detecting high speed signals and device characteristics including ESD, digital video, and differential signals (using an differential probe accessory) is now easier than ever with our most advanced digital oscilloscope platform. With 5 GSa/sec sampling, up to 180,000 waveforms per second and 140 Mpts of memory the 6000 Series demonstrates the ultimate capabilities of our UltraVision technology which is available throughout out latest generation of oscilloscopes.
.png)
.png)
MIXED SIGNAL OSCILLOSCOPES

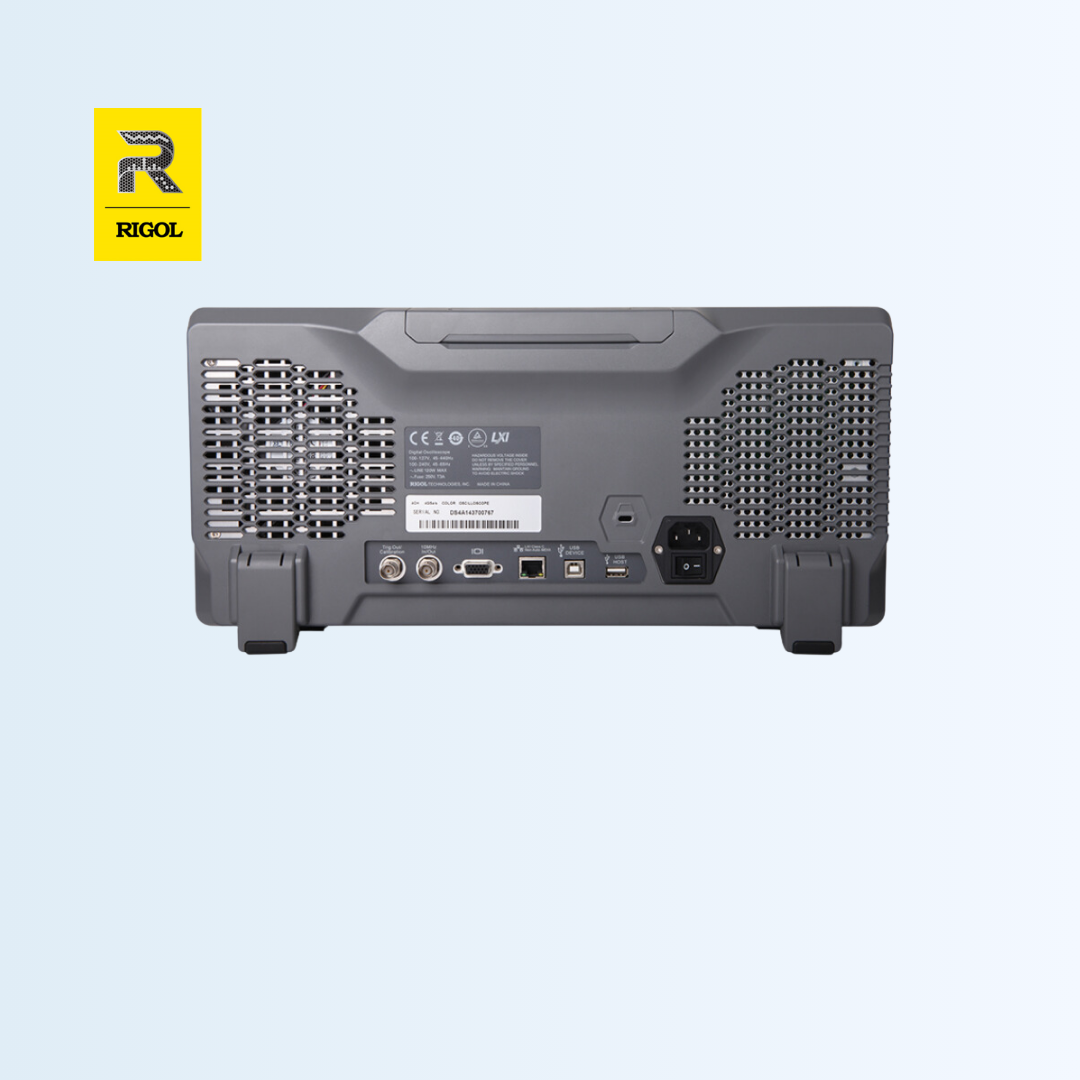

The 4000 series digital oscilloscope is a versatile, high performance mixed signal oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s, 2 or 4 analog channels, and 16 digital logic channels, the 4000 is ideal for a wide variety of engineers working in communications, defense, aerospace, industrial electronics, R&D and educational fields.
.png)
.png)
MIXED SIGNAL OSCILLOSCOPES
The 2000 Series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The 2000 Series Oscilloscopes bring advanced triggering, large display, and decoding features to customers with a limited budget. This new, low starting price enables customers to analyze higher speed signals with a larger display for less than previously possible. The 2000A Series is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals.
.png)
.png)
MIXED SIGNAL OSCILLOSCOPES

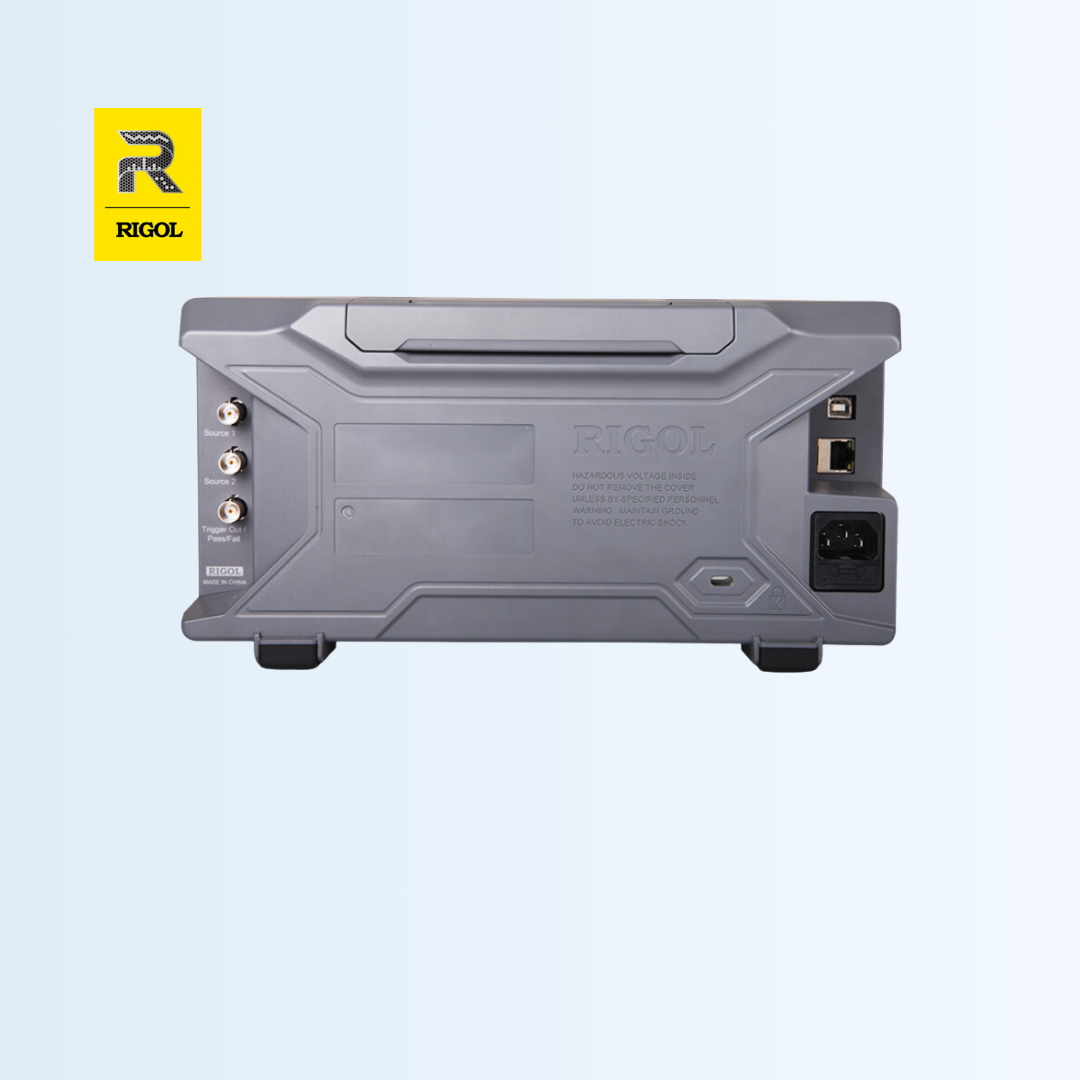

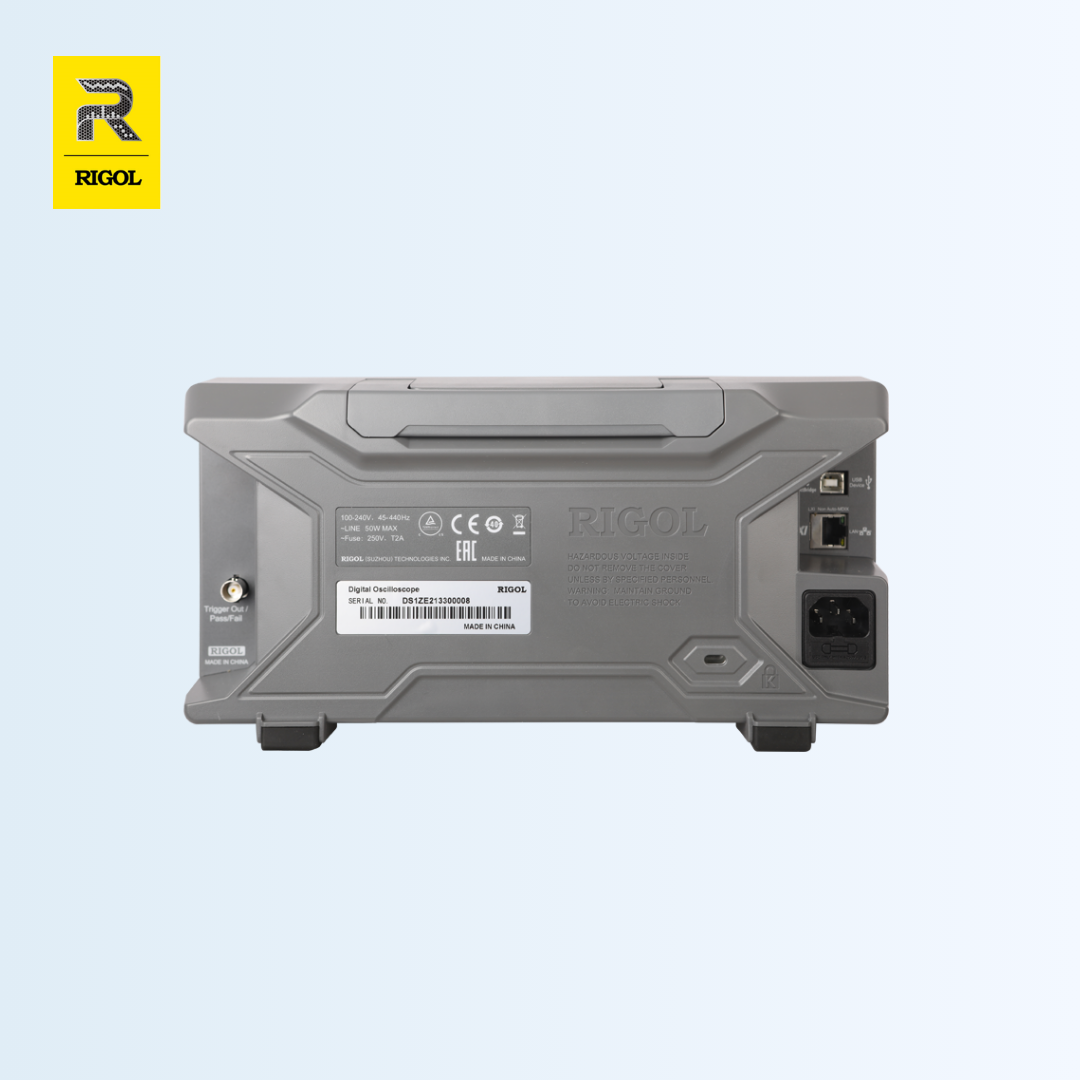

The 1000Z Series is RIGOL’s Digital Oscilloscope platform for Basic Visualization. It offers unprecedented value in customer applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The 1000Z Series 4 channel oscilloscopes come in 50, 70, or 100 MHz versions with a 7 inch display and RIGOL's UltraVision technology. The DS1000Z-E Series are also part of this family and include 100 and 200 MHz, 2 Channel models.
.png)
.png)
MIXED SIGNAL OSCILLOSCOPES
The DS1000E/U Series is a market-proven economical digital oscilloscope. This series of digital oscilloscopes has excellent technical indicators and can meet the main needs of basic testing. The front panel design is clear and intuitive, fully in line with the traditional instrument usage habits, and is convenient for users to operate.
DIGITAL OSCILLOSCOPES

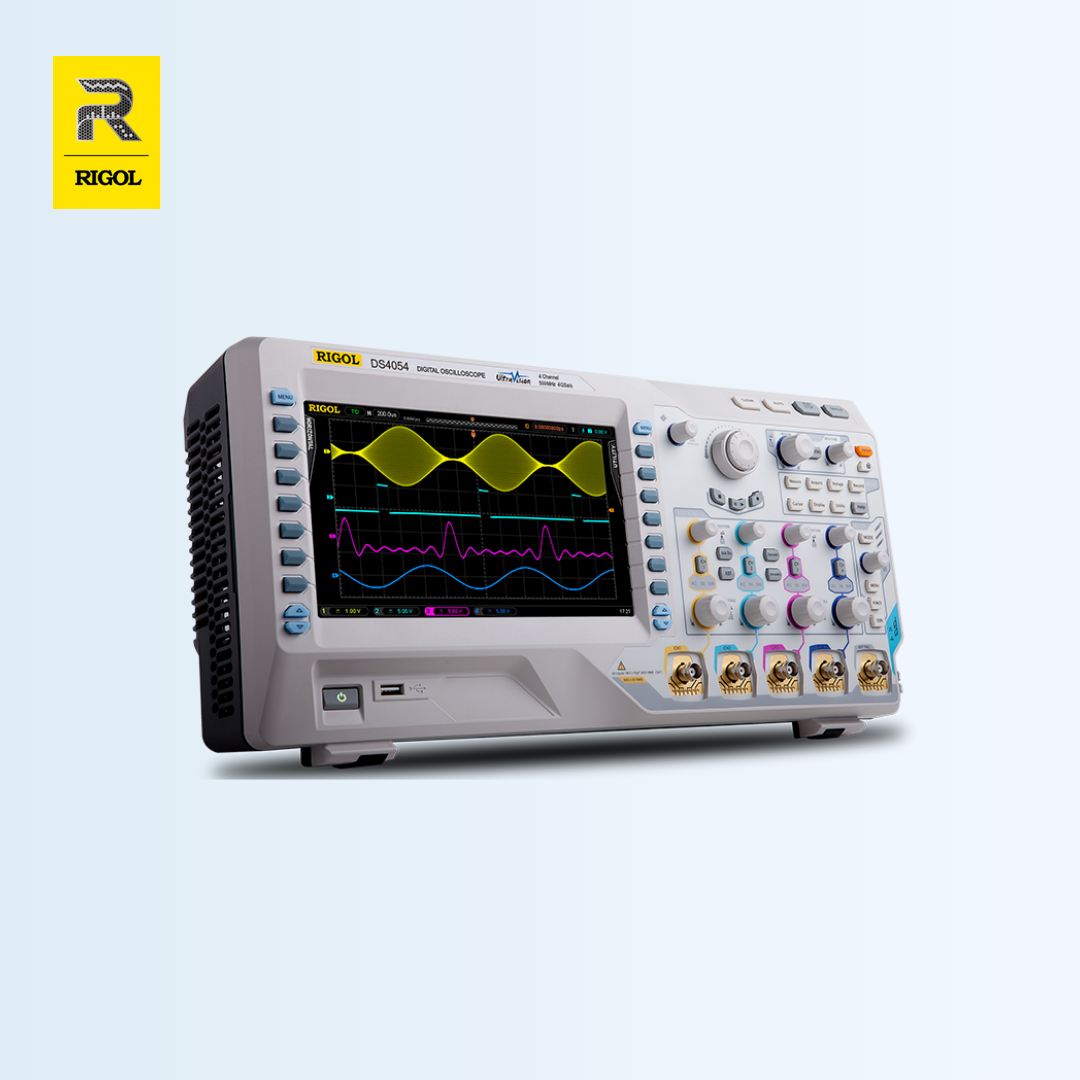

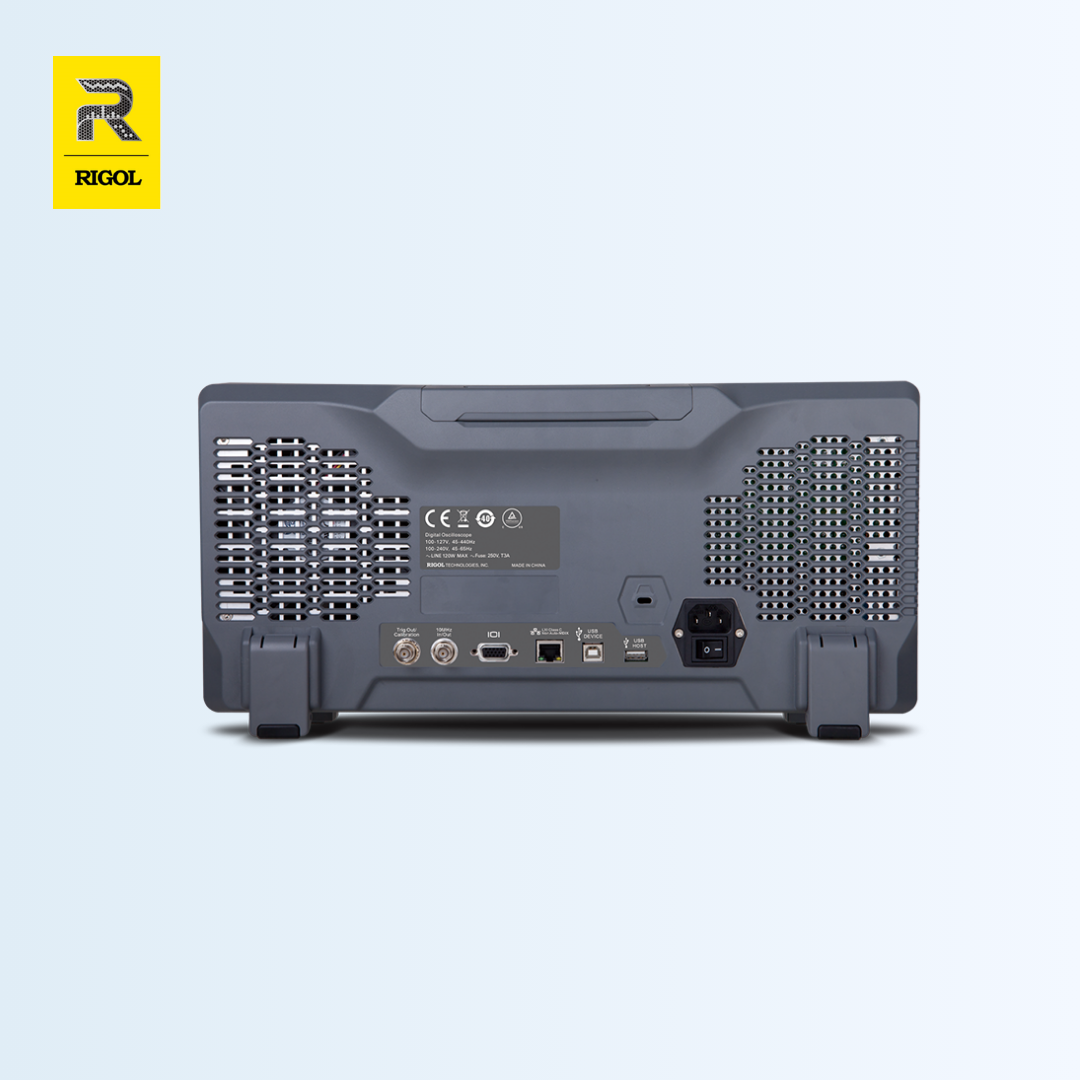

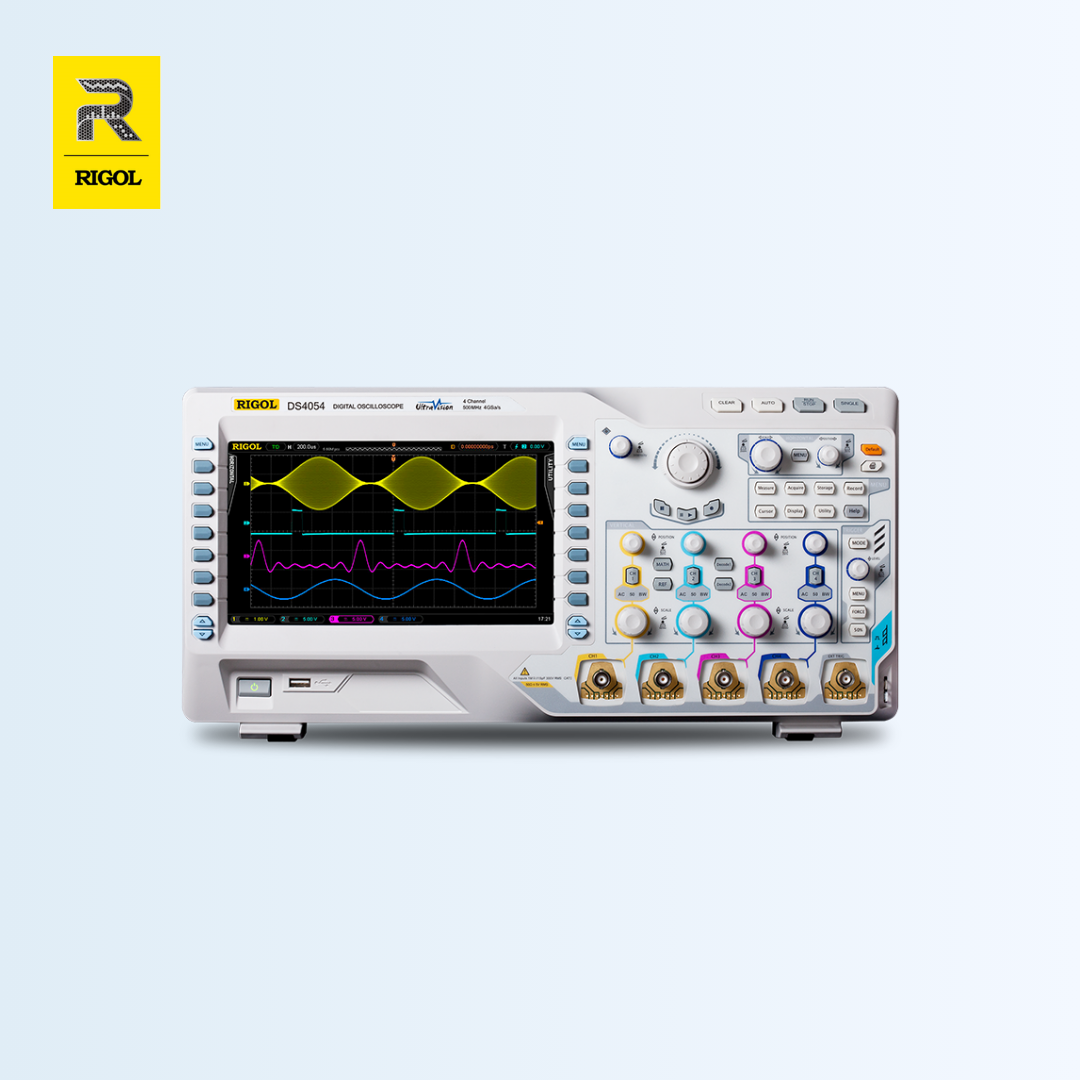

The DS4000E series is a high-performance digital oscilloscope designed to meet the demands of the mainstream market for the design, debugging, and testing purposes. Its 4-channel design and high cost-efficiency will invigorate new vitality to the market of the economical oscilloscopes, offering more choices for the low-cost testing and measurement solutions.
DIGITAL OSCILLOSCOPES

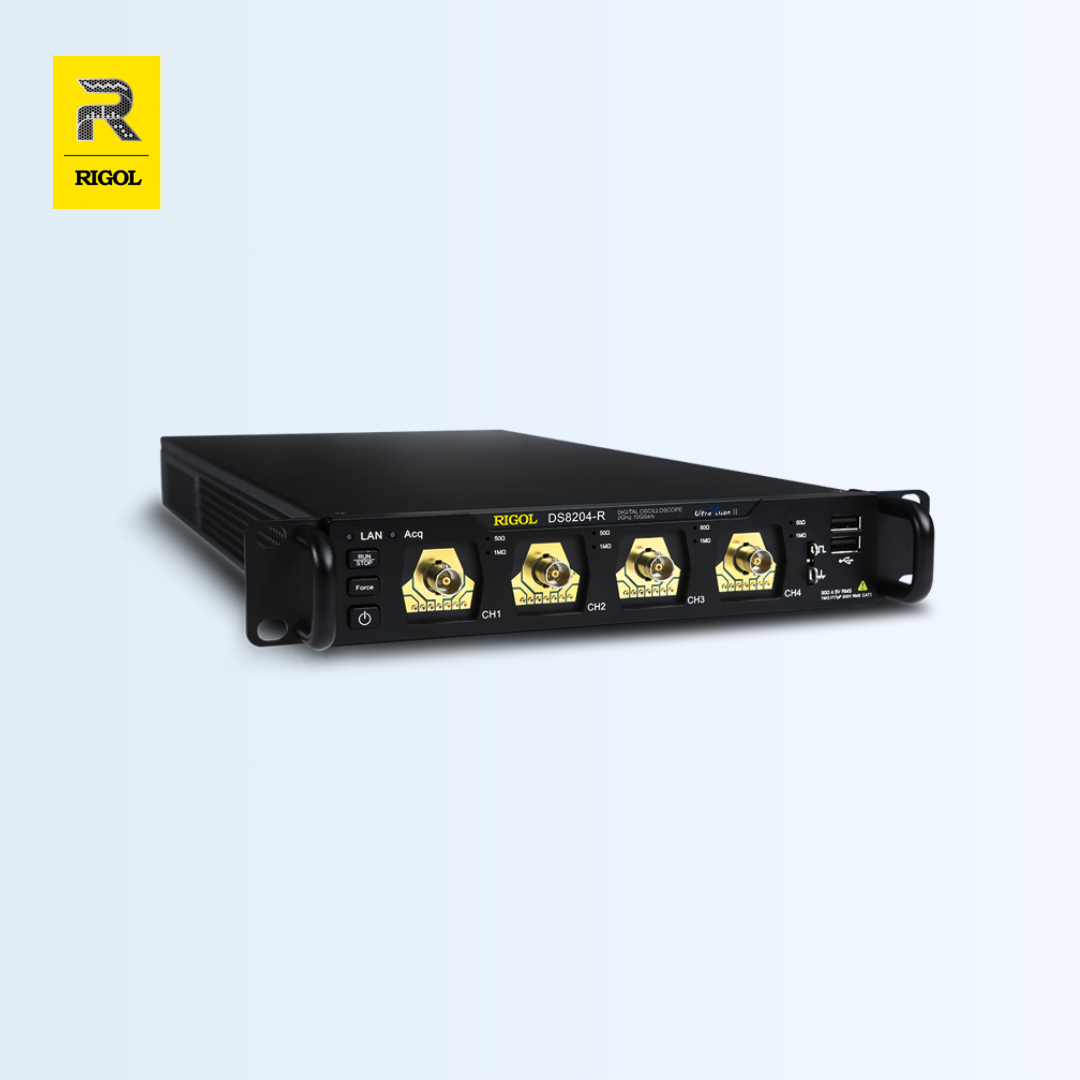

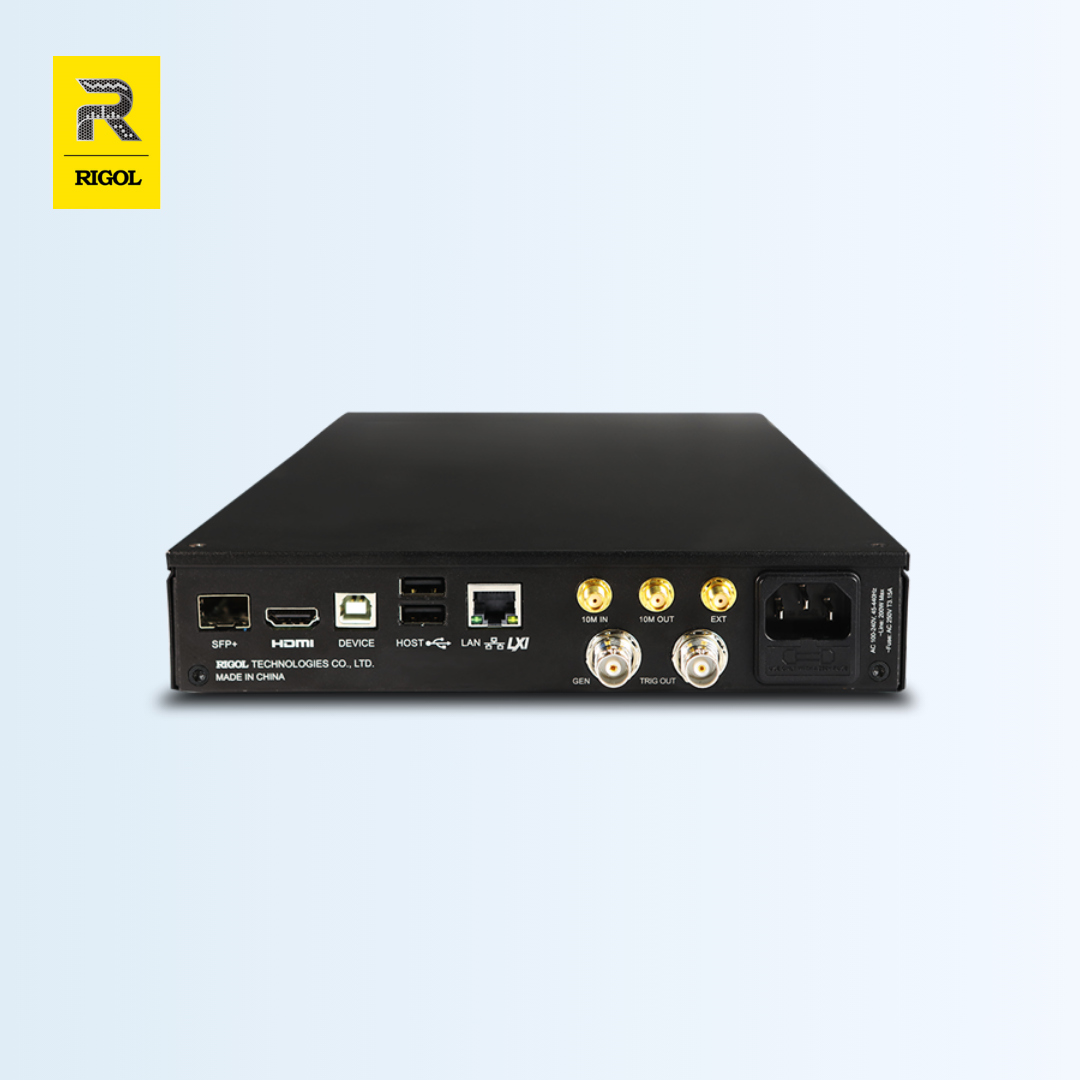

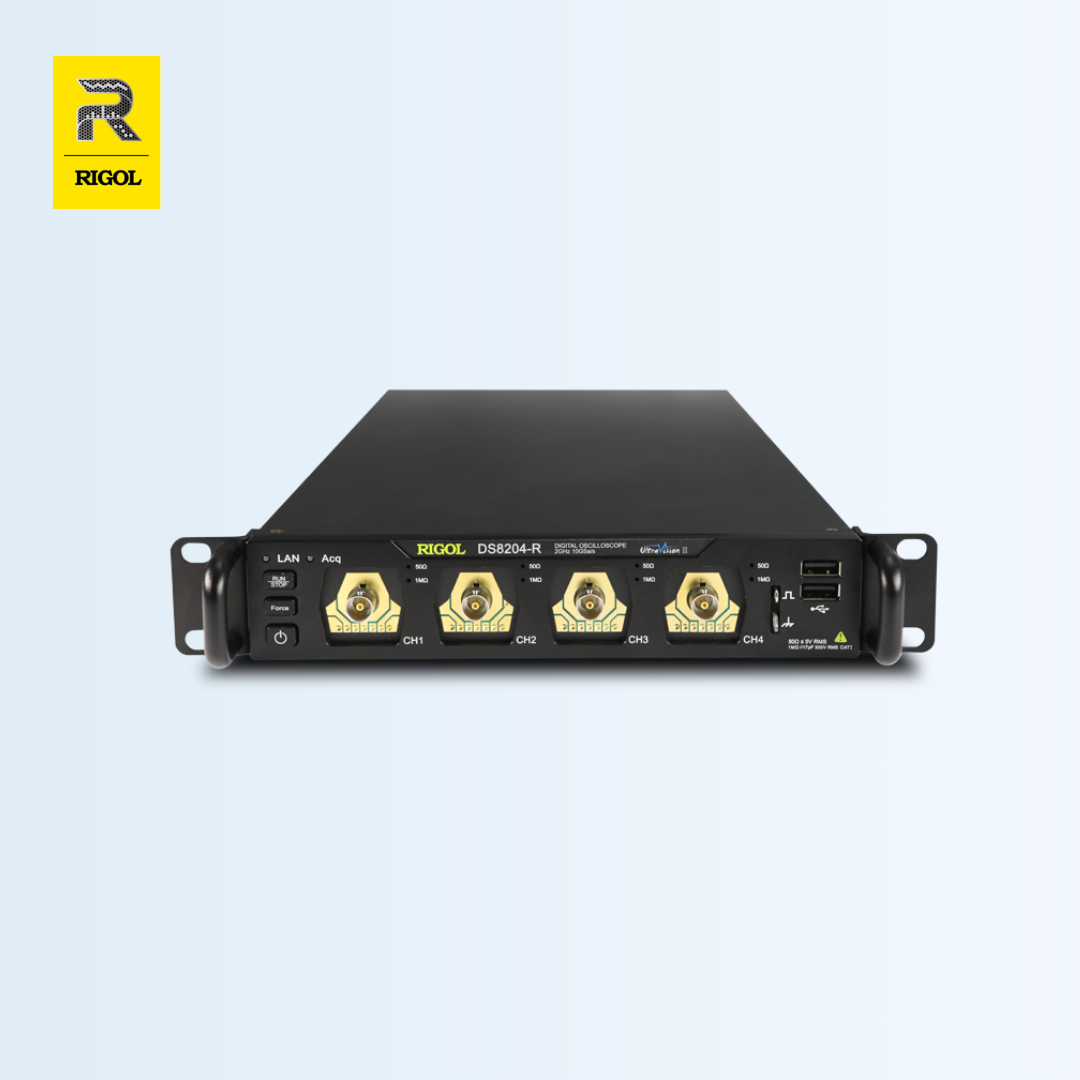

DS8000-R series is a medium and high-end digital oscilloscope with a compact size designed on the basis of the ASIC chip (RIGOL self-owns its intellectual property right) and UltraVision II technical platform developed by RIGOL. It is compact and thin in design. It supports system integration of multiple devices, rack mount installation, and remote system operation to meet the system requirements for industrial automation test system.
DIGITAL OSCILLOSCOPES

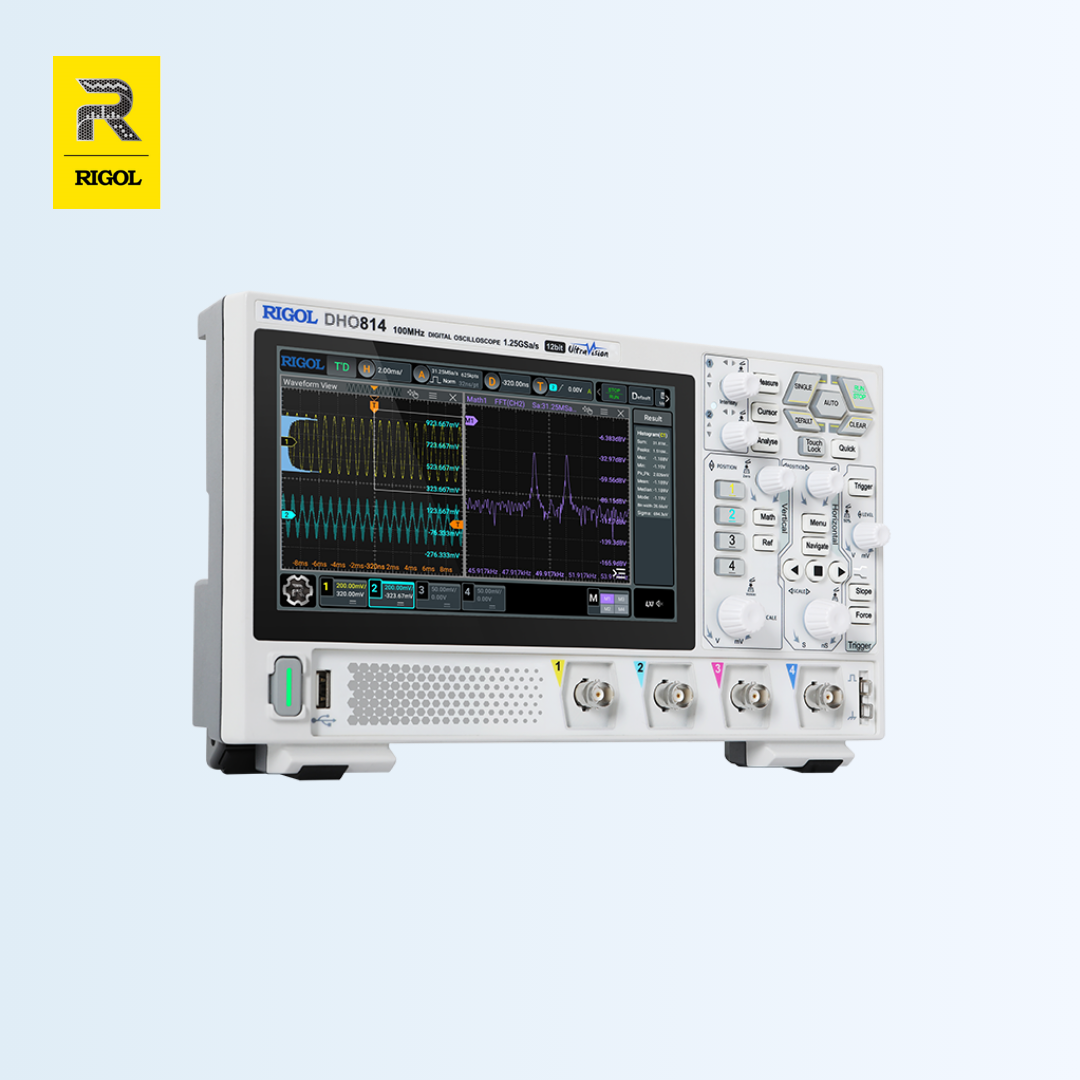

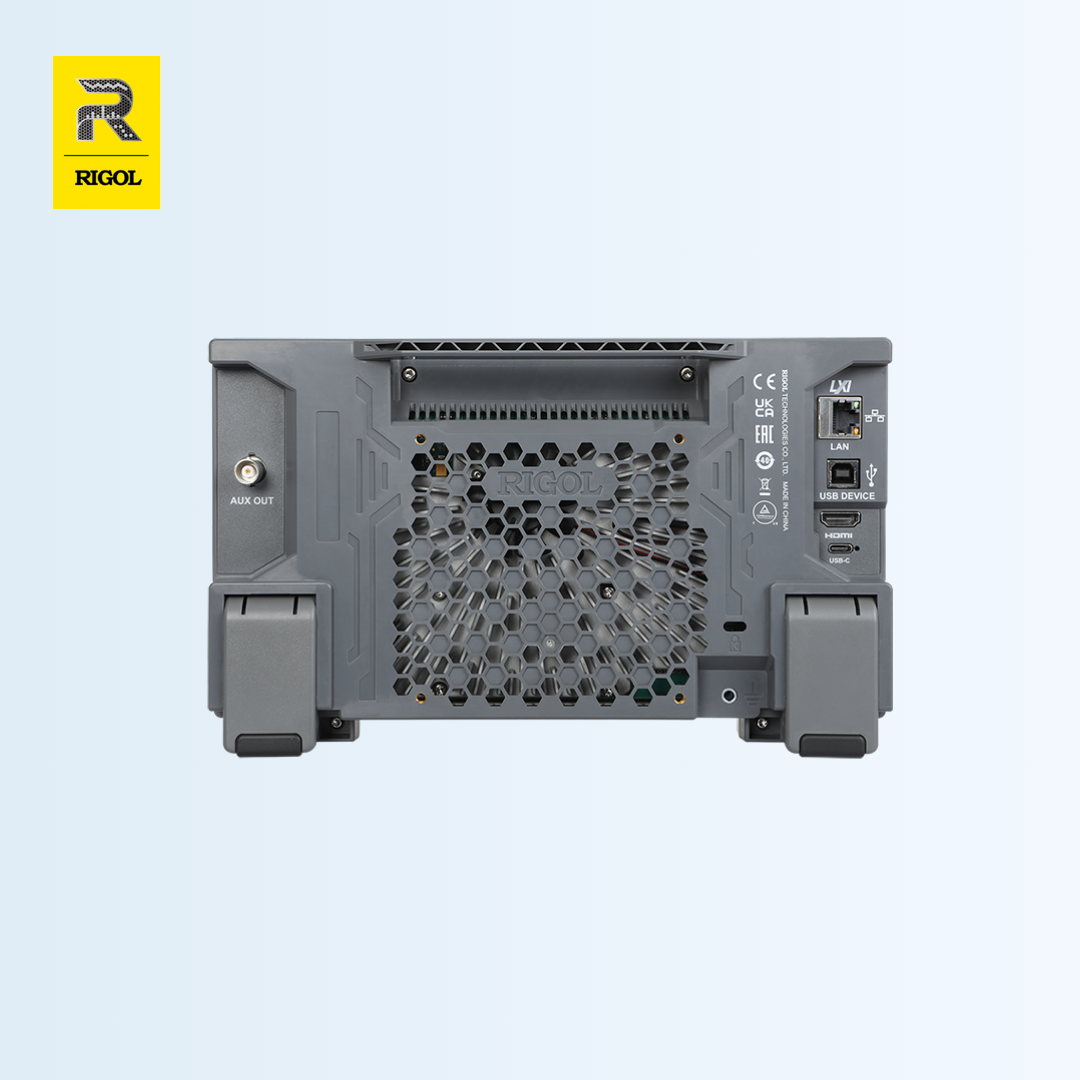

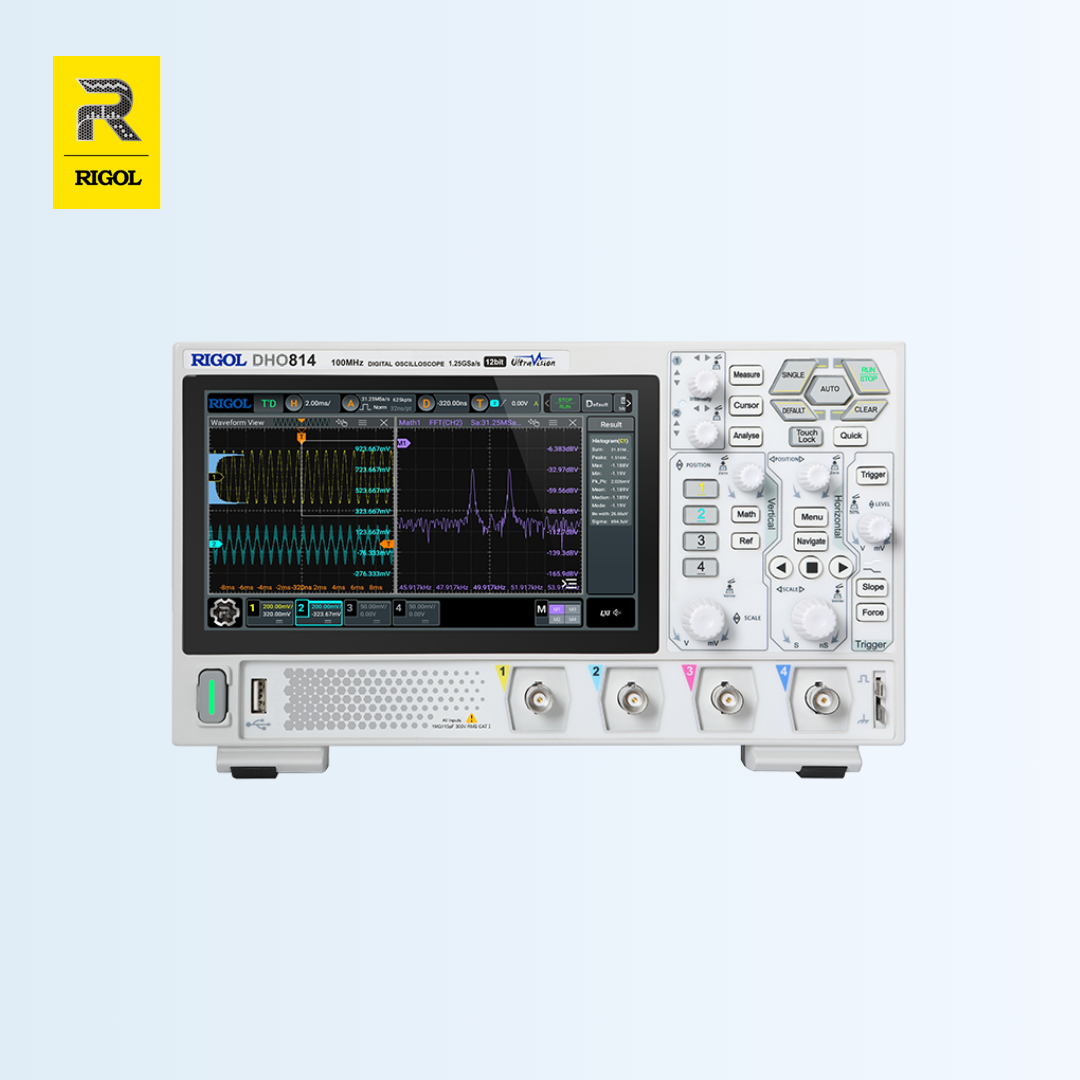

The DHO800 series is RIGOL's high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise. The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.
DIGITAL OSCILLOSCOPES

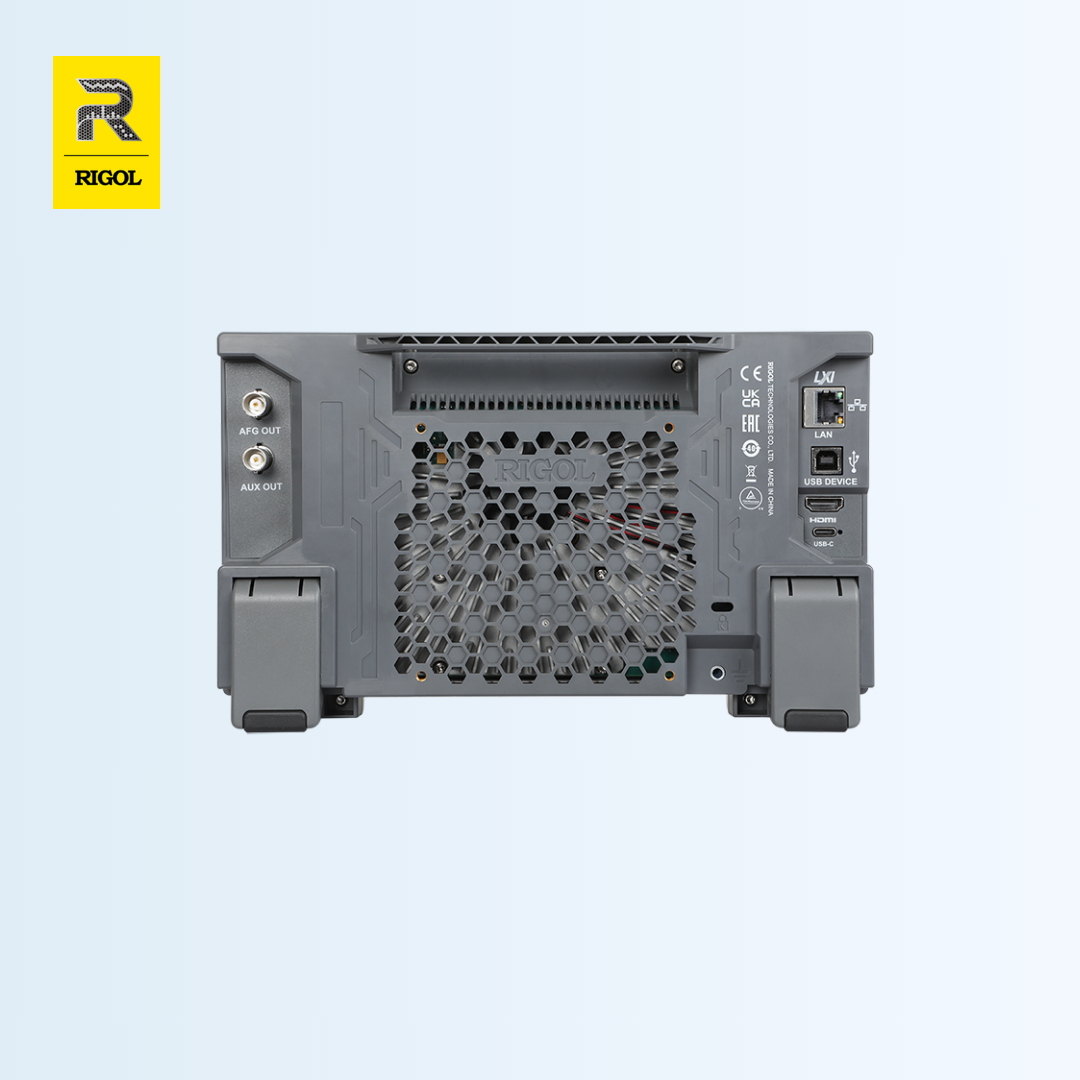

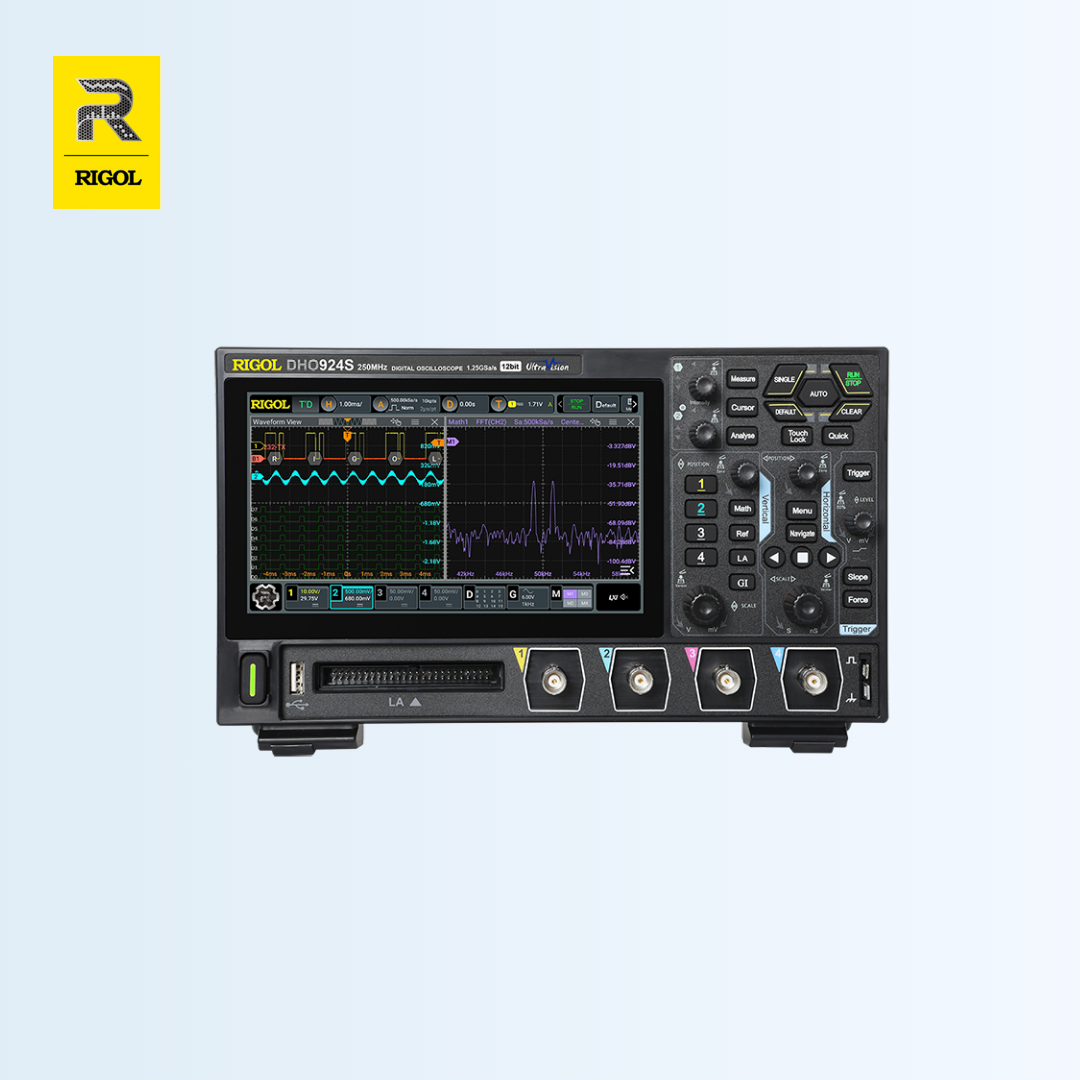

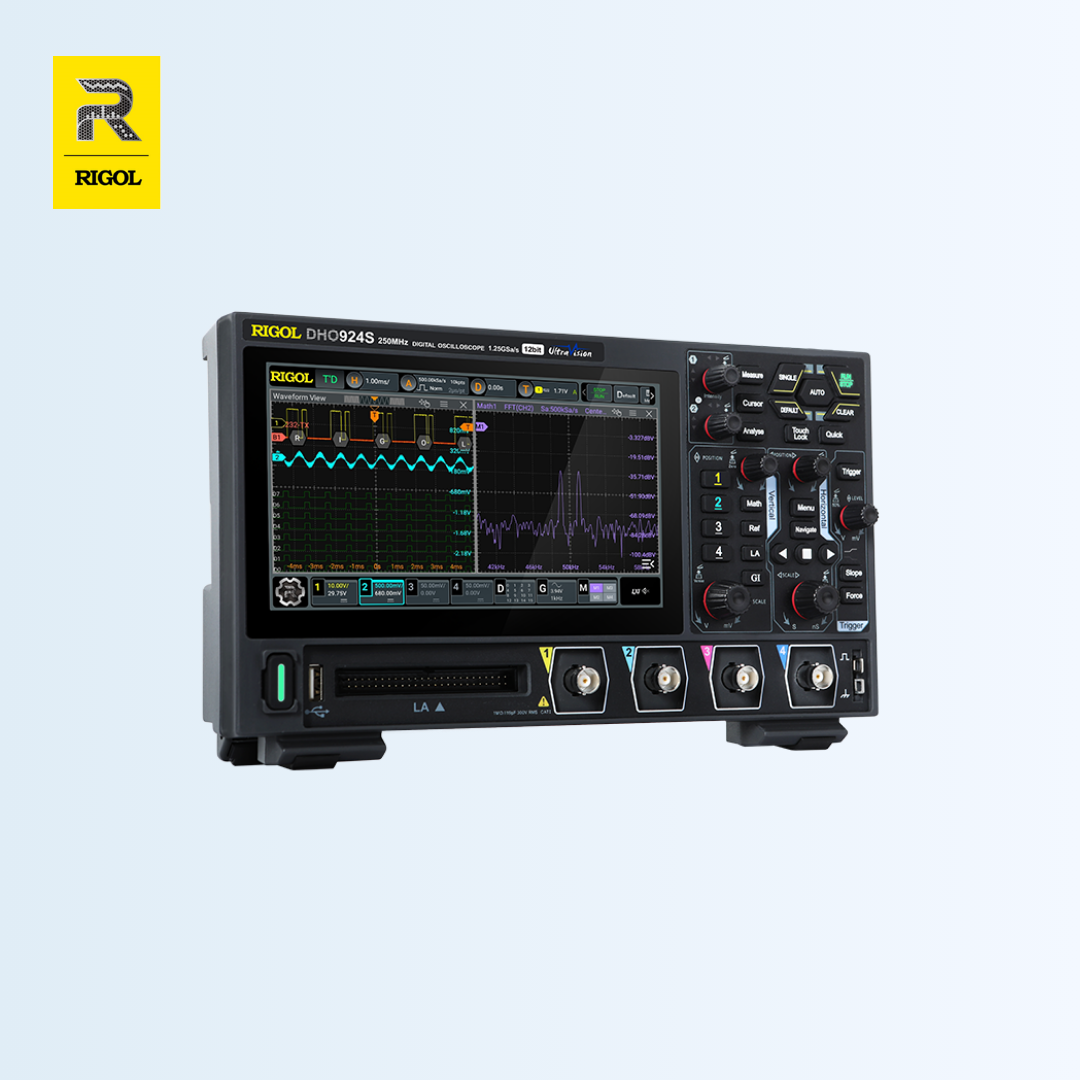

The DHO900 series is RIGOL's high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and low noise.The DHO900 series supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios.
DIGITAL OSCILLOSCOPES

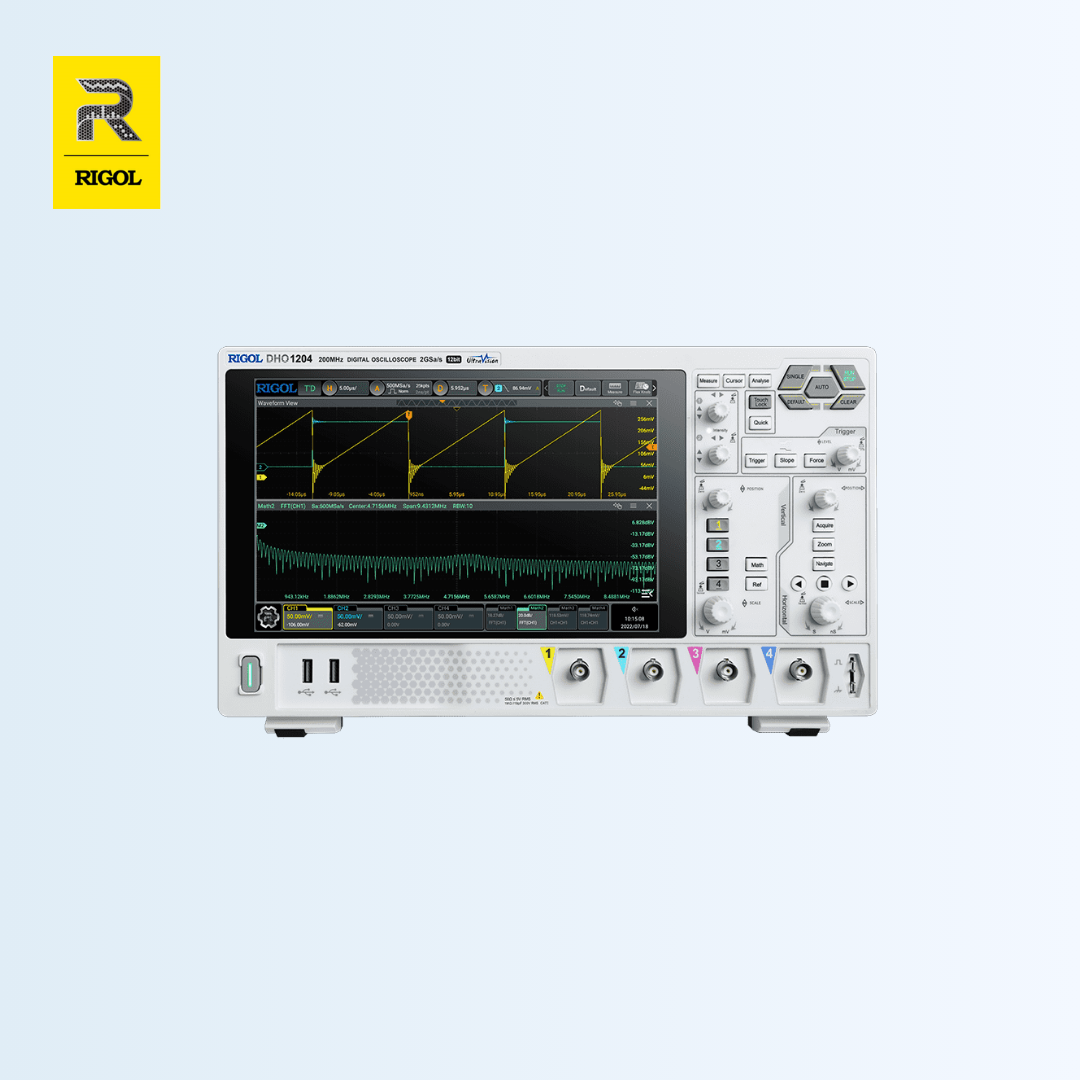

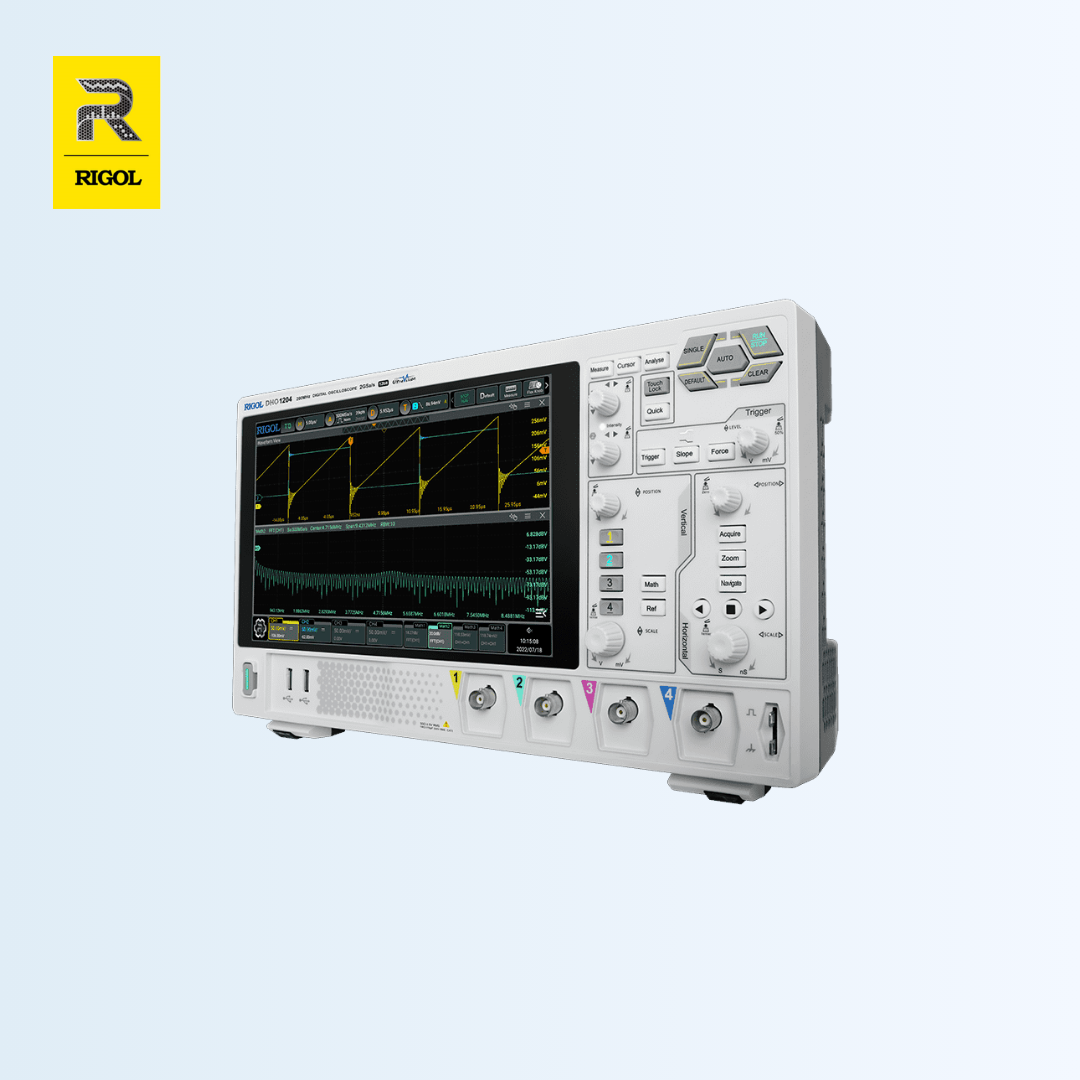

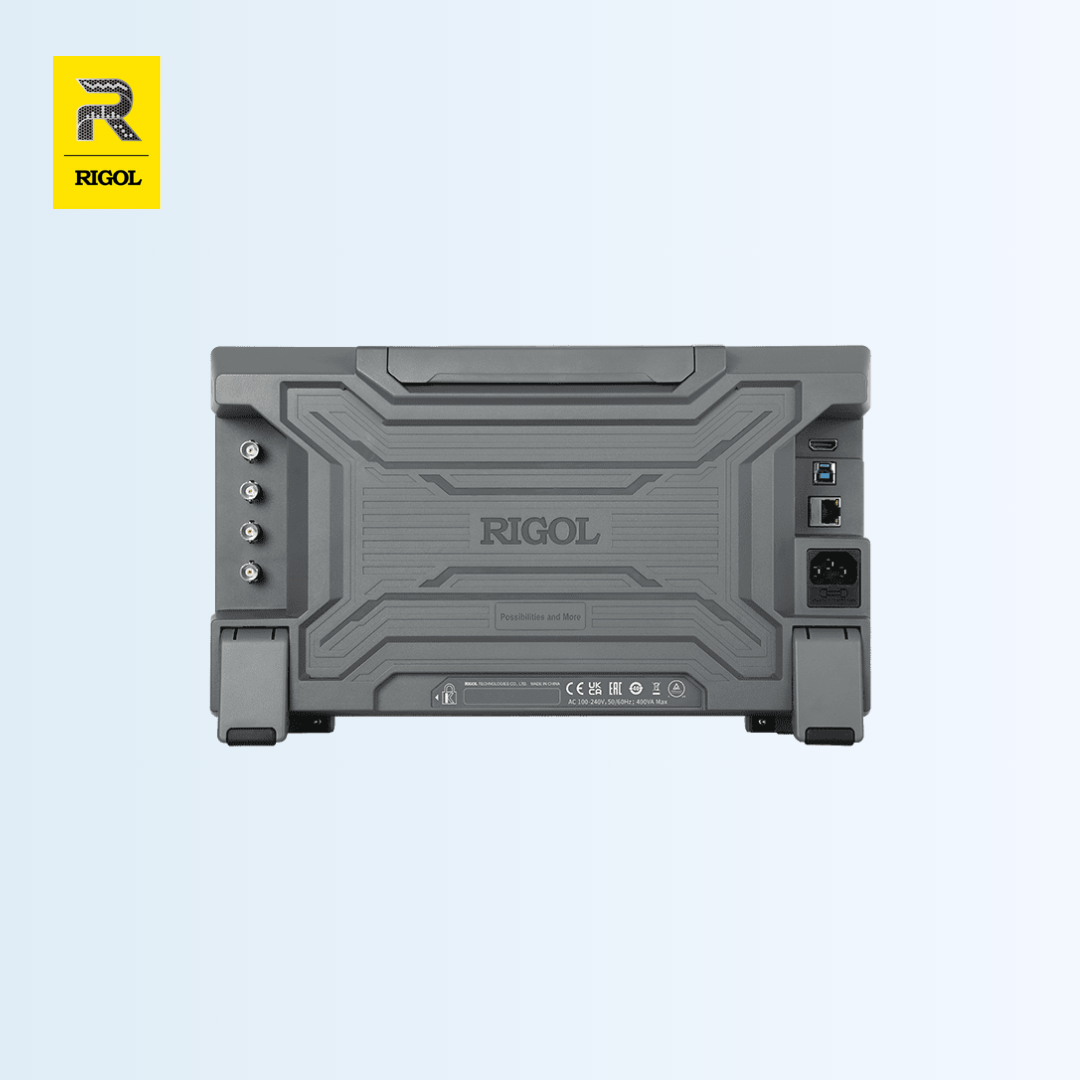

The DHO1000 Series provides improved signal integrity and value with our latest oscilloscope technology. Our UltraVision III platform combined with a new ASIC chip design that provides true 12 bit samples makes the DHO1000 a great solution for benchtop applications where noise and accuracy are paramount. With bandwidths from 70 MHz to 200 MHz, these 2 and 4 channel oscilloscopes have our best signal visualization capabilities.
DIGITAL OSCILLOSCOPES

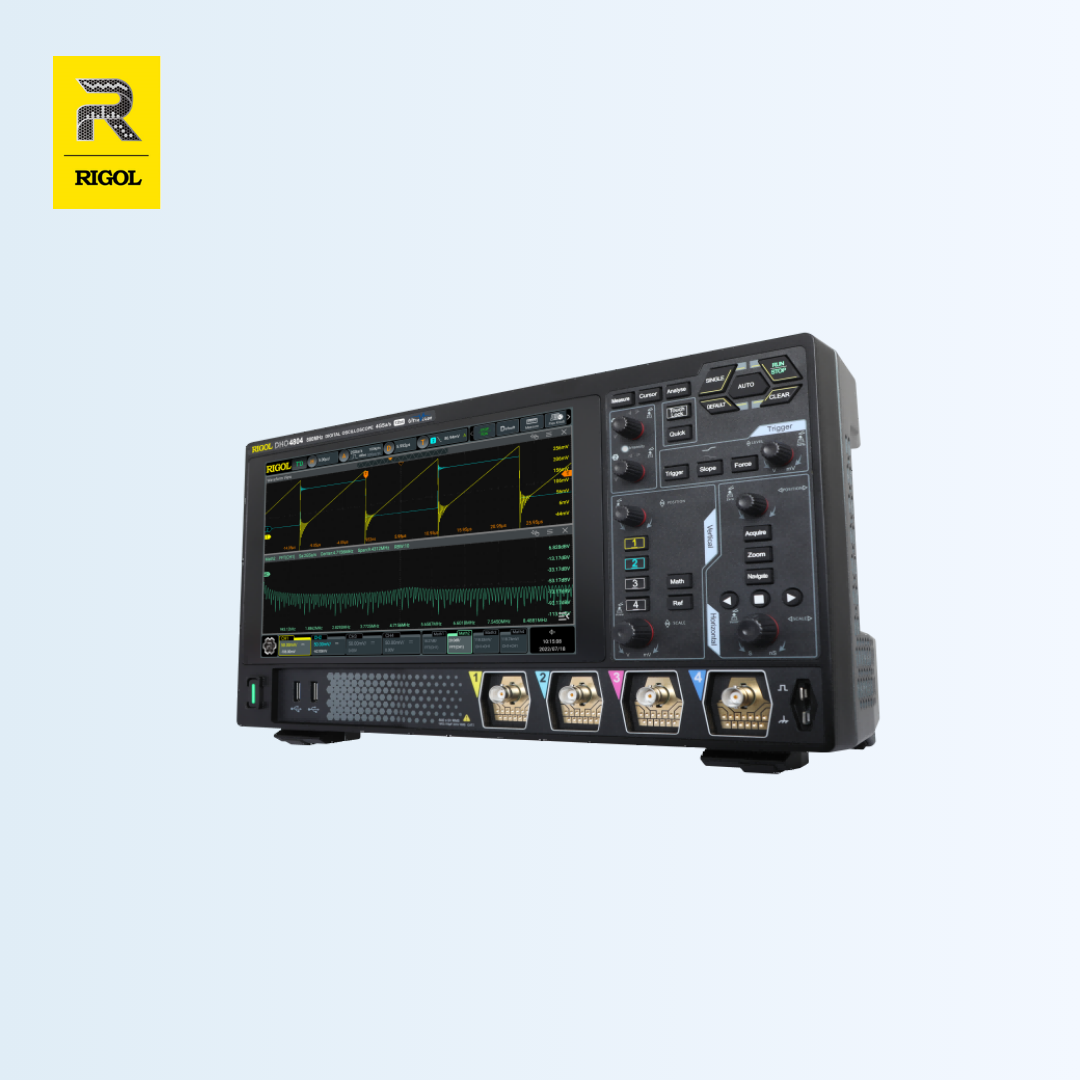

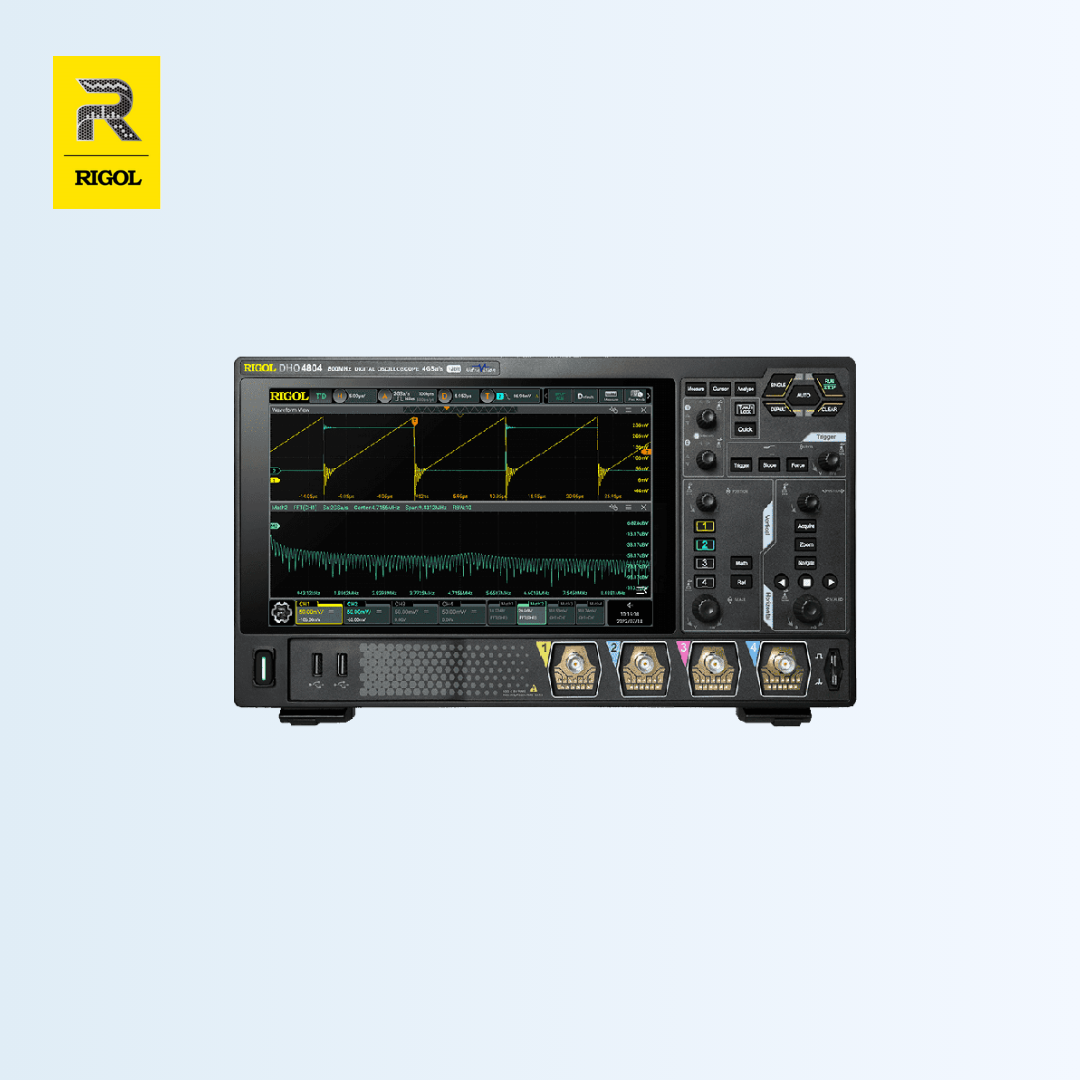

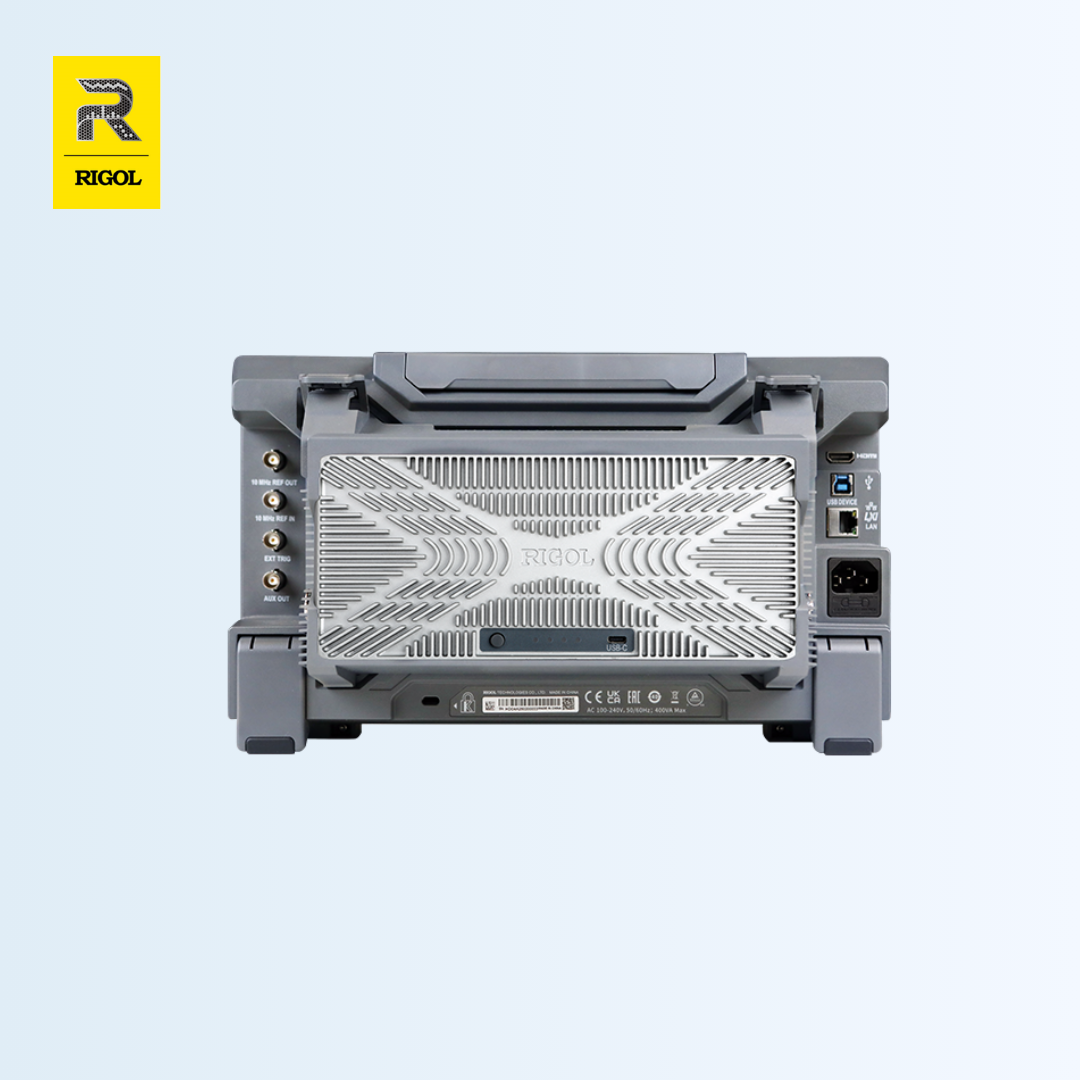

DHO4000 series digital oscilloscope is designed to meet the designing, debugging, and testing requirements of the mainstream oscilloscope market. Adopting the brand-new chipset "Centaurus" developed by RIGOL, this series achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 500 Mpts memory depth, 12-bit vertical resolution.
DIGITAL OSCILLOSCOPES

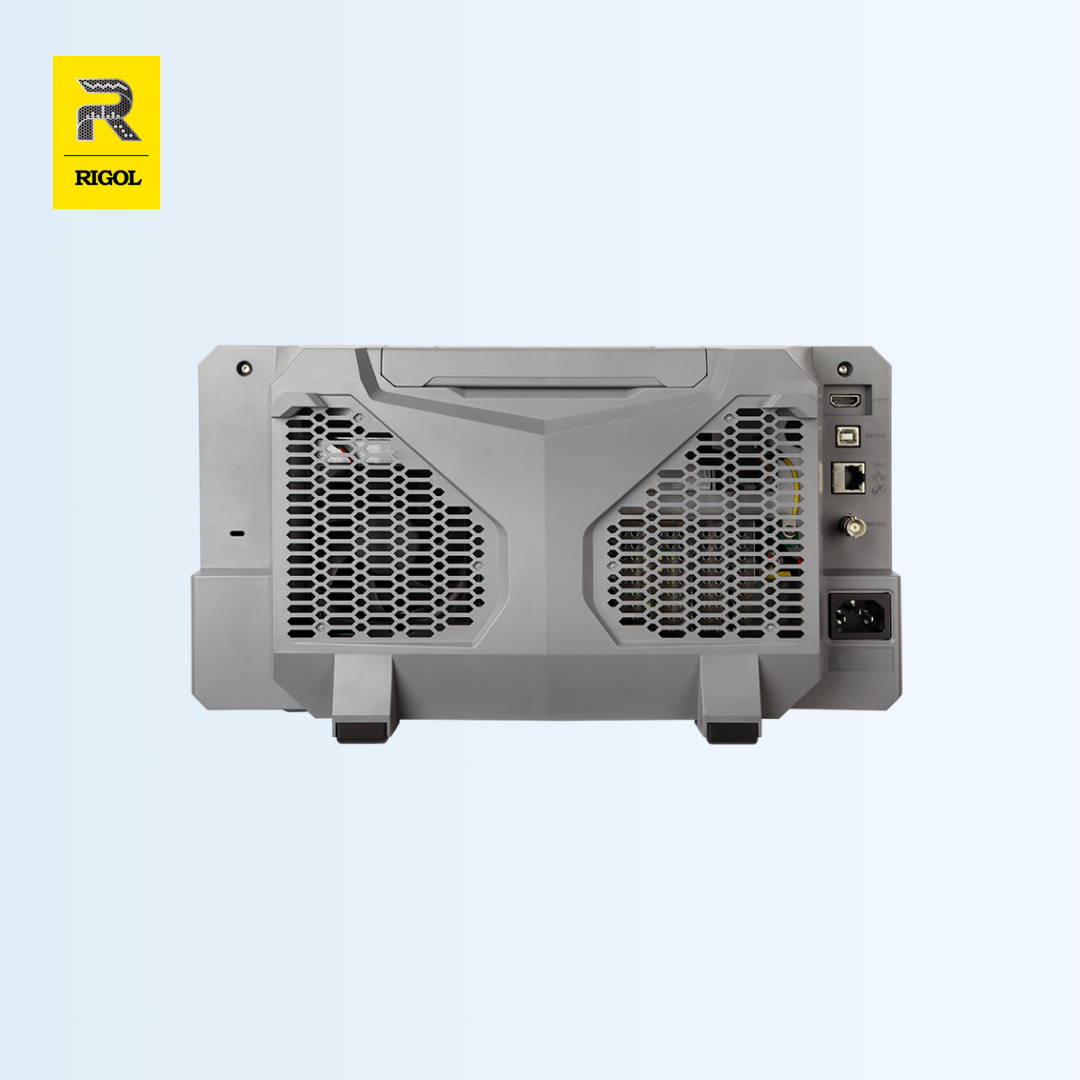

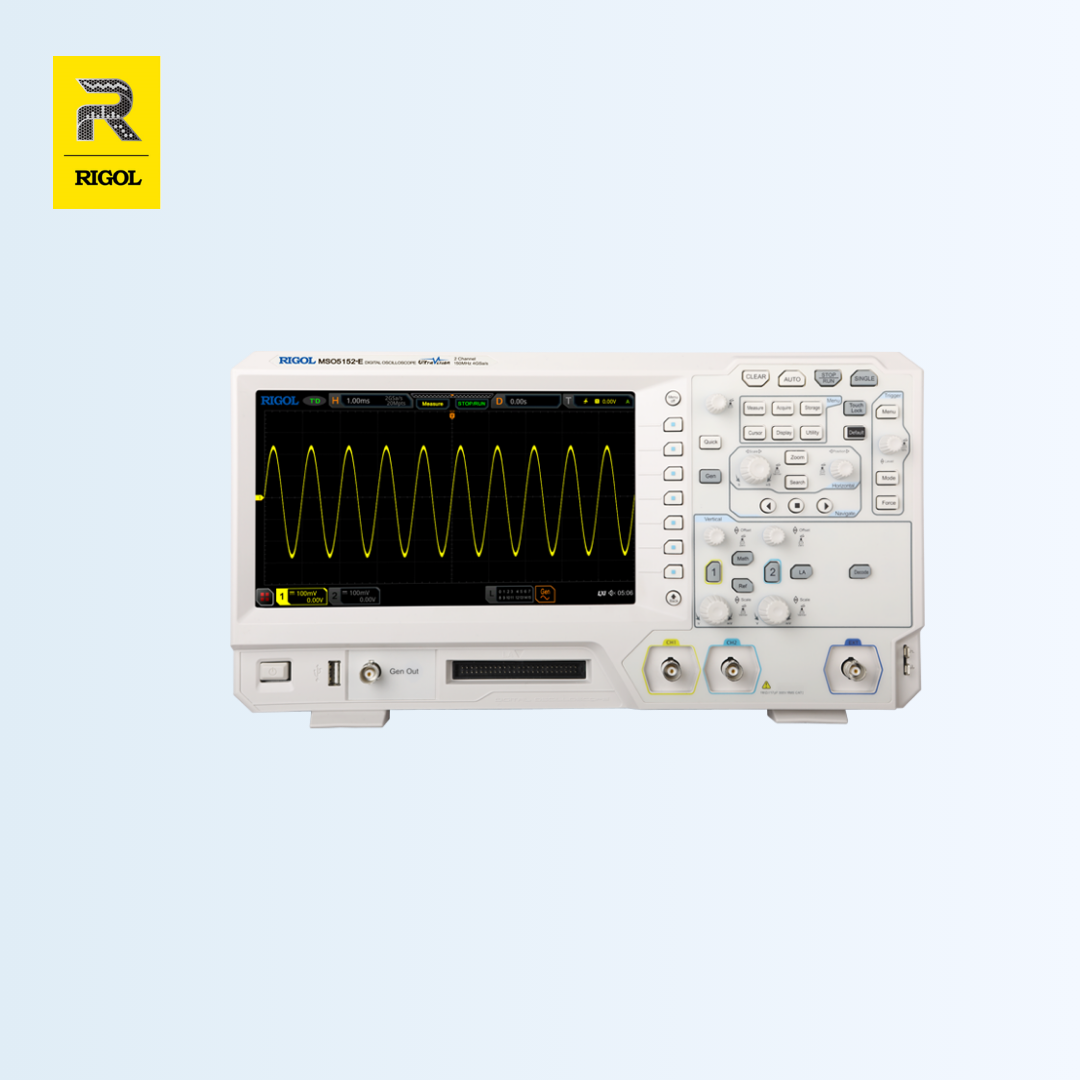

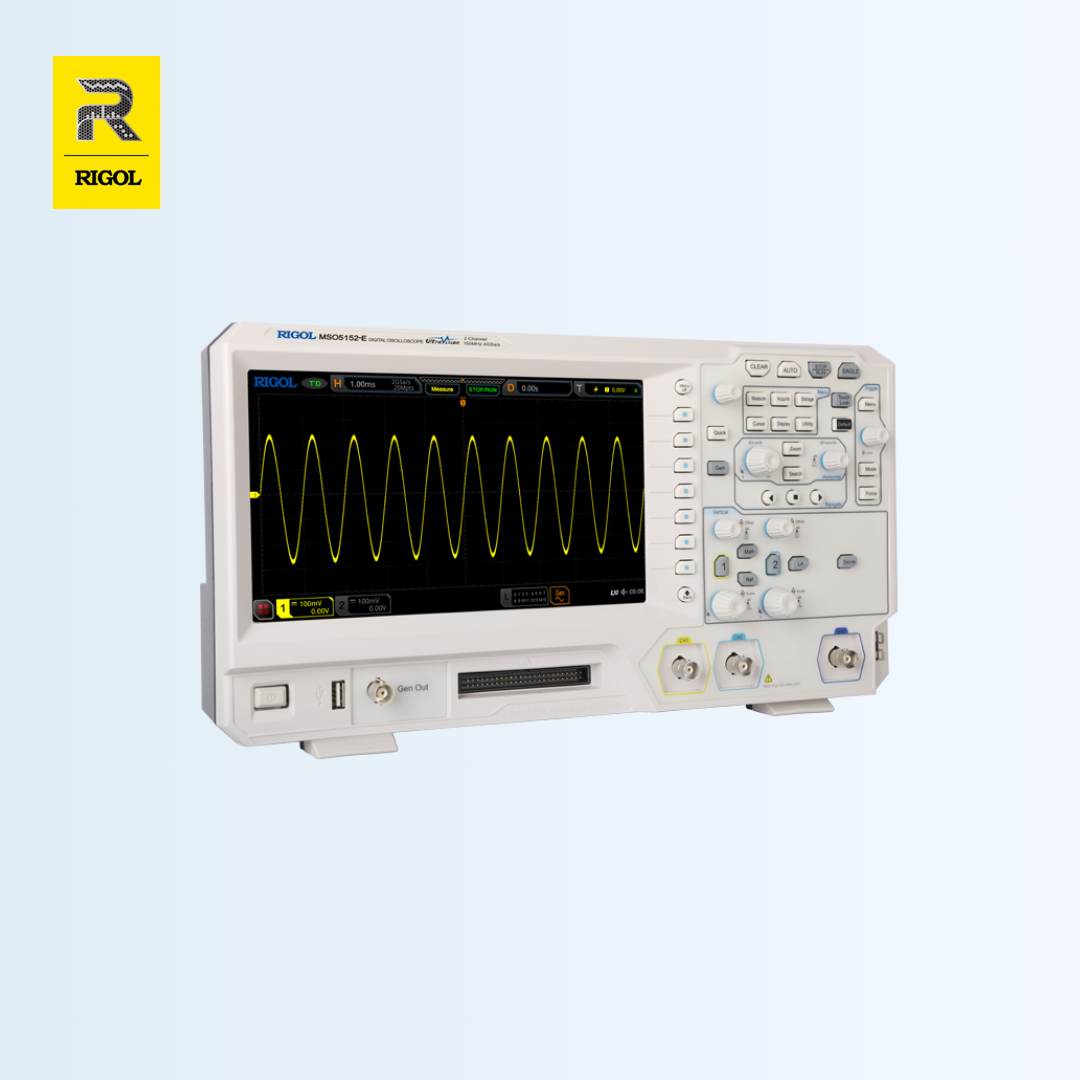

MSO5000-E series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000-E series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design.
.png)
.png)
FIRST 8 CHANNEL DIGITAL OSCILLOSCOPE

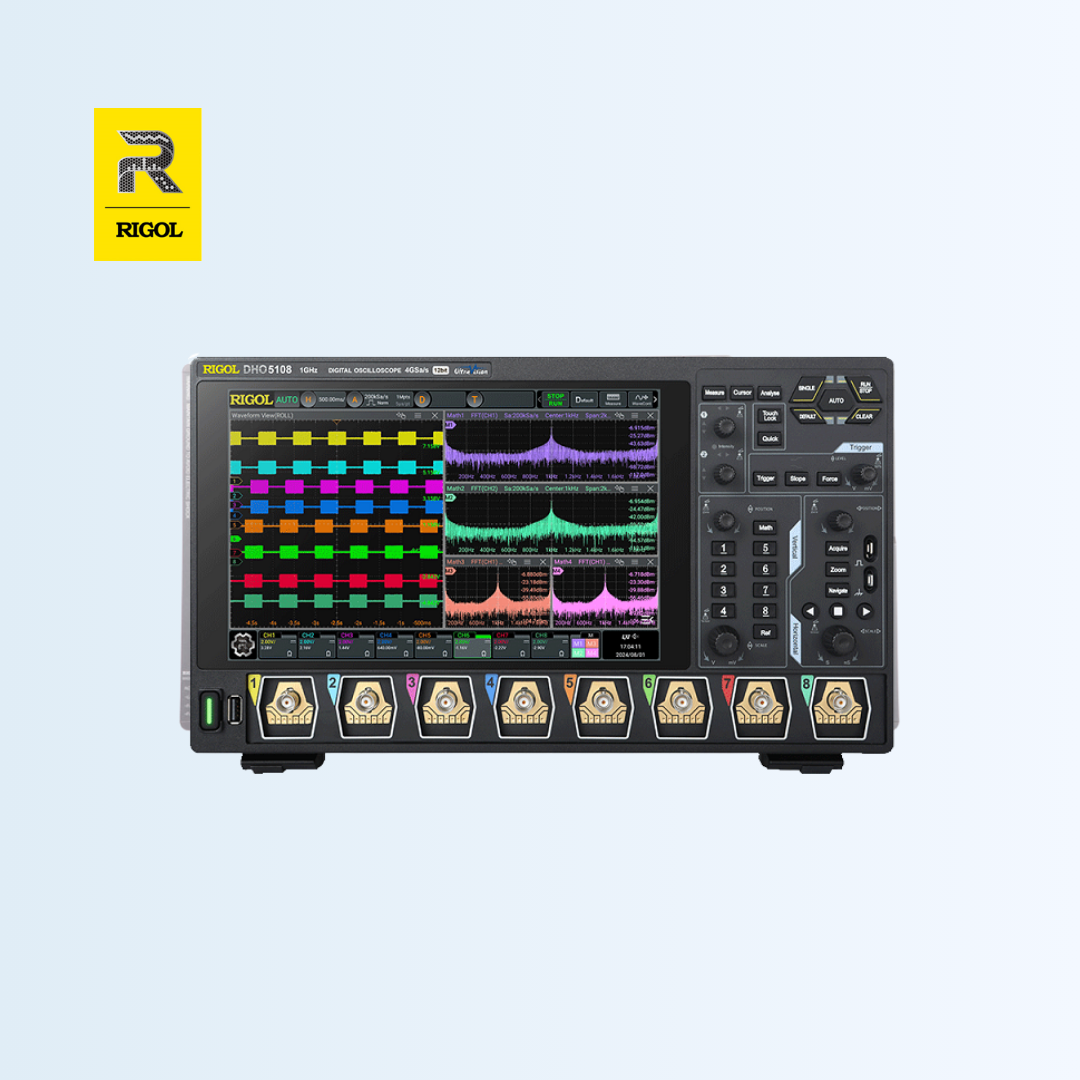

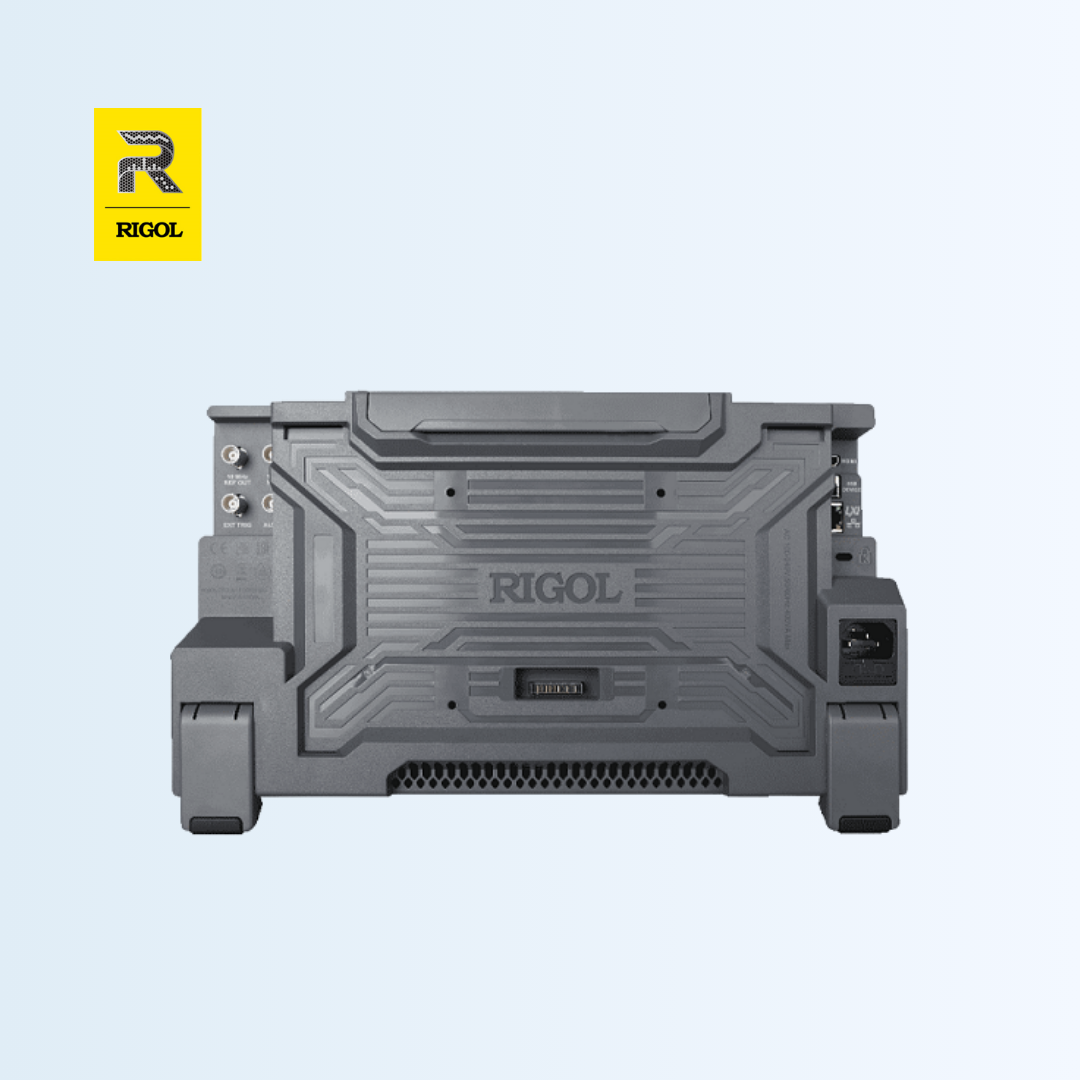

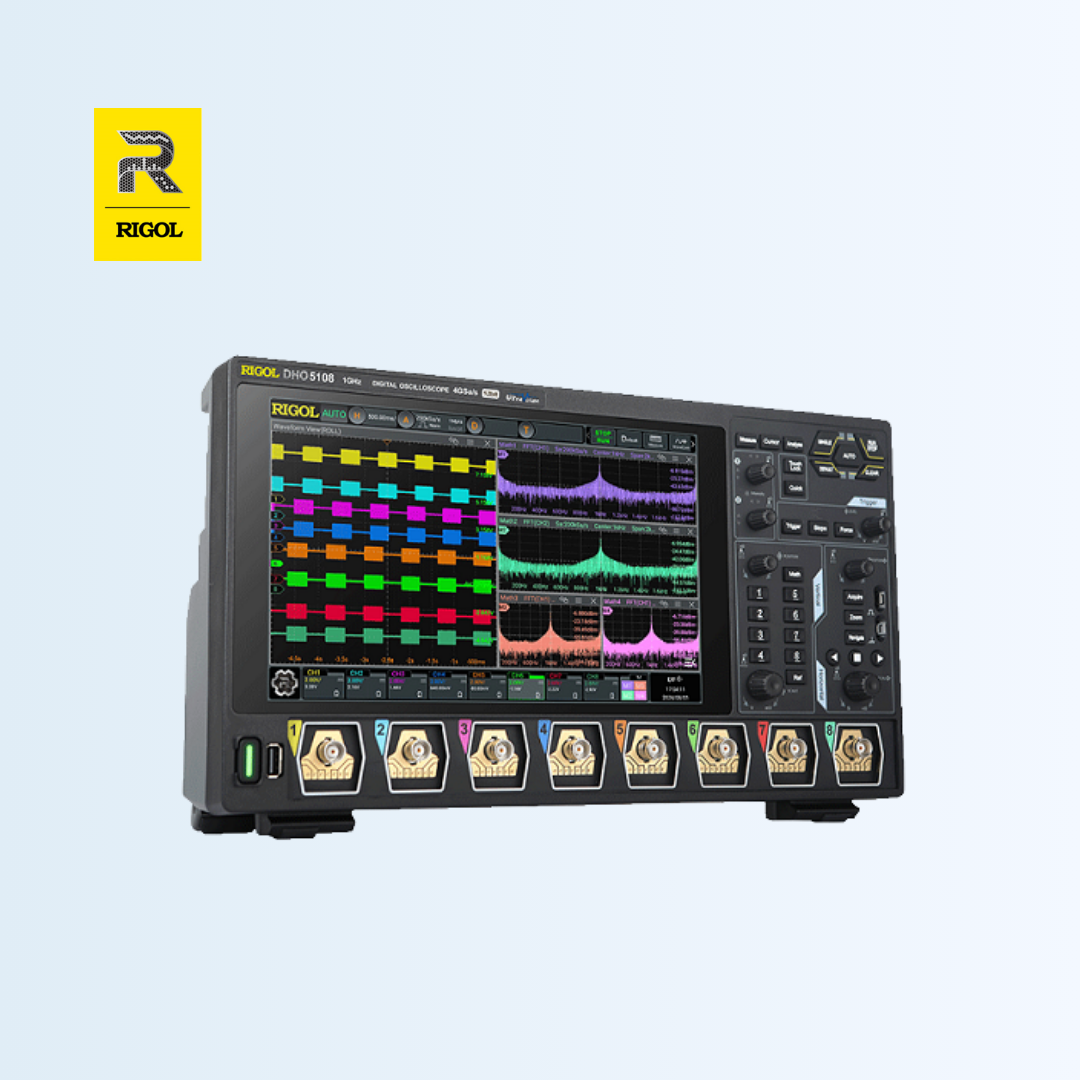

The DHO5000 series is RIGOL's first 8-channel digital oscilloscope, supporting up to 8 analog channel inputs, with a maximum real-time bandwidth of 1 GHz and a maximum real-time sampling rate of 4 GSa/s. With a vertical resolution of 12 bits, it helps engineers address testing challenges in multiple fields, including embedded design, power semiconductor testing, and power rail testing.
MIXED SIGNAL DIGITAL OSCILLOSCOPE

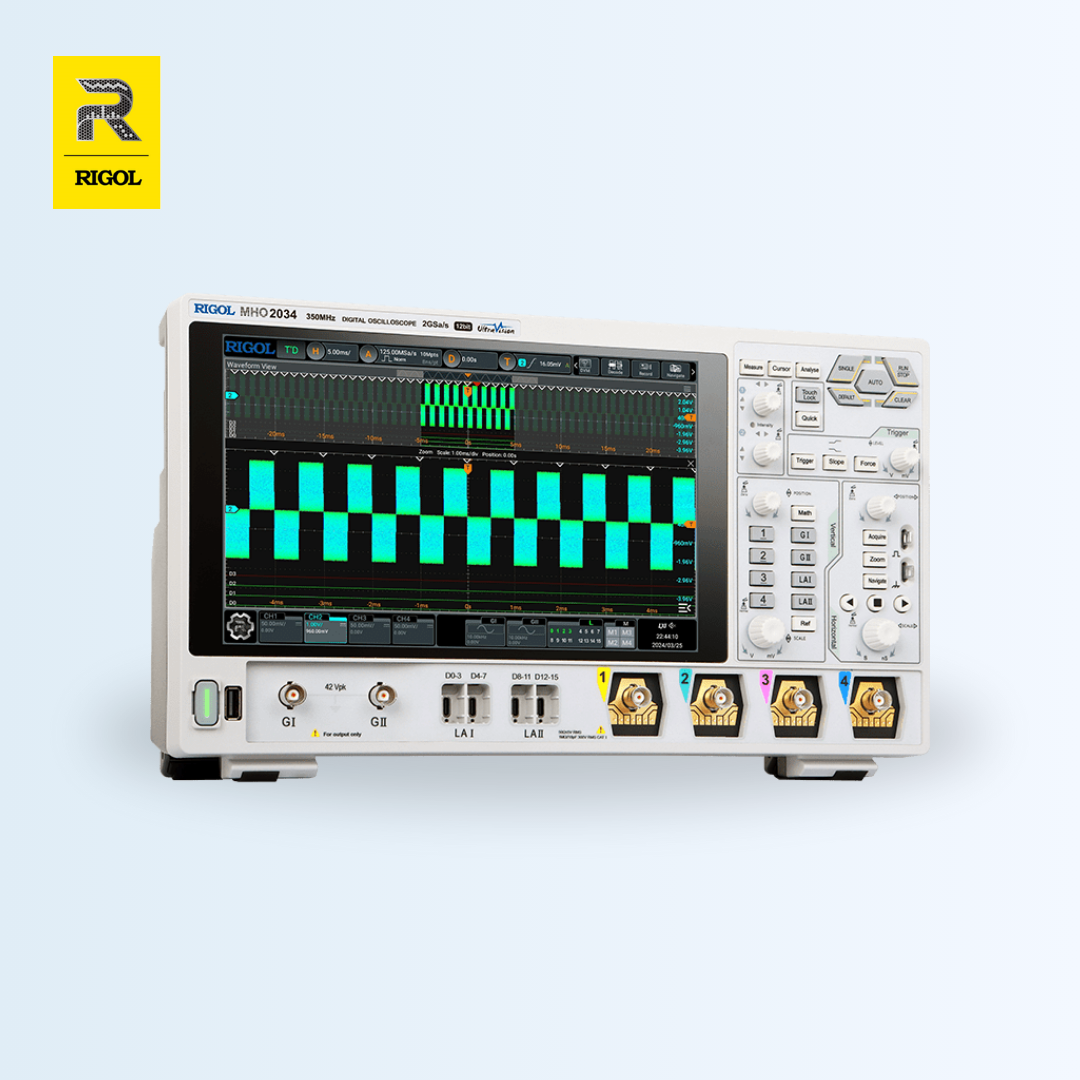

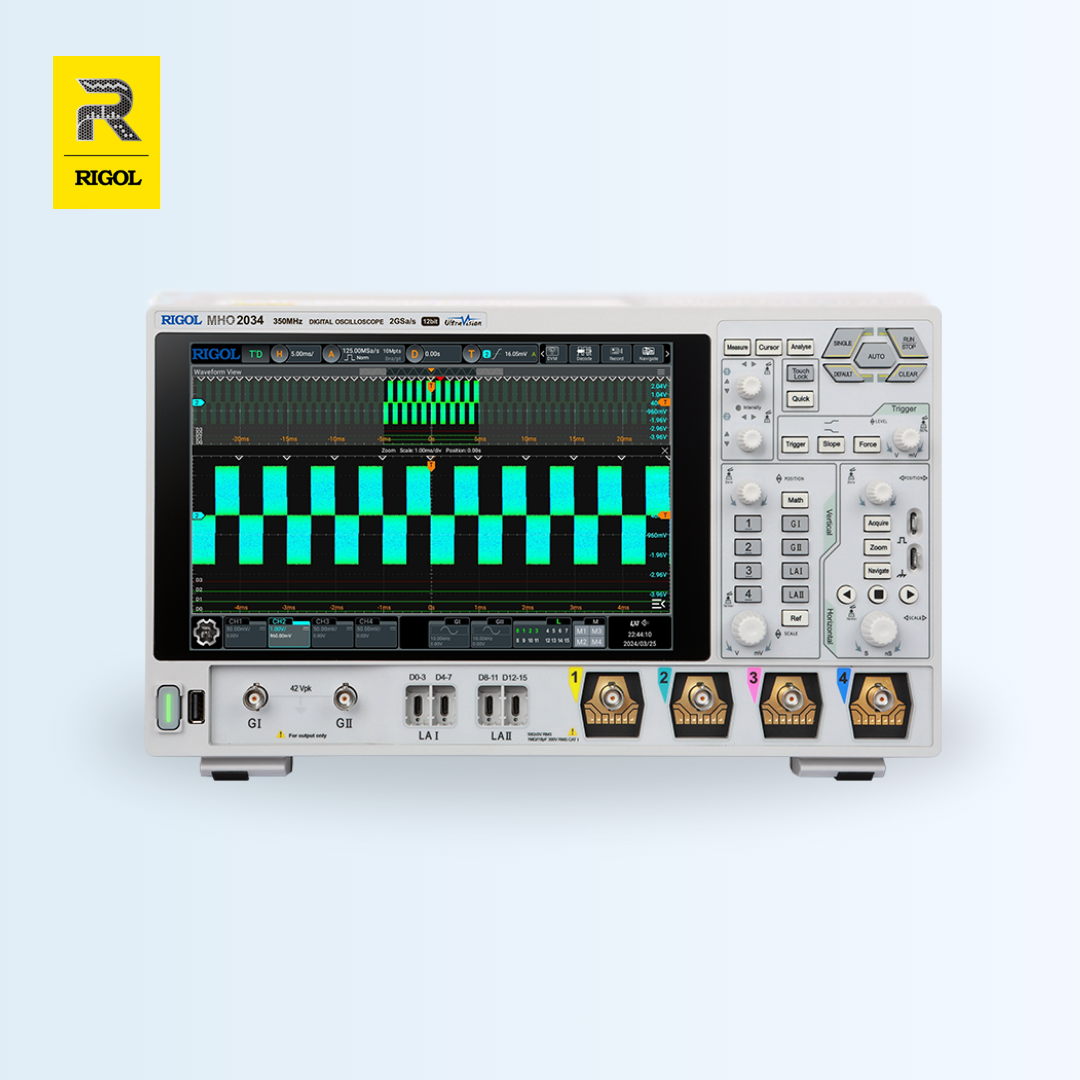

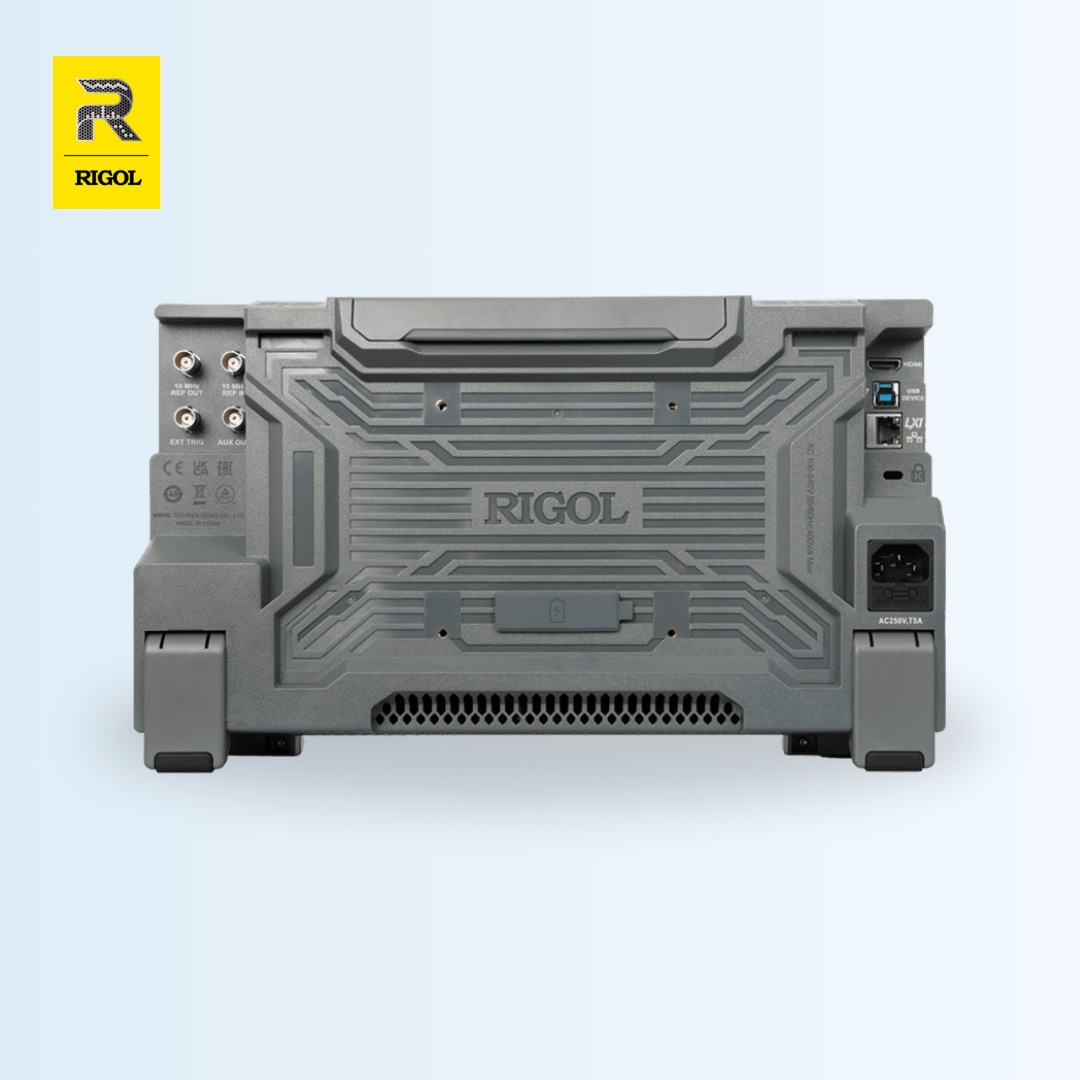

The MHO2000 series is a high-resolution, reliable, and cost-effective mixed-signal digital oscilloscope with up to 350 MHz bandwidth. It features a 12-bit ADC and integrates functions such as protocol analysis, logic analysis, and signal generation. Ideal for power, medical, and automotive electronics, the MHO2000 enables efficient, multi-dimensional testing and analysis.
.png)
.png)
.png)
DIGITAL OSCILLOSCOPES

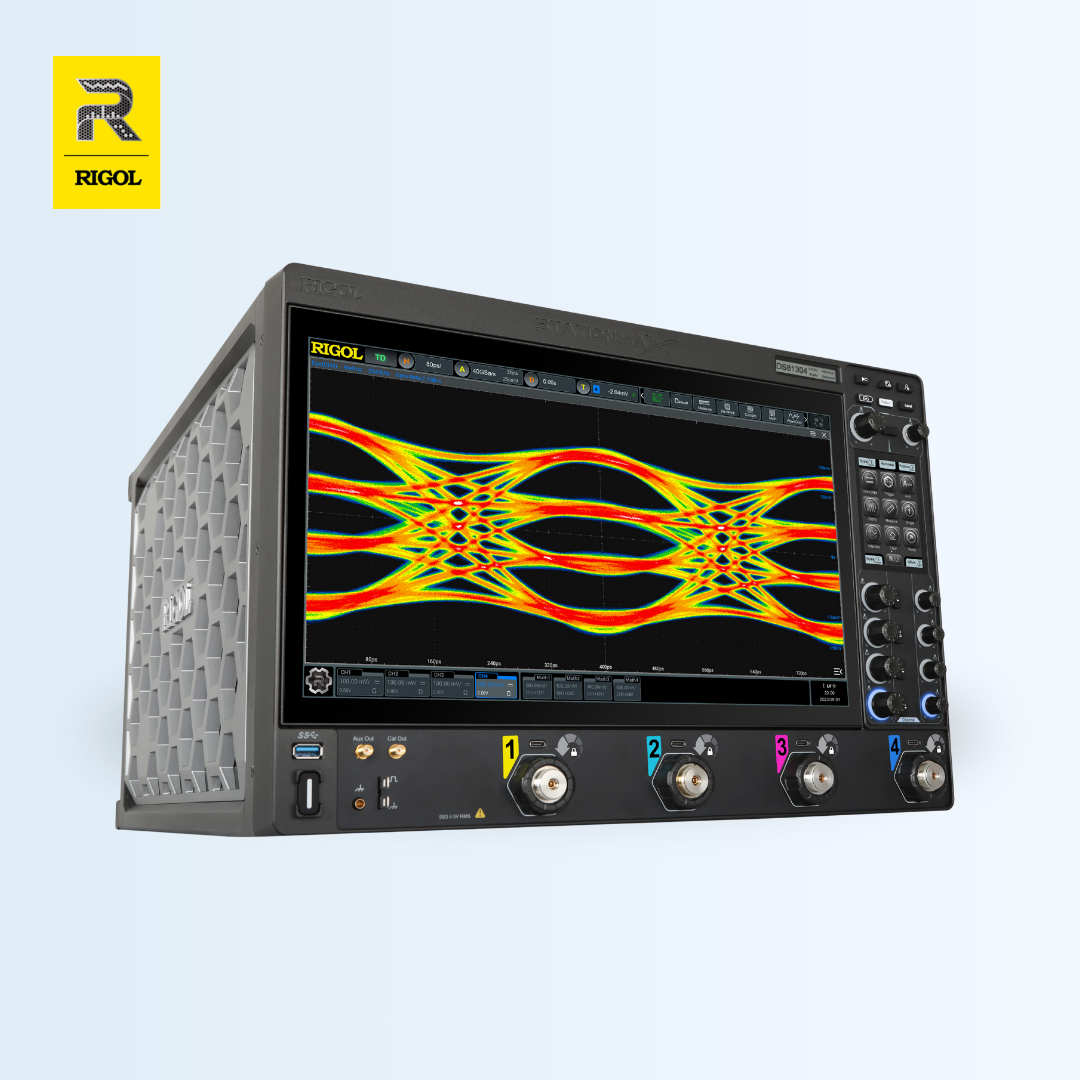

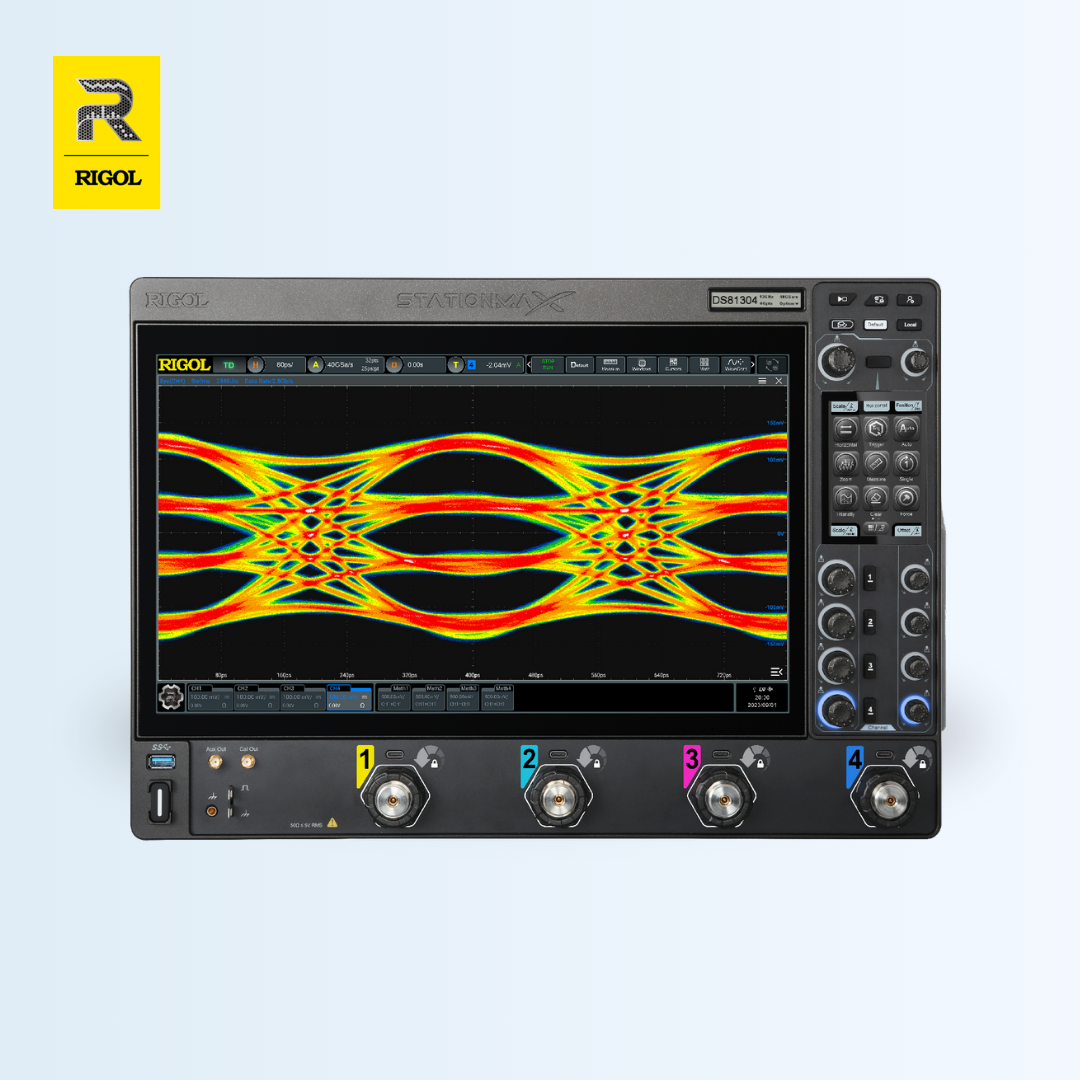

The DS80000 series digital oscilloscope is the eighth generation digital oscilloscope independently developed by RIGOL. Based on the StationMAX II platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz. In addition to hardware improvements, the DS80000 series digital oscilloscope also provides a variety of user-friendly designs to ensure a high-quality.
