TBST120/60/60/2-B

Shielded Tent

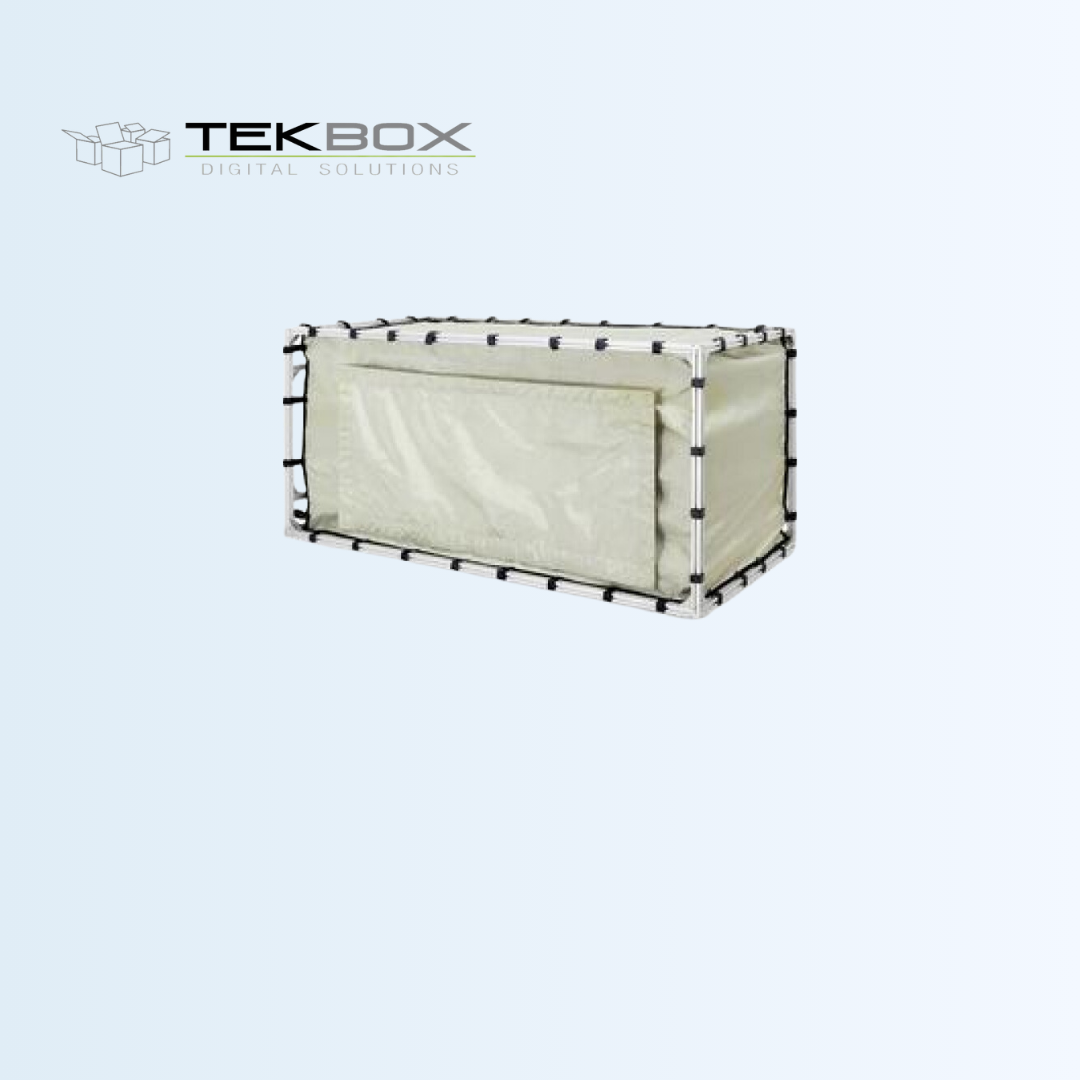

The TBST-120/60/60/2-B is a shielded tent, designed to suppress interference from ambient noise during EMC pre-compliance measurements. With a size of 120 cm x 60 cm x 60 cm, it can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells. The shielded tent is composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A AC filter, two 240V/10A DC filter and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape.

  • Outer dimensions: 124 cm x 64 cm x 60 cm
  • Opening dimensions: 85 cm x 35 cm
  • Frame: 20 mm x 20mm extruded aluminium profiles.
  • Shielding: 2 layers of conductive fabrics.
  • Seal: conductive Velcro tape.
  • Suspension: Velcro stripes.
  • Filter panel: 1 x 240V/10A AC filter; IEC socket, 2 x 240V/10A DC filter; cables with female Banana couplers, 3 x N- female feed through connector,, with screw caps.
  • 1 x BNC-female feed through connector.
  • Attenuation: 50 70 dB in the range DC to 6 GHz.
  • Weight: 10.8 kg.
