TBSHT(P)05

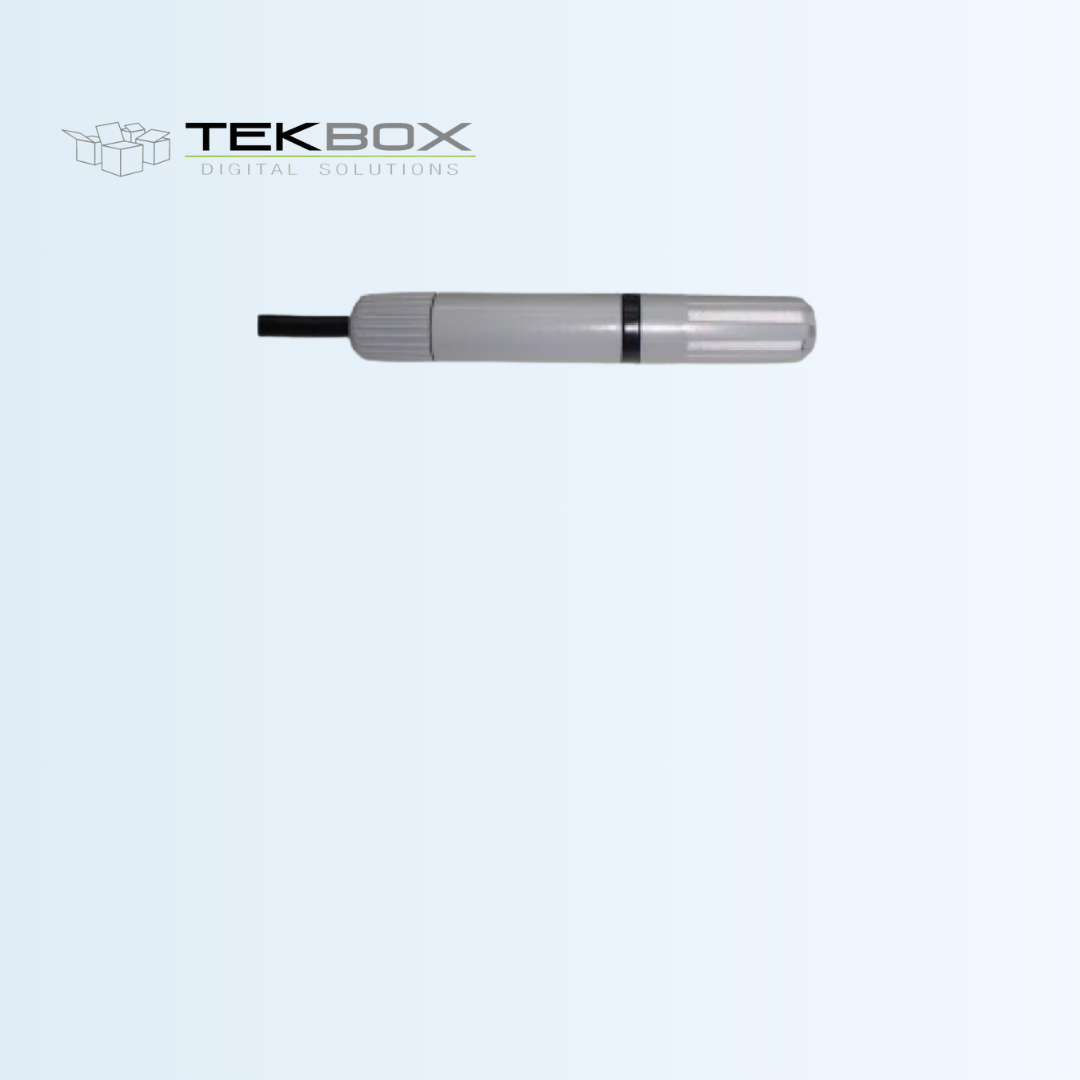

SDI-12 Air Temperature/Humidity/Barometric Pressure Probe

The TBSHT05/TBSHTP05 is an air humidity, temperature and barometric pressure sensor with SDI-12 interface. The sensing elements are located on a PCB in the tip of the sensor. The acquisition circuit is completely over-moulded. Temperature measurement is carried out with a 0.1°C precision PT1000. Humidity measurement is based on a precision sensing element on a ceramic substrate. An additional MEMS chip measures barometric pressure. The sensor tip is protected with a replaceable filter.

Air humidity, temperature and barometric pressure sensor.
SDI-12 Interface.
Temperature resolution: 0.01°C.
Temperature accuracy tolerance: -40°C to +85°C: ±0.1°C.
Air humidity resolution: 0.01% RH.
Air humidity accuracy tolerance: 0% to 90%: typ. ±2%RH, max. ±2.5%RH, 90% to 100%: typ. ±2%RH, max. ±3.5%RH.
Barometric pressure range: 300-1100hPa (+9000 -500m above sea level).
Barometric pressure resolution: 0,02hPa.
Barometric pressure accuracy: ±1hPa.
Replaceable PTFE filter cap, 10µm.
SDI-12 Standard V1.3.
Plug and Play.
6 - 17V supply voltage.
Dimensions: 100 mm x 16 mm.
Operating Temperature Range: -40°C+85°C.
Excellent price-performance ratio.
