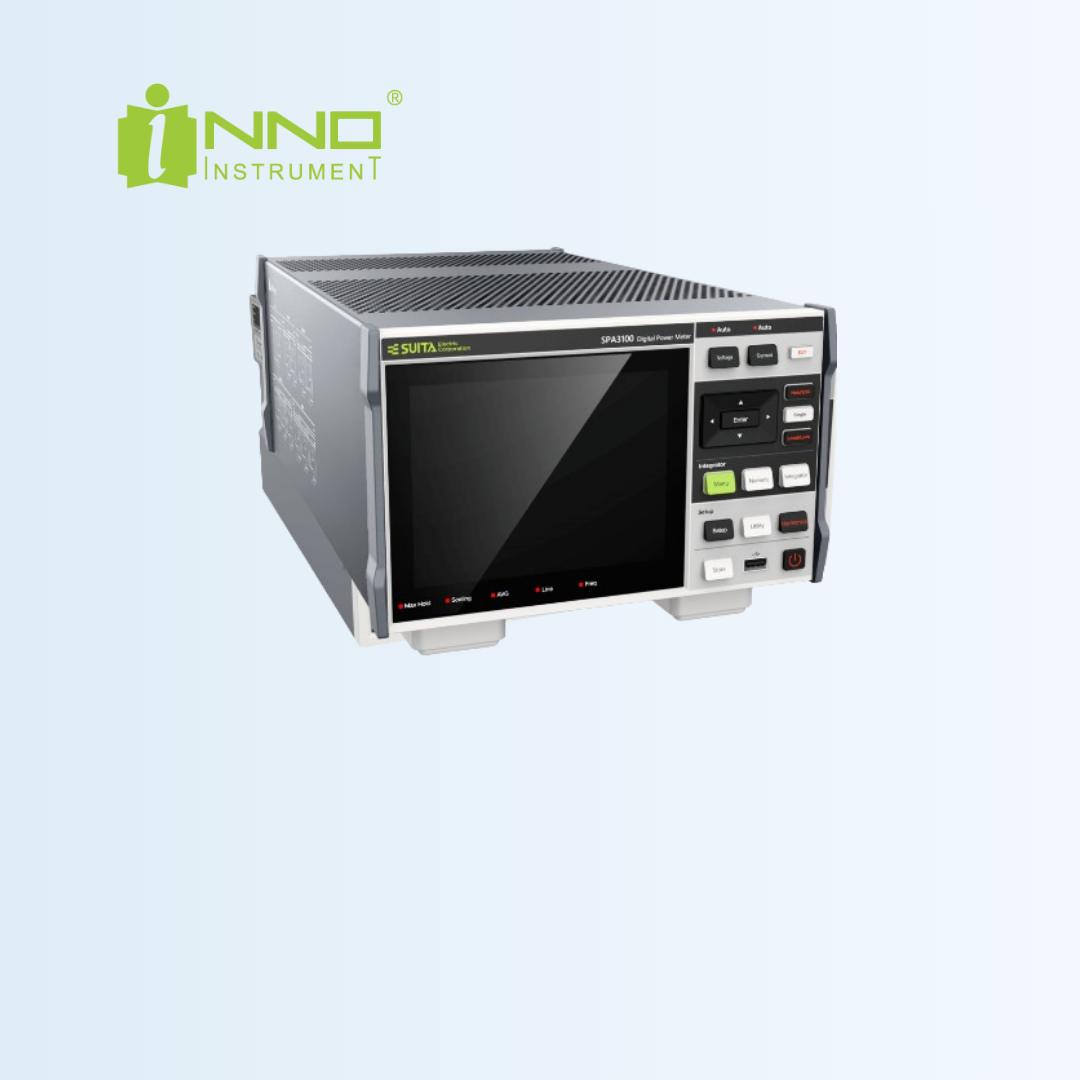

SPA3100 Digital Power Meter

3-channel Digital Power Meter with LCD Touchscreen

SPA3100 is widely used for power industry testing, office or home appliance power consumption measurement, and battery-driven device assessment, etc. SPA3100 is small-sized, compact, user-friendly, affordable, and of high precision. Its built-in 5.6’’ LCD screen offers a brighter and more uniform display effect compared to regular LCD screens while having a higher energy eficiency.

The LCD screen ensures clear pixel representation, vibrant colors, and realistic images.
SPA3100 Digital Power Meter can measure all AC, DC parameters.
SPA3100 enables users to save configuration files, facilitating the swift loading of previously saved configurations.
SPA3100 enables users to save configuration files, facilitating the swift loading of previously saved configurations.
SUITA PA Viewer is a PC application software that allows users to connect their devices to a PC through a network interface, enabling remote control from the PC.

Measurement Accuracy : ± (0.1% of reading + 0.05% of range)
Voltage range : 15V - 1500V
Current Range : 100mA - 5A
Measurement Bandwidth : DC, 0.5Hz-100KHz
Resolution : 16 bit
Channels : 3
Internal Storage : 4 GB
Programming and Interfaces : USB, Ethernet, RS-232, GPIB (optional), D/A output
