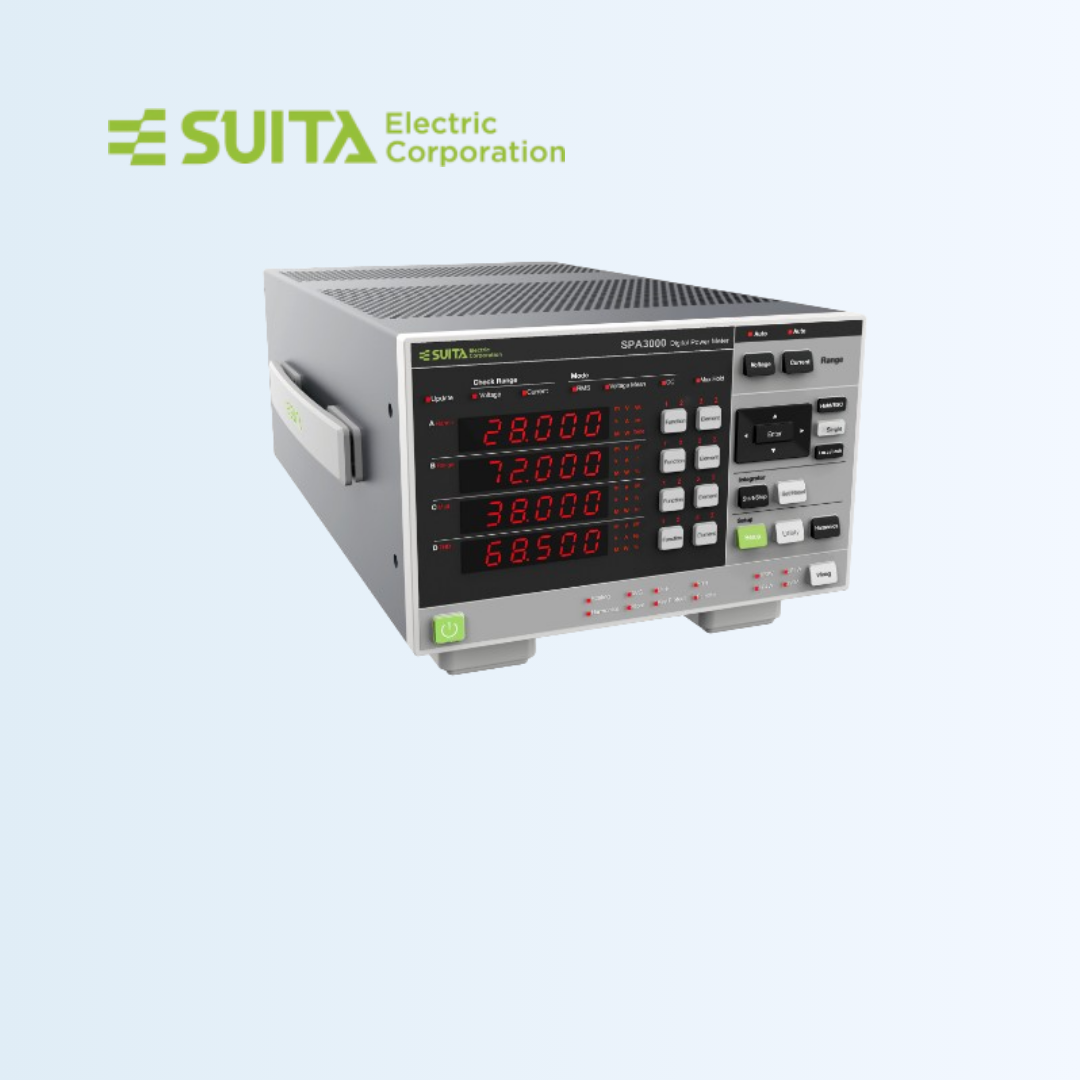

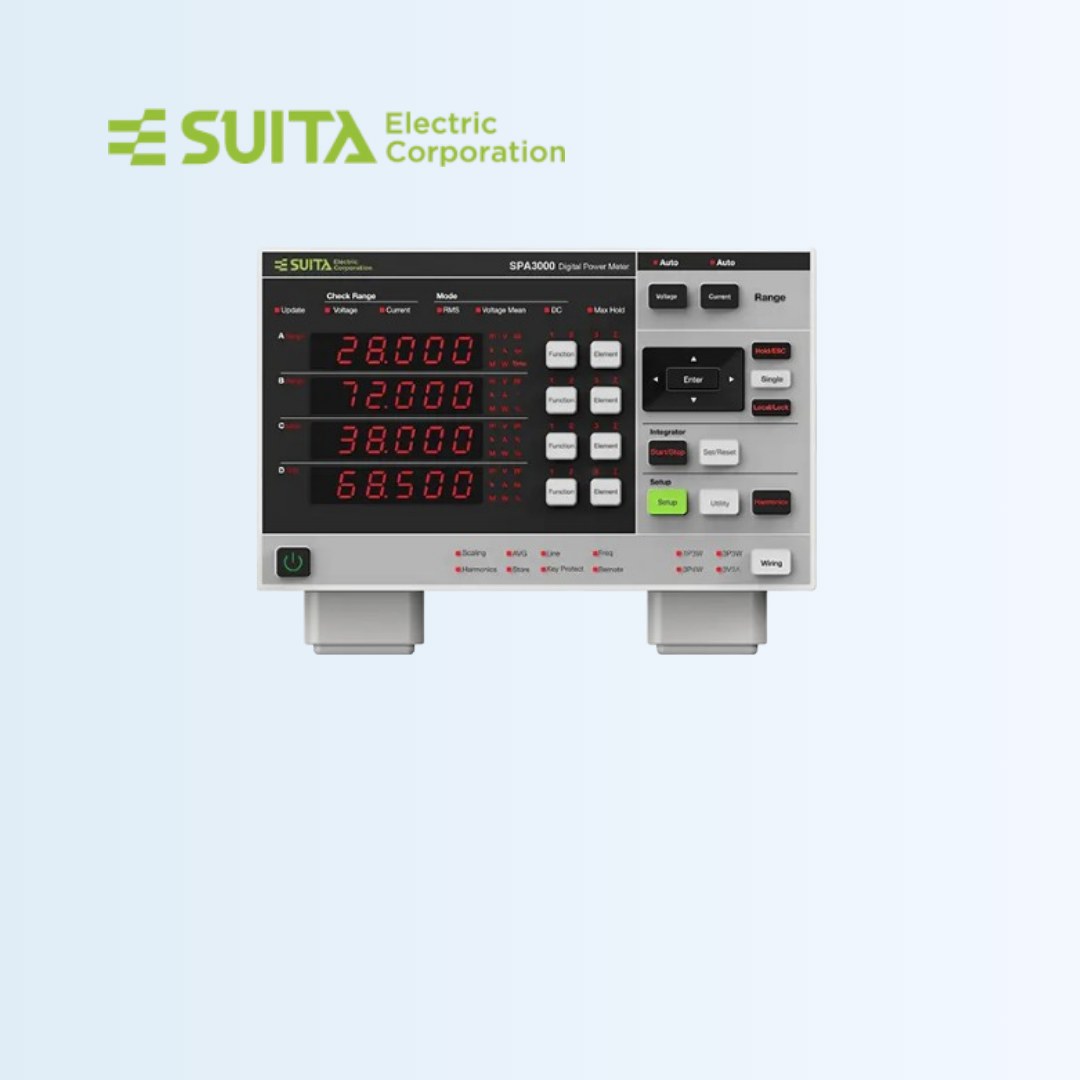

SPA3000 Digital Power Meter

3-channel Digital Power Meter

SPA3000 Digital Power Meter has multiple measurement channels and wide current range which can measure voltage, current and power consumption of the measured devices with high power and precision. The semi-rack design makes it suitable for power consumption test bench and automated assembly line testing. In addition, the device is equipped with a multi-channel D/A output and extensive I/O ports, allowing technicians to adopt the solution to the specific application.

SPA3000 Digital Power Meter can measure all AC and DC parameters.
SPA3000 enables users to save configuration files, facilitating the swift loading of previously saved configurations.
SPA3000 can compare measurements with pre-set values, and according to the comparison result, output the voltage value of +5V, 0, and -5V.
Extensive computation functions, enabling the display of efficiency, peak factors, arithmetic operation results, and average active power.
Compatible with SUITA PM Viewer, a PC application software that allows remote control and data transfer through a network interface.

Measurement Accuracy : ± (0.1% of reading + 0.05% of range)
Voltage range : 6V - 1000V
Current Range : 500mA - 20A
Measurement Bandwidth : DC, 0.1Hz - 100kHz
Sampling Rate : up to 100kS/s
Resolution : 16 bit
Channels ; 3
Harmonic Measurements : up to 100th order
Internal Storage : 4 GB
Programming and Interfaces : USB, Ethernet, RS-232, GPIB (optional), D/A output
