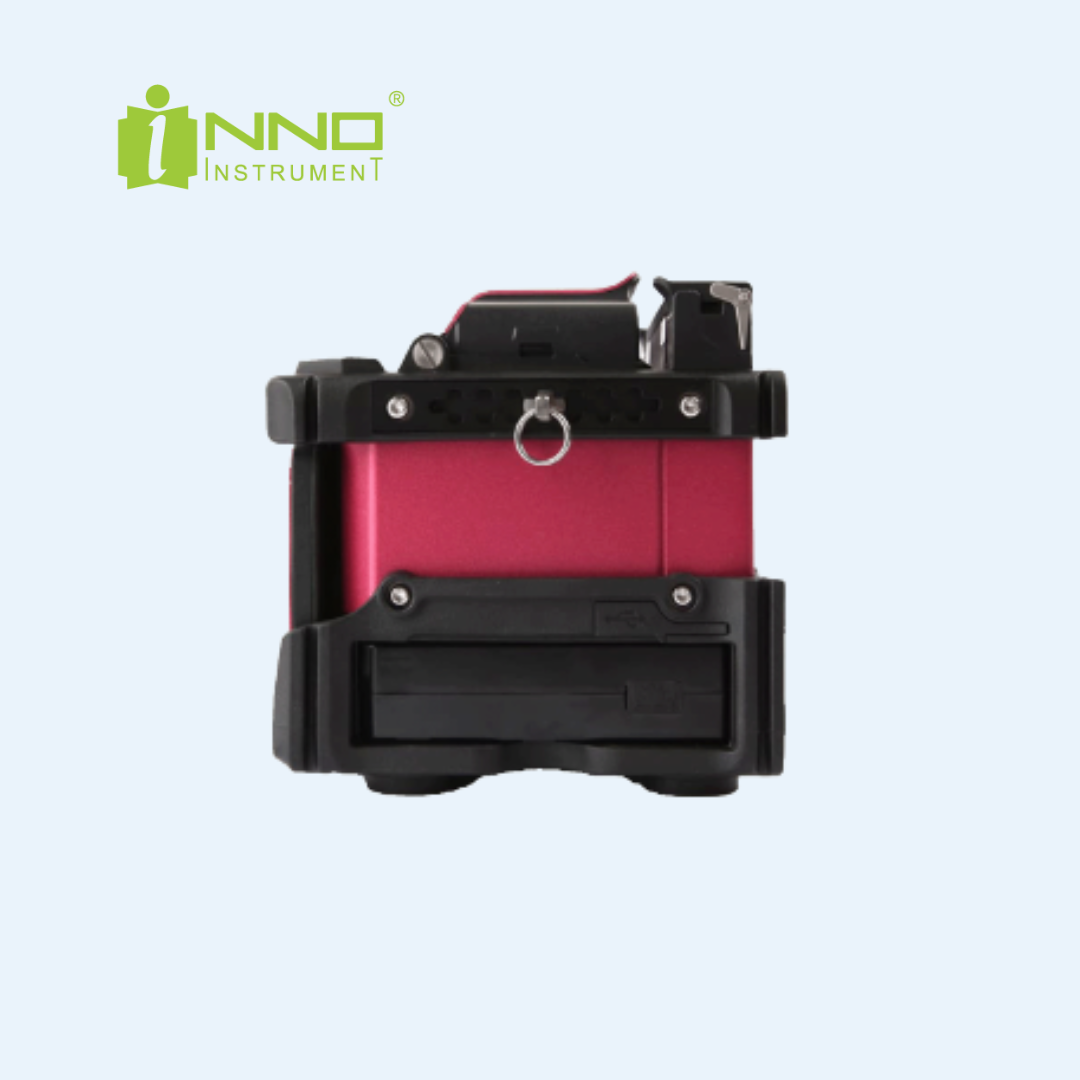

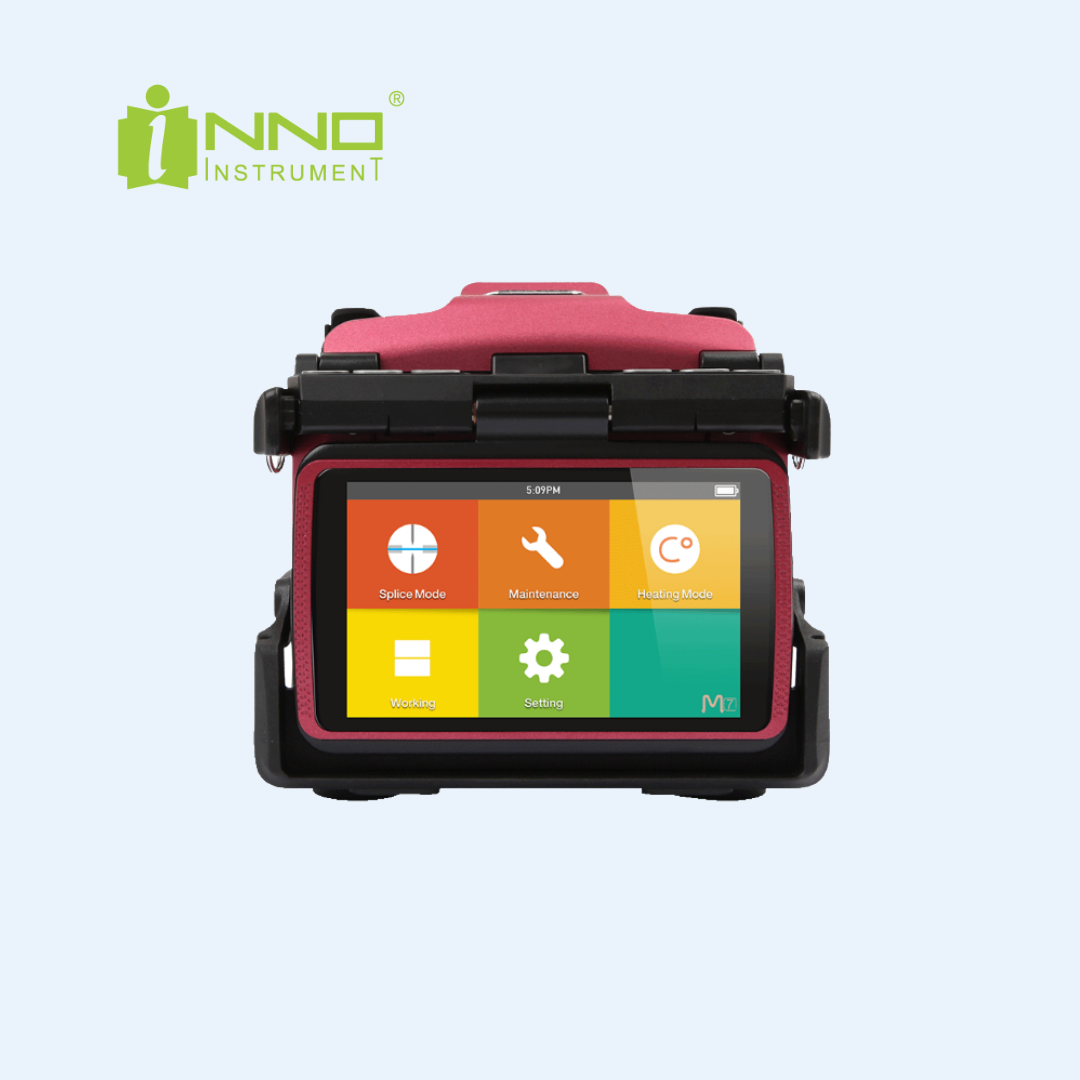

M7

Ultra-Portably Designed Active V-Groove Fusion Splicer

M7, an active clad-alignment splicer with ultra-portable design, is one of the most efficient fusion splicers in the market. This small but accurate fusion splicer inherits many remarkable functionalities from sister products. M7’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. Moreover, the adjustable strap hanger make users to customize M7 for their working condition.

Active V-Groove Clad Alignment Splicing Method.
Truly Light Weight and Handy Size.
Adjustable Strap Hanger.
Outstanding Magnification and Resolution.
4.3” Color LCD Touch Screen.
Double Tapping (Zoom in & out).

Splicing Technology: Active Clad Alignment
Splicing Time: 7sec (quick mode) / 9 sec (typical)
Heating Time: 13 sec (45mm, slim 60mm), 15 sec (60mm)
Typical Loss: 0.03dB(SM) / 0.01dB(MM) / 0.05dB(DS) / 0.05dB(NZDS) / 0.03dB(G.657)
Dimensions Size (HWD): H: 124mm W: 144mm D: 131mm
Weight: 1.56kg (including battery) / 1.31kg (without battery)
