M9

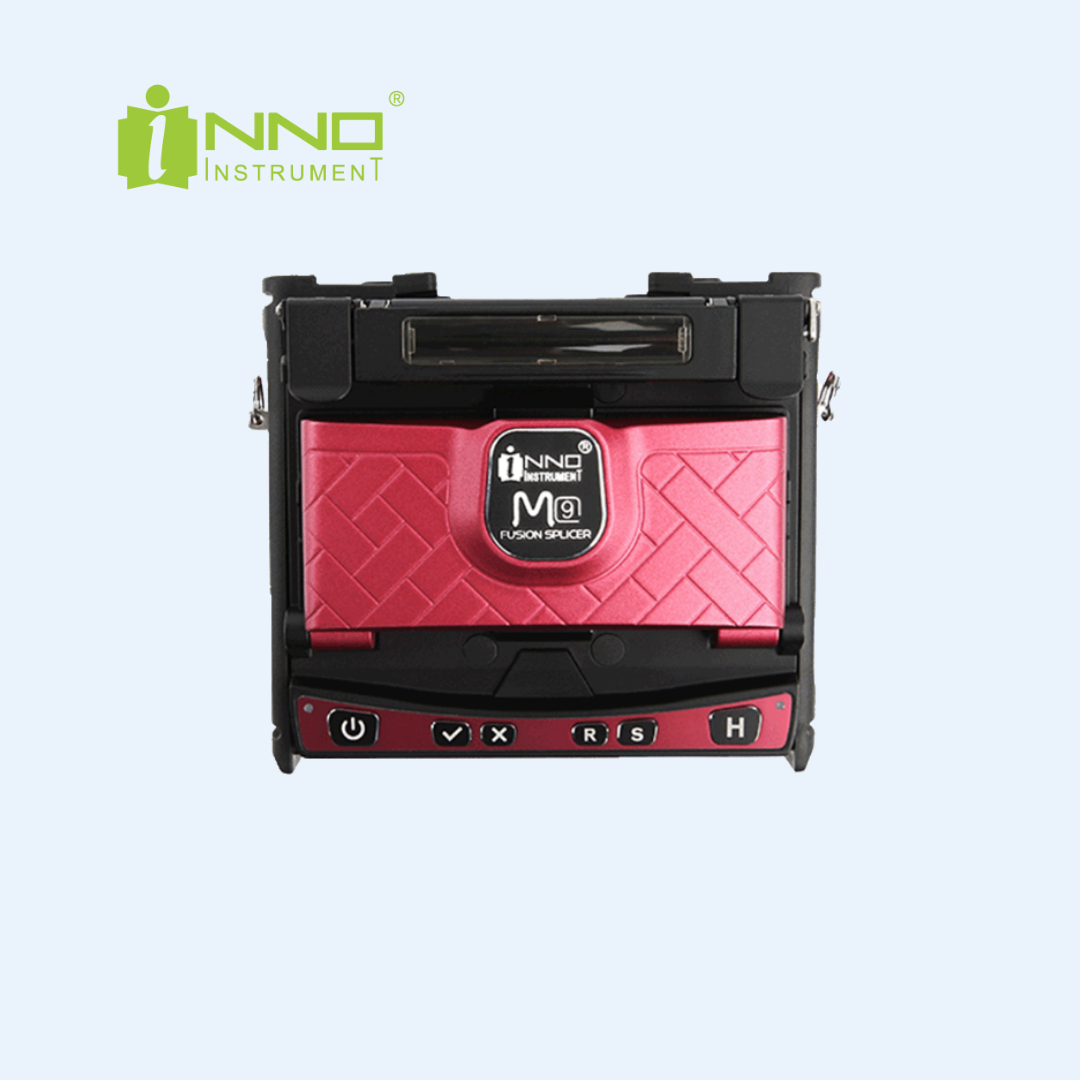

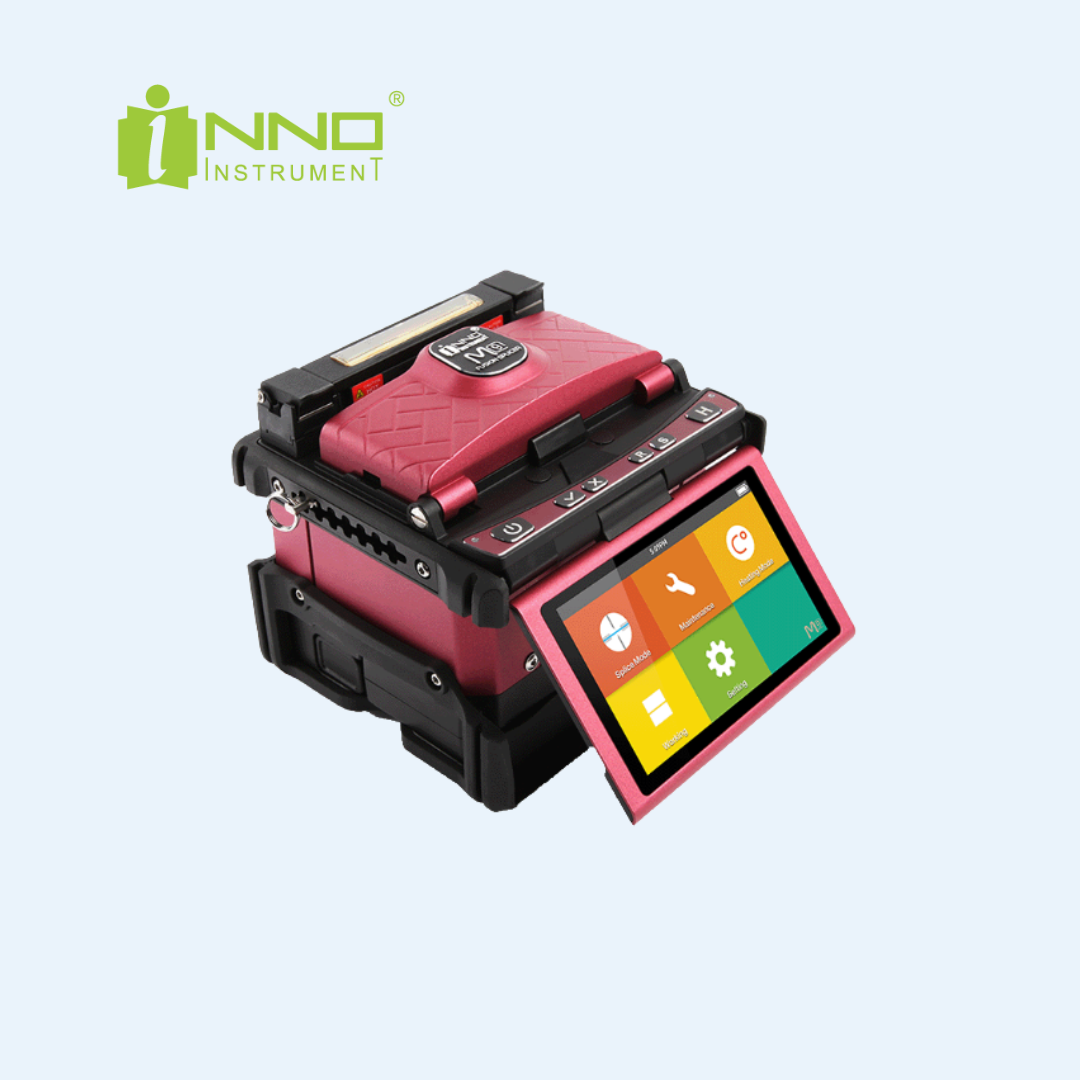

Extremely Compact Core Alignment Fusion Splicer

M9, a core-alignment splicer with ultra-portable design, is one of the most efficient fusion splicers in the market. This compact and sophisticated fusion splicer inherits many remarkable functionalities from sister products. M9’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can enlarge / reduce the screen up to 400X and check the optical fiber with clear images. With M9’s Adjustable strap hanger users can customize their working station

  • Core alignmenr splicing method state-of-the-ary fast splicing of 7s.
  • 4.3 high resolution LCD touch screen with GUI display.
  • Double tapping (zoom in & out).
  • Dual operating mode (touch screen & button).
  • Adjustable strap hanger.
  • Splicing Technology: Core Alignment Splicing Method
  • Splicing Time: 7 seconds (quick mode) / 9 seconds (SM auto mode)
  • Heating Time: 13 seconds (45mm, slim 60mm), 15 seconds (60mm)
  • Typical Loss: 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)
  • Dimensions Size (HWD): H: 136mm W: 144mm D: 125mm
  • Weight: 1.67kg (including battery) / 1.43kg (without battery)
