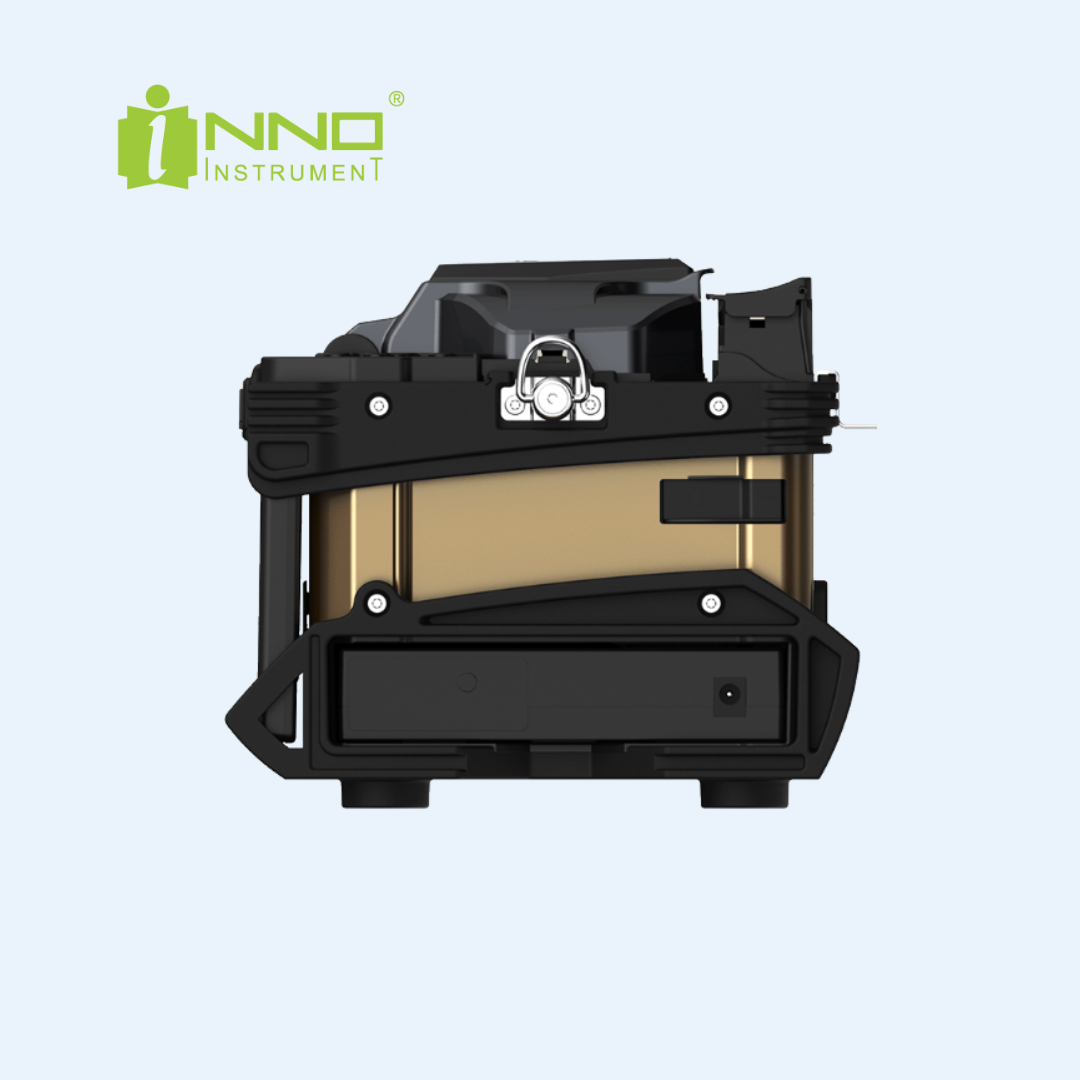

VIEW3 Pro

Smart Active Clad Aligment Fusion Splicer W/A Cloud Based Operation & Management

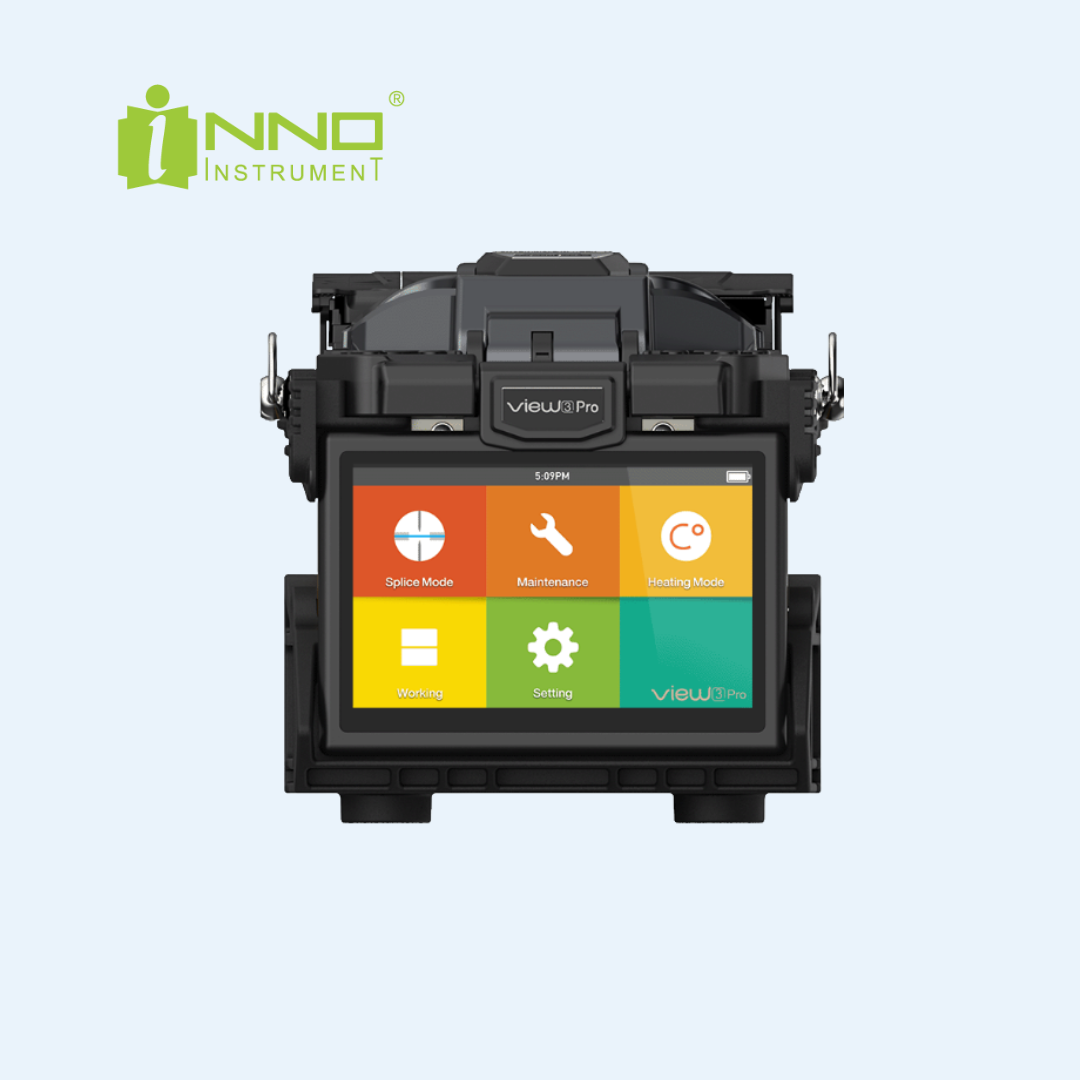

VIEW3 PRO is one of the most precise active cladding fusion splicer in the market with its advanced four motored alignment algorithm to ensure the ultimate work experience. VIEW3 PRO’s 5-inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice condition to the users working in the darkest environments.

Built-in IoT module for mobile data communication.
Web based, real ti,e operation system.
Active v-groove clad alignment splicing method.
The highest magnification and resolution.
5 color LCD touch screen.
Double tapping (Zoom in & out).
Detachable SOC holder and heating oven.
3 Bright LEDs for dark environment.
Ceramic clamp for improved durability.

Splicing Technology: Active Clad Alignment
Splicing Time: 8s
Heating Time: 15s
Typical Loss: SM 0.03dB / MM 0.01dB / DS 0.05dB / NZDS 0.05dB / G.657 0.03dB
Dimensions Size (HWD): H 151mm x W 149mm x D 177mm
Weight: 2.21kg (with battery) / 1.85kg (without battery)
