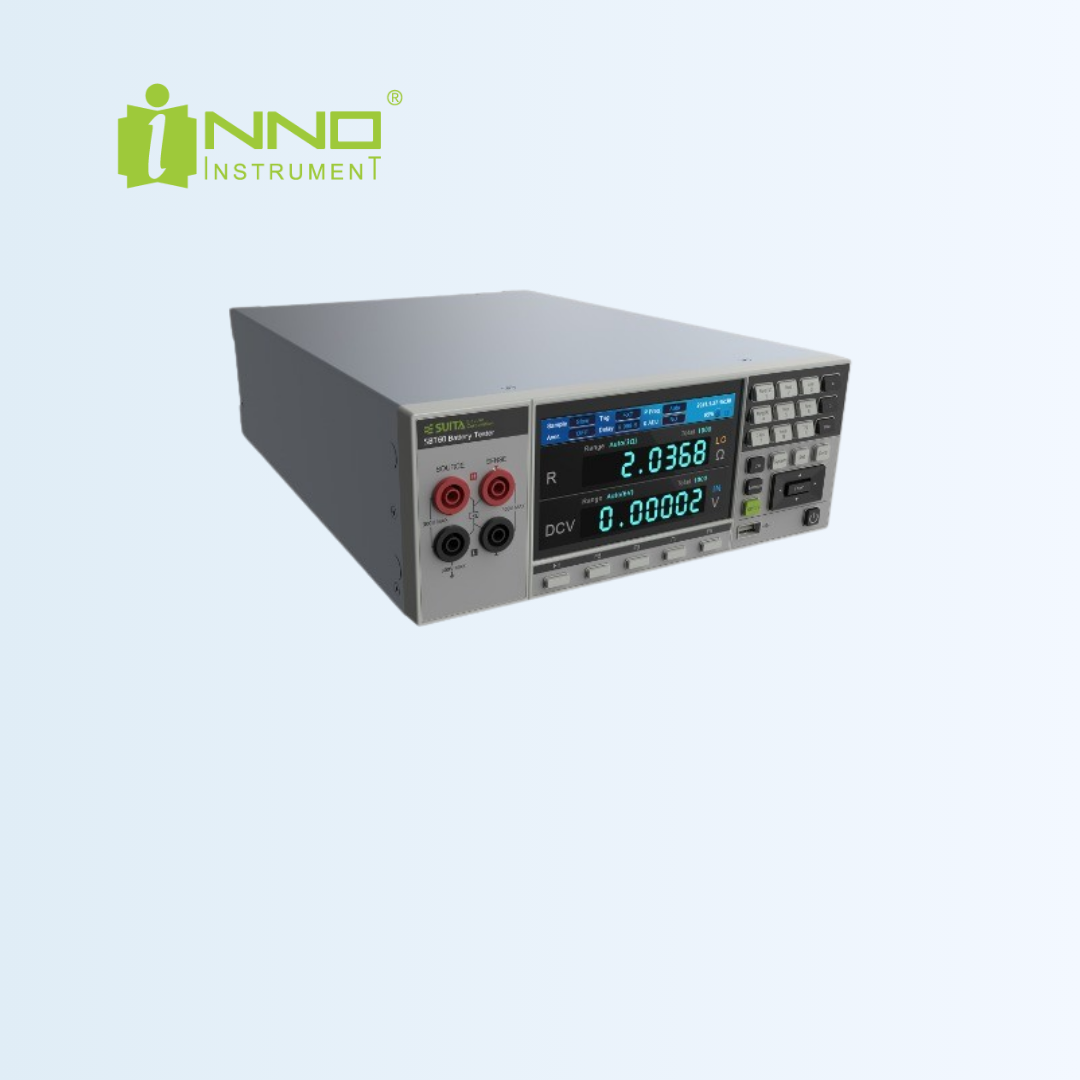

SBT60 Battery Tester

High-precision and High-resolution Battery Tester

SBT60 Battery Tester adopts the four-AC-terminal testing for battery impedance and voltage measurement for higher voltage/resistance measurement accuracy, providing wider voltage/resistance measurement range and faster measurement speed. In addition, the tester offers a comparator feature and abundant outputs to provide proper solutions according to different application scenarios.

  • Independent comparator function for voltage and resistance measurements with Pass/Hi/IN/Lo judgments.
  • SBT60 Battery Tester offers an analog output for resistance measurement.
  • SBT60 Battery Tester is equipped with 2.8GB internal storage for storing measurement results in csv or mat format.
  • Compensation for bias voltage or gain drift and calibration for improved measurement accuracy.
  • Calculation of statistical indicators and generation of normal distribution graphs.
  • Measurement Accuracy : Voltage ±0.01%rdg ±3-digit
  • Resistance : ±0.4%rdg ±5-digit
  • Voltage measurement : up to 60V
  • Resistance Measurement : 3mΩ - 3kΩ
  • Measurement Resolution : Voltage up to 10μV
  • Resistance : up to 0.1μΩ
  • Response Time : 10ms
  • Sampling Time : 20ms
  • General : Enhanced Output Options, Adopts the AC 4-terminal testing method
