M7+

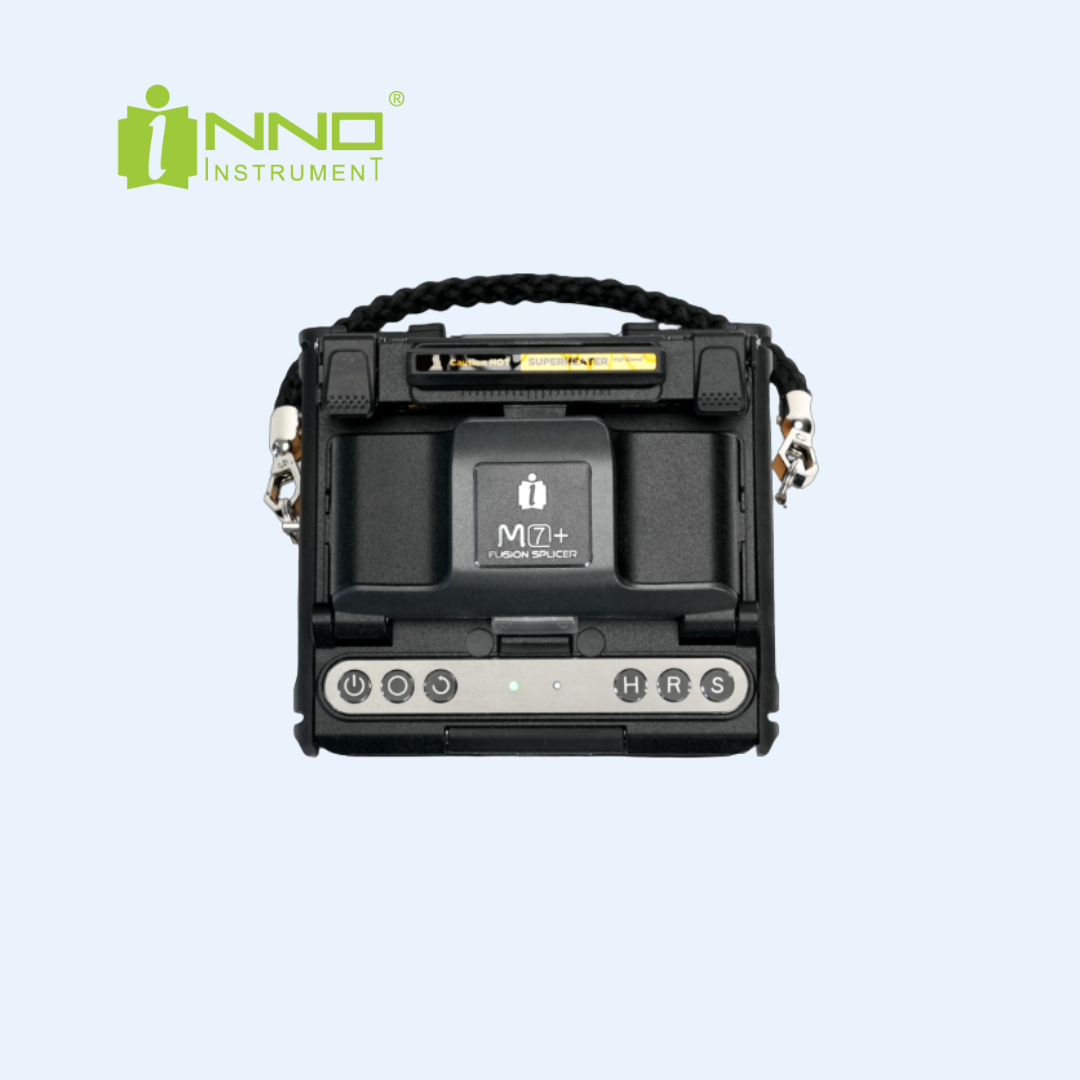

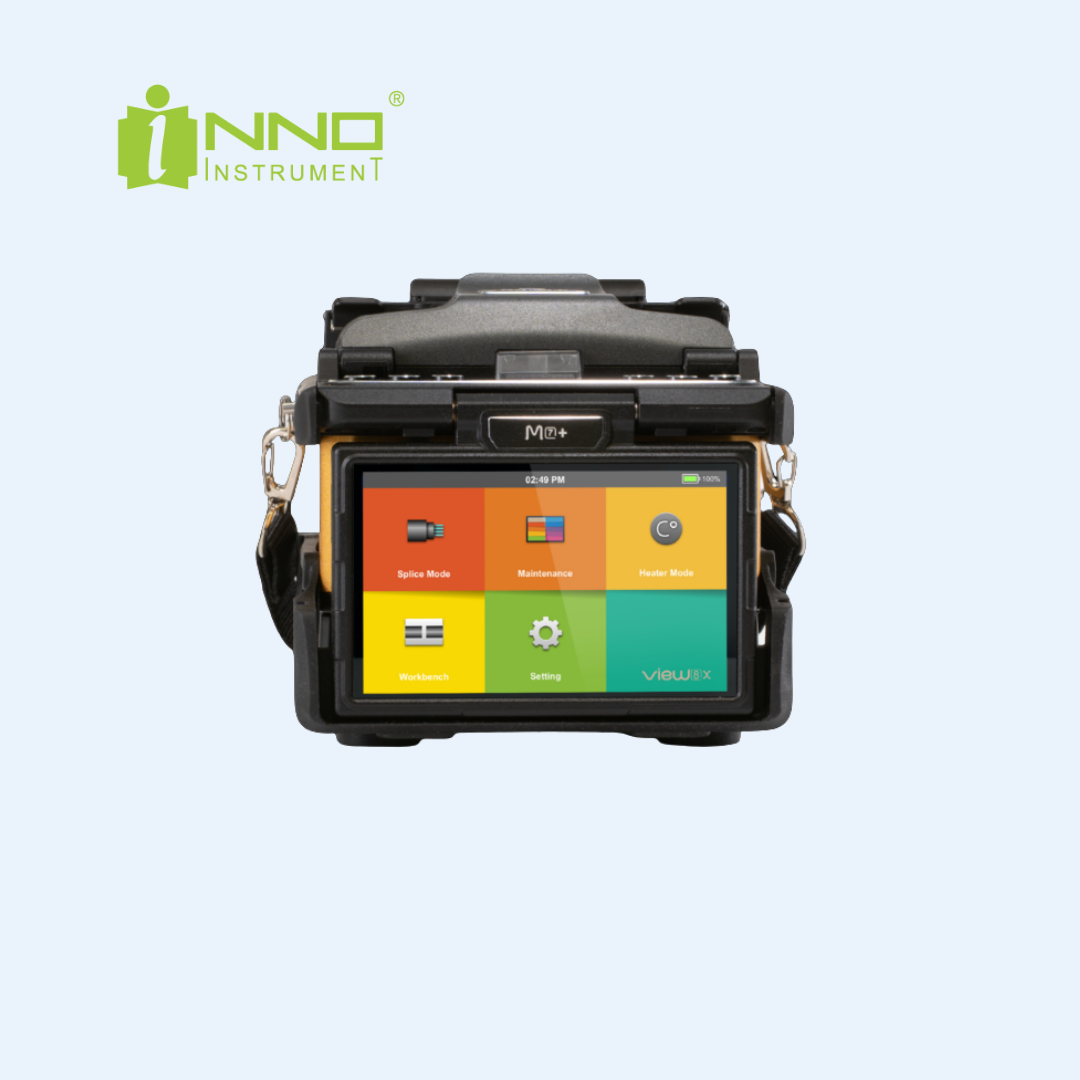

Compact Active V-Groove Cladding Alignment Fusion Splicer

Stepping forward with the compact elegance of the M+ Series, the M7+ combines advanced features with practical design. With IoT and GPS capabilities, it brings smart connectivity to the forefront. Specializing in cladding alignment, the M7+ ensures fibers are perfectly aligned for consistent splicing results. Its compactness makes it a favorite for on-the-go tasks, but it doesn’t compromise on the high-tech features professionals demand. For those seeking a blend of portability with top-tier technology, the M7+ stands out in the fiber optics arena.

  • Ultrafast Splicing & Heating.
  • Lightweight & Compact Design.
  • Bright Operation Lighting.
  • Versatile Fiber Holder.
  • Rapid Response Time.
  • Model: M7+
  • Alignment Method: Active V-Groove Clad Alignment
  • Number of Fibers: Single
  • Applicable Fibers:
  • SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
  • Coating Diameter: 100ΞΌm – 3mm
  • Cladding Diameter: 80 – 150ΞΌm
  • Cleave Length: 5 – 16mm
  • Typical Splice Loss: SM 0.03dB / MM 0.01dB / DS 0.05dB / NZDS 0.05dB / G.657 0.03dB
  • Return Loss: >> 60dB
  • Splice Programs: Max 300 modes
  • Electrode Lifespan: 6000 Arc Discharges
  • Heating Programs: Max 100 modes
  • Heating Time: Quick 9 sec / Average 13 sec (60mm slim sleeve)
  • Protection Sleeve: 20mm – 60mm
  • Data Output: Cloud (View Pro Manager) + USB-C
  • Splice Memory: 20,000 splice data / 10,000 splice images
  • Battery: Capacity 3000mAh / Operation Cycle: 200 cycles (splicing + heating)
  • Power Supply: AC Input 100 – 240V / DC Input 9 – 19V
  • Monitor: 4.3” Color LCD Display, Full Touch Screen
  • Magnification: x320
  • Size: 124 x 144 x 131 mm
  • Weight: 1.49 kg
  • Pull Test: 1.96 – 2.25 N
