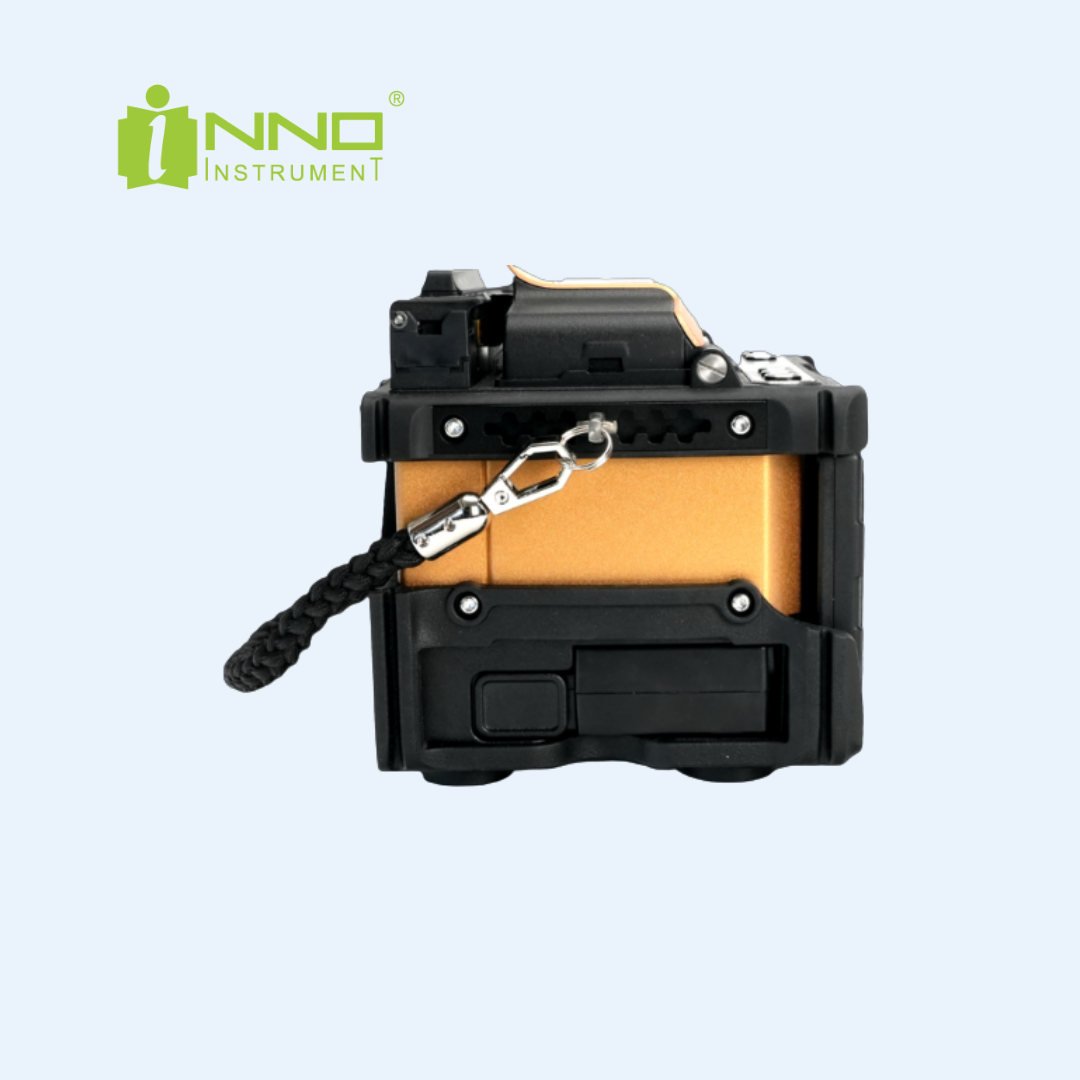

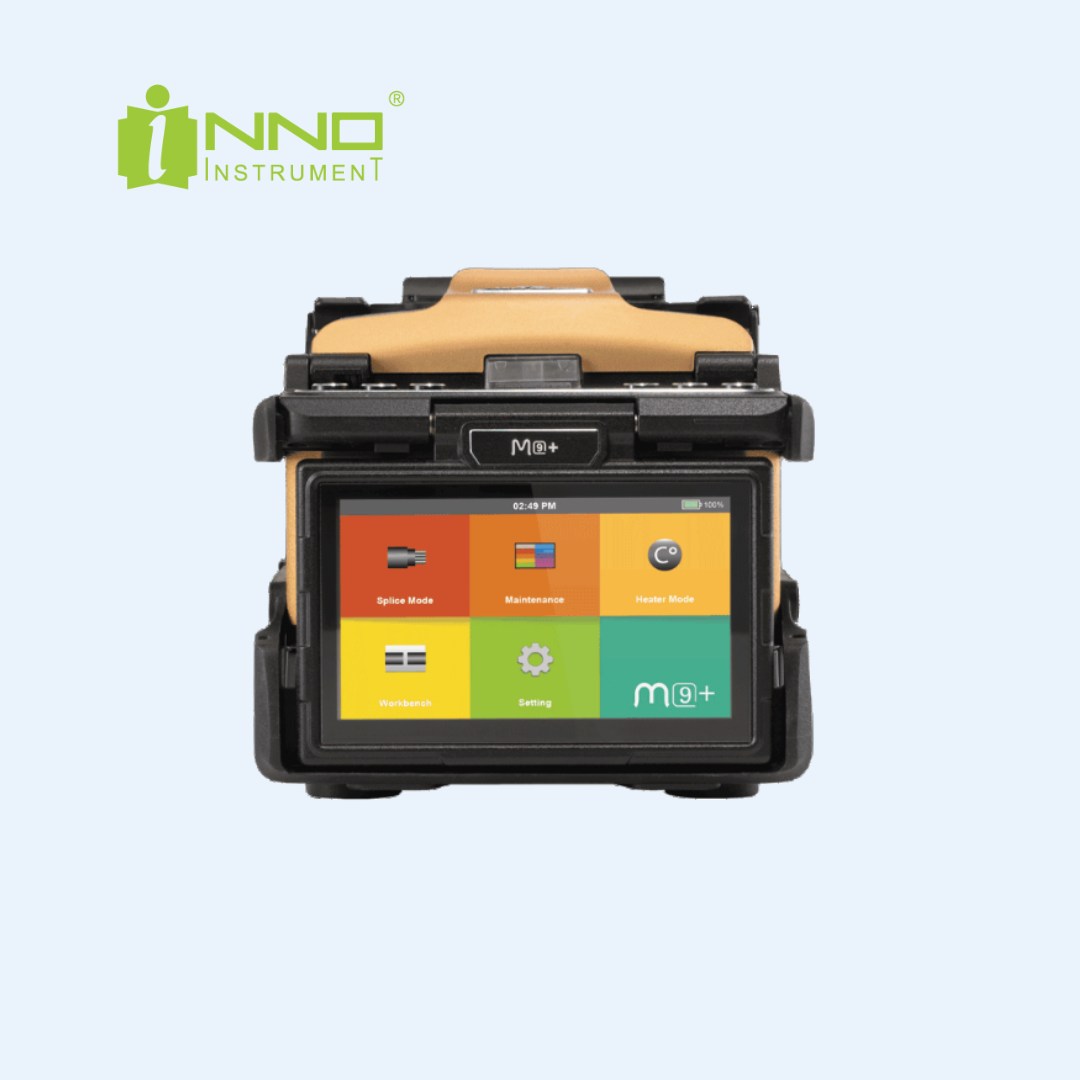

M9+

Compact Core Alignment Fusion Splicer

Showcasing the best of the M+ Series in a compact form, the M9+ is a fusion of technology and convenience. Boasting IoT and GPS capabilities, this splicer is at the cutting edge of smart connectivity. Designed for core alignment, the M9+ ensures every fiber is impeccably matched for optimal splicing. Though itโ€™s small in size, it stands tall in performance, offering professionals the precision they need in a portable package. For those aiming for top-notch results without the bulk, the M9+ is the ideal companion in the fiber optics field.

  • Ultrafast Splicing & Heating.
  • Lightweight & Compact Design.
  • Bright Operation Lighting.
  • Versatile Fiber Holder.
  • Rapid Response Time.
  • Alignment Method: Core Alignment
  • Number of Fibers: Single
  • Applicable Fibers: SM (ITU-T G.652&T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
  • Coating Diameter: 100ฮผm - 3mm
  • Cladding Diameter: 80 - 150ฮผm
  • Cleave Length: 5 - 16mm
  • Typical Splice Loss: SM: 0.02dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.02dB
  • Return Loss: >> 60dB
  • Splice Time: Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec
  • Splice Programs: Max 300 modes
  • Automatic Calibration: Automatic Arc Calibration by air pressure & temperature
  • Electrode Life Span: 6000 Arc Discharges
  • Heating Programs: Max 100 modes
  • Heating Time: Quick: 9s / Average: 13s (60mm slim)
  • Protection Sleeve: 20mm - 60mm
  • Data Output: Cloud (View Pro Manager) + USB-C
  • Splice Memory: 20,000 Splice data + 10,000 splice image
  • Battery: Battery Capacity: 3000mAh / Operation Cycle: 200 cycles (Splicing + Heating)
  • Power Supply: AC Input: 100 - 240V, DC Input: 9 - 15V
  • Monitor: 4.3โ€ Color LCD display, Full Touch Screen
  • Magnification: ร—320
  • Size: 125 ร— 144 ร— 136mm
  • Weight: 1.63kg
  • Pull Test: 1.96 โ€“ 2.25N
