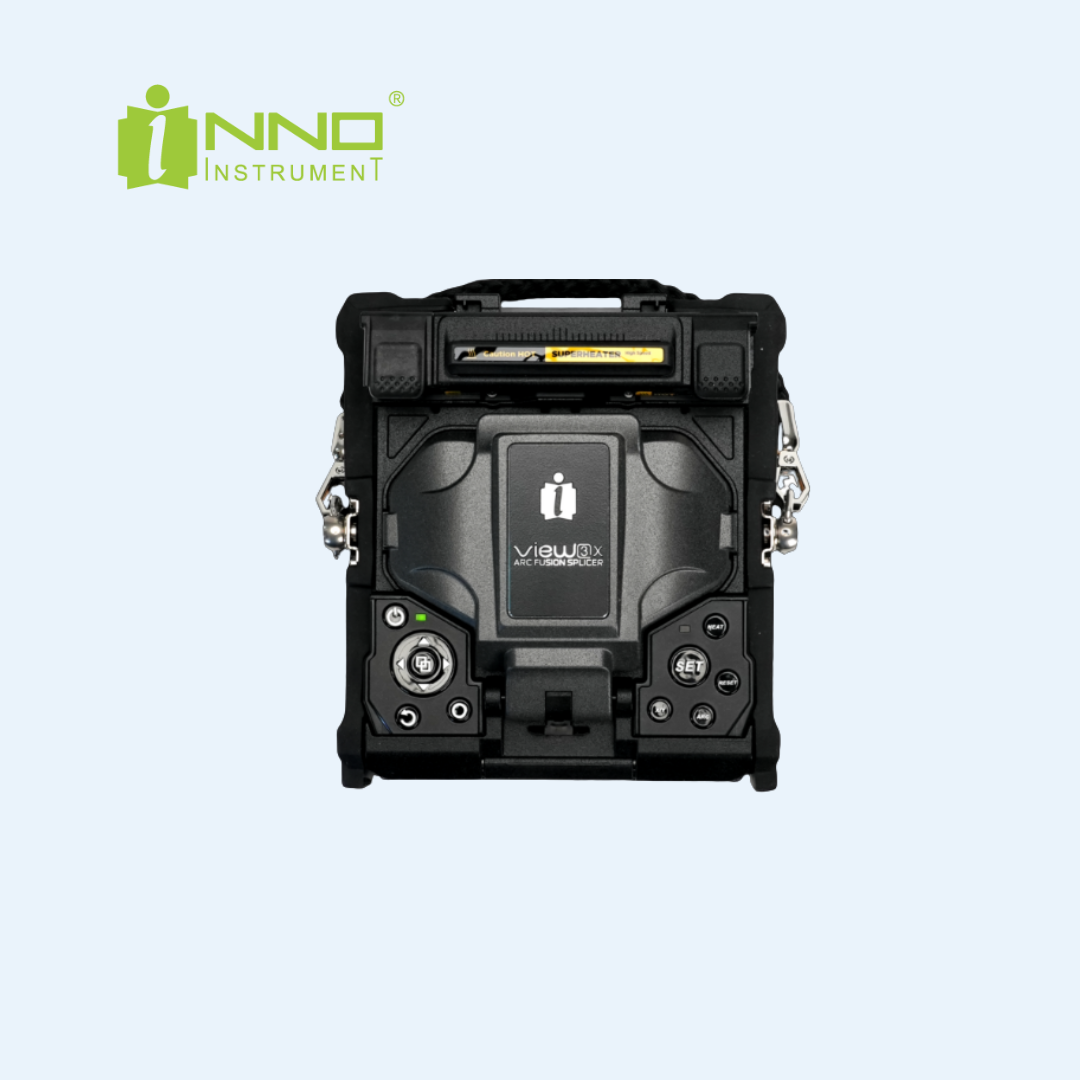

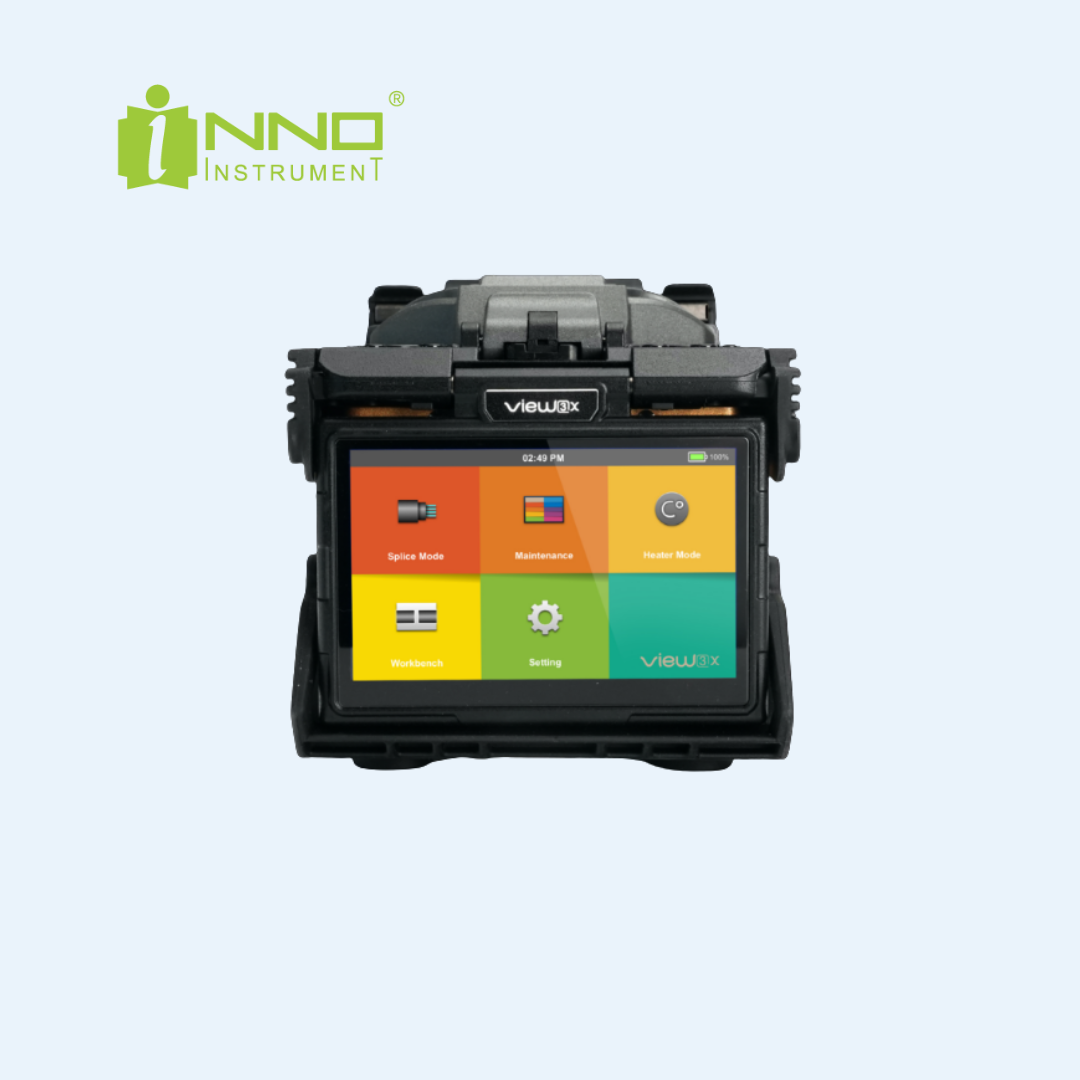

Active V-Groove Cladding Alignment Fusion Splicer

As part of the esteemed ViewX Series, the View 3X is a testament to precision in cladding alignment splicing. Leveraging the signature features of its series, this model is designed for reliability and consistency. Specializing in cladding alignment, the View 3X ensures effective fiber positioning, delivering dependable splices with each use.

  • Ultrafast Splicing.
  • Active V-Grooves.
  • Rapid Response.
  • IoT & GPS.
  • Battery capacity: 5200mAh (optional 7000mAh).
  • Model: VIEW 3X
  • Alignment Method: Active V-Groove Clad Alignment
  • Number of Fibers: Single
  • Applicable Fibers: SM (ITU-T G.652&T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655)
  • Coating Diameter: 100μm - 3mm
  • Cladding Diameter: 80 - 150μm
  • Cleave Length: 5 - 16mm
  • Typical Splice Loss SM 0.03dB / MM 0.01dB / DS 0.05dB / NZDS 0.05dB / G.657 0.03dB
  • Return Loss: >> 60dB
  • Splice Time: Quick mode Avg. 4 sec / SM mode Avg. 5 sec
  • Splice Programs: Max 300 modes
  • Electrode Life span: 6000 Arc Discharges
  • Heating Programs: Max 100 modes
  • Heating Time: Quick 9s / Average 13s
  • Protection Sleeve: 20mm - 60mm
  • Data Output: Cloud (View Pro Manager) + USB-C
  • Splice Memory: 20,000 Splice data / 10,000 Splice image
  • Battery Battery: Capacity 5200mAh / Operation Cycle 300 cycles (Splicing + Heating)
  • Power Suppl: AC Input 100 - 240V, DC Input 9 - 19V
  • Monitor: 5.0” Color LCD display, Full Touch Screen
  • Magnification: x360, x520
  • Size: 151 x 149 x 177mm
  • Weight: 2.19kg
  • Pull Test: 1.96 - 2.25N
