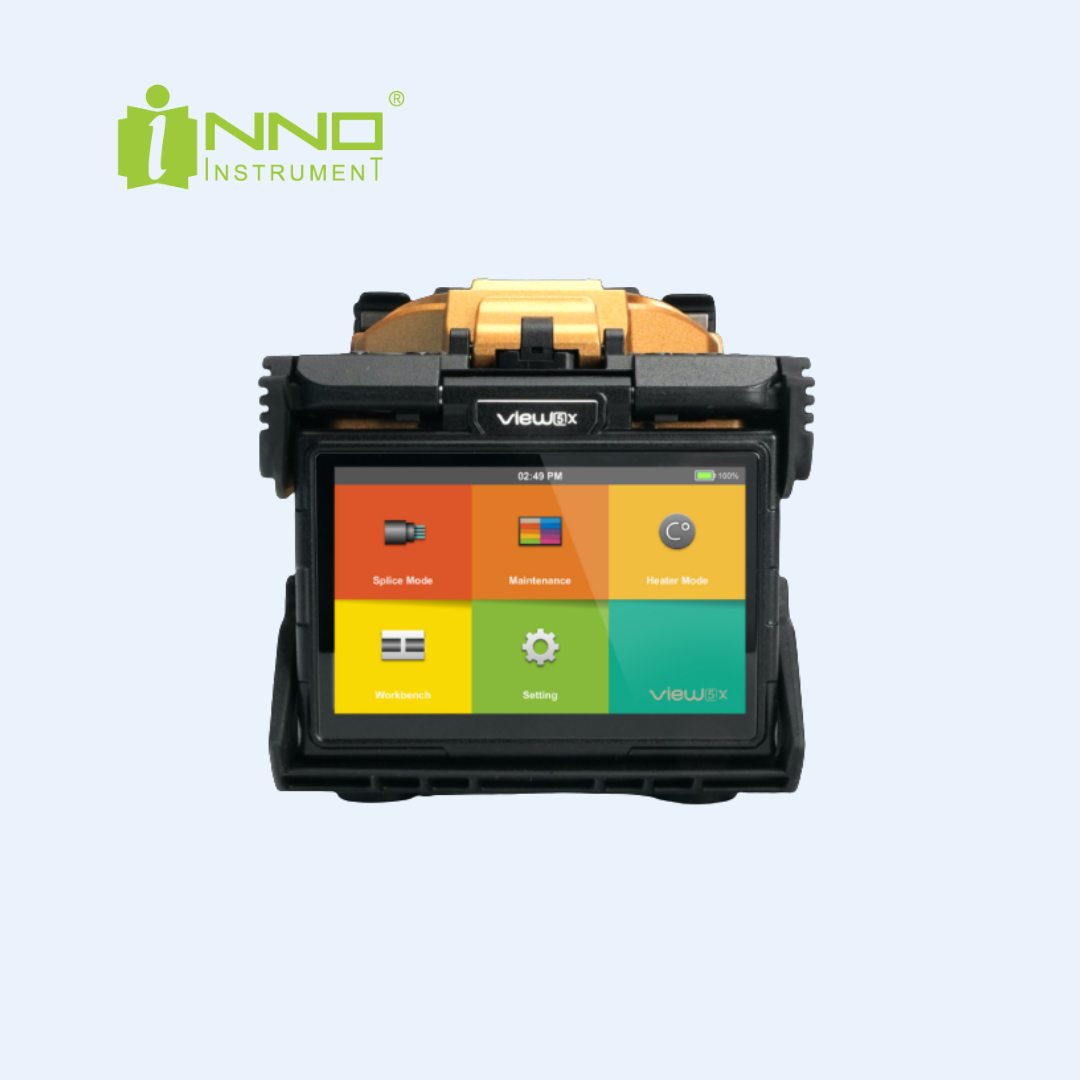

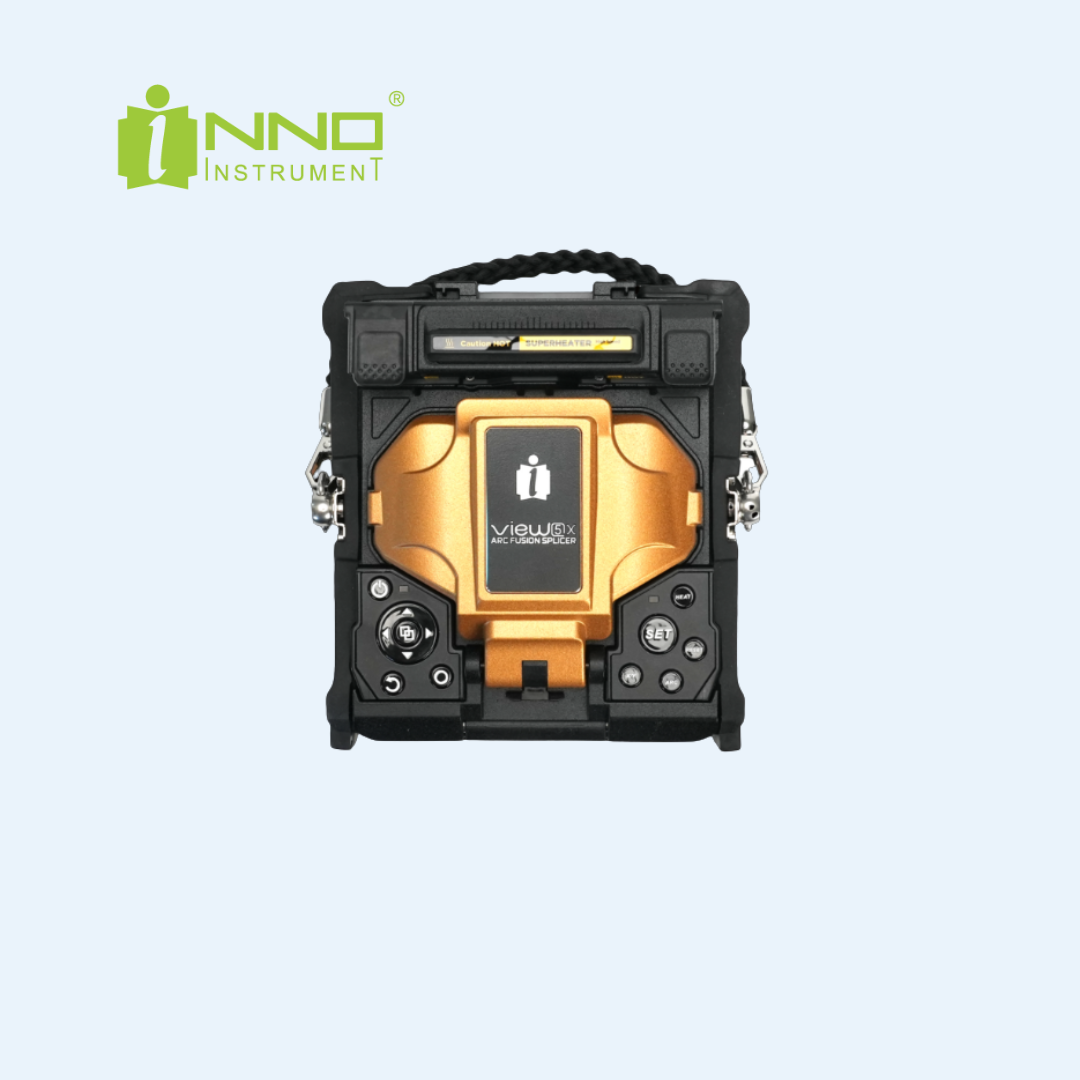

Core Alignment Fusion Splicer

The View 5X, a proud member of the ViewX Series, combines the best of splicing techniques with top-notch features. Using core alignment, it ensures fibers are lined up perfectly. Plus, with its advanced IoT and GPS capabilities, you’re not just getting a splicer – you’re getting smart, connected technology. Designed for those who want both reliability and the latest features in their tools, the View 5X is a standout choice for fiber optics work.

  • Ultrafast Splicing & Heating.
  • High Magnification & Precision.
  • Versatile Fiber Holder.
  • Quick & Intuitive Interface.
  • Model: VIEW 5X
  • Alignment Method: Core Alignment
  • Number of Fibers: Single
  • Applicable Fibers: SM (ITU-T G.652&T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655)
  • Coating Diameter: 100μm - 3mm
  • Cladding Diameter: 80 - 150μm
  • Cleave Length: 5 - 16mm
  • Splice Programs: Max 300 modes
  • Automatic Calibration: Automatic Arc Calibration by air pressure & temperature
  • Electrode Life span: 6000 Arc Discharge
  • Heating Programs: Max 100 modes
  • Heating Time: Quick 9s / Average 13s
  • Protection Sleeve: 20mm - 60mm
  • Data Output: Cloud (View Pro Manager) + USB-C
  • Splice Memory: 20,000 Splice data / 10,000 Splice image
  • Battery Battery: Capacity 5200mAh / Operation Cycle 300 cycles (Splicing + Heating)
  • Power Supply: AC Input 100 - 240V, DC Input 9 - 19V
  • Monitor: 5.0” Color LCD display, Full Touch Screen
  • Magnification: x360, x520
  • Size: 151 x 149 x 177mm
  • Weight: 2.35kg
  • Pull Test: 1.96 - 2.25N
