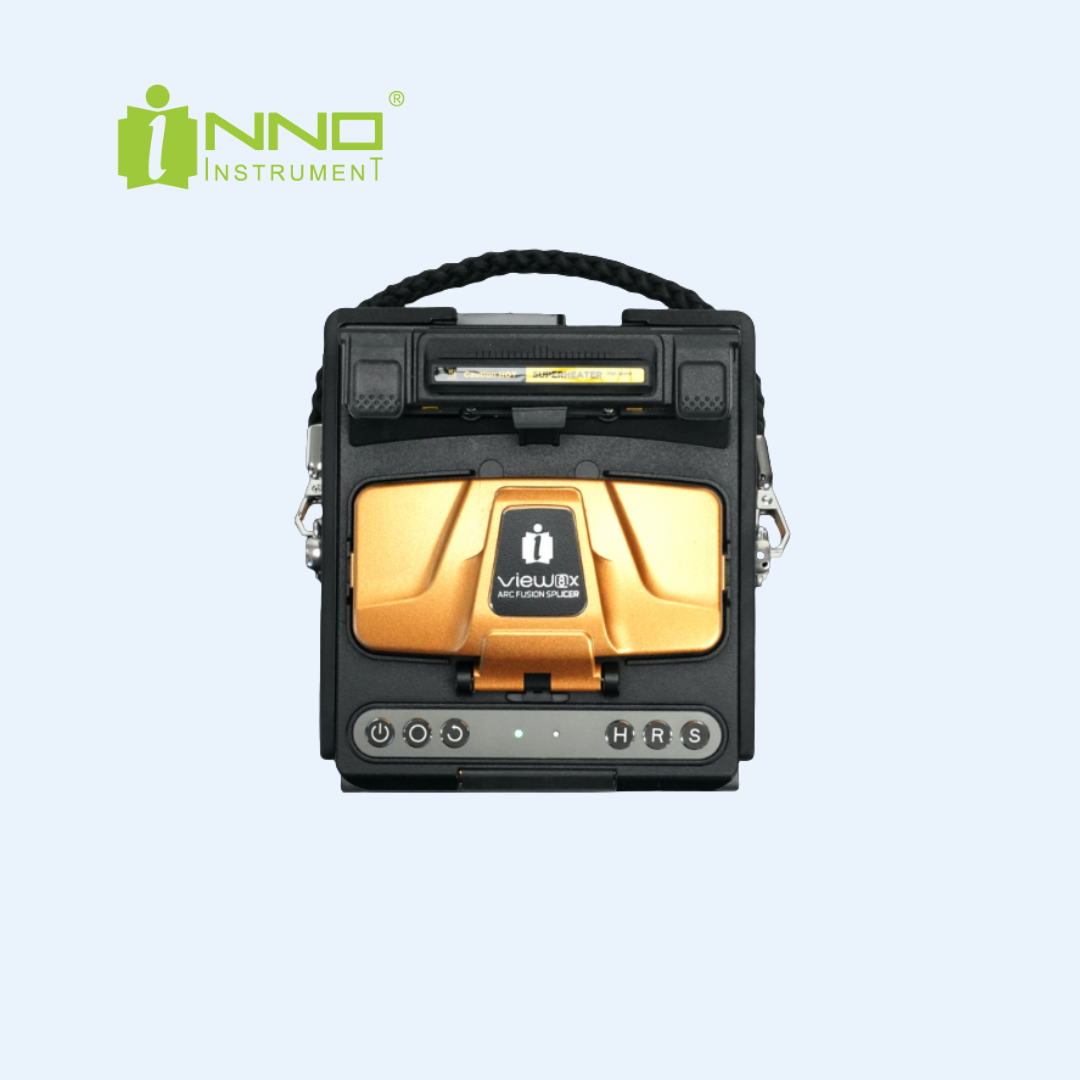

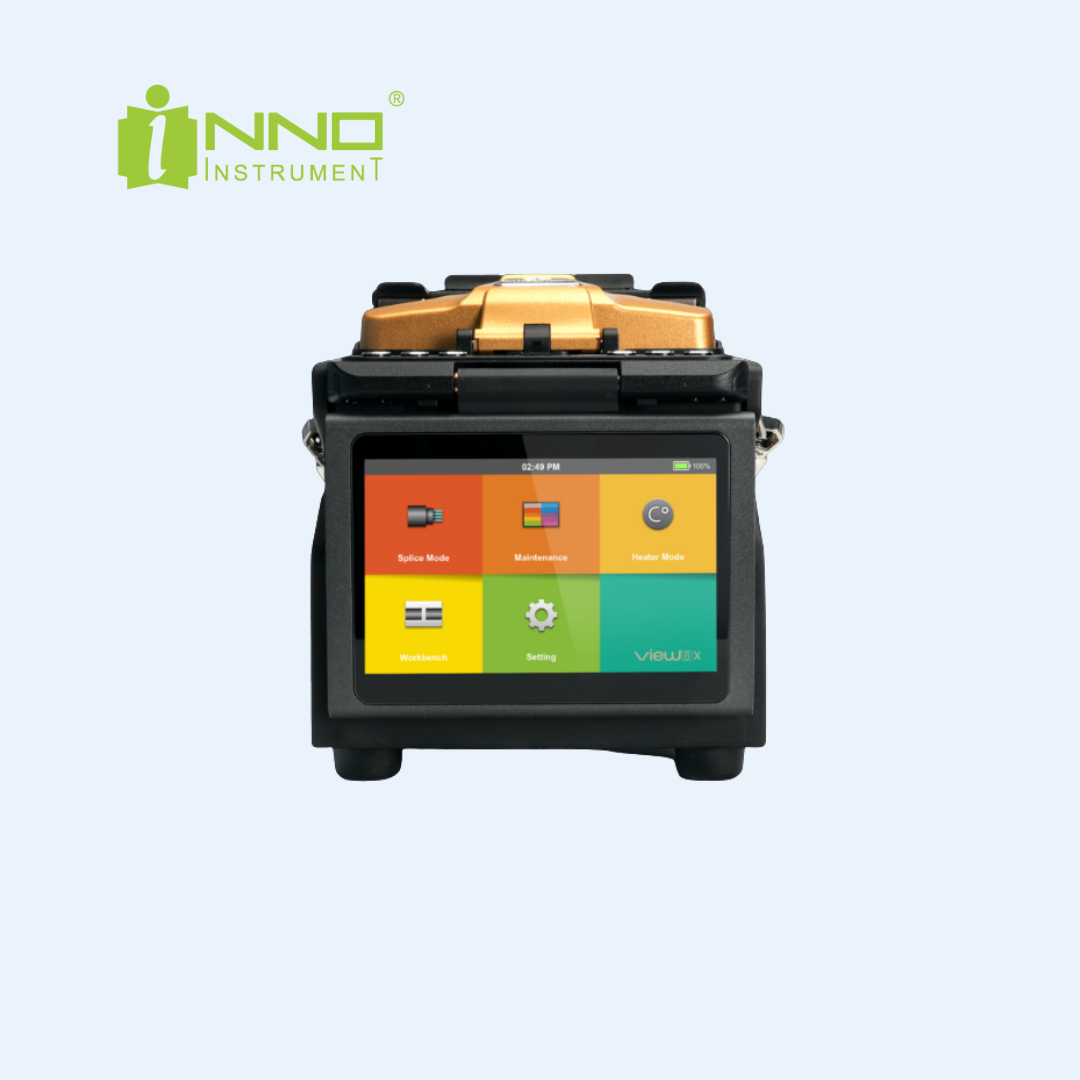

VIEW 8X

Premium Core Alignment Fusion Splicer

Embracing the standout qualities of the esteemed ViewX Series, the View 8X is a beacon of splicing innovation. It’s equipped with IoT and GPS modules, ensuring state-of-the-art connectivity and enhanced security. Tailored for both large-scale operations and nuanced, detailed work, the View 8X delivers unmatched precision.

Ultrafast Splicing & Heating.
Large Battery Capacity.
Bright Operation Lighting.
Versatile Fiber Holder.
Quick & Intuitive Interface.
Real-Time Tracking.
Report & Data Management.
Job & Work Management.
Device Management.

Model: VIEW 8X
Alignment Method: Core Alignment
Number of Fibers: Single
Applicable Fibers: SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655).
Coating Diameter: 100µm – 3mm
Cladding Diameter: 80 – 150µm
Cleave Length: 5 – 16mm
Typical Splice Loss: SM: 0.01dB, MM: 0.01dB, DS: 0.03dB, NZDS: 0.03dB, G.657: 0.01dB
Return Loss: ≥ 60dB
Splice Programs: Max 300 modes
Automatic Calibration: Automatic Arc Calibration by air pressure & temperature
Electrode Life Span: 6000 Arc Discharges
Heating Programs: Max 100 modes
Protection Sleeve: 20mm – 60mm
Data Output: Cloud (View Pro Manager) + USB-C
Splice Memory: 20,000 splice data / 10,000 splice image
Battery: Capacity 9000mAh
Operation Cycle: 500 cycles (Splicing + Heating)
Monitor: 5.0" Color LCD display, Full Touch Screen
Application: x360, x520
Size: 162 × 143 × 158mm
Weight: 2.68kg
Pull Test: 1.96 – 2.25N
