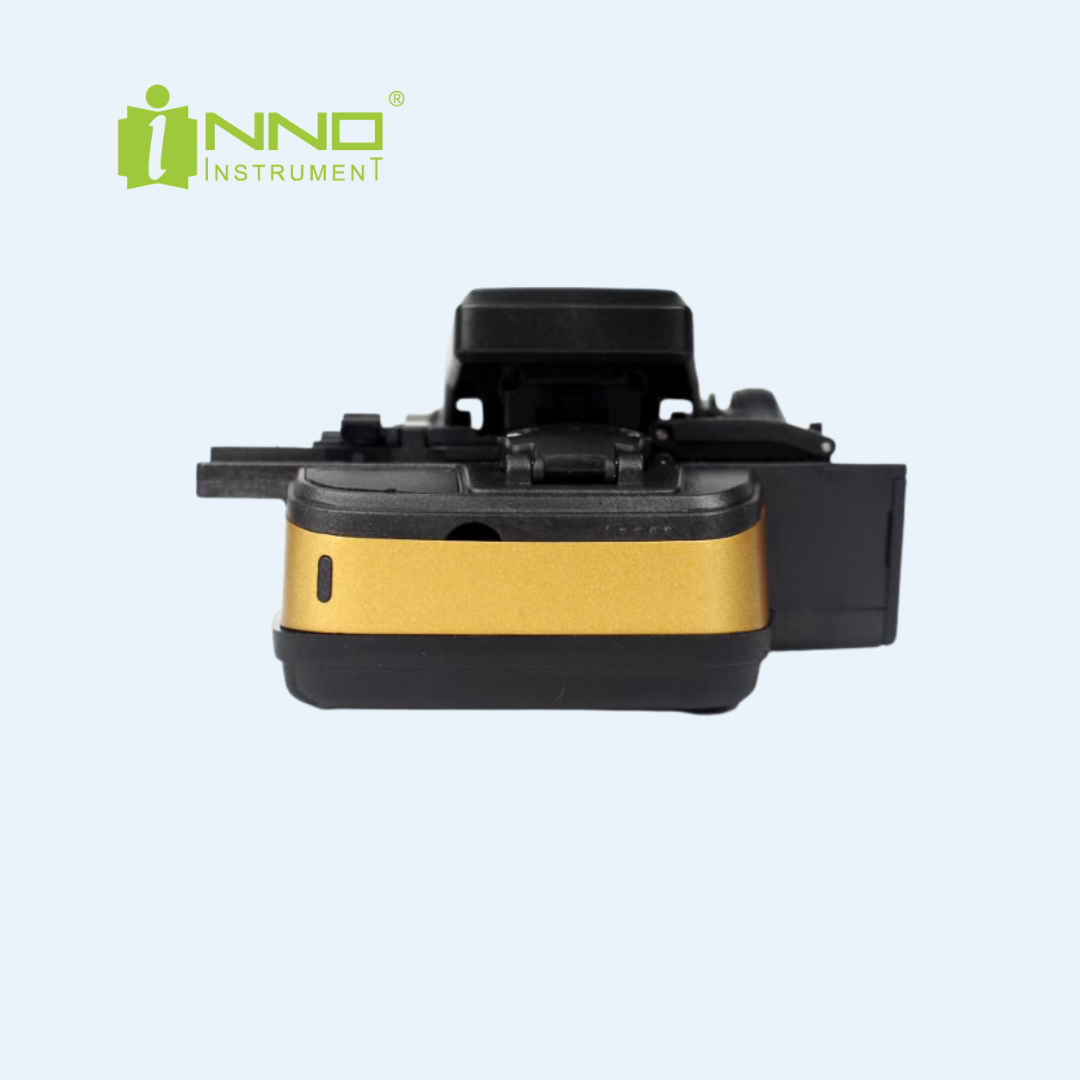

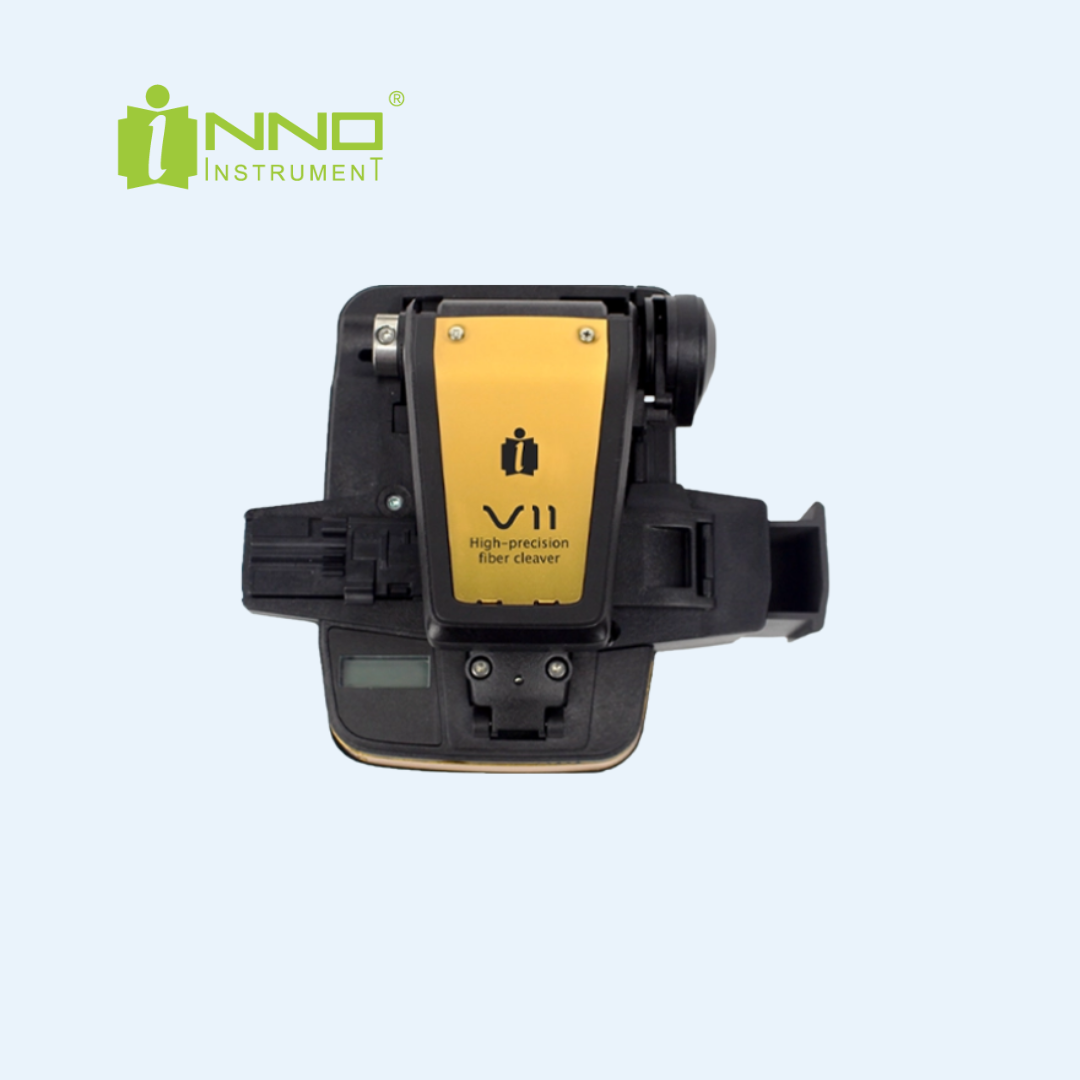

V11

HIGH PRECISION FIBER CLEAVER

V11 aims to be the most accurate and advanced cleaver produced in the market. The cleaves are made in a single, swift action (One-step) with fully automatic blade rotation after each cleaves to ensure the best cleave results are produced. V11 is equipped with a universal holder, applicable to 250μm fiber cable, 900μm fiber cable, flat cable, ribbon fiber, and jumper cable

A Single-Action Operation.
Auto Blade Rotation w/ max. 60,000 cleaves.
Digital Cleave Counter w/ Auto Trash Bin.
Drop-proof and Lightweight Design.
Maintenance Free Cleaver.

Model: V11
Type: Single fiber and Ribbon fiber
Cladding Diameter: 125 µm
Cleaved Length: Single Fiber 5mm – 24mm (Coating diameter ≥250µm), 10mm – 20mm (Coating diameter <250µm) / Ribbon (Multi) Fiber 10mm
Applicable Fiber Cable: Single Fiber: 160µm to 900µm, 2mm – 3mm and drop cable / Ribbon (Multi) Fiber: 2 – 16 ribbon fibers
Typical Cleaved Angle: Single Fiber: 0.3° ± 0.8° / Ribbon (Multi) Fiber: 0.3° – 1.0°
Typical Blade Life: Total 60,000 fiber cleaves (2,000 cleaving per each point, total 30 points)
Holder: Universal holder, Replaceable holder
Weight: 245g (with Auto Trash Bin) / 220g (with Side Cover)
Dimension: 105L x 109W x 52H mm (with Auto Trash Bin) / 87L x 105W x 52H mm (with Side Cover)
Operation Condition: Temperature: -10 – 50°C / Humidity: 0 – 95%RH (non-dew)
Storage Condition: Temperature: -40 – 80°C / Humidity: 0 – 95%RH (non-dew)
Battery: Coin type Lithium battery CR1220
