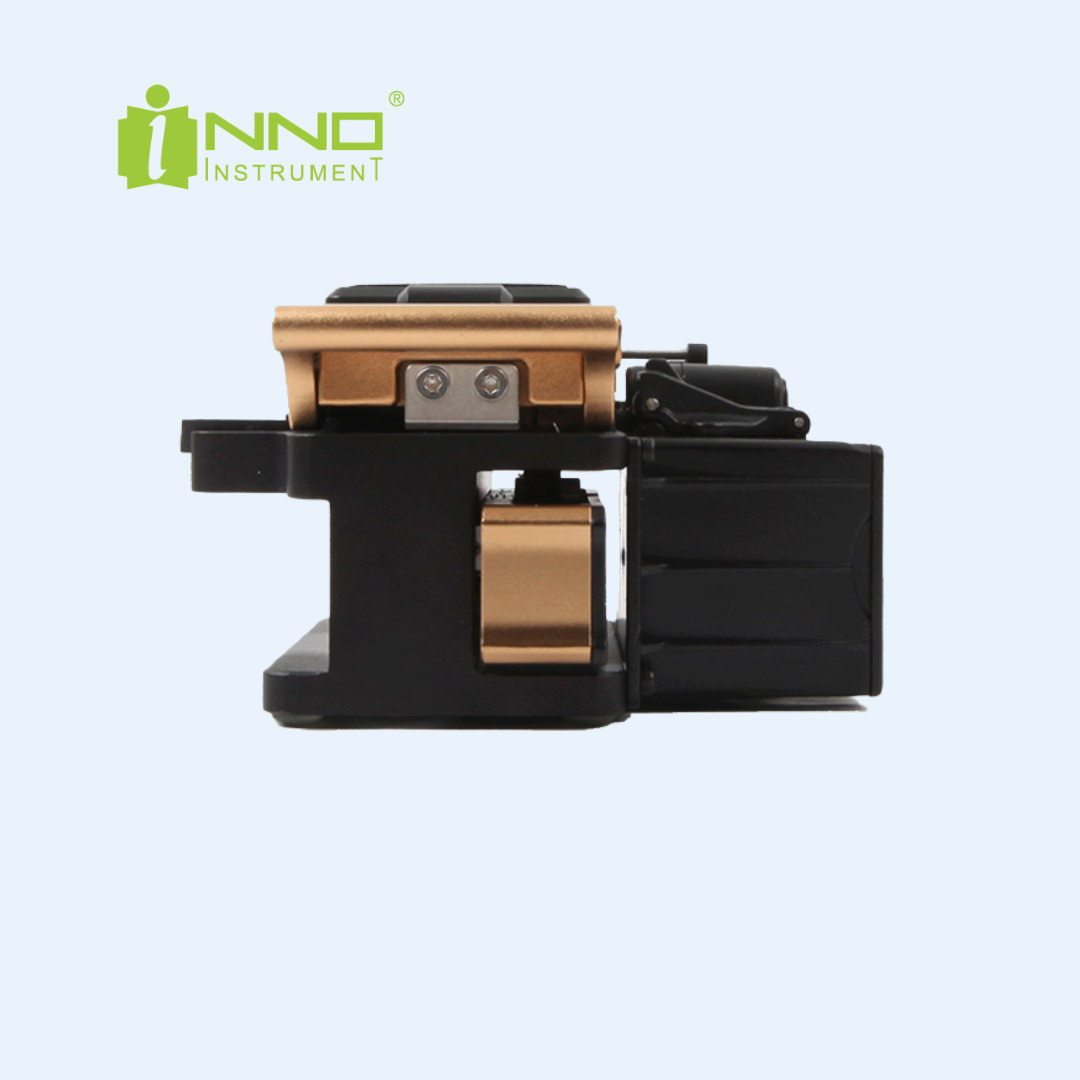

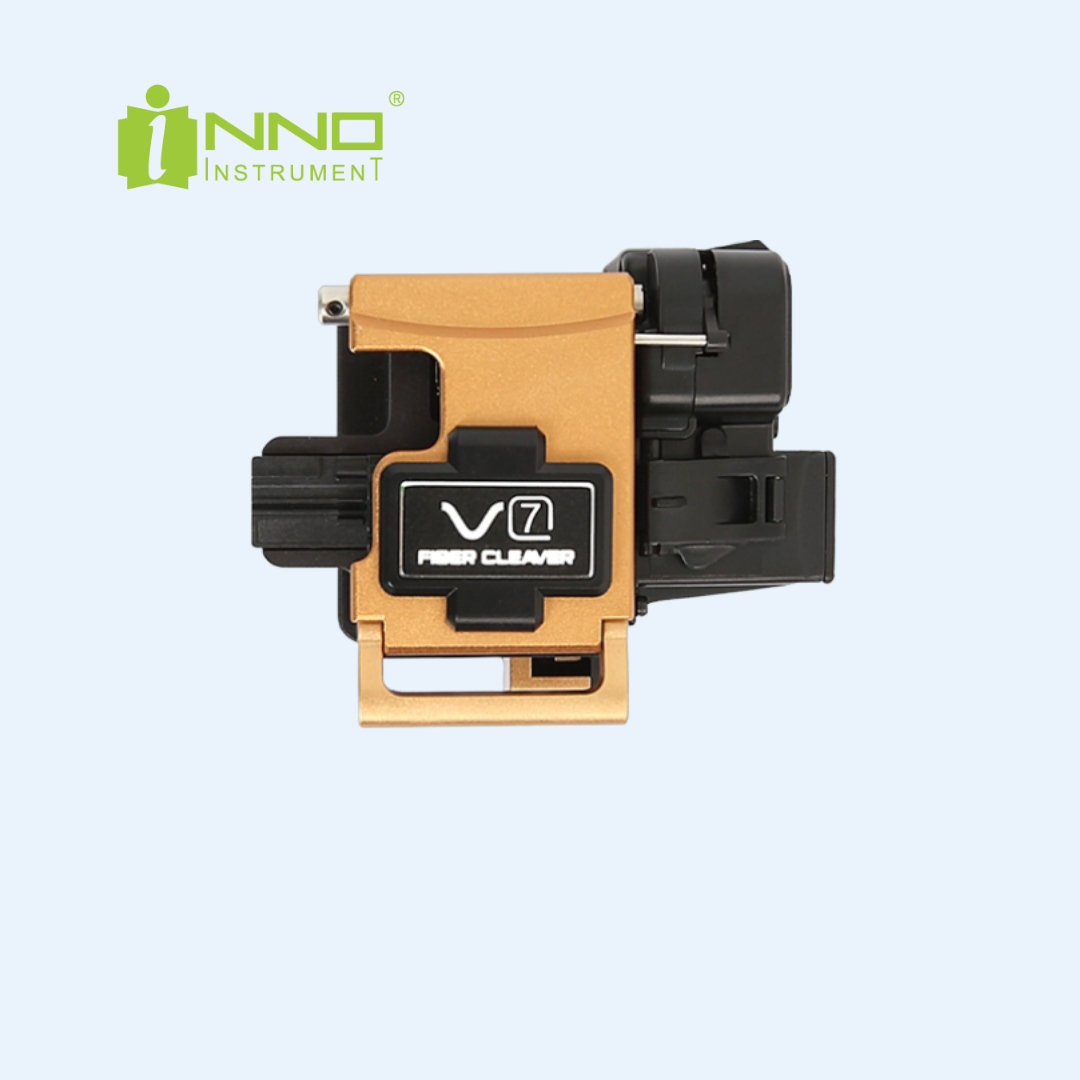

High Precision Cleaver

V7 High Precision Cleaver is an instrument for high precision fiber cutting. V7 can be installed with a variety of holders for ribbon cable up to 12 fibers as well as universal holder which is applicable to 160µm to 900µm, 2mm-3mm and drop cable.

  • Two-Action Operation.
  • Well-Known Design.
  • Auto Trash Bin.
  • Easy Adjustments.
  • Type: Single fiber and ribbon fiber
  • Cladding Diameter: 125μm
  • Applicable Fiber Cable: Single fiber 160μm to 900μm, 2mm~3mm and drop cable / ribbon fiber 2 to 12 ribbon fiber cable
  • Cleaved Length: single fiber 5mm~20mm (Coating diameter ≤ 250μm)
  • 10mm~20mm (Coating diameter >250μm) / ribbon (multi) fiber 10mm~20mm
  • Typical Cleaved Angle: Less than 0.5 Degrees
  • Typical Blade Life Span: Total 60,000 fiber cleaves (2,500 cleavers per each point, total 24 points)
  • Operation Steps: 2 Steps
  • Reclaim Function: Blade pushback
  • Holder: Single universal holder / ribbon replaceable holder
