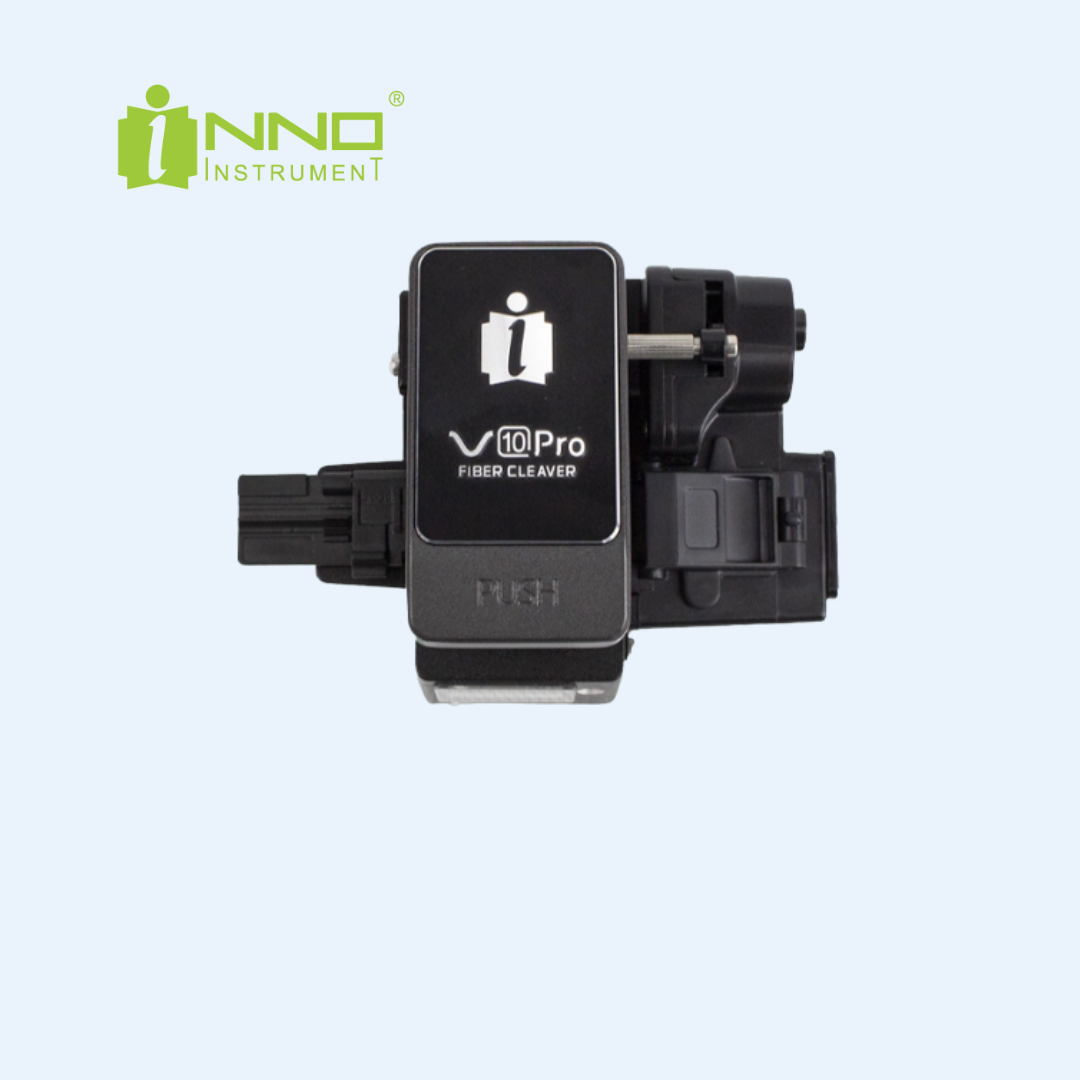

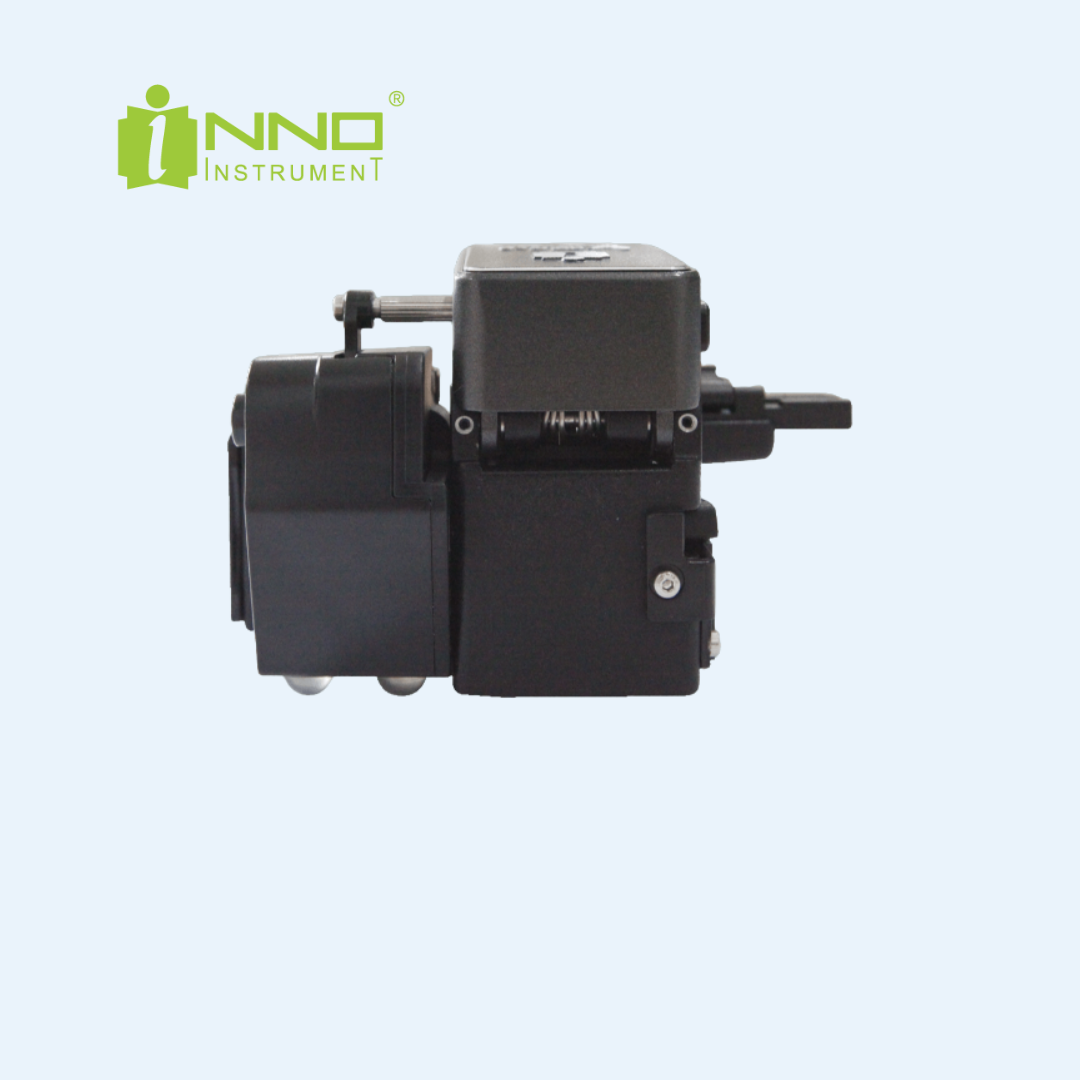

V10 Pro

FULLY AUTOMATIC, PRECISION OPTIC FIBER CLEAVER

V10 Pro aims to be the most accurate and advanced cleaver produced in the market. The cleaves are made in a single, swift action (One-step) with fully automatic blade rotation after each cleave to ensure the best cleave results are produced.

One-Step Operation.
Up to 60,000 Cleaves.
Digital Counter.
Maintenance Free.

Type: Single fiber and Ribbon fiber
Cleave Length: 5mm ~ 24mm (coating diameter ≤ 250μm) screen / button 10mm ~ 20mm (coating diameter >250μm) ribbon (multi) fiber : 10mm
Typical Cleave Angle: Singl 0.5 degrees
Typical Blade Life Span: Total 60,000 fiber cleaves (2,500 cleaves per each point, total 24 points)
Fibre Holder: Universal holder, replaceable holder
Dimensions Size (HWD): (Height) 63mm X (Width) 103mm X (Depth) 76mm
Weight: 300g (with Auto Trash bin)/ 250g (without Auto Trash bin)
