V12
V12

No image available.

V12

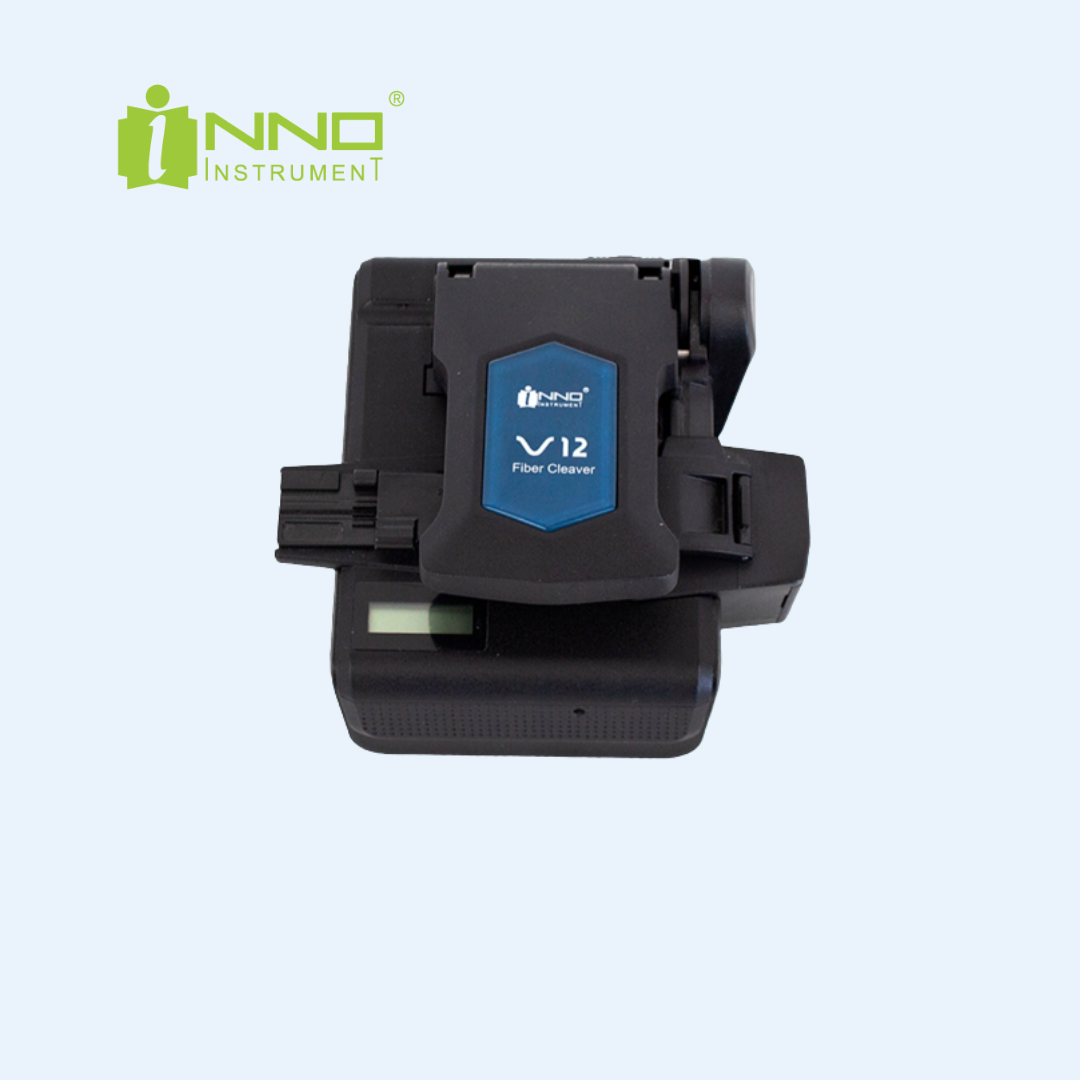

Fully Automatic Premium Fiber Cleaver

The INNO Instrument V12 Precision Desktop Cleaver is a state-of-the-art tool, equipped with a robust alloy steel blade for optimal durability and performance. This advanced cleaver is features a fully automatic, self-activating scoring mechanism and an innovative blade rotation system, ensuring up to 2,500 precise cleaves per position with a total blade lifespan exceeding 60,000 cleaves.

  • Single-Action Operation.
  • Excellent Visibility (90°).
  • Digital Counter.
  • Magnetic Clamp.
  • Model: V12
  • Type: Single fiber and Ribbon fiber
  • Cladding Diameter: 125 μm
  • Cleaved Length: Single Fiber 5mm ~ 24mm (Coating diameter ≤ 250μm), 10mm ~ 20mm (Coating diameter > 250μm) / Ribbon (Multi) Fiber 10mm
  • Applicable Fiber Cable: Single Fiber160 μm to 900 μm, 2mm ~ 3mm and drop cable / Ribbon (Multi) Fiber 2 ~ 16 ribbon fibers
  • Cleaved Angle (Typical): Single Fiber 0.5 °
  • Typical Blade Life: Total 60,000 fiber cleaves (2,500 cleaves per each point, total 24 points)
  • Holder: Universal holder, replaceable holder
  • Weight: 319g
  • Dimension: 103.5 L x 106.5 W x 55 H (mm)
  • Operation Condition: Temperature -10 ~ 50 ºC / Humidity 0 ~ 95%RH (non-dew)
  • Storage Condition: Temperature -40 ~ 80ºC / Humidity 0 ~ 95%RH (non-dew)
  • Battery: Coin type Lithium battery CR
