V1

High Precision Fiber Cleaver

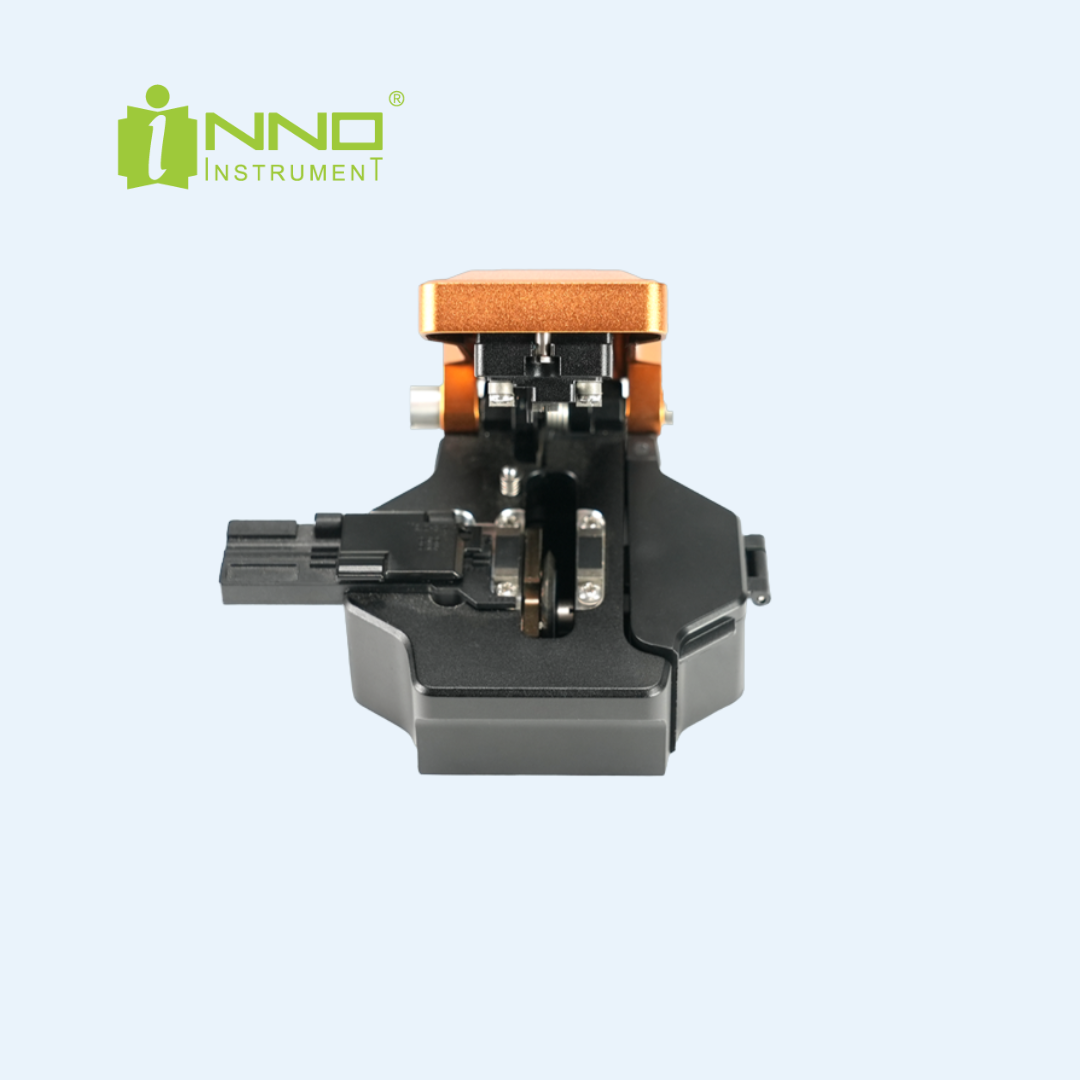

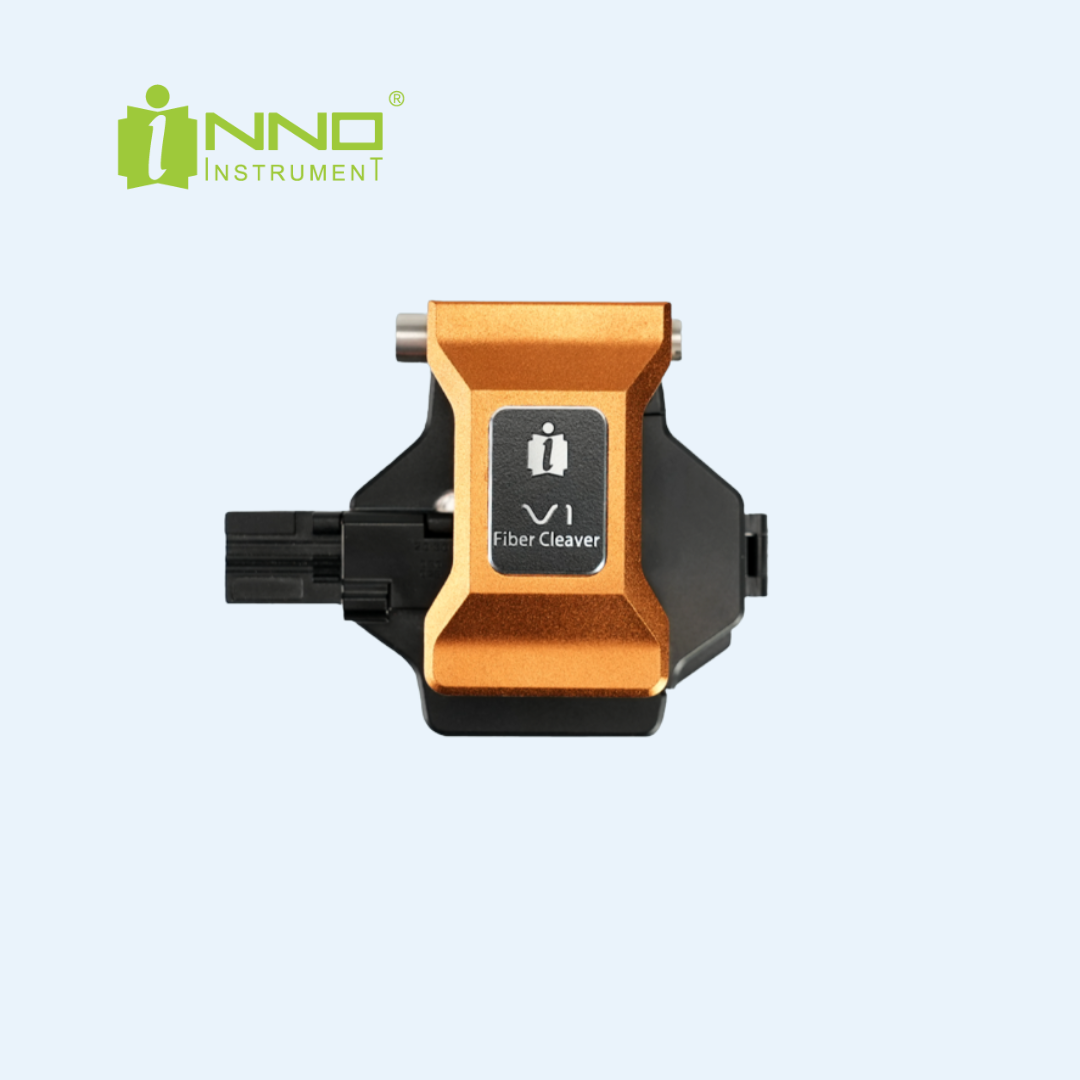

The INNO Instrument V1 Handheld Fiber Cleaver is a compact, efficient tool designed for simplicity and ease of use. It features a durable, handheld design that enhances fiber visibility and ensures precise cleaving. Compatible with all standard single fibers, the V1 is ideal for a variety of applications. Its drop-proof construction and maintenance-free operation make it a reliable choice for field use.

  • One-step Operation.
  • Magnetic Fiber Holder.
  • Off-cut Bin.
  • Maintenance Free.
  • Model: V1
  • Step: 1
  • Weight: 220g
  • Type: Single fiber
  • Cladding Diameter: 125 um
  • Dimensions: 90.7 W x 72.5 D x 45.8 H mm
  • Cleaved Length: 5mm~ 20mm (Coating diameter ≤ 250µm) / 10mm ~ 20mm (Coating diameter > 250µm)
  • Applicable Fiber Cable: Single Fiber: 250 µm to 900 µm and drop cable
  • Typical Cleaved Angle: 0.5°
  • Typical Blade Life: Total 60,000 fiber cleaves (2,500 cleaves per each point, total 24 points)
