V30X OPTICAL FIBER TESTER
V30X OPTICAL FIBER TESTER

No image available.

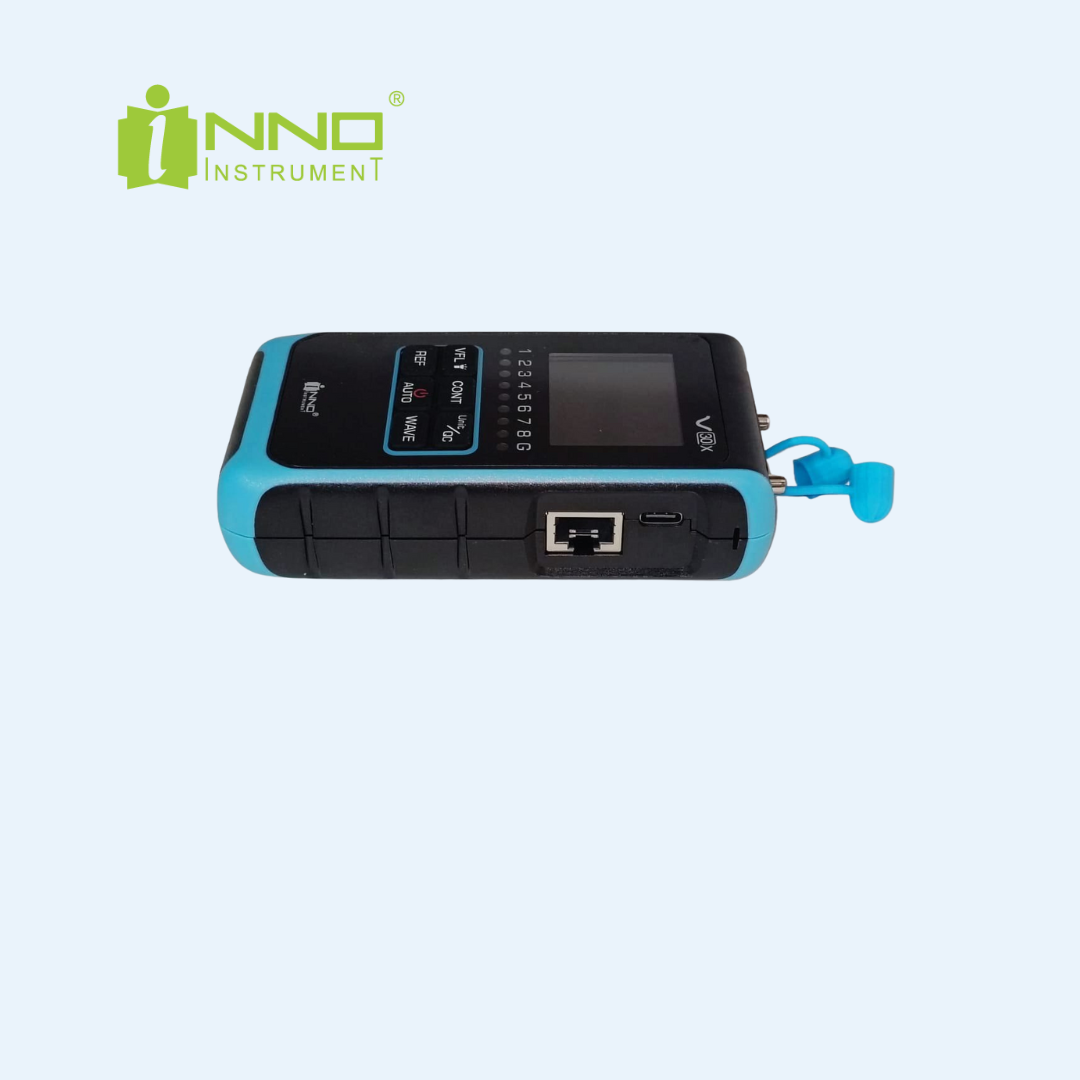

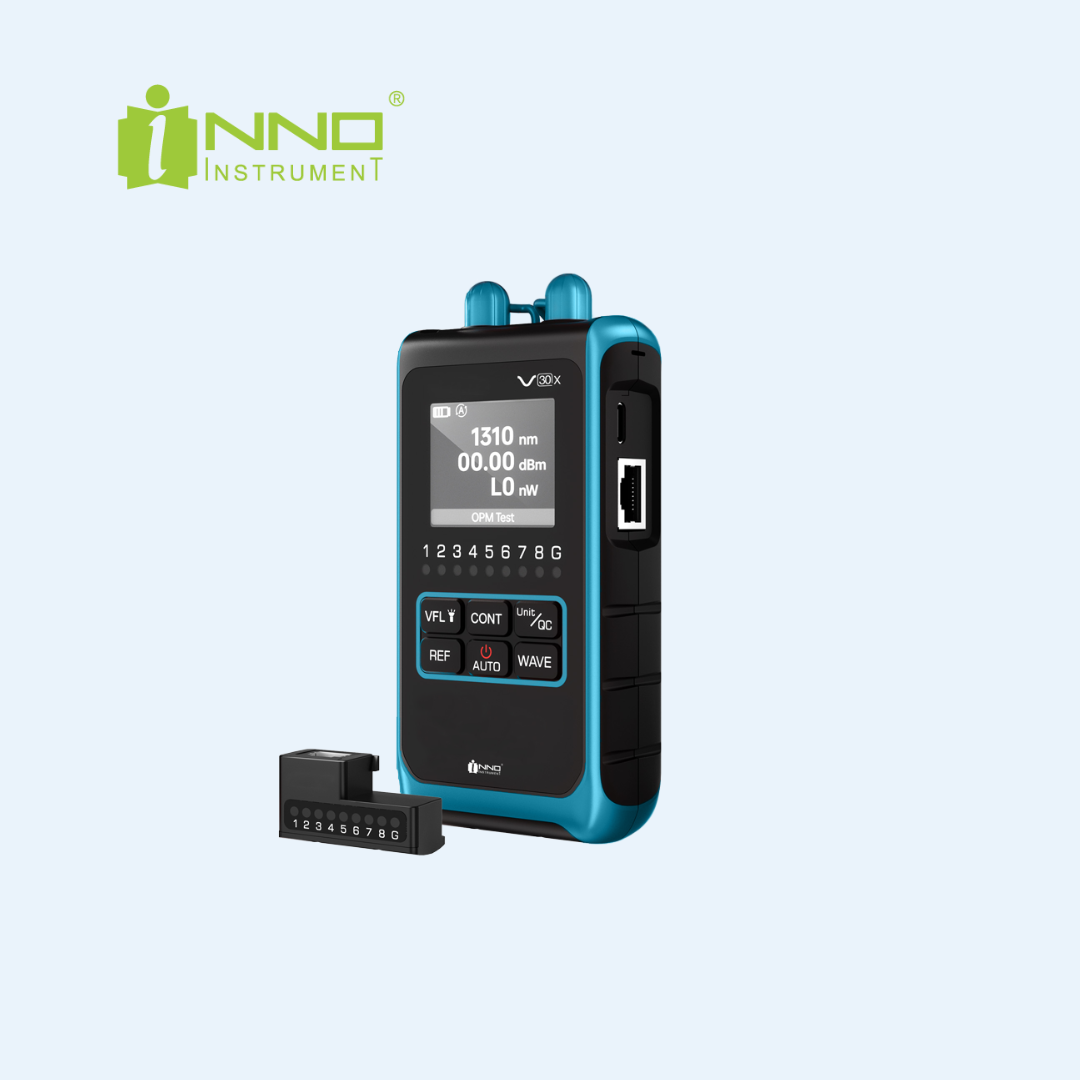

V30X OPTICAL FIBER TESTER

4-in-1 Optical Fiber Tester

Designed for the modern fiber technician, this compact and lightweight tool combines four essential functions — optical power meter, frequency tester, visual fault locator, and an RJ-45 continuity tester — into one portable unit. The optical power meter accurately covers the most popular wavelengths, ensuring comprehensive testing across various fiber setups, while the visual fault locator and RJ-45 tester extend its versatility to cover a broad range of networking and cable testing needs.

  • Optical Fiber Power Meter.
  • Visual Fault Locator.
  • RJ-45 Continuity Tester.
  • Quick and Intuitive Operation.
  • Model V30X: Optical Power Meter
  • Wavelengths: 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650nm
  • Units: dBm or mW/ W/nW
  • Frequency: 270Hz / 1KHz / 2 KHz
  • Measuring range: Uncertainty ±5%
  • Resolution: 0.01dBm
  • Sensor type: InGaAs
  • Linearity: ±2% from -70dBm to +10dBm (Optional: from -50dBm to +26dBm)
  • Wavelength: 650nm +15nm Auto Off ON / OFF
  • Power Supply: 3.7V Lithium Battery, USB-C Port Battery
  • Battery Capacity: 700mAh (Rechargeable)
  • Weight: 250g
  • Dimensions: 128 H x 61 W x 32 D (mm)
  • Operating temperature: from -10℃ to +60℃
  • Storage temperature: from -20℃ to +70℃
