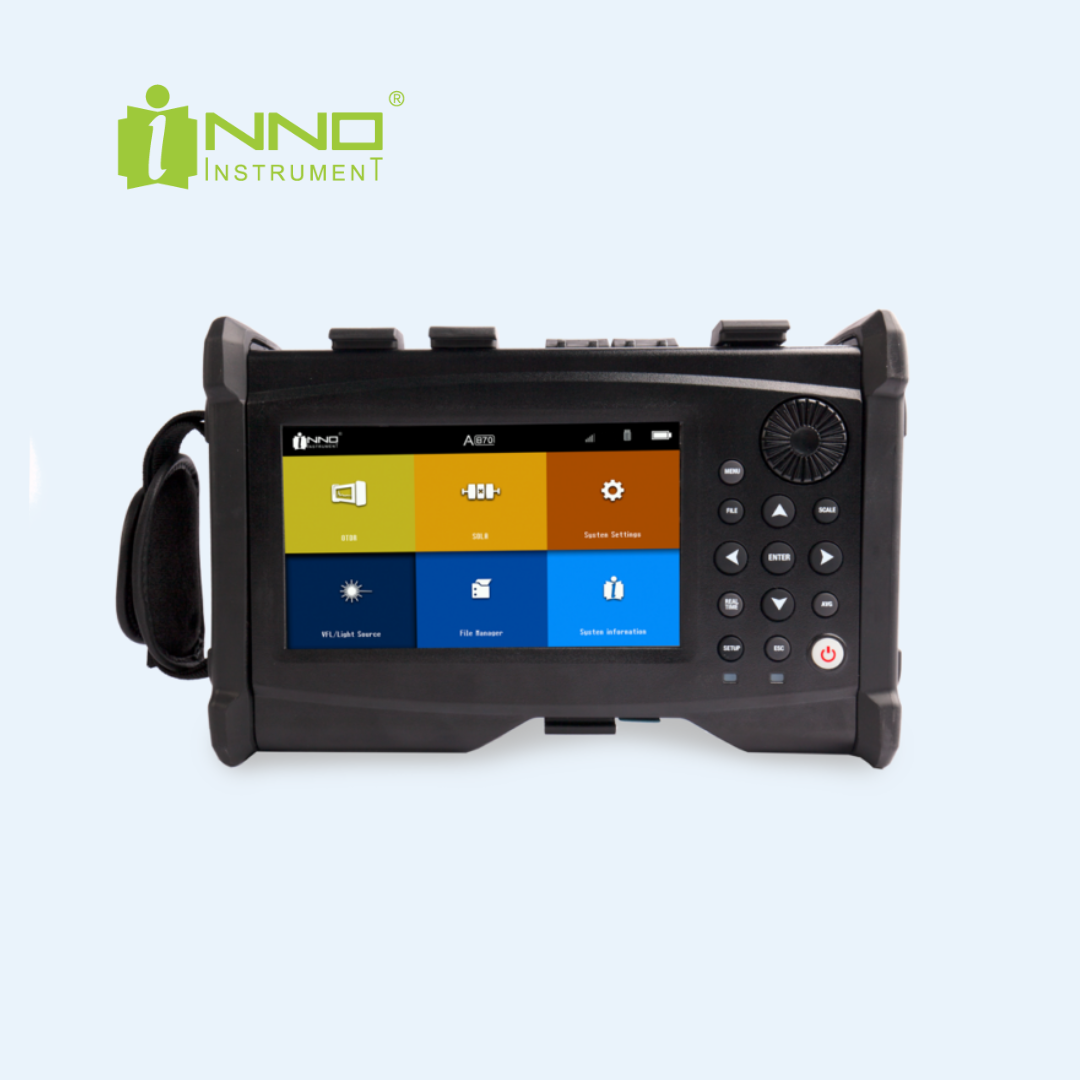

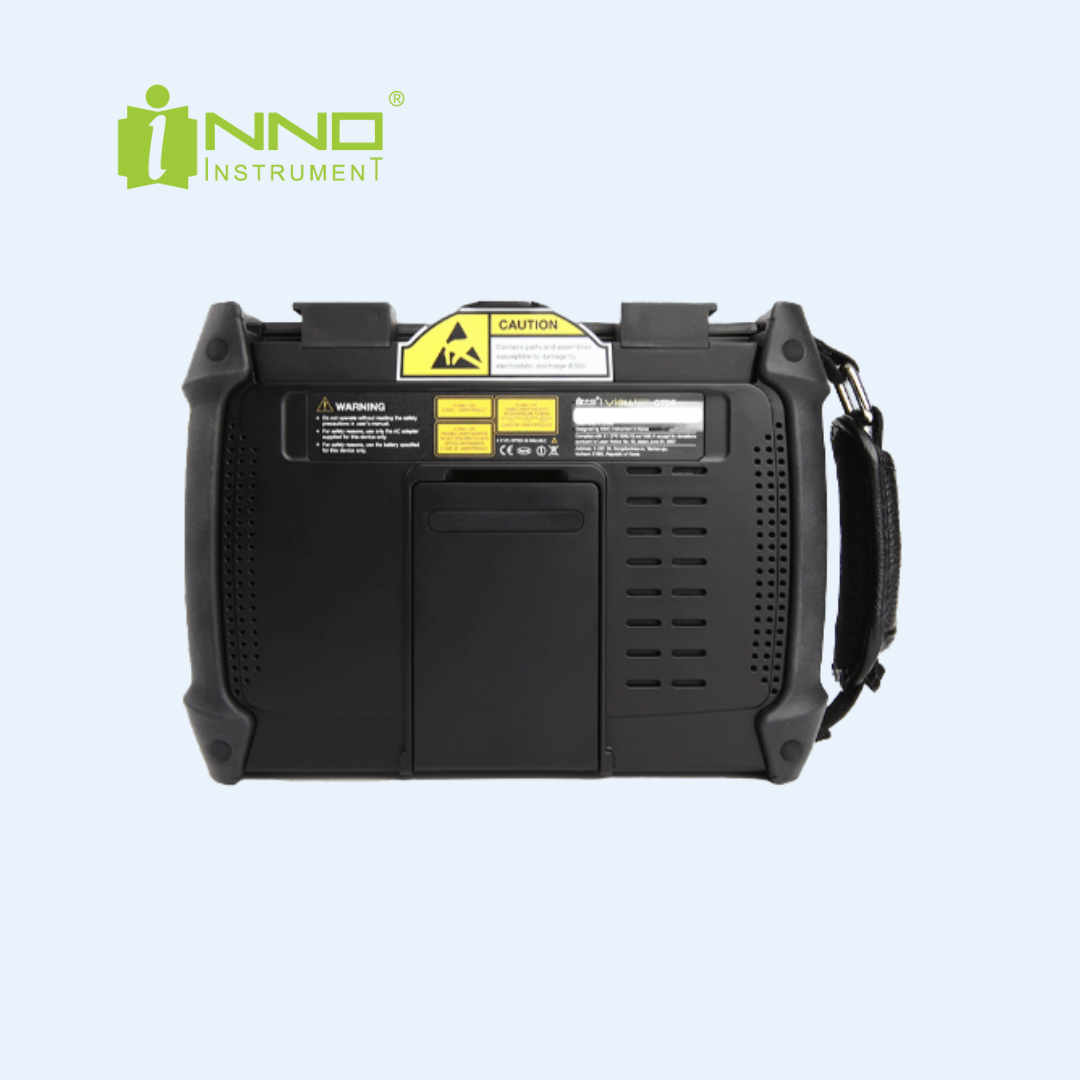

A870

Portable Hand-held OTDR

A870 is a portable hand-held OTDR platform, which can realize multi service applications such as optical, optical power, optical fiber end face inspection, etc., and is used for the installation and maintenance of optical cables. It has the characteristics of high precision test ability, fast response time and easy operation.

  • SOLA (Smart Optical Link Analyzer).
  • 7" Touch Screen.
  • Multiple Function Modules.
  • Support One Click Measurement.
  • Suooirt PON Test.
  • Display: 7 inches, High Brightness TFT LCD, resolution of 800×480
  • Distance Unit: m / km / mile / ft / kft
  • Range Settings: km: 0.1, 0.3, 0.5, 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 260, 320; mile: 0.06, 0.19, 0.31, 0.81, 1.55, 3.11, 6.21, 12.43, 24.86, 49.71, 74.56, 99.42, 161.6, 198.8
  • Dynamic Range: SMF: 35dB (1310nm/1550nm/1625nm)
  • Pulse Width: 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 200ns, 300ns, 500ns, 1us, 2.5us, 5us, 10us, 20us
  • Event Dead Zone: 0.8m
  • Attenuation Dead Zone: 4m
  • Distance Accuracy: ± (1 m + Distance × 2.5 × 10⁻⁵ + Sampling resolution)
  • Linearity: 0.03dB
  • Loss Readout Resolution: 0.001 dB
  • Sampling Points: 256,000 points
  • Refractive Index: 1.000000 – 2.000000
  • Splitting Ratio: Up to 1:128 splitter
  • File Format: SOR, BMP, JPG, PDF, PON, JPEG, PPX, CGM
  • External Connection: USB2.0, RJ45 (1000Mbps Ethernet)
  • Compatible Connectors: FC / SC / LC
  • Dimension: 275 × 178 × 76 mm (excluding rubber bumper)
  • Weight: 1.72kg (with battery)
