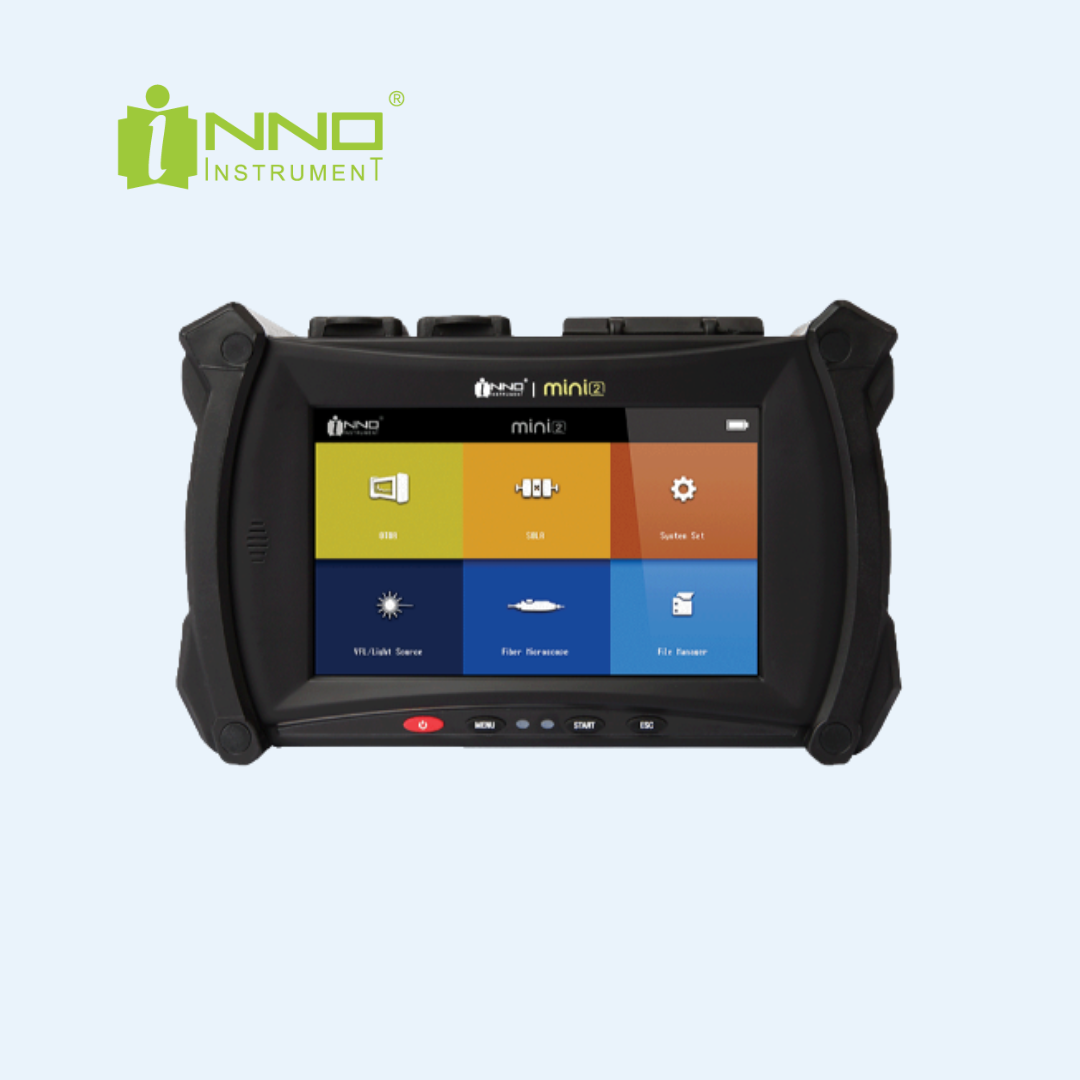

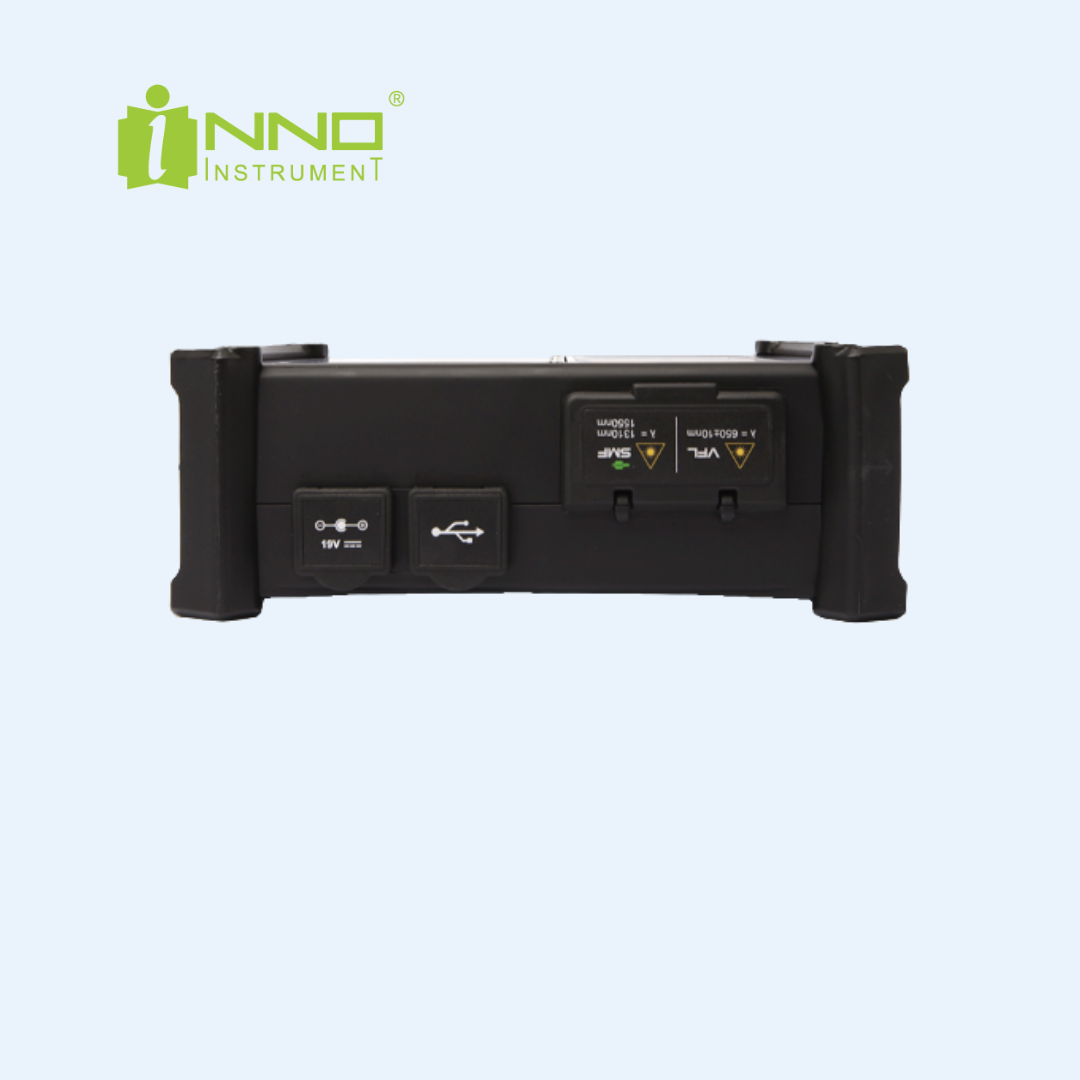

MINI2

Most Accurate Compact OTDR

The MINI2 OTDR is used in the installation and maintenance of fiber optic cables. Features of the MINI2 OTDR include high precision test capabilities, fast response times, and easy to learn operation. The multi-point capacitive touch screen allows for user-friendly operation. The MINI2 OTDR offers accurate and fast test results and creates a report automatically. The MINI2 OTDR’s compact design delivers a lightweight, truly hand-held device.

  • OTDR & SOLA.
  • Lightweight Design.
  • VFL and Light Source.
  • Inspection Probe.
  • Display: 5 inches, High Brightness TFT LCD, resolution of 800 × 480
  • Distance Unit: m / km / mile / ft / kft
  • Dynamic Range: SMF: 26dB (1310nm) / 24dB (1550nm) / SMFR: 28dB (1310/1550nm) (typ.)
  • Pulse Width: 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 200ns, 300ns, 500ns, 1us, 2.5us, 5us, 10us
  • Dead Zone (Event/Attn./PON): Event: 0.8m, Attn.: 4m, PON: 35m
  • Distance Accuracy: ± (1 m + Distance × 2.5 × 10⁻⁵ + Sampling resolution)
  • Linearity: 0.03dB
  • Sampling Points: 256,000 points
  • Refractive Index: 1.000000 – 2.000000 (step: 0.000001)
  • Splitting Ratio: Up to 1:128 splitter
  • Resolution: 0.04m – 10.24m
  • Loss Readout Resolution: 0.001 dB
  • Battery Capacity:
  • Operating Time: Up to 12 hours
  • Dimension: 115 × 175 × 47 mm (not including rubber bumper)
  • Weight: 0.50kg (with battery)
