VIEW600
VIEW600

No image available.

VIEW600

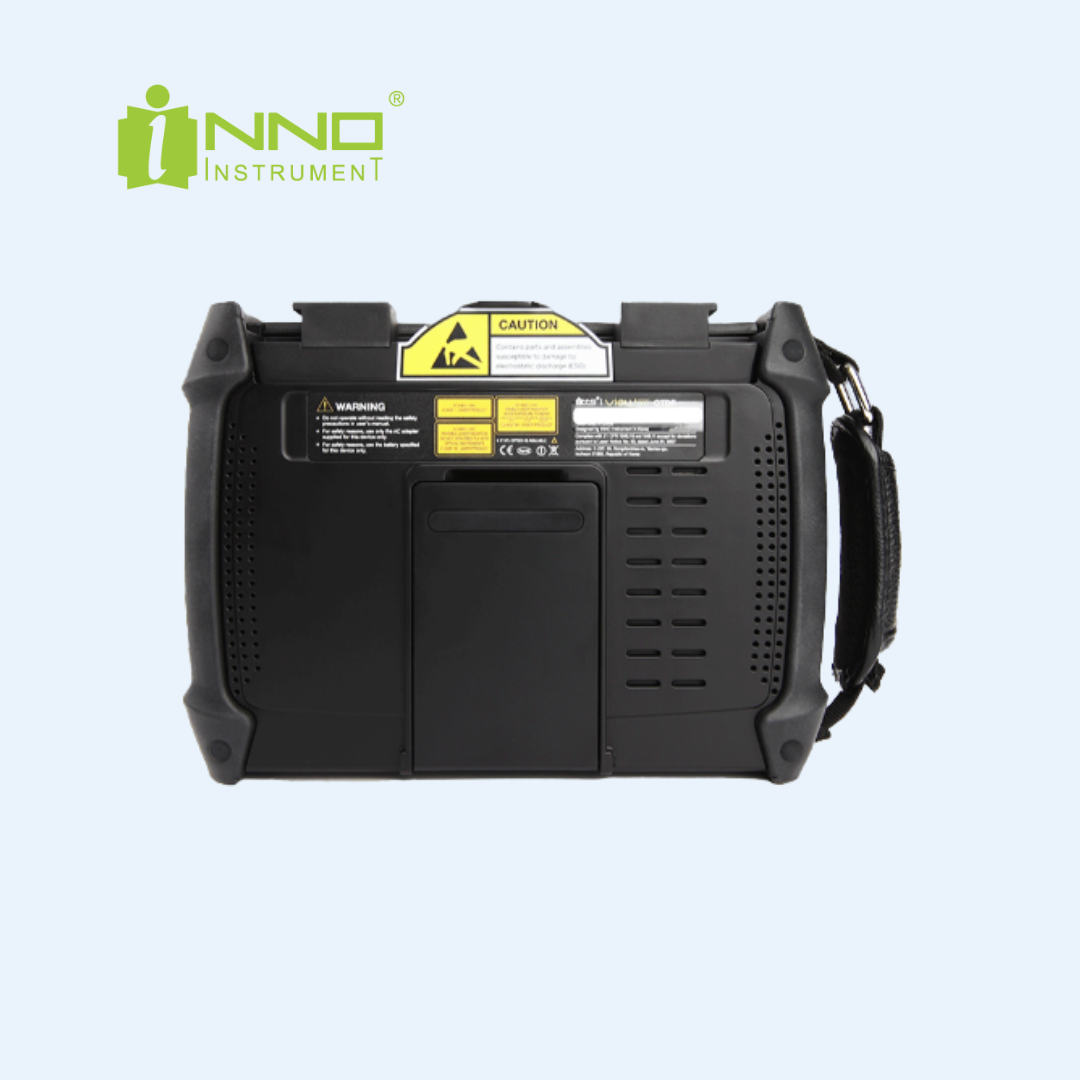

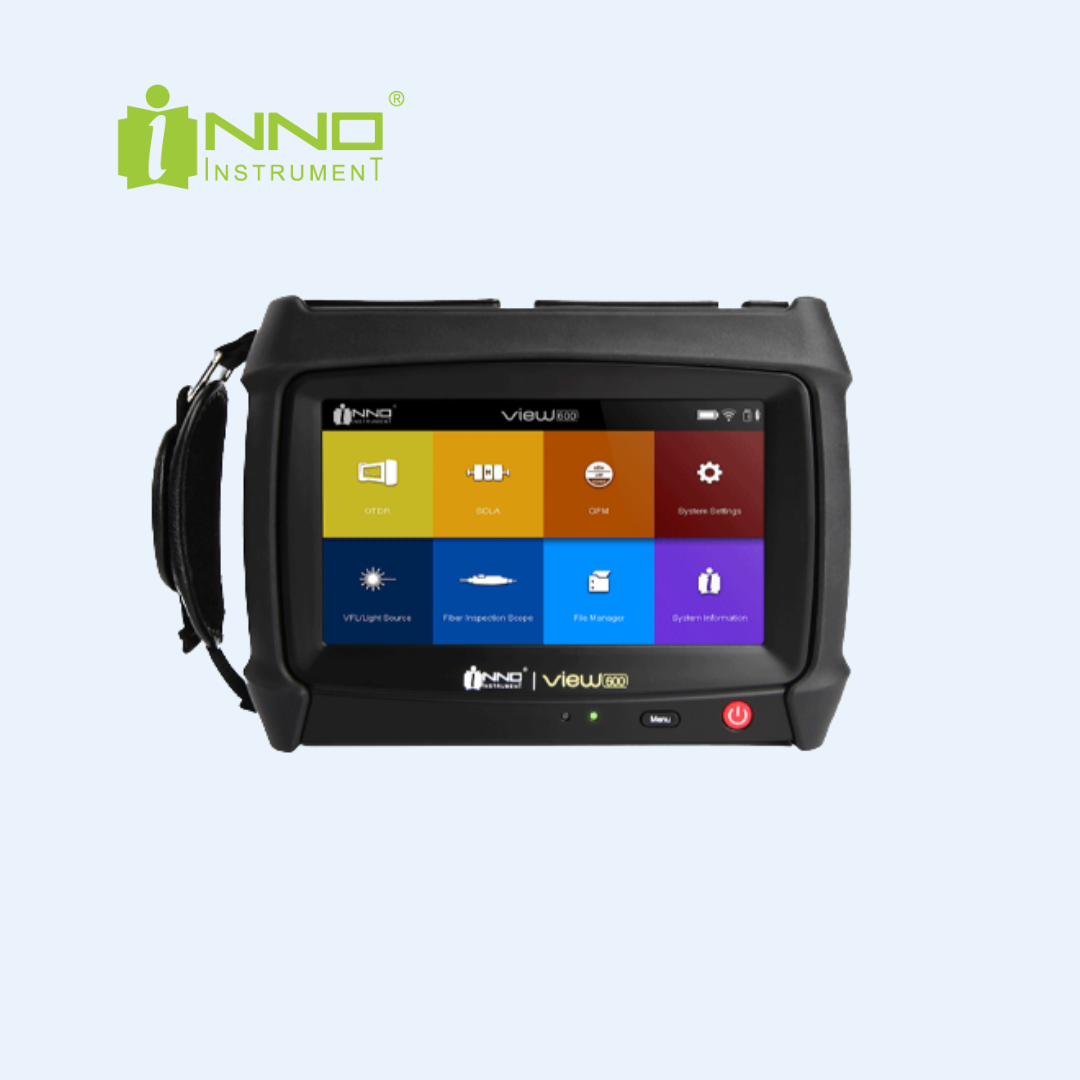

High Performance Modular OTDR

INNO Instrument proudly introduces VIEW600, a truly modular OTDR with 13 applicable modules, supporting last-mile, access network, FTTx/PON, metro networks. VIEW600 boasts qualified CPU, fast response time, capacitive touch screen, user-friendly GUI, and above al, accurate test result. We guarantee that you can seamlessly test your networks with this changable smart gear.

  • 13 Modules Applicable.
  • SOLA (Smart Optical Link Analyzer).
  • 7” Touch Screen.
  • 8GB Internal Storage.
  • Built-In VFL, Light Source, OPM.
  • Display: 7 inches, High Brightness TFT LCD, resolution of 800 × 480
  • Distance Unit: m / km / mile / ft / kft
  • Range Settings: km: 0.1, 0.3, 0.5, 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 260, 320; mile: 0.06, 0.19, 0.31, 0.81, 1.55, 3.11, 6.21, 12.43, 24.86, 49.71, 74.56, 99.42, 161.6, 198.8
  • Pulse Width: 3ns, 5ns, 10ns, 30ns, 50ns, 100ns, 200ns, 300ns, 500ns, 1us, 2.5us, 5us, 10us, 20us
  • Distance Accuracy: ± (1 m + Distance × 2.5 × 10⁻⁵ + Sampling resolution)
  • Linearity: 0.03dB
  • Sampling Points: 256,000 points
  • Refractive Index: 1.000000 – 2.000000 (step: 0.000001)
  • Splitting Ratio: Up to 1:128 splitter
  • Resolution: 0.04m – 10.24m
  • Loss Readout Resolution: 0.001 dB
  • Battery Capacity: Operating time: Up to 12 hours
  • File Format: SOR, BMP, JPG, CGM, SOLA, PDF
  • External Connection: USB 2.0 × 2
  • Compatible Connector: APC (FC, SC, LC), UPC (FC, SC, LC, ST)
  • Power Supply: AC Input: 100–240V, 50–60Hz/DC Input: 19 V, 3.42A
  • Wavelength calibration: 850 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm
  • Power range: –70 to 6dBm (Accuracy: 0.01 dB)
  • Dimension: 159 × 218 × 70 mm (excluding rubber bumper)
  • Weight: 1.70 kg (with battery)
