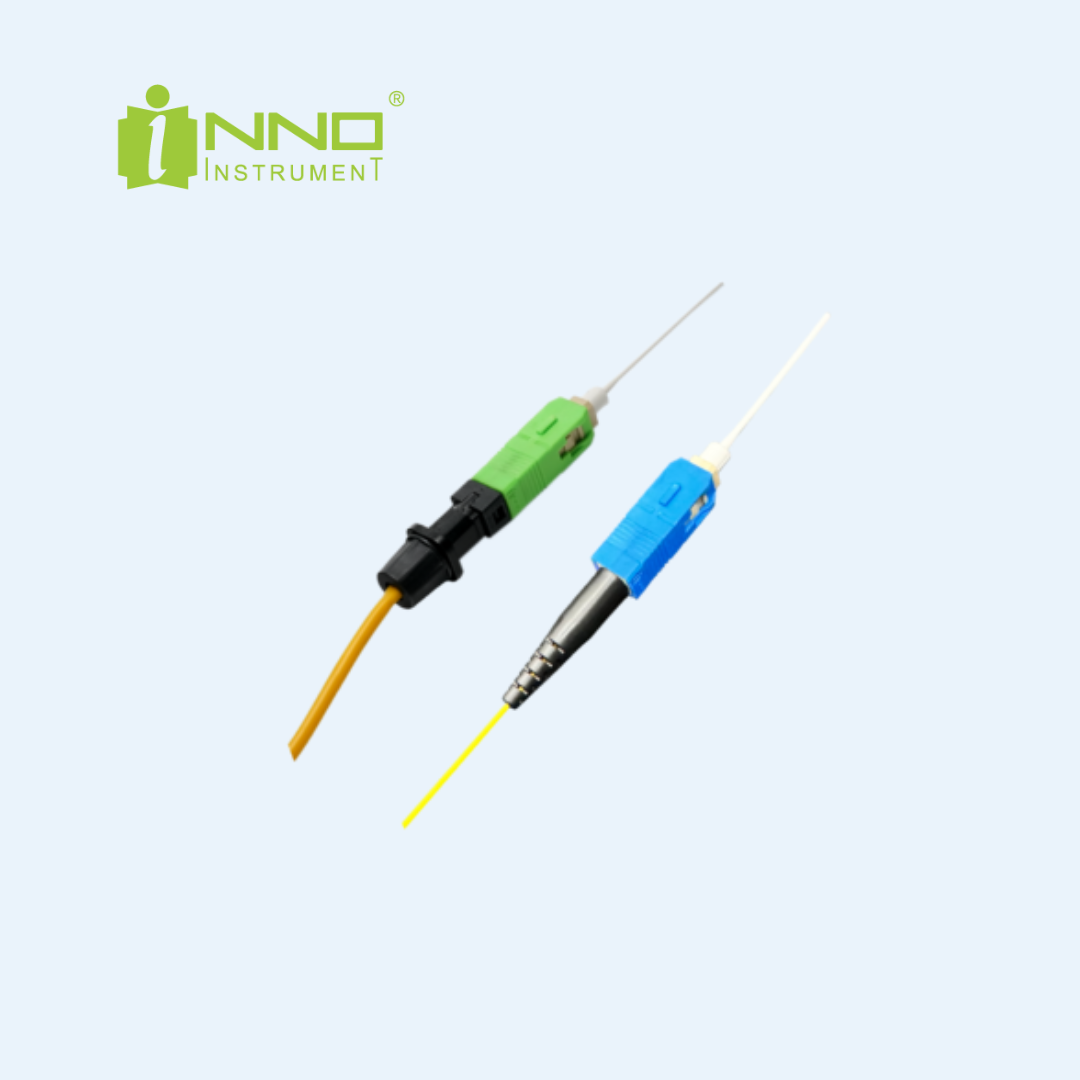

Splice-On Connector
Splice-On Connector

No image available.

Splice-On Connector

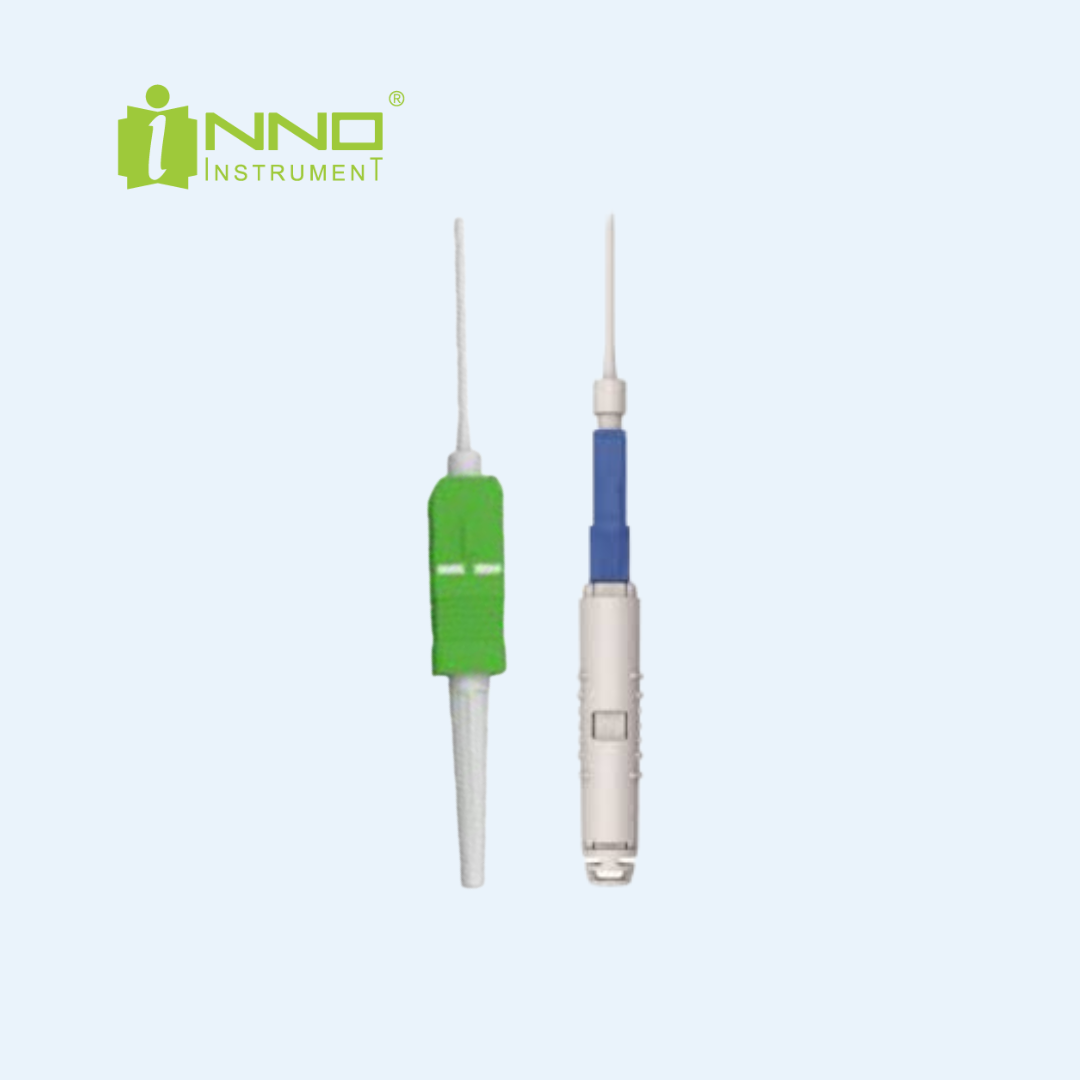

Splice Protector

Pre-cleaved and pre-polished to improve the quality of the termination and reduce installation time required in the field. INNO’s splice-on connectors are designed to save time and increase productivity without sacrificing quality.

  • Direct Termination.
  • Excellent Splice Protection.
  • High Quality.
  • Easy Assembly.
  • This product uses Single Mode (SM) fiber.
  • The insertion loss is 0.15 dB (average) for UPC connectors and 0.3 dB (maximum) for APC connectors.
  • The return loss is at least 55 dB for UPC and at least 65 dB for APC.
  • The product has passed a repeating operation test of 500 cycles with a maximum variation of 0.2 dB.
  • The operating temperature range is from –40°C to 75°C.
  • For the SC-09 type: It supports 0.9 mm fiber with a tensile strength of 25 N (≥ 2.5 kgf) for 0.9 mm fiber.
  • For the SC-30 type: It supports 2.0 mm or 3.0 mm code fiber, or 3×2 indoor cables.
  • The tensile strength is 50 N (≥ 5.0 kgf) for 2.0 mm/3.0 mm fiber or 3×2 indoor cable.
