FHSeries

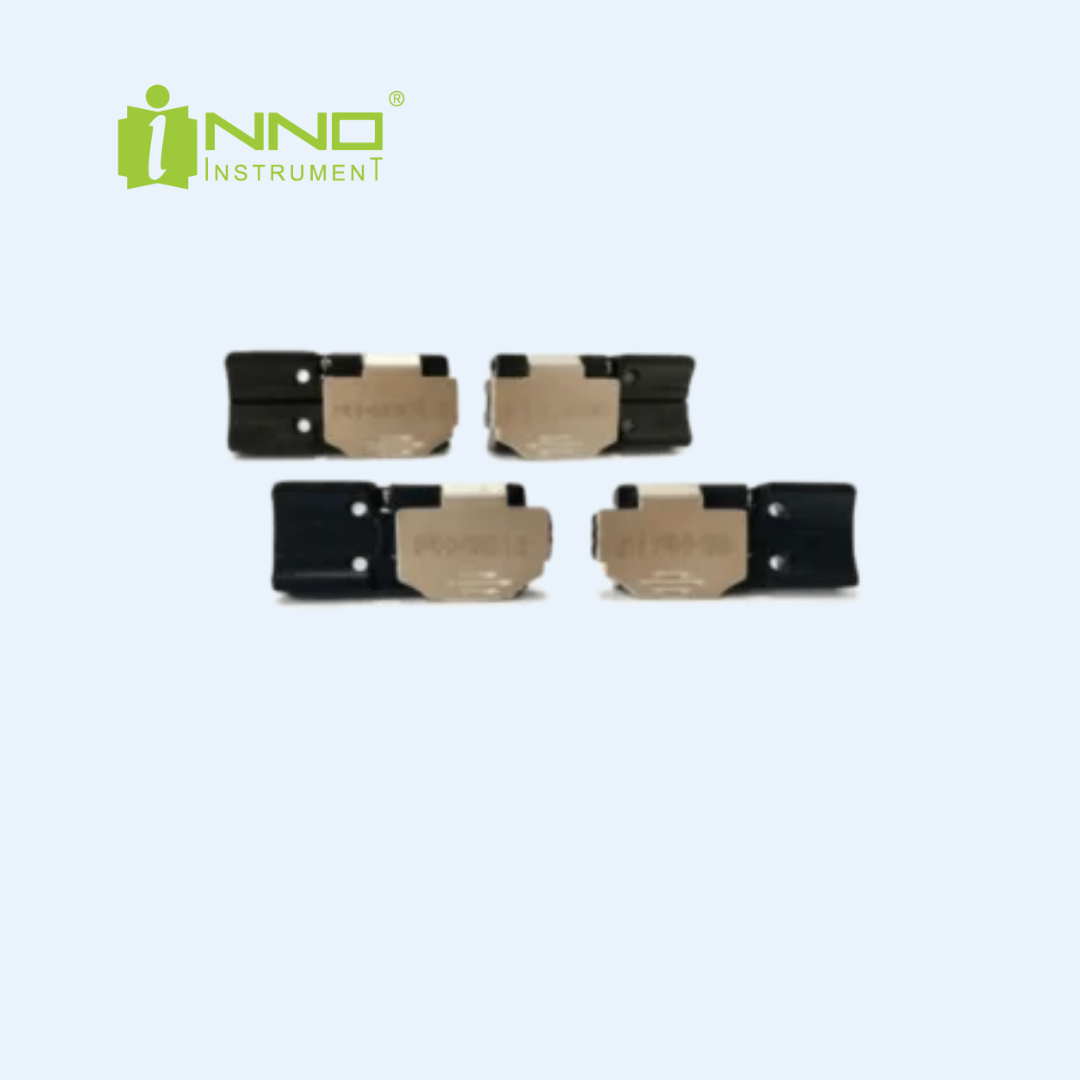

Fiber Holder FHSeries

The Fiber Holders,FH Series are exclusively designed to work with INNO Instrument splicers. The Fiber Holders can help to load the different kinds of fibers correctly in the splicers.

Precision Alignment: Ensures accurate fiber positioning for high-quality splicing results.
Wide Compatibility: Supports both single fiber (250 μm, 900 μm) and ribbon fiber (2–12 cores).
Easy to Replace: Quickly swap holders to match different fiber types without extra tools.
Durable Material: Made from high-precision aluminum or heat-resistant plastic for long-lasting use.
Stable Holding: Securely grips fibers to prevent movement or slippage during fusion splicing.
Optimized for INNO Splicers: Fully compatible with INNO fusion splicer series (e.g., VIEW series) for smooth workflow.
Compact Design: Lightweight and easy to install, store, and maintain.

Model: FH Series (FH-250, FH-900, FH-Ribbon)
Fiber Type: Single Fiber & Ribbon Fiber
Applicable Fiber: SM (Single Mode) / MM (Multi Mode)
Cladding Diameter: 125 μm
Coating Diameter: 250 μm, 900 μm (FH-250 and FH-900)
Ribbon Fiber: 2–12 cores (FH-Ribbon)
Fiber Holding Length: Typically 10–16 mm (depending on the splicer)
Material: Precision aluminum / heat-resistant plastic
Compatibility: Compatible with INNO fusion splicers (View 1, View 3, View 5, View 6, View 7, View 8, View 12R, and more)
