TS Pro

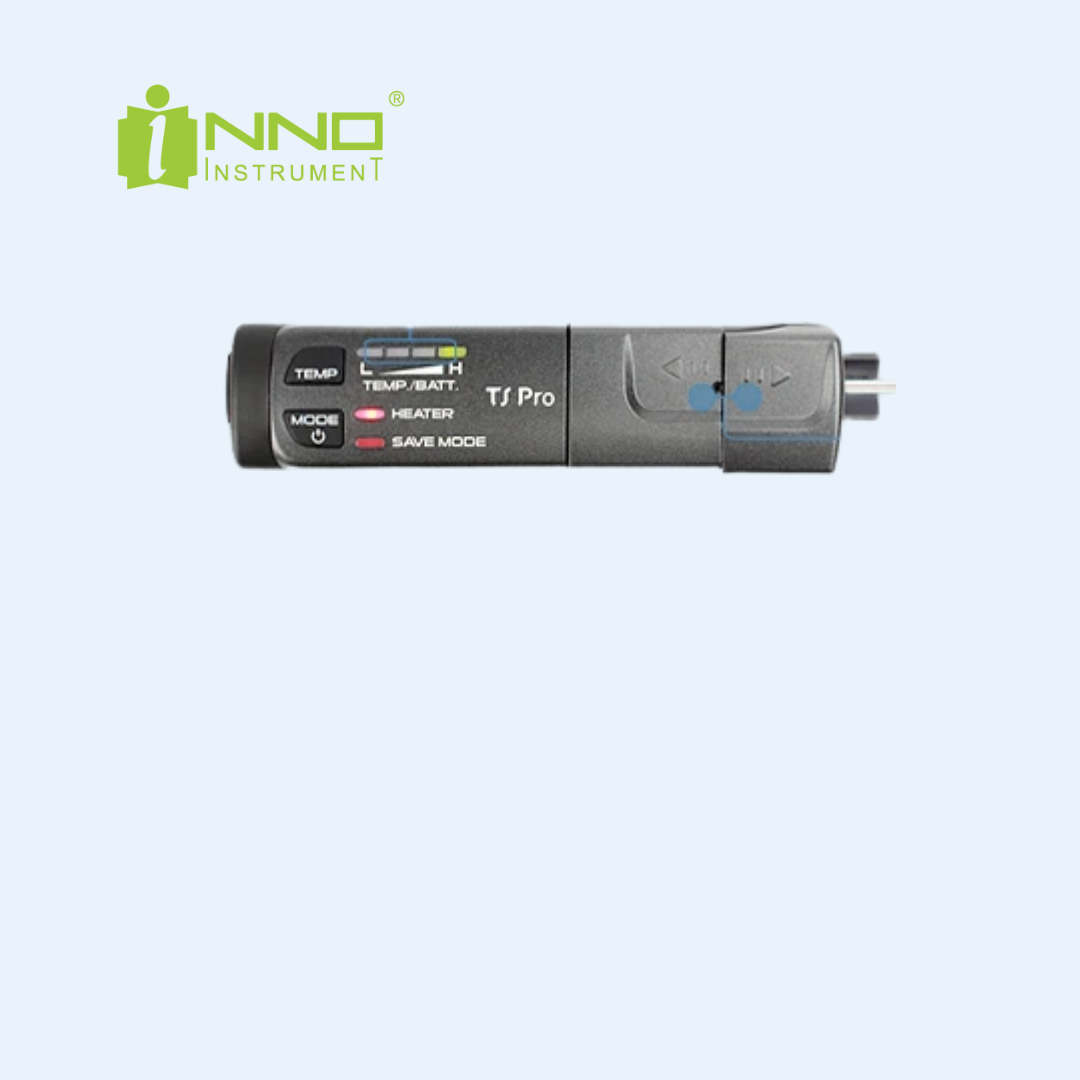

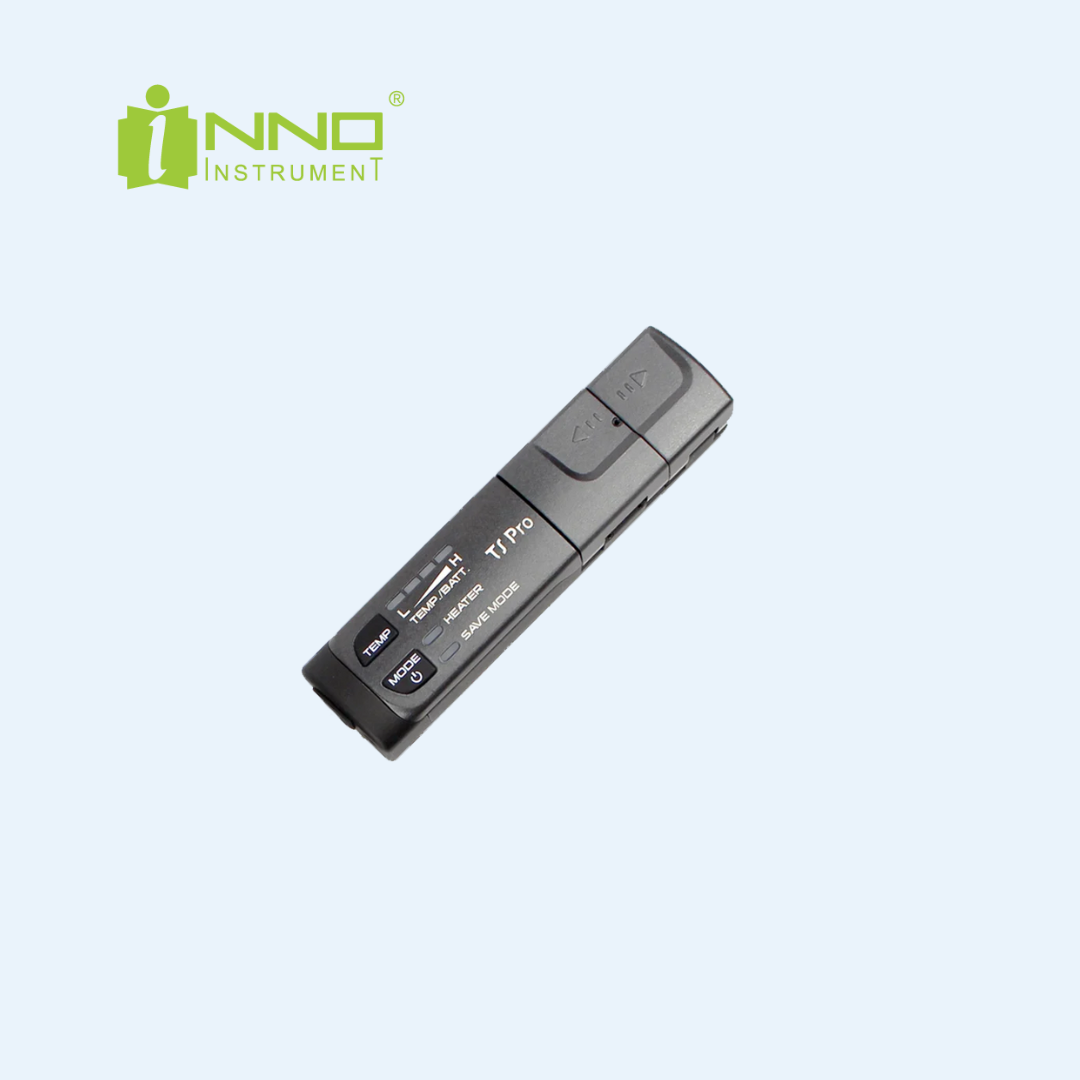

TS Pro Thermal Stripper

TS Pro is a universal thermal fiber stripper capable of removing coating and jacket of all types and brands of fibers. It performs superbly against the rollable and spider web cables in both 200um and 250um pitch. With its fast and straightforward operation, anyone can do precise stripping with near-zero failure. It provides long-lasting battery capacity: approx 500 cycles of ribbon fiber cable stripping. TS Pro is also waterproof and can withstand the most challenging work environments.

  • Waterproof for harsh work environments
  • Compatible with all types/brand of ribbon cables
  • Reinforced structure to reduce slipping
  • Fast heating and charging time w/ 500 cycles
  • Fiber Material: Silica Glass
  • Coating Diameter: 200 – 400μm
  • Cladding Diameter: 125μm
  • Applicable Fiber: 1 to 12
  • Stripping Length: Up to 30mm
  • Heating Mode: Normal Mode / Power Save Mode
  • Heating Time Normal Mode approx. 4 sec
  • Power Save Mode: approx. 5 sec
  • Temperature Setting: Normal Mode approx. 80°C, 95°C, 110°C, 130°C
  • Power Save Mode: approx. 70°C, 80°C, 95°C, 110°C
  • Battery Capacity: 880mAh, approx. 500 (12 Ribbon fiber, Level 1, SAVE mode)
  • Power Supply: AC Drive: AC100–240V, 50/60Hz
  • DIN Port: DC 12V power supplied from fusion splicer
  • Operating Conditions: Temperature: up to 50°C | Relative Humidity: up to 95%
  • Storage Conditions: Temperature: -10 – 60°C | Relative Humidity: up to 95%
  • Dimensions: 139W × 34D × 34H mm
  • Weight: 227g (without battery) / 269g (with battery)
