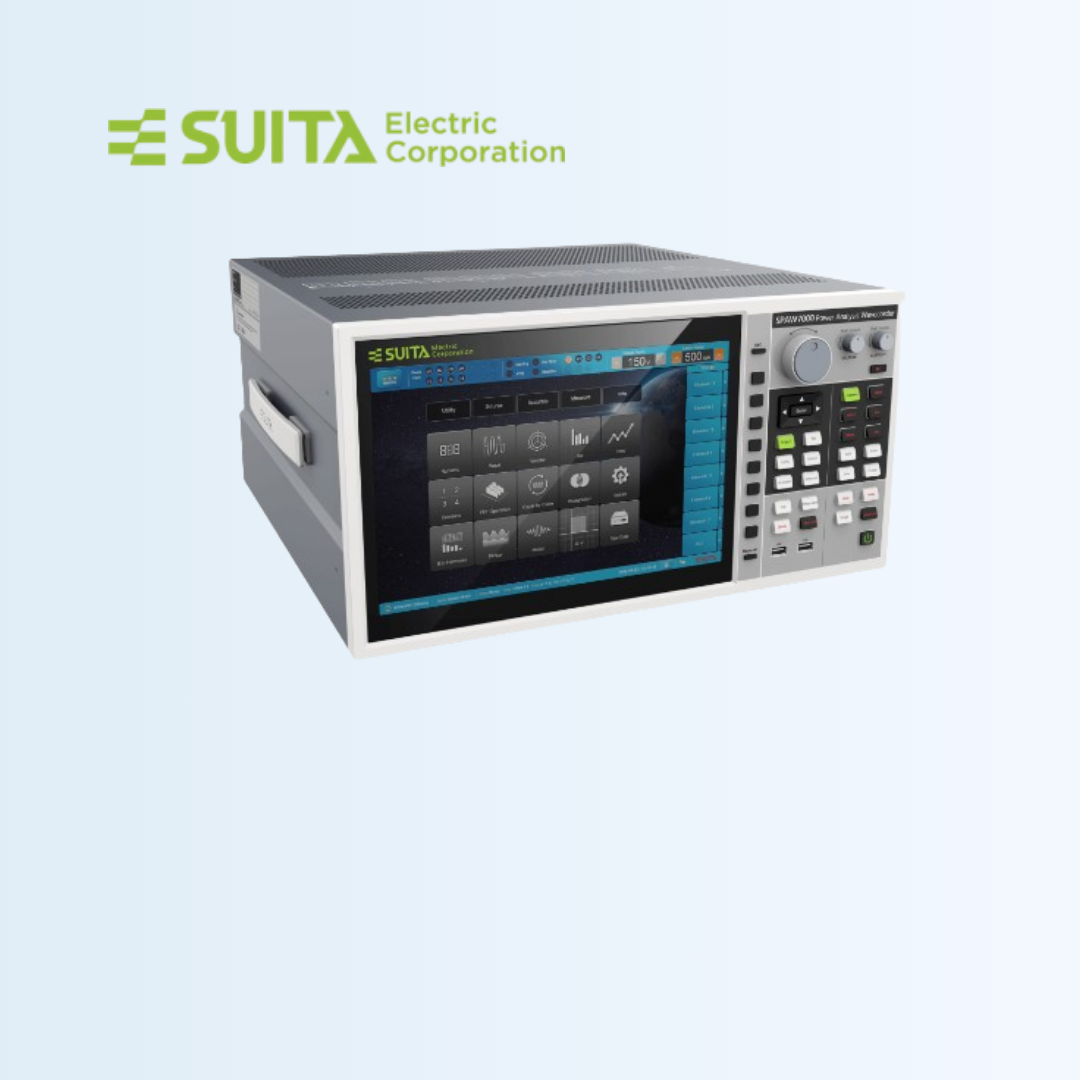

SPAW7000 Power Analysis Wavecorder

Multifunctional Power Analyzer

SPAW7000 offers 7 power channels and 2 motor channels while also supporting a wide range of power module combinations. Its wide measurement range and high accuracy make it suitable for numerous industries, including electric vehicles, renewable energy, inverters, motors, batteries, lighting, household appliances, and the aviation electronics industry, and more.

  • SPAW7000 stands as the most accurate in the market, boasting a measurement accuracy of up to 0.01% of reading.
  • Simultaneous harmonic measurements are conducted for all 7 power channels, offering the flexibility to select different PLL sources.
  • SPAW7000 can be linked to a torque and rotation speed sensor to receive analog or pulse output signals.
  • SPAW7000 features 7 power channels and 2 motor channels, supporting a variety of voltage and current input ranges modules with distinct levels of precision.
  • Measurement Accuracy : ± (0.01% of reading + 0.02% of range)
  • Voltage range : 15V - 1000V / 1.5V - 1500V / 3V - 1500V
  • Current Range : 2mA - 5A / 100mA - 40A / 10mA - 5A / 1A - 50A
  • Measurement Bandwidth : DC, 0.1Hz - 5MHz
  • Sampling Rate : up to 2MS/s, ensuring more accurate data recording
  • Resolution : 16 bit
  • Channels : 7 power channels and 2 motor channels, supporting double-motor or 4-terminal single-motor
  • Harmonic Measurements : up to 500th order
  • Display 12.1” : LCD touch screen equipped with a user-friendly UI
  • Internal Storage : Standard 512GB SSD (1024GB SSD optional)
  • Programming and Interfaces : USB, Ethernet, RS-232, GPIB (optional), D/A output
