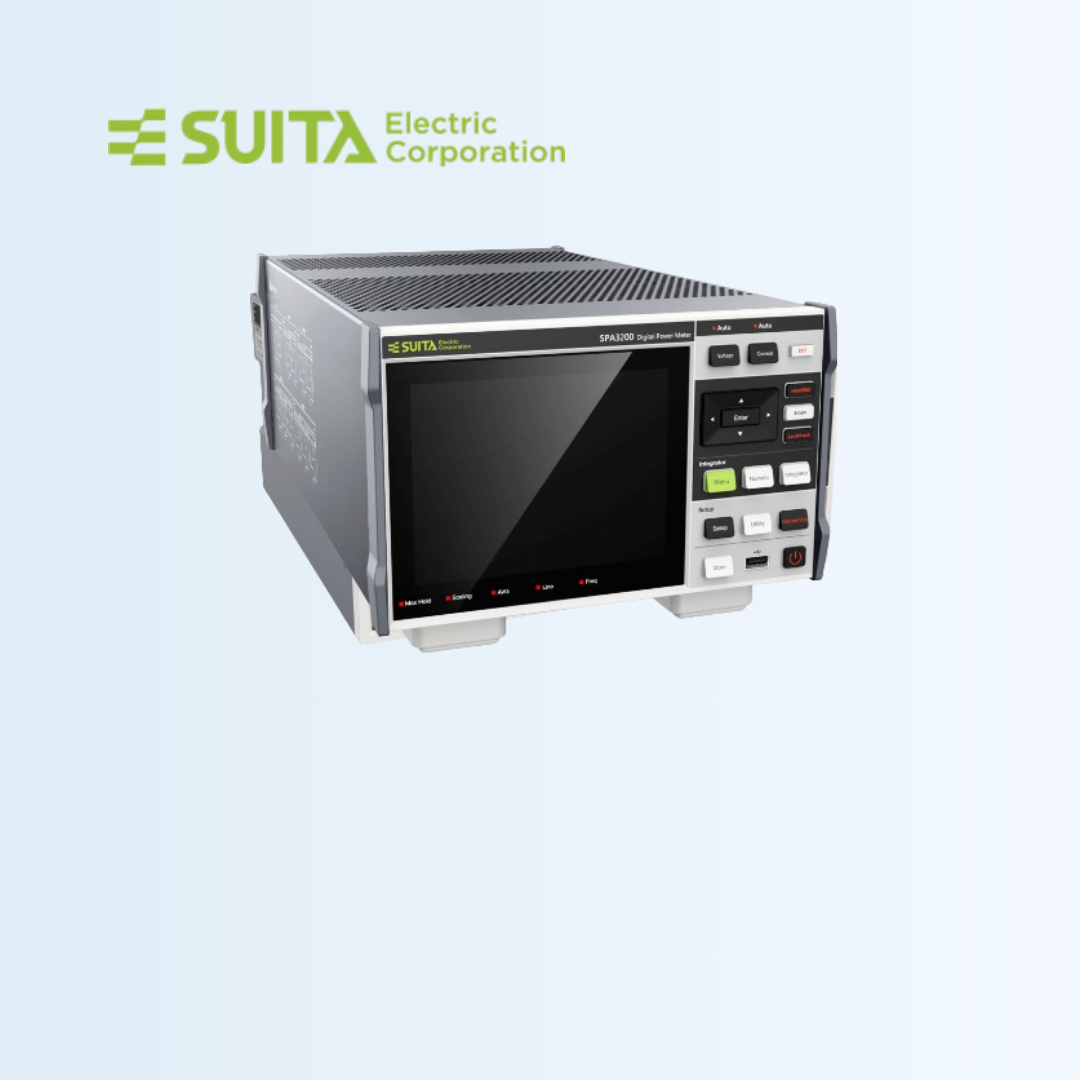

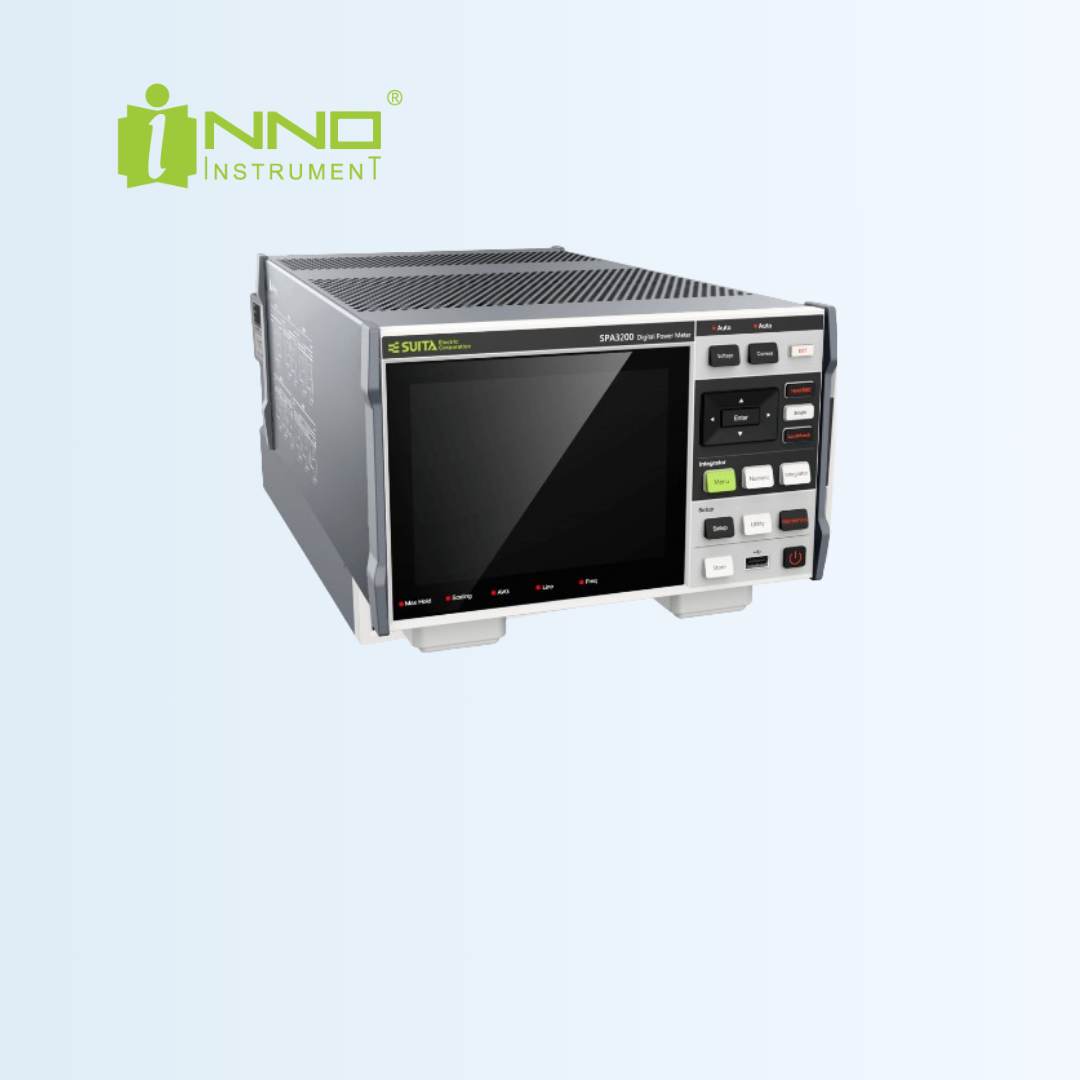

SPA3200 Digital Power Meter

3-channel Digital Power Meter with LCD Touchscreen

SPA3200 Digital Power Meter has multiple measurement channels and wide current range which can measure voltage, current and power consumption of the measured devices with high power and precision. The semi-rack design makes it suitable for power consumption test bench and automated assembly line testing.

The LCD touchscreen ensures clear pixel representation, vibrant colors, and realistic images.
SPA3200 Digital Power Meter can measure all AC, DC parameters.
SPA3200 enables users to save configuration files, facilitating the swift loading of previously saved configurations.
SPA3200 supports a variety of computation functions, enabling the display of efficiency, peak factors, arithmetic operation results, and average active power.
SUITA PA Viewer is a PC application software that allows users to connect their devices to a PC through a network interface, enabling remote control from the PC.

Measurement Accuracy : ± (0.1% of reading + 0.05% of range)
Voltage range : 15V - 1500V
Current Range : 1A - 50A
Measurement Bandwidth : DC, 0.5Hz-100KHz
Resolution : 16 bit
Channels : 3
Internal Storage : 4 GB
Programming and Interfaces :USB, Ethernet, RS-232, GPIB (optional), D/A output
