Choose the Scope that's right for you
| Product Series | Frequency Range | Amplitude Indicators Range | SSB Phase Noise | Modulation Function | Modulation Type | Pict. |
|---|---|---|---|---|---|---|
| DSG800 Series | 9kHz~1.5/3GHz | -110 dBm~+13 dBm | <-105dBc/Hz | AM/FM/Øm/Pulse | Analog Modulation | |
| DSG800A Series | 9kHz~2.1/3.6GHz | -110dBm~+13dBm | <-112 dBc/Hz | AM/FM/ØM/Pulse/IQ | Analog/Digital modulation | |
| DSG3000 Series | 9 kHz~3/6 GHz | -130 dBm~+13 dBm | <-110 dBc/Hz | AM/FM/ØM/Pulse/IQ | Analog & Digital modulation | |
| DSG3000B Series | 9 kHz to 13.6 GHz | -130 dBm~+27 dBm | <-116 dBc/Hz | AM/FM/ØM/Pulse/IQ | Analog & Digital modulation |

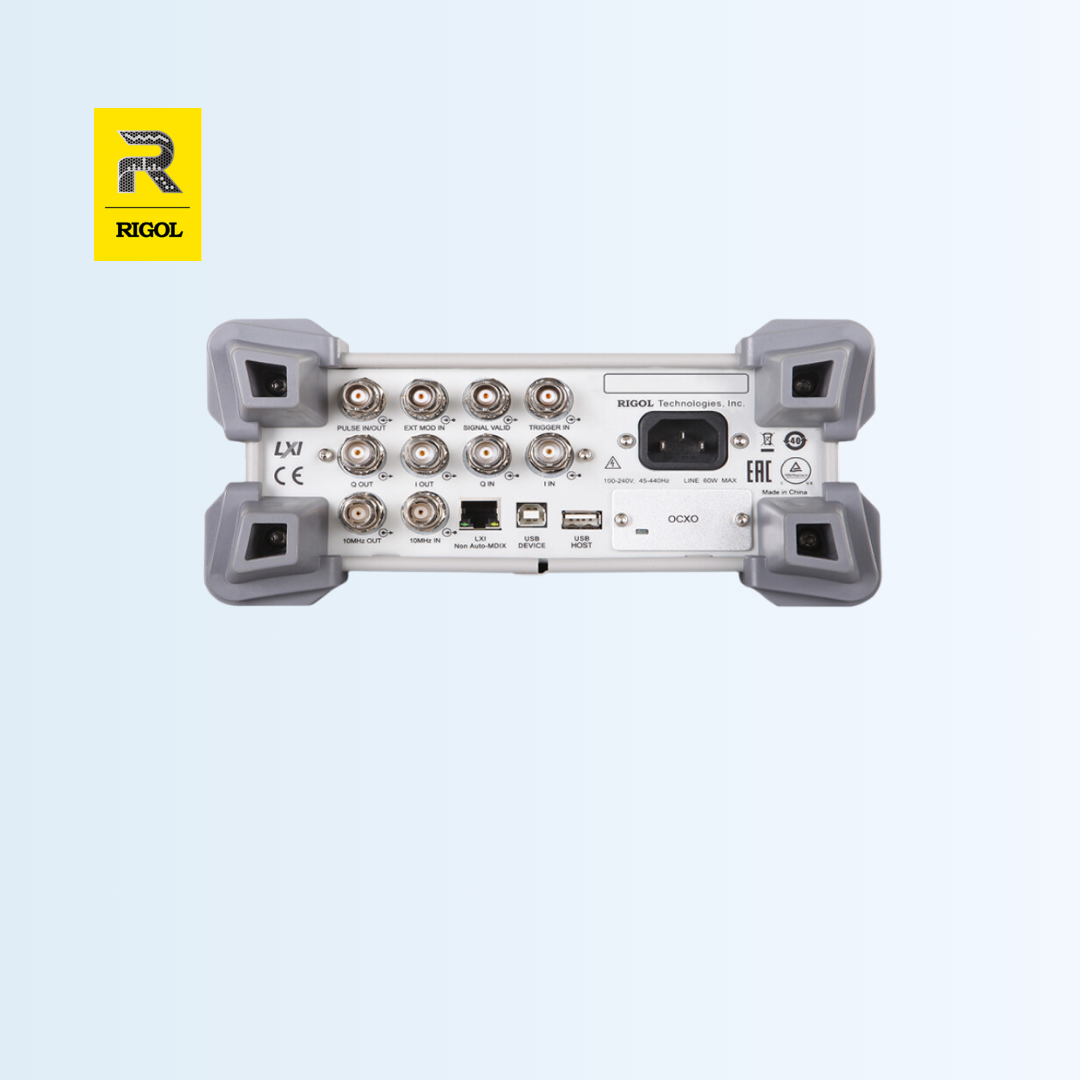

RF Signal Generators
The DSG800 delivers outstanding performance in a class of economical RF signal sources with full frequency and power sweep capability, as well as AM/FM/ØM analog modulation and powerful pulse modulation. Compared to similar products, the DSG800 has the smallest footprint, light weight and superior portability, making it the perfect choice for educational laboratories, industrial production lines, development and research applications.
.png)
.png)

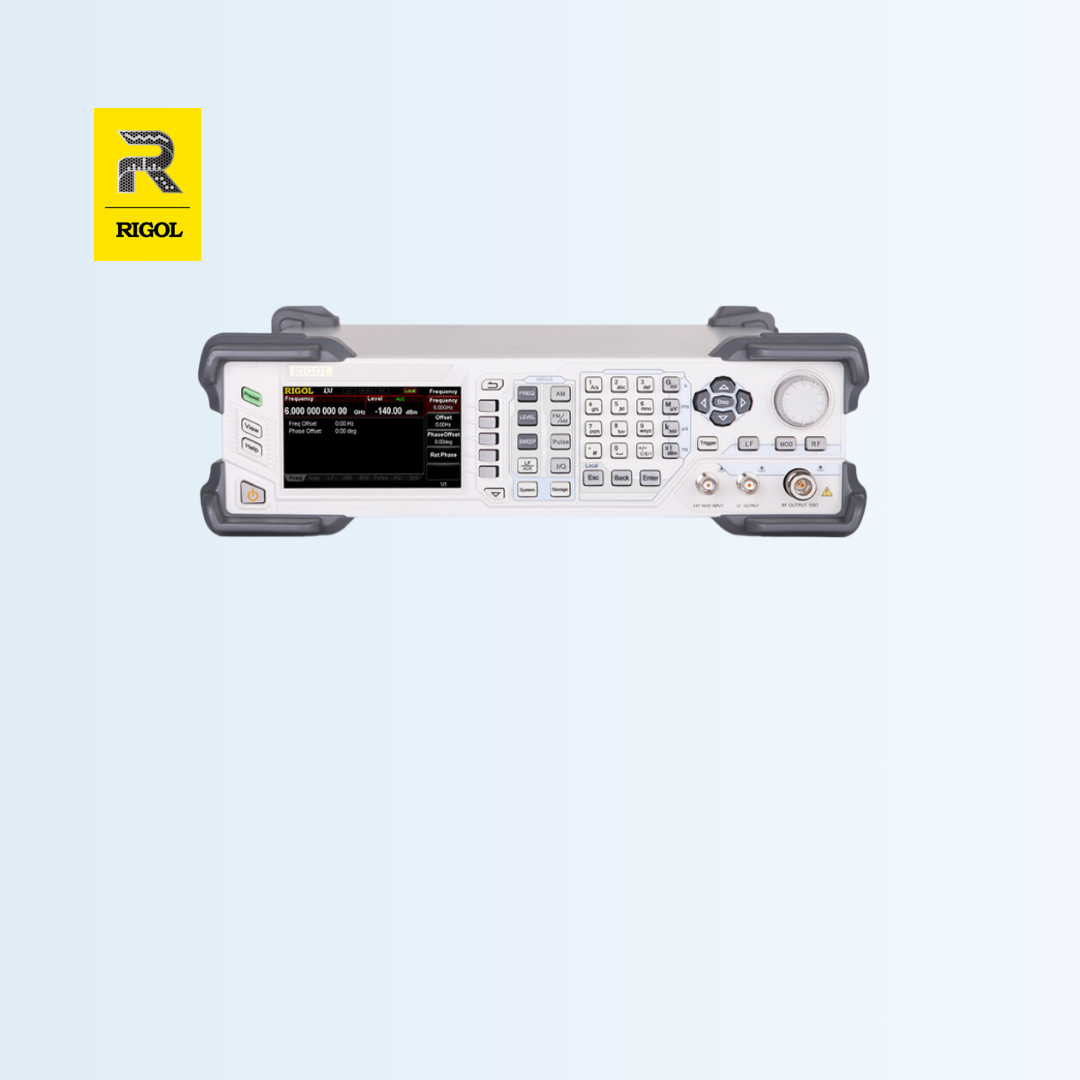

RF Signal Generators
The DSG3000 Series offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output. The DSG3060 has a maximum frequency of 6 GHz. Featuring a high signal purity with phase noise measuring <-110dBc/Hz@20kHz (typical) and a wide output range of -130dBm to +25dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available.
.png)
.png)

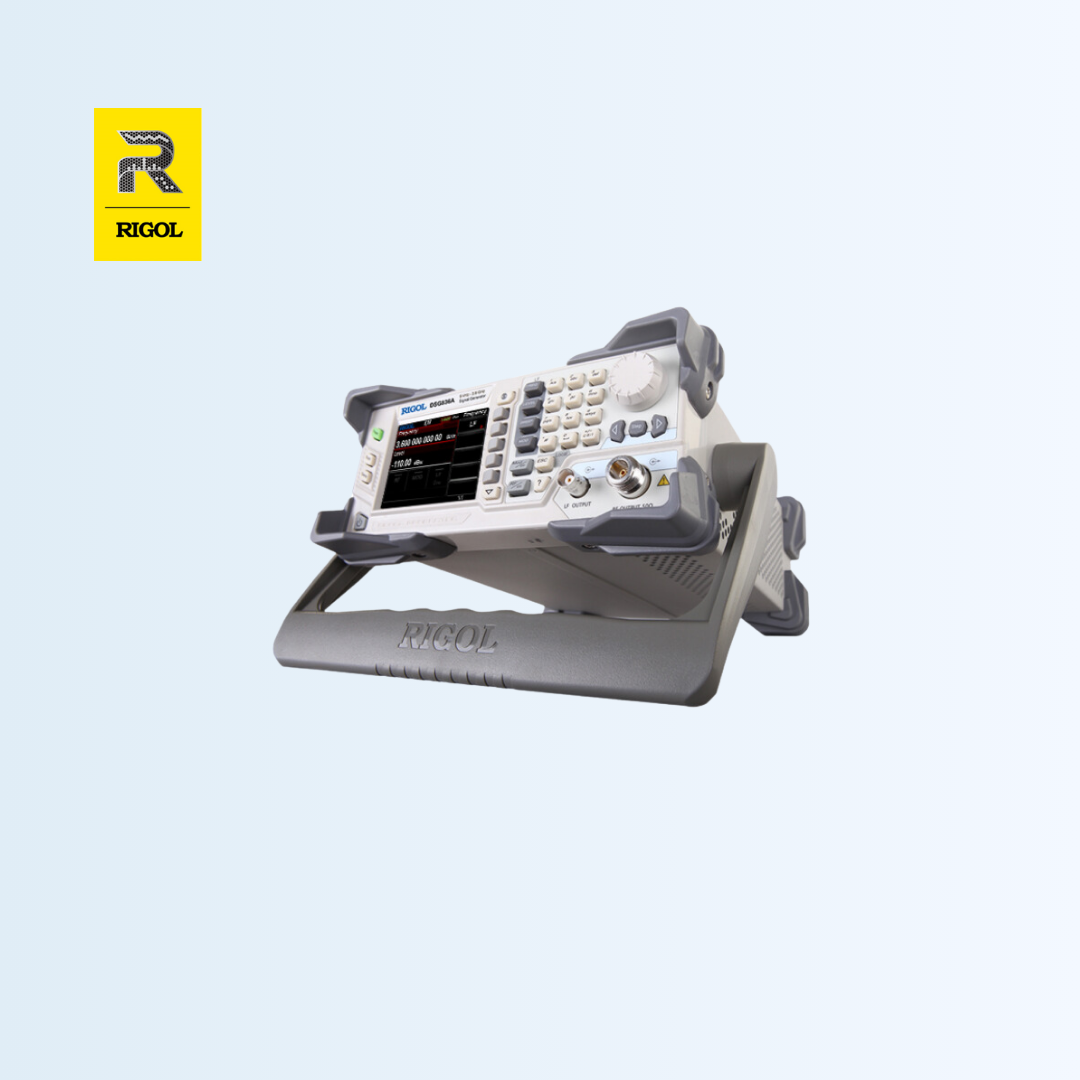

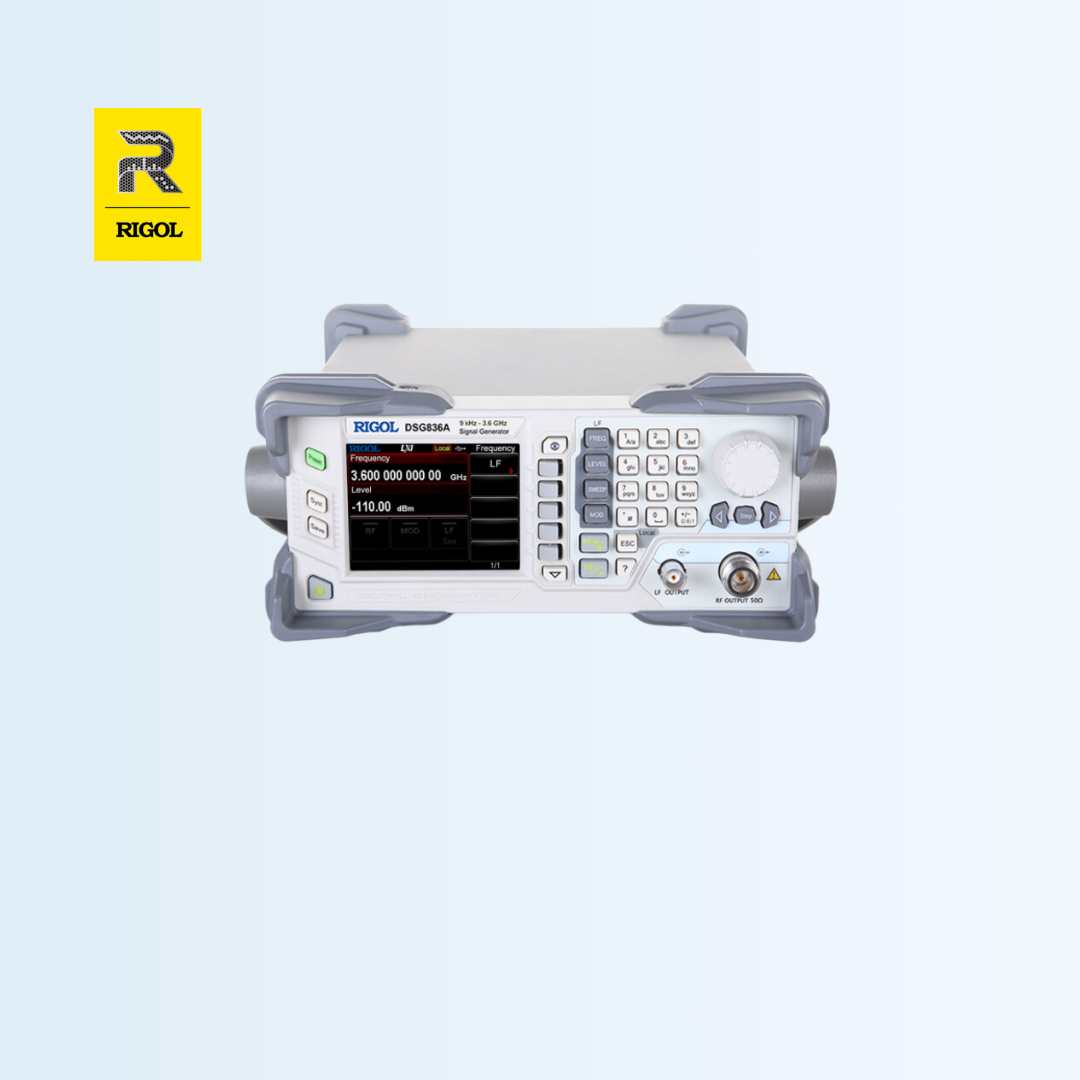

RF Signal Generators
The DSG800A delivers outstanding performance in the same class of economical RF signal sources with full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and newly added IQ modulation. Compared to similar products, the DSG800A has the smallest footprint, light weight and superior portability, making it an excellent choice for educational laboratories, industrial production lines, development and research applications.

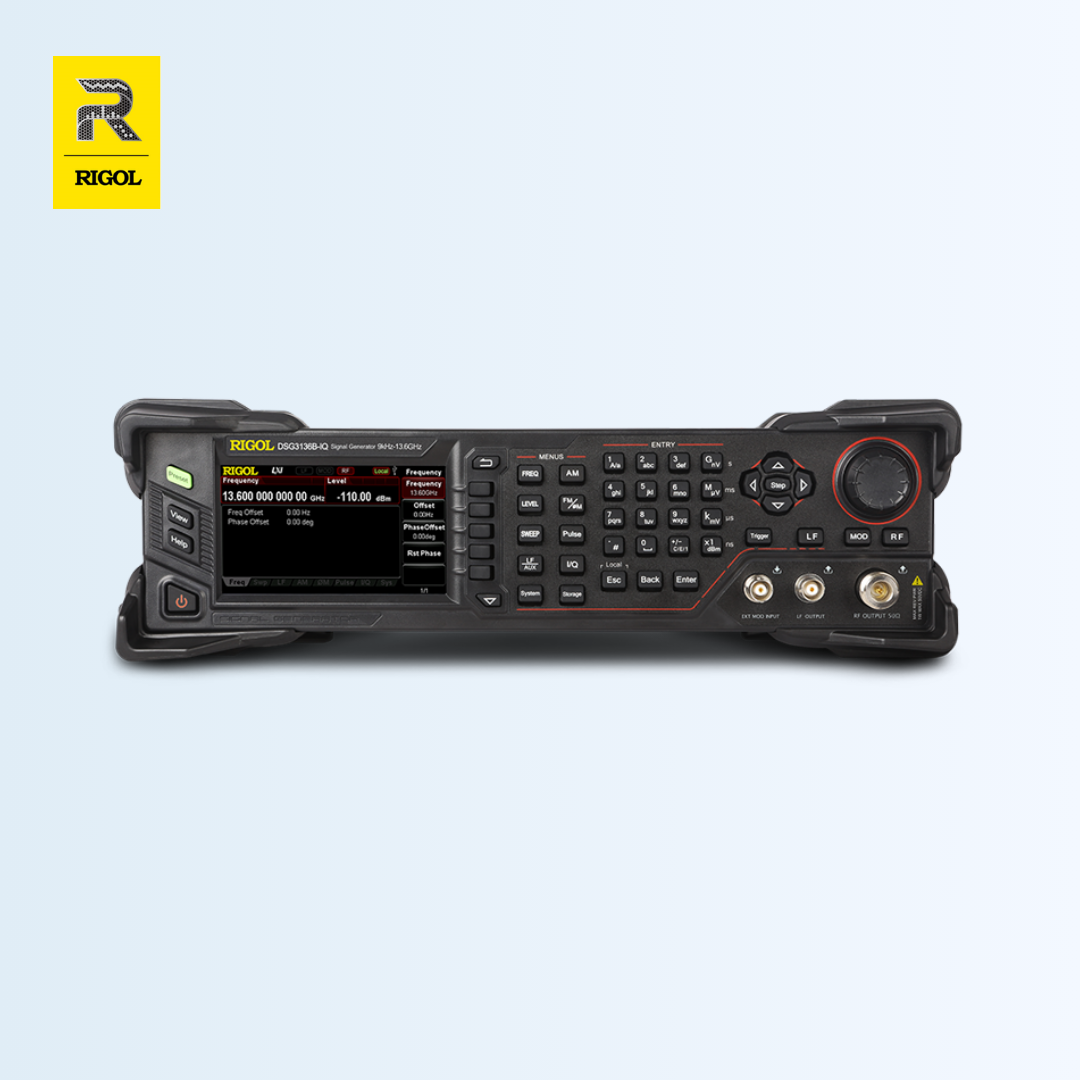

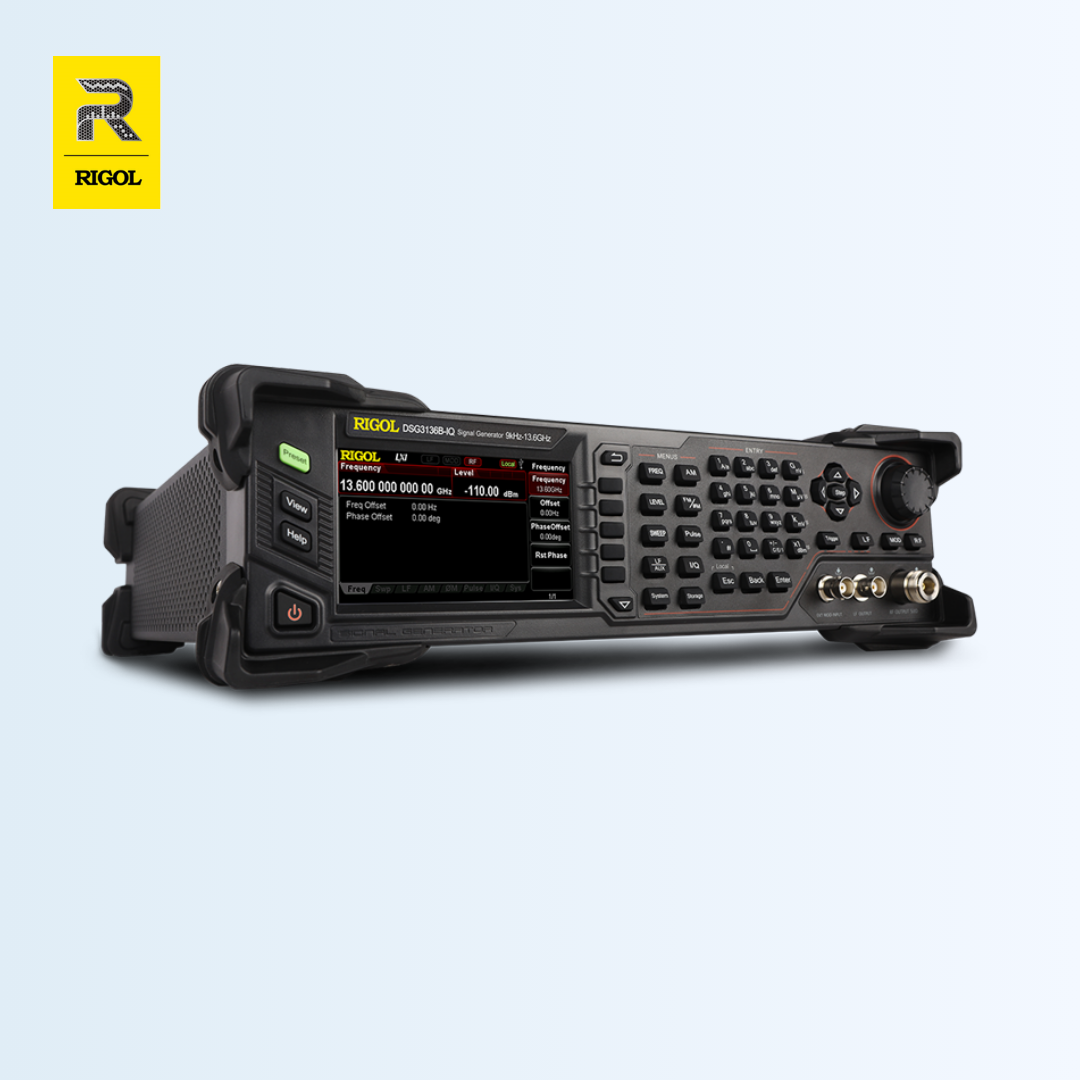

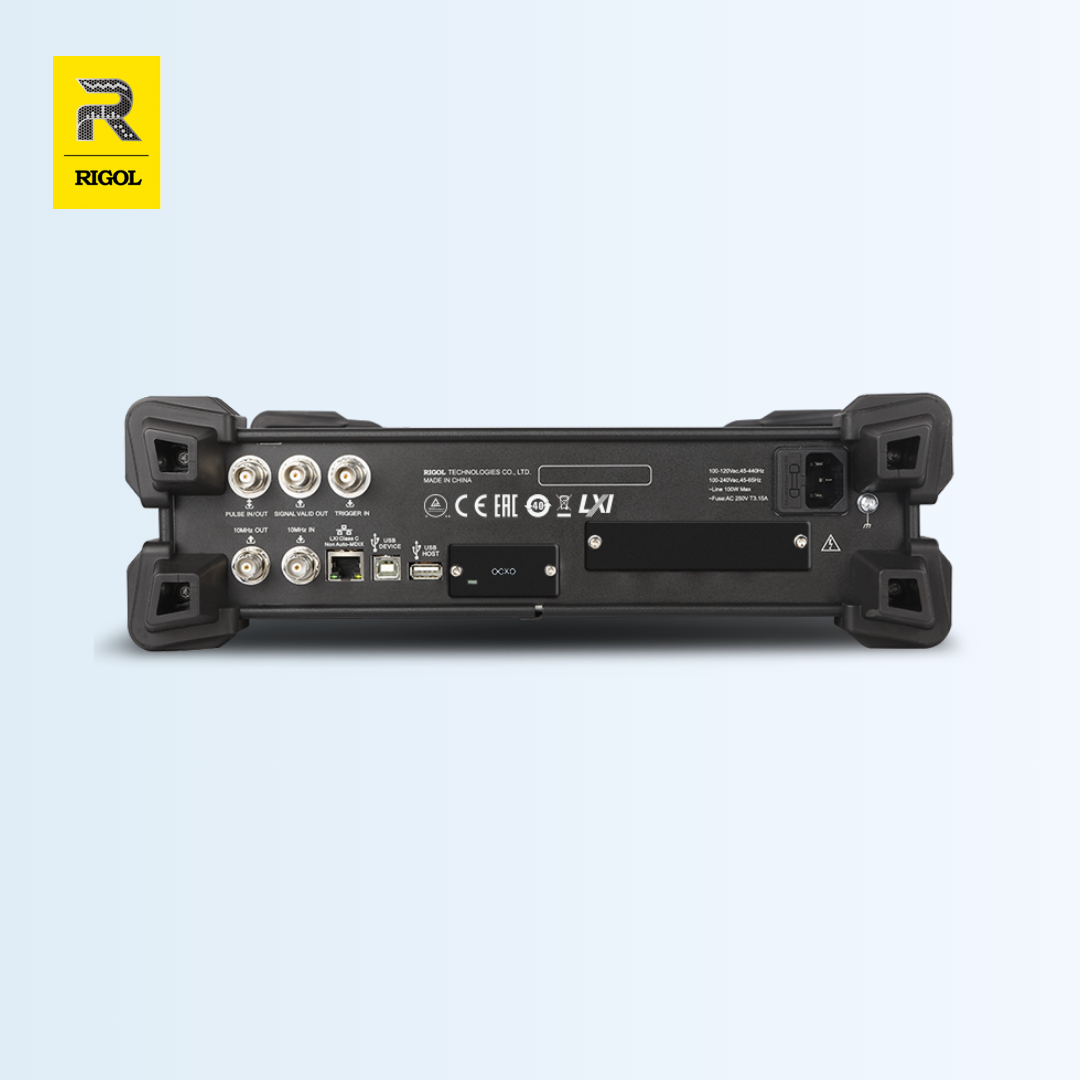

RF Signal Generators
The DSG3000B Series offers continuous wave high power carriers up to 13.6 GHz, standard AM/FM/ØM analog modulation up to 3.6 GHz, and I/Q modulation and I/Q baseband output up to 6.5 GHz on the models ending in "IQ". The DSG3065B has a maximum frequency of 6.5 GHz and the DSG3136B outputs all the way to 13.6 GHz. Featuring a high signal purity with phase noise measuring <-116dBc/Hz@20kHz (typical) and a wide output range of -130dBm to +25dBm, the DSG3000B RF signal generator has optional pulse modulation and pulse train generation
